2TC14-10 Circuit Breaker

Part#: 2TC14-10 NSN: 5925-01-086-3310

About this product 10 amp. * Manufacturer certifications are shipped with your order FREE of charge

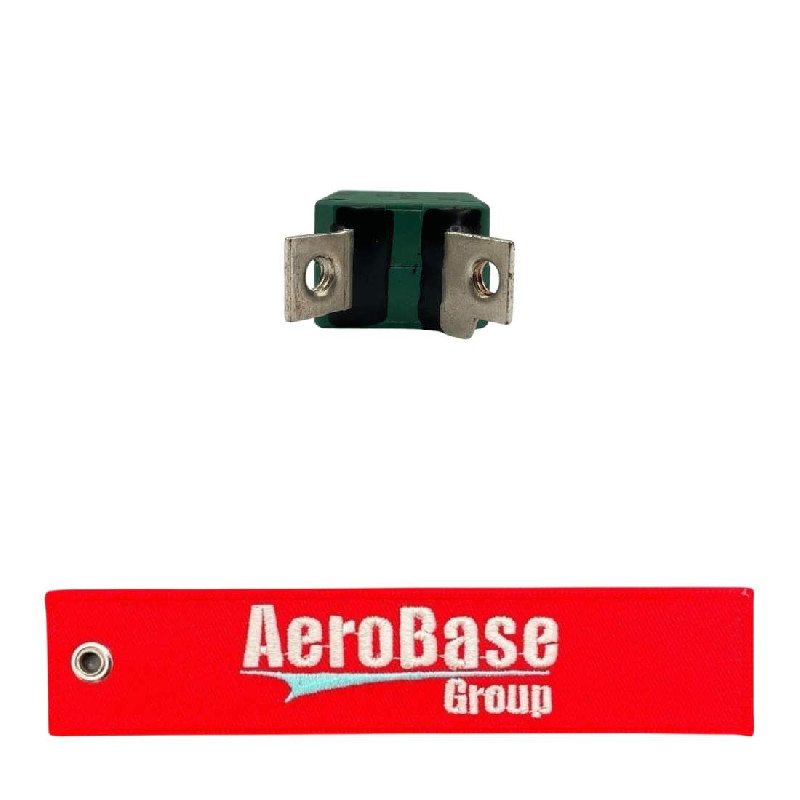

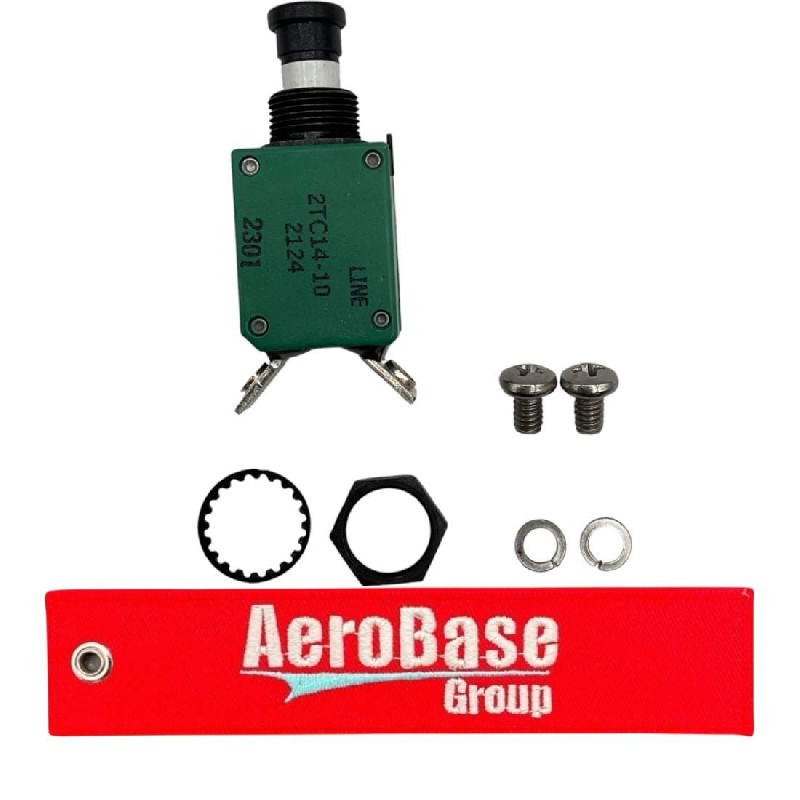

Product Images
2TC14-10 2TC14-10 2TC14-10 2TC14-10 2TC14-10 2TC14-10

Product Details

Part Number or Model 2TC14-10
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150 single location
Trip Release Method Thermal single location
Trip Release Characteristic Time delay single location
Trip Release Ambient Tempurature Rating 25 degree celsius nominal single location
Trip Delay Time In Seconds Per Rated Continuous Current 4 minimum at 200 pct single location and 20.000 maximum at 200 pct single location
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Thread Size 0.469 inches
Pole Quantity 1
Reset Method Manual
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab with screw
Mounting Surface To Terminal End Distance 1.218 inches nominal
Operating Voltage Type And Rating Per Pole In Volts 120 ac single location and 30 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000 ac single location and 5000 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Maximum Continuous Load Current Rating Per Pole 10 amperes ac single location and 10 amperes dc single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Internal Trip Release Configuration Series trip single location
Inclosure Protection Type For Which Designed Vibrationproof and corrosion resistant and humidity proof and explosion proof
Fragility Factor Moderately rugged
Frequency In Hertz 400 single location
Circuit Protection Type Overcurrent single location
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Body Width 0.75 inches nominal
Bushing Length 0.250 inches nominal
Body Style Single pole type
Body Length 1.781 inches maximum
Actuator Position Designation At pole one
Actuator Function Trip-reset
Unpackaged Unit Weight 26 grams

Add to Cart

Up to quantity 10 ships same day.
buy now $64.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-086-3310
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99
