2TC14-20 Circuit Breaker

Part#: 2TC14-20 NSN: 5925-01-126-2379

About this product 2TC14-20 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

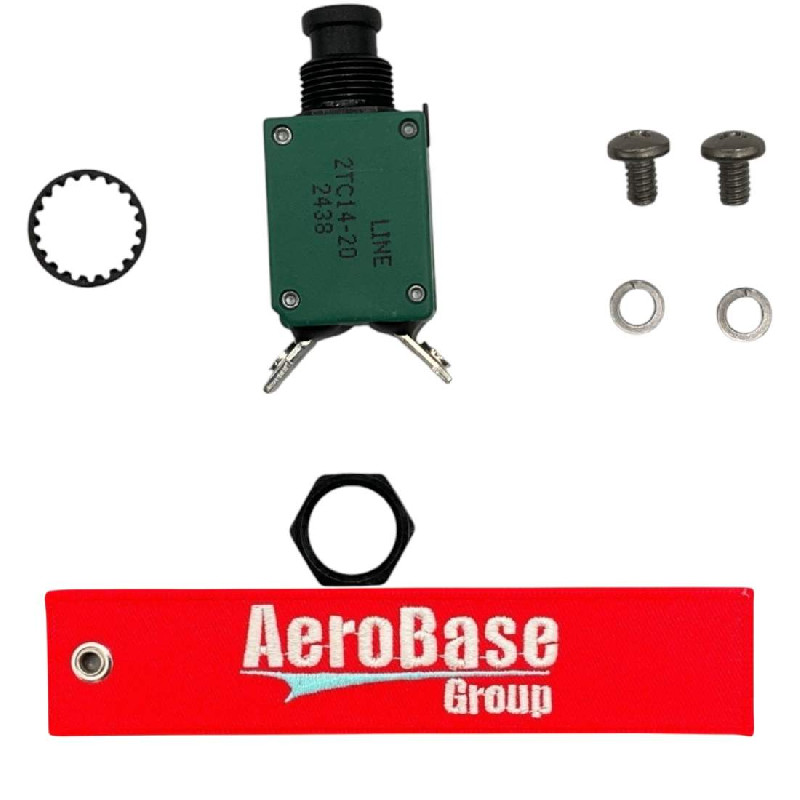

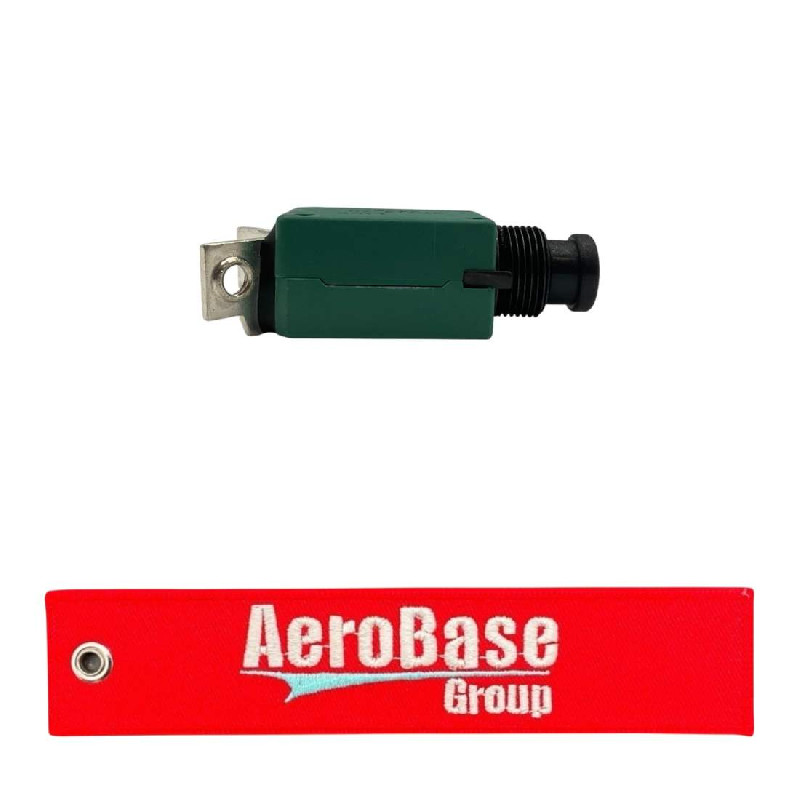

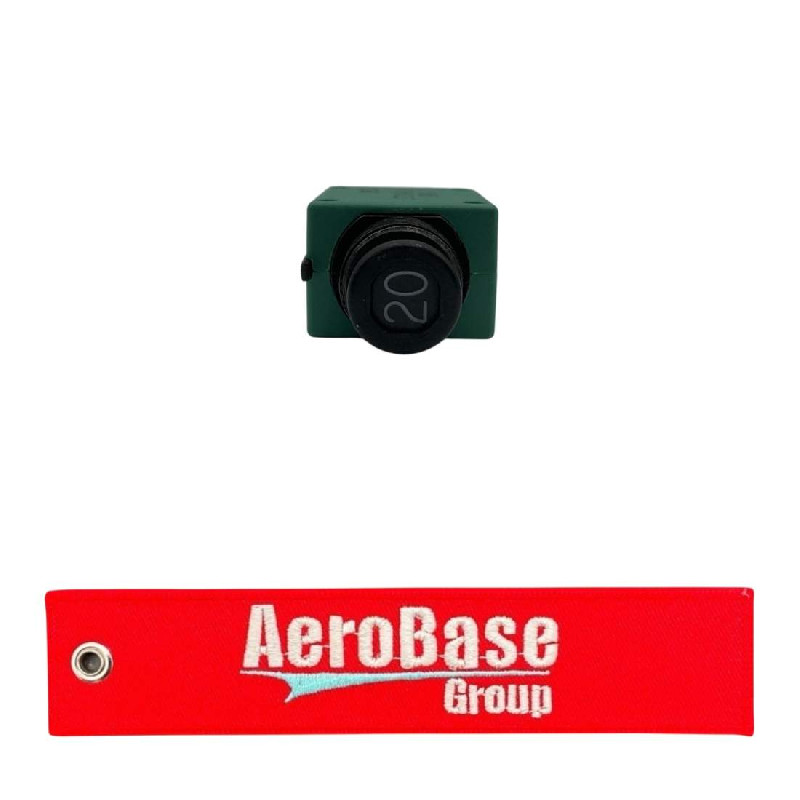

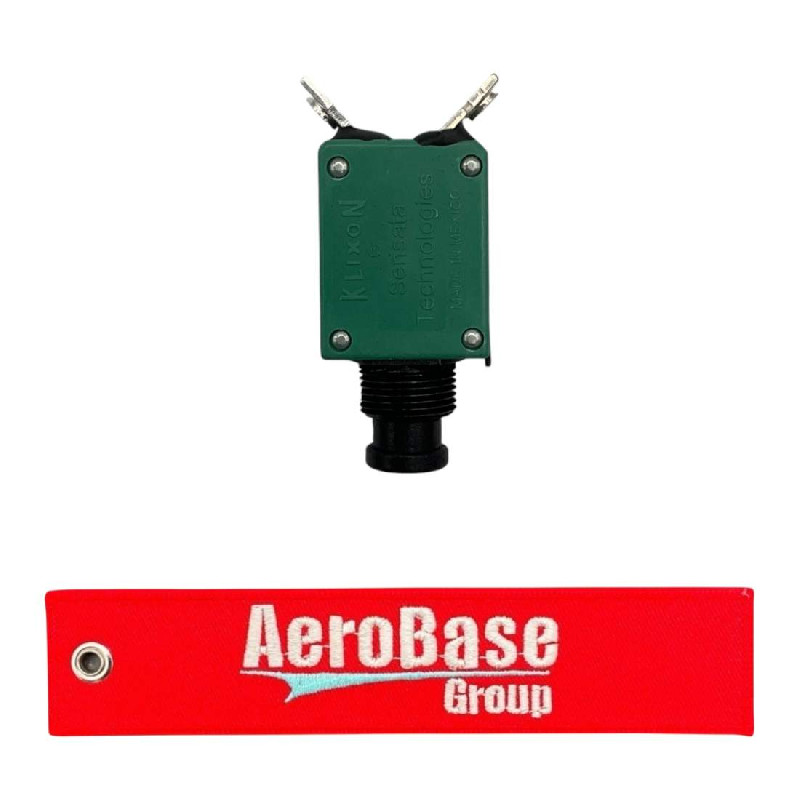

2TC14-20 2TC14-20 2TC14-20 2TC14-20 2TC14-20

Product Details

Part Number or Model 2TC14-20
Description Circuit Breaker
Schedule B Class 8536200040
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Body Length 1.781 inches maximum
Body Style Single pole type
Body Width 0.750 inches nominal
Bushing Length 0.250 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Circuit Protection Type Overcurrent single location
Fragility Factor Moderately rugged
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Corrosion resistant and vibrationproof
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 20.0 amperes ac single location and 20.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000.0 ac single location and 5000.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.218 inches nominal
Thread Size 0.469 inches
Nonturn Device Length 0.047 inches nominal
Nonturn Device Location At 12 oclock
Nonturn Device Radius 0.375 inches nominal
Nonturn Device Width 0.078 inches nominal
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac single location and 30.0 dc single location
Pole Quantity 1
Reset Method Manual
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab with screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 4.000 minimum at 200 pct single location and 20.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150.0 single location
Unpackaged Unit Weight 62.0 grams
