Electrical Parts and Components

straight plug assembly with a 25 shell size

MS3102E16-12P is a MIL-DTL-5015 circular electrical box-mount receptacle featuring shell and insert arrangement 16-12 with one silver-plated solder pin contact. The connector uses an aluminum-alloy shell with olive-drab cadmium finish, normal N polarization, threaded coupling and environmentally sealed construction for aerospace, military, industrial and other harsh-environment electrical applications. MS3102E16-12P mates with the MS3106E16-12S straight plug configuration.

MS3116E14-12SX is a MIL-DTL-26482 Series I environment-resistant straight circular cable plug featuring shell size 14, a 14-12 insert arrangement, 12 female socket solder contacts and X alternate insert positioning. The bayonet-coupled connector is designed for military, aerospace and other high-reliability electrical interconnect applications. MS3116E14-12SX is associated with NSN 5935-00-233-4002 and cross-references to Amphenol P/N PT06E-14-12SX.

M83723/95W1005N is a MIL-DTL-83723 Series III straight electrical plug connector featuring a shell size 10 aluminum body with olive-drab cadmium finish, 10-05 insert arrangement and five removable Size 20 female crimp contacts. The connector features threaded self-locking coupling, N normal polarization and fluid-, corrosion- and environmentally resistant construction for high-reliability aerospace and military electrical applications. M83723/95W1005N is associated with NSN 5935-01-161-3053 and mates with M83723/85W1005N.

M24308/2-1F is a MIL-DTL-24308 9-position female D-subminiature electrical receptacle designed for military, aerospace and high-reliability electronic applications. The shell-size 1 connector features two rows of removable crimp socket contacts, gold-plated copper-alloy contacts and a cadmium-finished steel shell. The standard configuration accepts 20–26 AWG wire and is rated up to 7.5 amperes per contact. M24308/2-1F is associated with NSN 5935-01-553-6612 and FSC 5935.

988-9389-001 is a Rockwell Collins DAGR SMA connector spinner used with RF SMA connections on the Defense Advanced GPS Receiver. The spinner provides improved grip for installation and removal of the RF connector and is cataloged under NSN 5935-01-534-6963. Government records identify the item as “Spinner, Connector – SMA Type” under FSC 5935.

D38999/26WA98AN is a MIL-DTL-38999 Series III straight self-locking electrical plug body featuring a shell size 9 aluminum housing with olive-drab cadmium finish, 9-98 insert arrangement and three cavities for Size 20 removable crimp pin contacts. The connector features N normal polarization, EMI/RFI shielding and environmentally resistant threaded coupling for high-reliability aerospace and military electrical applications. D38999/26WA98AN is supplied without contacts, accepts three standard Size 20 pin contacts and is associated with NSN 5935-01-309-5526.

D38999/26WA98AD is a MIL-DTL-38999 Series III straight electrical plug housing featuring a shell size 9 aluminum body with olive-drab cadmium finish, 9-98 insert arrangement and three cavities for Size 20 crimp pin contacts. The connector features D alternate keying, threaded self-locking coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace and military electrical applications. Contacts are not included; the standard configuration accepts three M39029/58-363 Size 20 pin contacts.

D38999/26WA98AA is a MIL-DTL-38999 Series III straight electrical plug housing featuring a shell size 9 aluminum body with olive-drab cadmium finish, 9-98 insert arrangement and three cavities for Size 20 crimp pin contacts. The connector features A alternate keying, triple-start threaded self-locking coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace and military electrical applications. Contacts are not supplied with the connector; M39029/58-363 Size 20 pin contacts are compatible with the standard configuration.

D38999/20FJ35PN is a MIL-DTL-38999 Series III wall-mount electrical receptacle featuring a shell size 25 aluminum body with electroless-nickel finish, 25-35 insert arrangement and 128 removable Size 22D gold-plated crimp pin contacts. The connector features N normal keying, threaded coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace, aviation, marine and military electrical applications. D38999/20FJ35PN is associated with NSN 5935-01-611-8095 and mates with the D38999/26FJ35SN straight plug configuration.

D38999/26FA98SA is a MIL-DTL-38999 Series III straight electrical plug connector featuring a shell size 9 aluminum body with electroless-nickel finish, 9-98 insert arrangement and three removable Size 20 gold-plated crimp socket contacts. The connector features A alternate keying, triple-start threaded self-locking coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace, aviation, marine and military electrical applications. D38999/26FA98SA is associated with NSN 5935-01-260-7232 and uses M39029/56-351 Size 20 socket contacts.

D38999/20WB35SN is a MIL-DTL-38999 Series III wall-mount electrical receptacle featuring a shell size 11 aluminum body with olive-drab cadmium finish, 11-35 insert arrangement and 13 removable Size 22D gold-plated crimp socket contacts. The connector features N normal keying, threaded coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace, aviation, military and marine electrical applications. D38999/20WB35SN is associated with NSN 5935-01-251-8043, uses M39029/56-348 socket contacts and mates with D38999/26WB35PN.

D38999/26WB35PN is a MIL-DTL-38999 Series III straight electrical plug connector featuring a shell size 11 aluminum body with olive-drab cadmium finish, 11-35 insert arrangement and 13 removable Size 22D gold-plated crimp pin contacts. The connector features N normal keying, triple-start threaded self-locking coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace, aviation, military and marine electrical applications. D38999/26WB35PN is associated with NSN 5935-01-196-1873 and uses M39029/58-360 Size 22D pin contacts.

M8805/101-013 Switch

M8805/101-019 Switch

1TL1-8 is a Honeywell MICRO SWITCH TL Series environment-sealed SPDT toggle switch designed for military, aerospace and other high-reliability applications. The two-position switch provides one maintained and one momentary ON position and features three screw terminals, a standard round toggle actuator and 15/32-32 threaded panel-mount bushing. The 1TL1-8 is qualified to the MIL-DTL-3950 sealed-toggle-switch specification and directly cross-references to military P/N MS24523-26 and U.S. NSN 5930-00-683-1632.

MS24524-30 is a MIL-DTL-3950 qualified DPST momentary toggle switch designed for military, aerospace and high-reliability electrical applications. The weatherproof, fully enclosed switch features a standard toggle actuator, four screw terminals, threaded 15/32-32 panel-mount bushing and a normally-open double-pole single-throw contact configuration. MS24524-30 is currently associated with NSN 5930-00-588-8305 and cross-references to Honeywell MICRO SWITCH P/N 2TL1-6. Former NSN 5930-00-660-3950 remains a useful legacy procurement reference.

2TL1-6 Toggle Switch

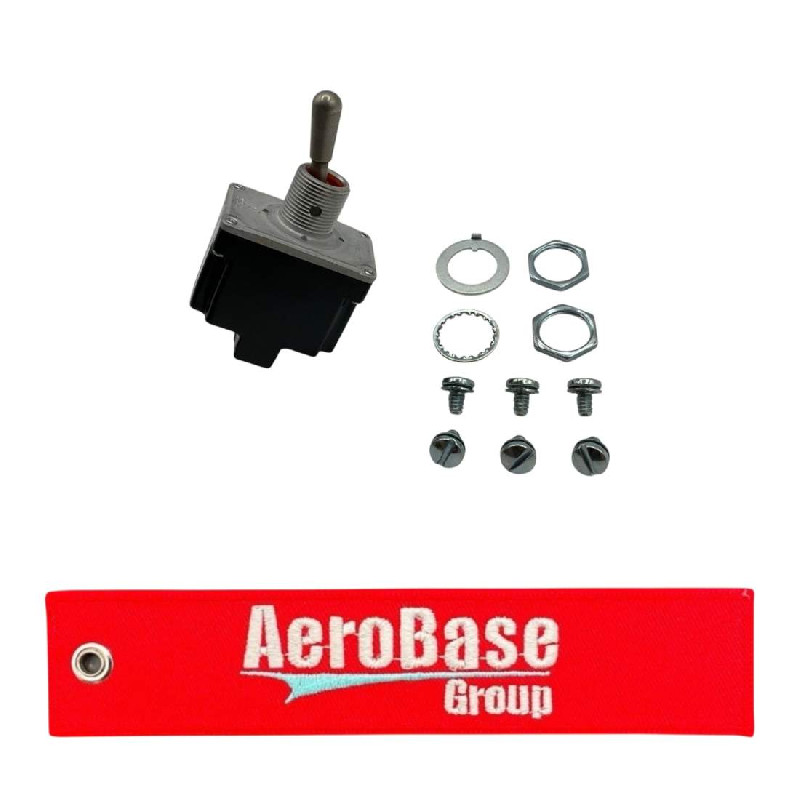

MS24524-33 Toggle Switch

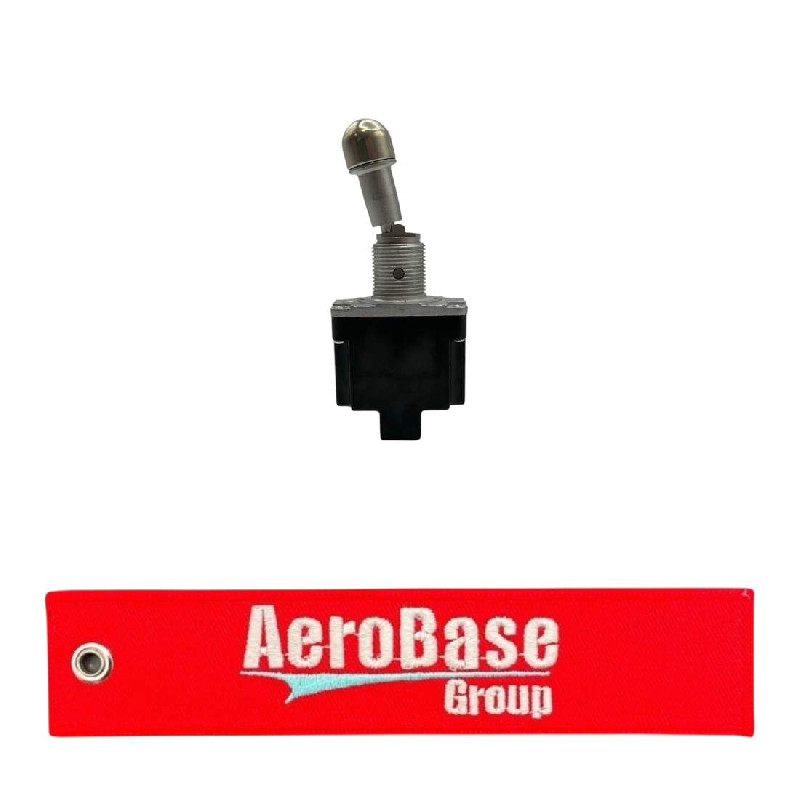

MS24658-23D Toggle Switch

2TL1-72E Toggle Switch

M85049/2914Z02 Backshell

M85049/2924W04C Backshell

M85049/109-08KW01-6D Pre-Shield Cable Adapter

M85049/109-16KN08-6 Pre-Shield Cable Adapter

M85049/38S13W Strain Relief Clamp

M85049/90-25W03 Backshell

M85049/109-14KW03-6D Pre-Shield Cable Adapter

M85049/109-14KW04-6D Pre-Shield Cable Adapter

M85049/2924N06 Backshell

M85049/38S21N Strain Relief Clamp

M85049/2922N05C Backshell

M85049/2924N06C Backshell

M85049/38S11N is a Size 11 straight self-locking strain-relief backshell designed for MIL-DTL-38999 Series III and IV circular connectors. Manufactured from aluminum with an electroless-nickel finish, the backshell features an M15×1 connector interface, approximately 0.153–0.234-inch cable entry, integrated cable clamp and self-locking construction. M85049/38S11N conforms to the SAE AS85049/38 accessory family for high-reliability aerospace and military connector installations.

M85049/90-15W03 Backshell

M85049/88-15W03 Backshell, Straight self-locking banding backshell adapter for MIL-DTL-38999 Series III and IV circular connectors, featuring an aluminum-alloy body with olive-drab cadmium finish.

7274-4-5 Circuit Breaker

W31-X2M1G-5 Circuit Breaker

MS25244-25 is a 25-amp, single-pole, trip-free thermal circuit breaker designed for military and aerospace electrical circuit protection. Manufactured to the MS25244/SAE AS25244 specification, this push-pull circuit breaker features manual reset, time-delay thermal tripping, a hermetically sealed metal case, and a 15/32-32 threaded panel-mount bushing. Rated for 115 VAC at 400 Hz and 28 VDC applications, MS25244-25 is associated with NSN 5925-00-805-2833 and cross-references to Sensata/Klixon 3TC7-25 and Mechanical Products 700-001-25.

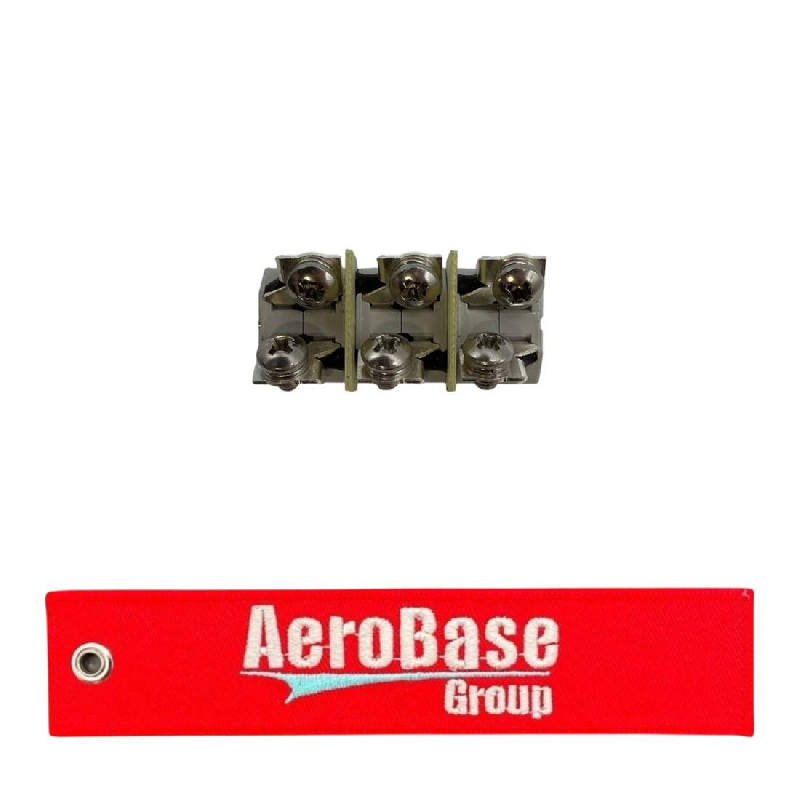

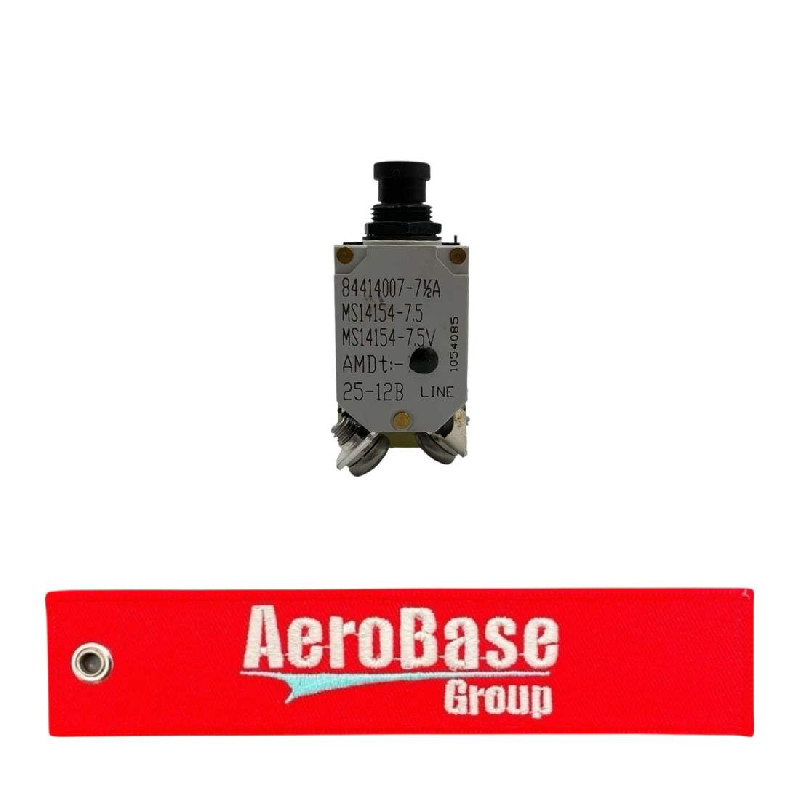

MS14154-7.5 Circuit Breaker

3SB4-1-B Simulator Circuit Breaker

7274-69-3 Circuit Breaker

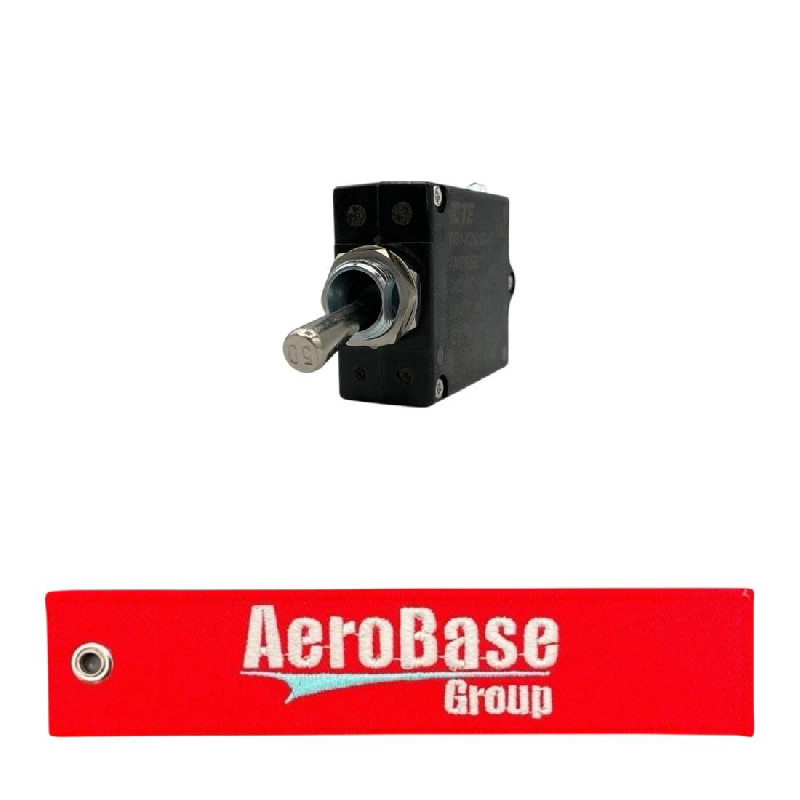

W31-X2M1G-50 Circuit Breaker

7274-11-25 is a Sensata Technologies/Klixon 7274-series 25-amp aircraft circuit breaker designed for electrical circuit and wiring protection in aerospace and airborne equipment. The single-phase, panel-mounted breaker features a long-case configuration, 15/32-inch mounting bushing and trip-free reset mechanism. The 7274-11-25 is rated for 28 VDC and 120 VAC at 400 Hz and belongs to the MIL-C-5809 aircraft circuit-breaker family.

7274-2-20 Circuit Breaker, 5925-01-603-6209

3TC15-35 Circuit Breaker

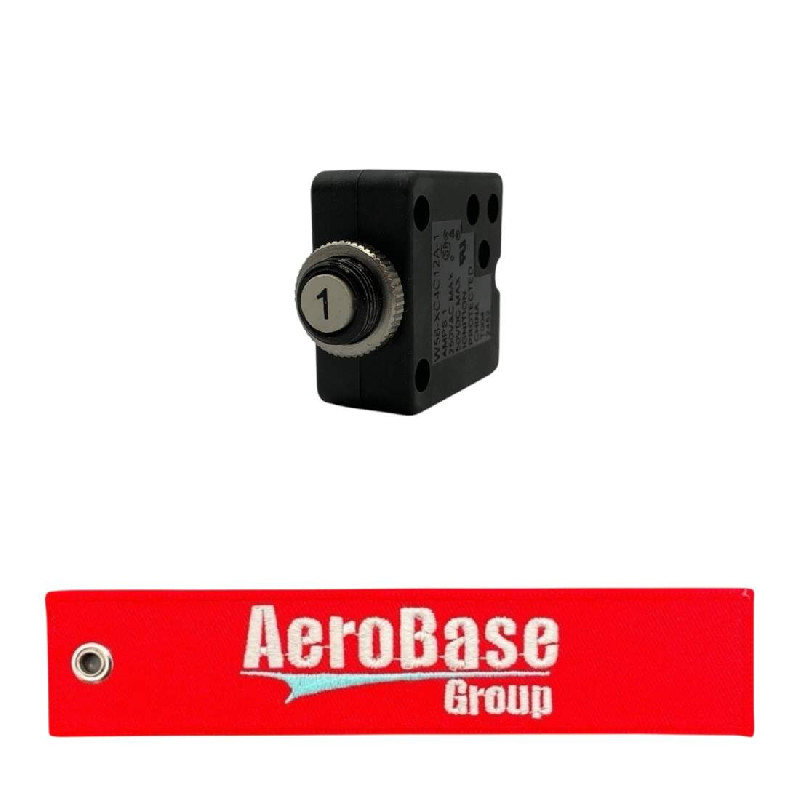

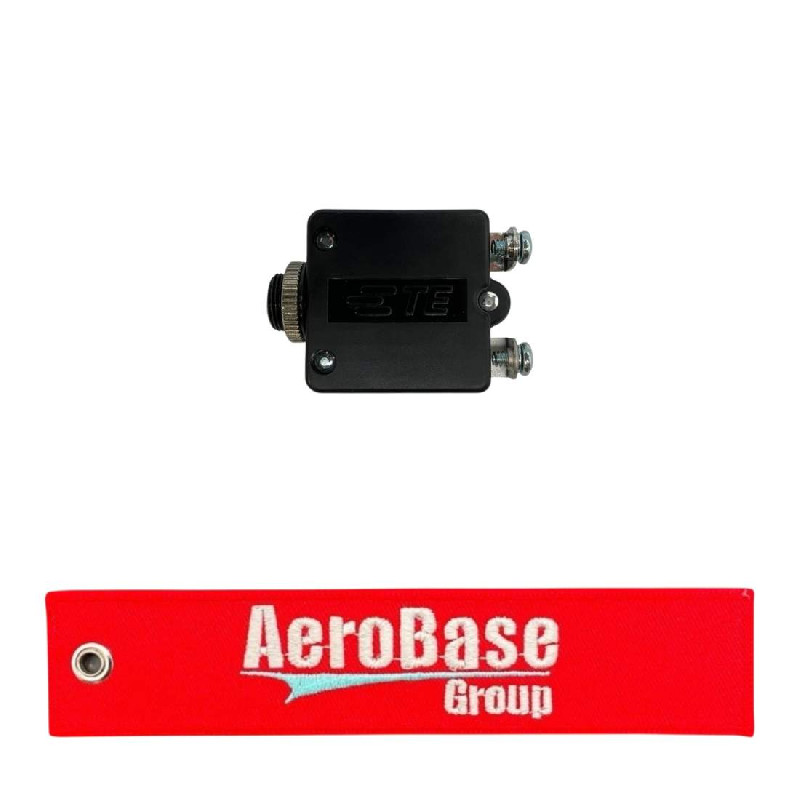

W58-XC4C12A-1 Circuit Breaker

W58-XC4C12A-10 Circuit Breaker

Current Rating: 60 Amps Phase: 1-Phase / Single-Phase Interrupting Capacity: 6,000 AmpsMilitary Specification: MIL-C-5809 Qualified / MS25361-60V Temperature Range: Ambient compensated from -40°C to +70°C (-40°F to +160°F) Design Feature: Trip-free design (prevents overriding the system if a fault is active)Environmental Resistance: High vibration resistance (10G) and mechanical shock resistance (30G)

7277-1-3 Circuit Breaker, 3 Amp, single-phase, miniature thermal

7277-1-5 Circuit Breaker

M83413/8-C012PP Bonding Jumper

M83413/8-C013PQ Bonding Jumper

M83413/8-C019PP Bonding Jumper

M83413/8-C020PP Bonding Jumper

M83413/8-D005BB Bonding Jumper

M83413/8-D006BB Bonding Jumper

M83413/8-D007BB Bonding Jumper

M83413/8-D008CC Bonding Jumper

M83413/8-D010BB Bonding Jumper

M83413/8-D008BB Bonding Jumper

M83413/8-D010CC Bonding Jumper

M83413/8-D018BB is a 12 AWG copper electrical bonding jumper assembly manufactured to the MIL-DTL-83413/8 military specification. The Type D configuration features a flexible, tin-coated stranded copper conductor and crimp-attached quick-disconnect connection for aerospace and military electrical bonding applications. The assembly utilizes 259 individual copper strands and is identified by the D018BB length and terminal configuration. M83413/8-D018BB belongs to the military bonding-jumper family historically associated with MS25083-3. This configuration is not designated as fuel-tank compatible or lightning-tested under the Type D specification.

Type: MIL-DTL-83413 electrical jumper / grounding strap assembly Application: Connecting aircraft parts for continuous grounding conduction paths

Item Type: Bonding Jumper / Electrical Lead (MIL-DTL-83413/8 series) Function: Used in aerospace and military applications to connect different parts of an aircraft, establishing a continuous path for grounding and conduction. Design/Material: Part of the M83413/8 copper/insulated or uninsulated lead assemblies featuring terminal lugs on each end for stud mounting

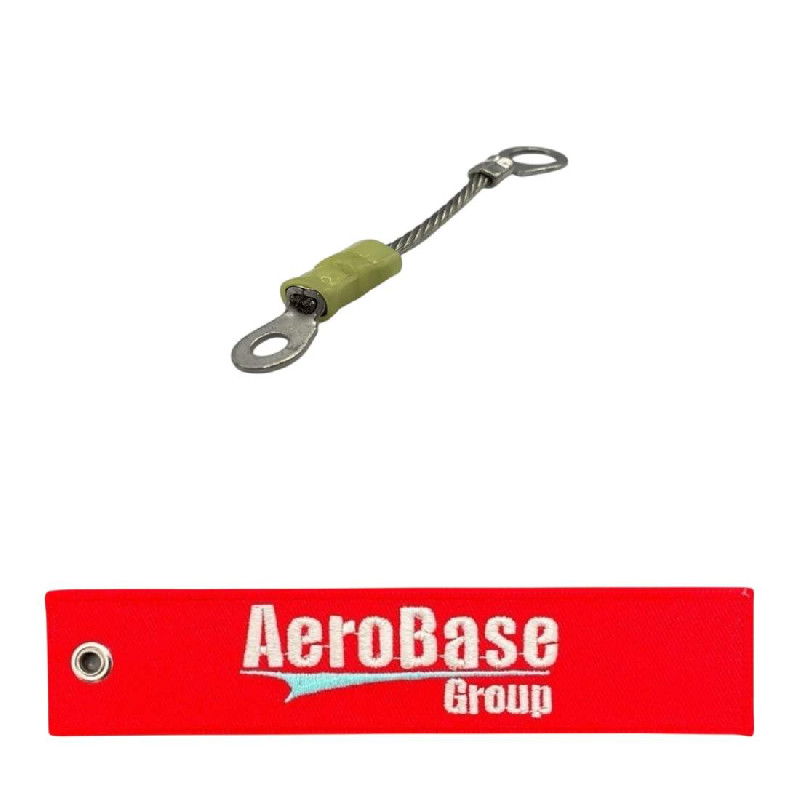

M83413/8-A008AI Bonding Jumper

859-042-01 is a Glenair size 8 electrical connector sealing boot designed to provide environmental wire sealing in aerospace and military circular connector assemblies. Part of Glenair's 859-042 series, this grommet follower accommodates cable outside diameters ranging from 0.090 to 0.130 inches (2.3–3.3 mm) and is installed behind compatible coaxial, twinaxial and triaxial contacts. The boot is used with selected Glenair SuperNine and Mighty Mouse connector configurations, including MIL-STD-1553 data bus contacts designed for M17/176-00002 twinaxial cable. Glenair 859-042-01 is manufactured under CAGE 06324 and is available as a replacement sealing component for compatible connector assemblies.

B-040-20-N is a TE Connectivity / Raychem B-040 Series coaxial SolderSleeve termination designed for electrical and shield termination applications in aerospace, defense, and other high-reliability wiring systems. The assembly features a pre-installed 20 AWG stranded lead, transparent-blue heat-shrink sleeve, and heat-activated solder connection. Measuring approximately 1.181 inches long, B-040-20-N accommodates coaxial cable jackets measuring approximately 0.173 inches in diameter and center conductors ranging from 0.012 to 0.060 inches. The device provides splash protection and supports operating temperatures up to 150°C. B-040-20-N is also identified by TE Connectivity part numbers 440727-000 and 8-1193313-3.

5211001303S is Federal-Mogul/Bentley-Harris EXPANDO 686 DM 13-0 black expandable braided electrical sleeving designed for aerospace wire-harness and cable-bundle protection. The 1/2-inch nominal flexible sleeve expands to accommodate approximately 6-22 mm bundle diameters and provides abrasion, flame and fluid resistance for demanding aircraft and military electrical applications. It operates from -70C to +200C and is associated with NSN 5970-01-682-5894. Sold by the foot in 10-foot sections.

M85049/52-1-14N Electrical Connector Cable Clamp

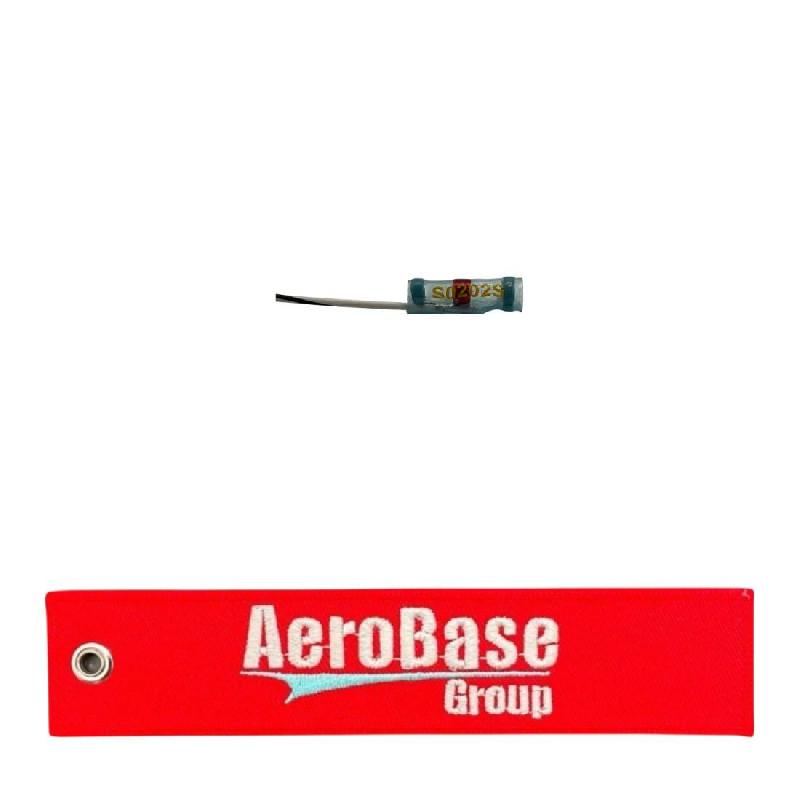

M83519/2-2 Conductor Splice

MS90451-7132 Incandescent Lamp

4596 Incandescent Lamp

598-8D40-107F LED Light

558-0202-027F LED Panel Mount Indicator

594-2401-013F is a Dialight 594 Prism Series yellow surface-mount LED circuit-board indicator designed for compact PCB status and indication applications. The single-level right-angle indicator features a 1.6 mm diffused round lens, 590 nm typical dominant wavelength, 48 mcd typical luminous intensity at 20 mA, 1.8 V typical forward voltage and a 120-degree viewing angle. The 594-2401-013F supports automated surface-mount placement and reflow processing.

249-7841-0937-574 Panel Mount Indicator

177-0933-003 LED Lens, Amber

Dialight 850-0005 is a light lens used in military and aerospace electrical lighting applications. Manufactured by Dialight Corporation under CAGE 72619, the component is cataloged under NSN 6220-01-662-1475 and FSC 6220, Electric Vehicular Lights and Fixtures. Government catalog records also associate NSN 6220-01-662-1475 with reference part numbers 3052434 and 3052434-001.

Red color, length: 1.75", diameter: 0.65", T-1 3/4

Red lens

Yellow color, length: 1.75, diameter: 0.65, T-1 3/4

Screw in type of mounting, clear color, length: 1.75", diameter: 0.65

804-1710-0331-504 LED Panel Indicator

676-2311-110F Panel Mount Indicator

MS25237-328 Lamp

MS25225-3 Switch Guard

MS25225-1 Switch Guard

MS25224-3 Switch Guard

MS25214-2 Switch Guard

AC rated heavy duty toggle Switch, MIL-S-83731 with lever seal, 1PST, ON-OFF-NONE. Formerly known as AN3021-10.

P8-4000003 Switch

AC rated Heavy Duty toggle Switch, military purpose - MIL-S-83731 with lever seal, screw Terminals, 20 amps at 28VDC, 20 amps at 115VAC/60Hz, 20 amps at 115VAC/400Hz, 2PST, ON - OFF - ON circuitry. Formerly known as AN3027-2 & ST52K.

Micro Switch NT Series Toggle Switch, DPDT - 2 pole, 2 position (Momentary ON - ON, Screw Terminal, Standard Lever, UL/CSA L192, IP67/IP68 sealed, thermoplastic case. MICRO Switch NT Series toggle Switches meet the need for a rugged, cost-effective toggle Switch. Quality construction features include a seal between the toggle lever and bushing, and between the cover and case. These Switches can be used where Panels are subject to splashes, hosedowns, or outdoor environments. The "Easy-Start" threaded bushing enables quick alignment of mounting nut to decrease the chance of cross threading. The Panel stand-off with O-ring feature available on some listings, eliminates the need for behind-the-Panel Hardware, provides uniform Panel height, and provides a Panel to cover seal.

2042104-2 Switch, FAA 8130-3 tag

Micro Switch TL Series Toggle Switch, Single Pole Double Throw (SPDT) 2 Position (On - On), Screw Terminals, Locking Lever (Locked Out Of Center Position) With White Button Cap, FAA-PMA Approved.

Micro Switch TW Series Toggle Switch, DPDT - 2 pole, 3 position (ON-OFF-ON), Solder Terminal, Standard Lever, Military Part Number MS27719-21-1. Ampere/Voltage Range (Resistive Load): 0.1 A to 5.0 A at 0.5 Vdc to 28 Vdc; 0.1 A to 5.0 A at 0.5 Vac to 115 Vac. UL/CSA L117: 5 A at 125 Vac. Qualified to MIL-DTL-83731.

Micro Switch TL Series Sealed Toggle Switch, DPDT - 2 pole, 3 position (ON-OFF-ON), Solder Terminal, Standard Lever, Military Part Number MS27735-21. Ampere/Voltage Range (Resistive Load): 0.75 A at 115 Vdc; 0.5 A to 20 A at 0.5 Vdc to 28 Vdc; 0.5 A at 250 Vdc; 0.5 A to 15 A at 0.5 Vac to 277 Vac. UL/CSA L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L".

Micro Switch TW Series Toggle Switch, SPST - 1 pole, 2 position (OFF-ON), Solder Terminal, Standard Lever, Military Part Number MS27718-22-1. Ampere/Voltage Range (Resistive Load): 0.1 A to 5.0 A at 0.5 Vdc to 28 Vdc; 0.1 A to 5.0 A at 0.5 Vac to 115 Vac. UL/CSA L117: 5 A at 125 Vac. Qualified to MIL-DTL-83731.

Micro Switch TL Series Toggle Switch, SPST - 1 pole, 2 position (OFF-ON), IWTS (14-16 Gage) Terminal, Standard Lever, bushing 15/32 inch, Military Part Number MS27722-22. Amp/voltage range: 0.5 A to 15 A at 0.5 Vac to 277 Vac; 0.5 A to 20 A at 0.5 Vdc to 28 Vdc; 0.5 A at 250 Vdc; 0.75 A at 115 Vdc. UL/CSA: L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L".

91-1515-1 Switch Left hand

MS24266R14T7S6 Electrical Plug Connector

MS24266R14T7SN Electrical Plug Connector

MS24266R16B24SN Electrical Plug Connector

MS24266R12B12SN Electrical Plug Connector

MS24266R14B7SN Electrical Plug Connector

D38999/26WE6PN is a MIL-DTL-38999 Series III straight electrical plug connector featuring a size 17 aluminum shell with olive-drab cadmium finish, 17-6 insert arrangement, six removable Size 12 gold-plated crimp pin contacts and N normal keying. The environmentally resistant, EMI/RFI-shielded connector uses threaded self-locking coupling and is designed for high-reliability aerospace, aviation, military and marine electrical applications. D38999/26WE6PN is associated with NSN 5935-01-186-2235 and uses six M39029/58-365 pin contacts.

D38999/26WD19PN is a MIL-DTL-38999 Series III straight electrical plug connector featuring a size 15 aluminum shell with olive-drab cadmium finish, 15-19 insert arrangement, 19 removable Size 20 gold-plated crimp pin contacts, N normal keying and threaded self-locking coupling. NSN 5935-01-170-9119. The environmentally resistant, EMI/RFI-shielded connector is designed for high-reliability aerospace, aviation, military and marine electrical applications.

D38999/26JA35HN is a MIL-DTL-38999 Series III straight electrical plug connector featuring a size 9 composite shell with olive-drab cadmium finish, 9-35 insert arrangement, six removable gold-plated crimp pin contacts, N normal keying and self-locking threaded coupling. NSN 5935-01-494-8512. This environmentally resistant, EMI/RFI-shielded circular connector is designed for high-reliability aerospace, defense and military electrical applications. M81969/14-01 Matching Tool, M39029/107-620 Matching Contact

D38999/26KB35SA is a MIL-DTL-38999 Series III straight electrical plug connector featuring a size 11 passivated stainless-steel shell, 11-35 insert arrangement, 13 removable size 22D gold-plated socket contacts, A keying and threaded self-locking coupling. NSN 5935-01-385-6682. Service Class K construction provides firewall, corrosion-resistant and EMI/RFI performance for high-reliability aerospace, aviation and military electrical applications.

D38999/26WH55SN is a MIL-DTL-38999 Series III straight electrical plug connector featuring a size 23 aluminum shell with olive-drab cadmium finish, 23-55 insert arrangement, 55 removable size 20 gold-plated socket contacts, N normal keying and threaded self-locking coupling. NSN 5935-01-345-8572. The environmentally resistant, EMI-shielded connector is designed for high-reliability aerospace, aviation, military and marine electrical applications.

D38999/26JE35PN is a MIL-DTL-38999 Series III straight electrical plug connector with a composite shell, olive-drab cadmium finish, 17-35 insert arrangement, 55 removable gold-plated crimp pin contacts, N keying and threaded coupling. NSN 5935-01-412-0696. Designed for harsh-environment aerospace, aviation and military electrical applications.

M39012/01-0504 Electrical Plug Conenctor

MS24266R22T55SN Electrical Plug Connector

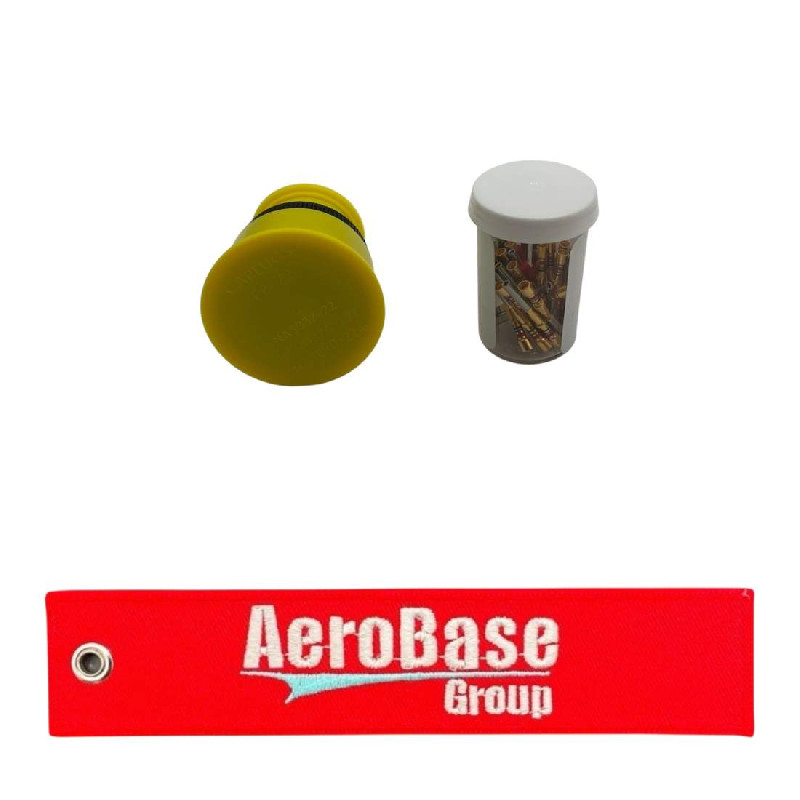

MS24266R20B41SN Electrical Plug Connector

MS24266R18B31P6 Electrical Plug Connector
