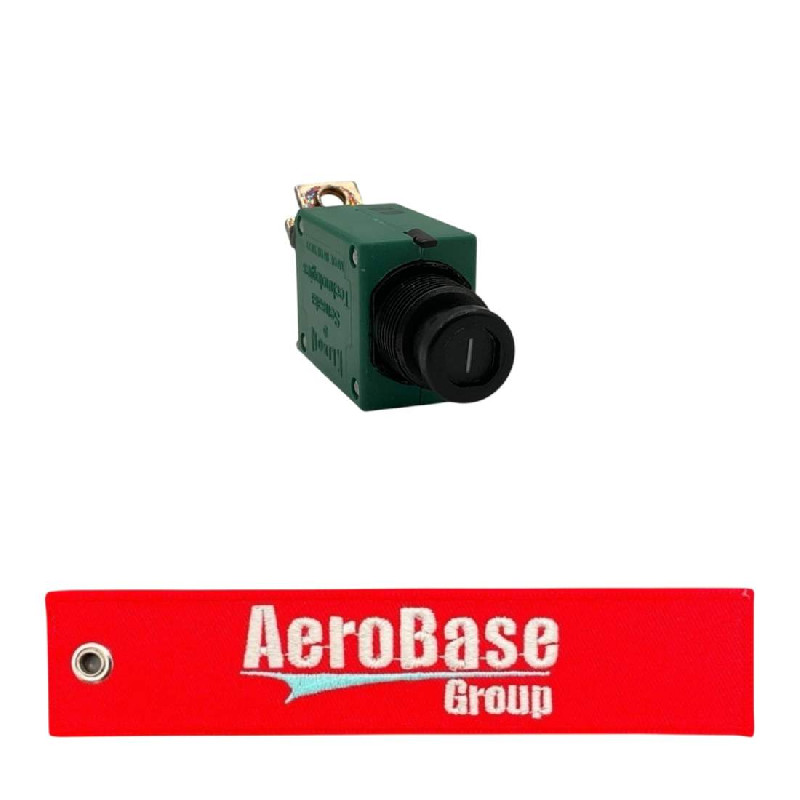

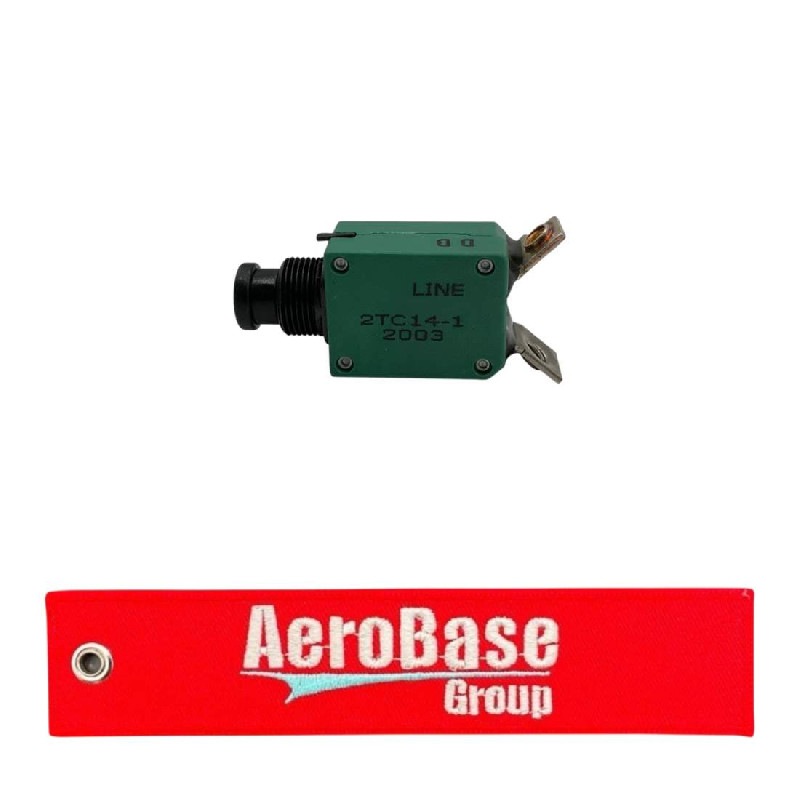

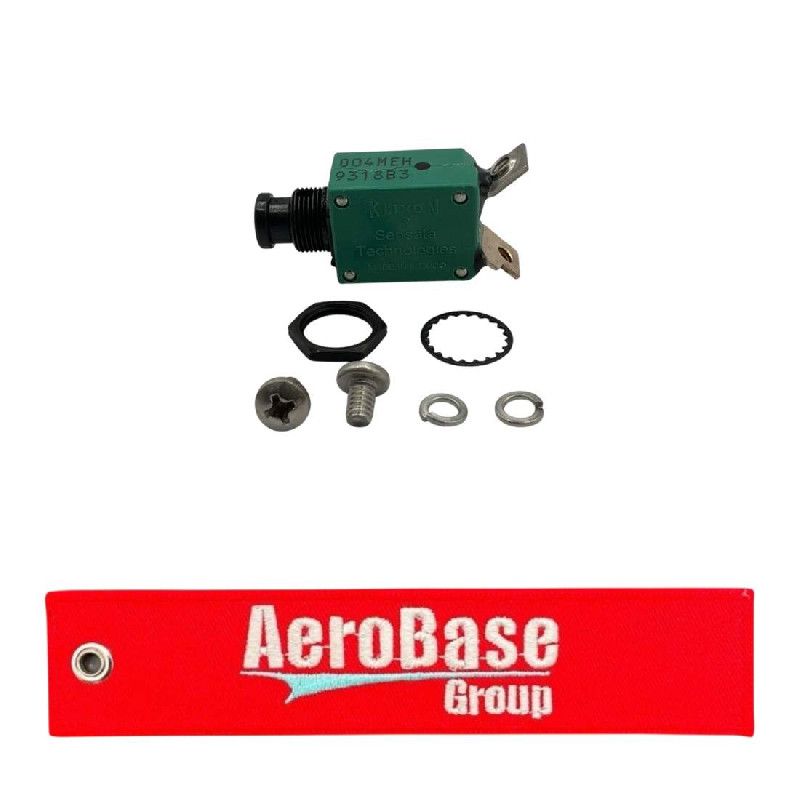

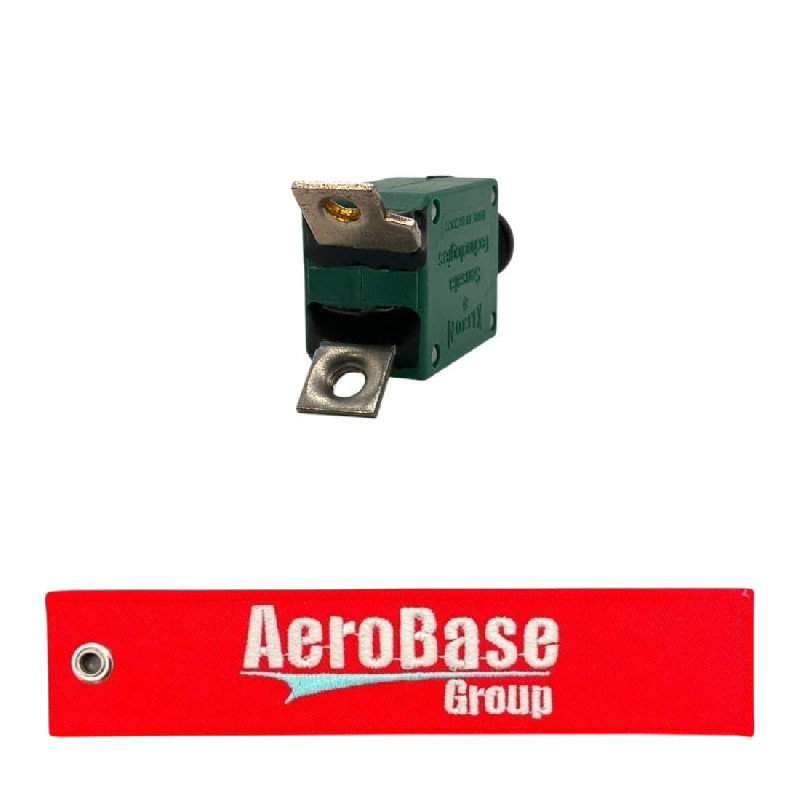

2TC14-1 Circuit Breaker

Part#: 2TC14-1 NSN: 5925-01-126-2378

About this product 1 amp, single phase, circuit breaker. Aircraft use. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
2TC14-1 2TC14-1 2TC14-1 2TC14-1

Product Details

Part Number or Model 2TC14-1
Description Circuit Breaker
Schedule B Class 8536200040
ECCN (Export Control Class) EAR99
Thread Size 0.469 inches
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Reset Method Manual
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab with screw
Pole Quantity 1
Operating Voltage Type And Rating Per Pole In Volts 120 ac single location and 30 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.218 inches nominal
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000 ac single location and 5000 dc single location
Maximum Continuous Load Current Rating Per Pole 1 amperes ac single location and 1 amperes dc single location
Manual Actuator Type And Quantity 1 push-pull
Main Contact Tripping Mechanism Type Trip free
Internal Trip Release Configuration Series trip single location
Inclosure Protection Type For Which Designed Corrosion resistant and vibrationproof
Fragility Factor Moderately rugged
Frequency In Hertz 400 single location
Circuit Protection Type Overcurrent single location
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Case Material Plastic
Bushing Length 0.25 inches nominal
Body Width 0.75 inches nominal
Body Length 1.781 inches maximum
Actuator Position Designation At pole one
Actuator Function Trip reset
Trip Delay Time In Seconds Per Rated Continuous Current 4 minimum at 200 pct single location and 20 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150 single location
Unpackaged Unit Weight 62 grams
