6TC14-7.5 Circuit Breaker

Part#: 6TC14-7.5 NSN: 5925-01-131-1694

About this product 6TC14-7.5 Circuit Breaker 7 1/2 amp. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

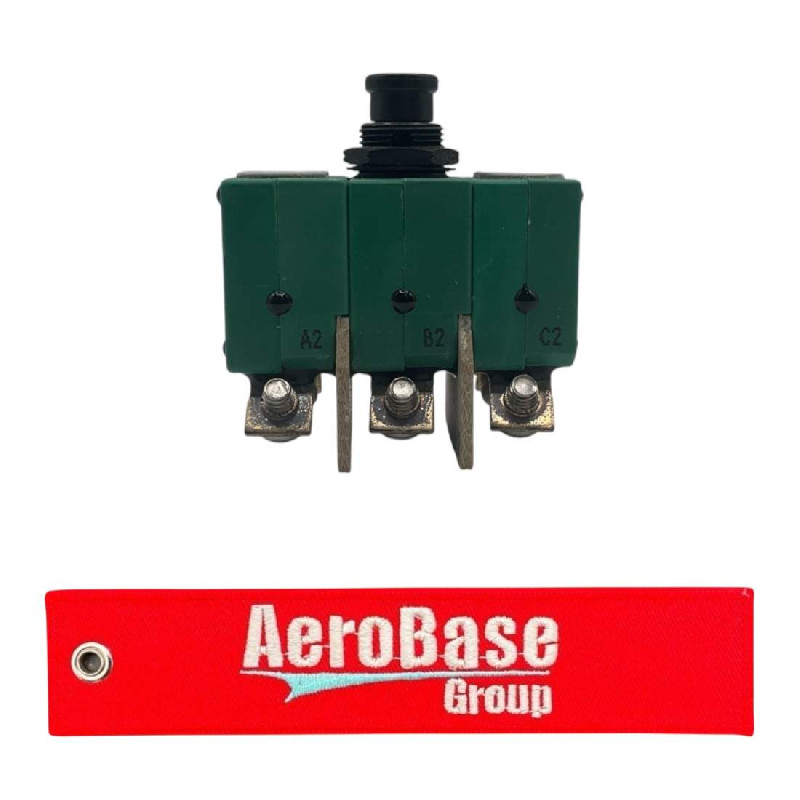

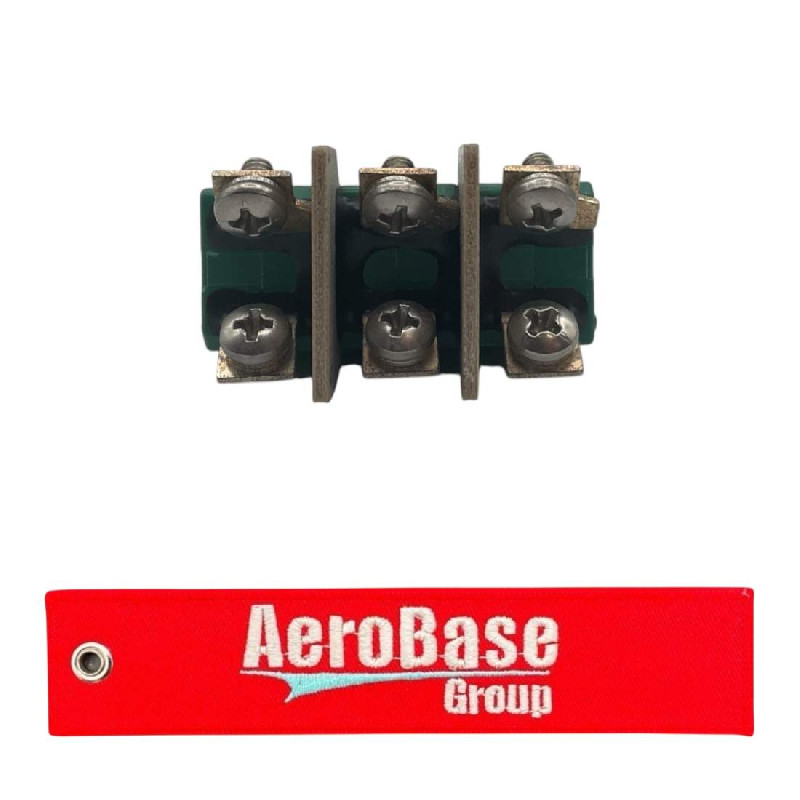

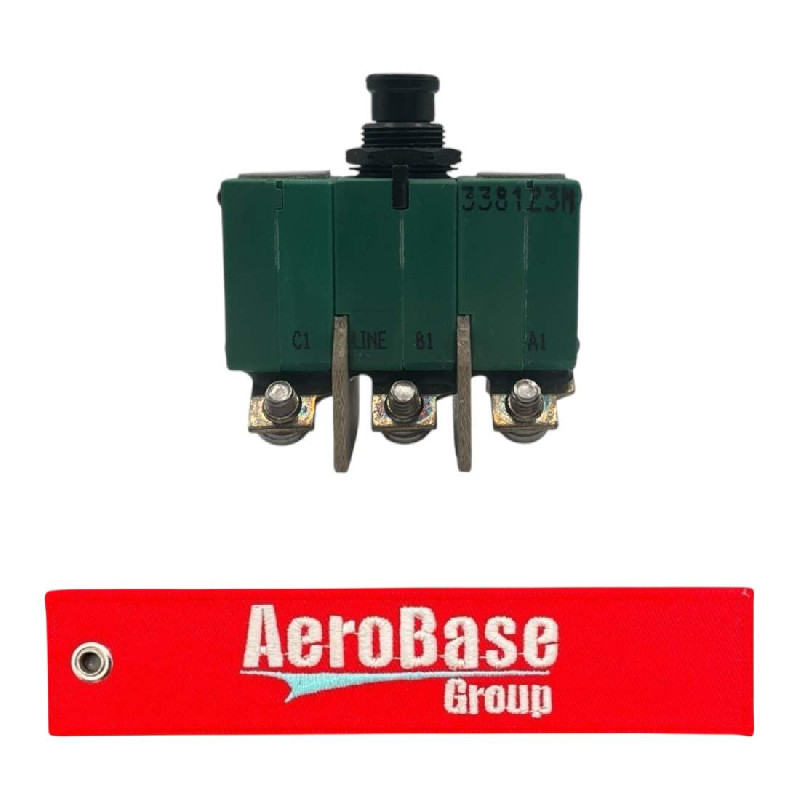

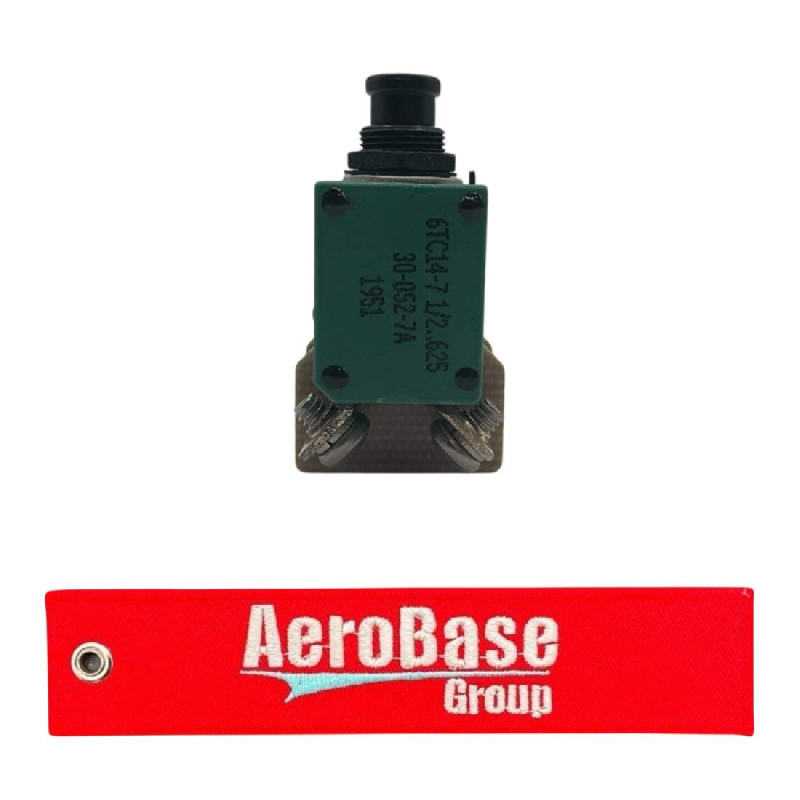

6TC14-7.5 6TC14-7.5 6TC14-7.5 6TC14-7.5 6TC14-7.5 6TC14-7.5

Product Details

Part Number or Model 6TC14-7.5
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole two
Body Length 1.840 inches maximum
Body Style Multipole-single actuator type
Body Width 0.750 inches nominal
Bushing Length 0.250 inches nominal
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Center To Center Distance Between Terminals Parallel To Width 0.624 inches nominal
Circuit Protection Type Overcurrent all locations
Frequency In Hertz 400 all locations
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 7.5 amperes ac all locations
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.530 inches nominal
Thread Size 0.469 inches
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac all locations
Pole Quantity 3
Reset Method Manual
Terminal Type And Quantity 6 tab with screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 0.550 minimum at 500 pct all locations and 3.500 maximum at 500 pct all locations
Trip Release Characteristic Time delay all locations
