6TC14-4 Circuit Breaker

Part#: 6TC14-4 NSN: 5925-00-258-0065

About this product 6TC14-4 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

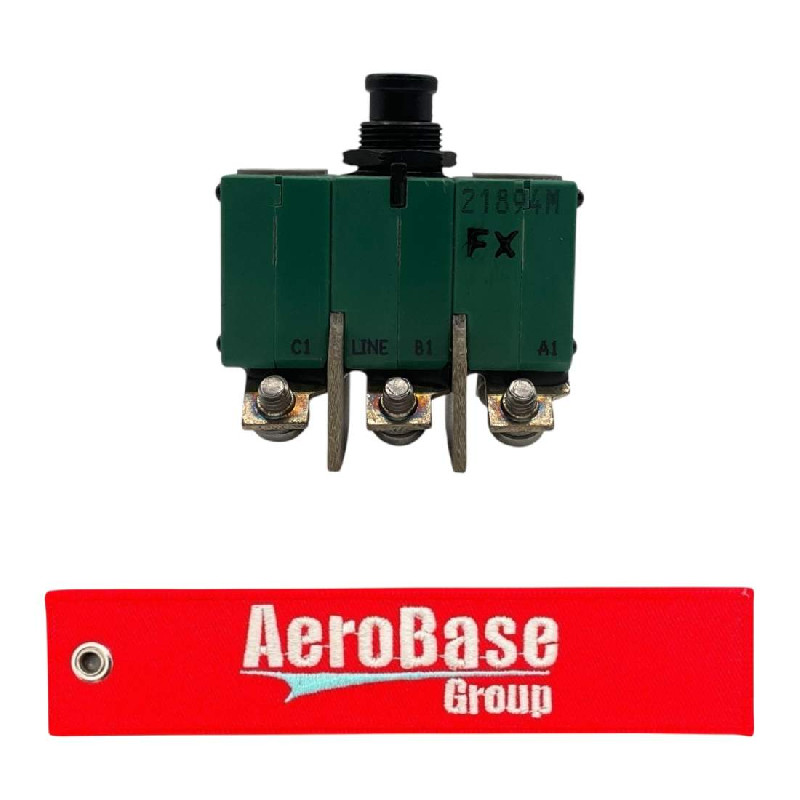

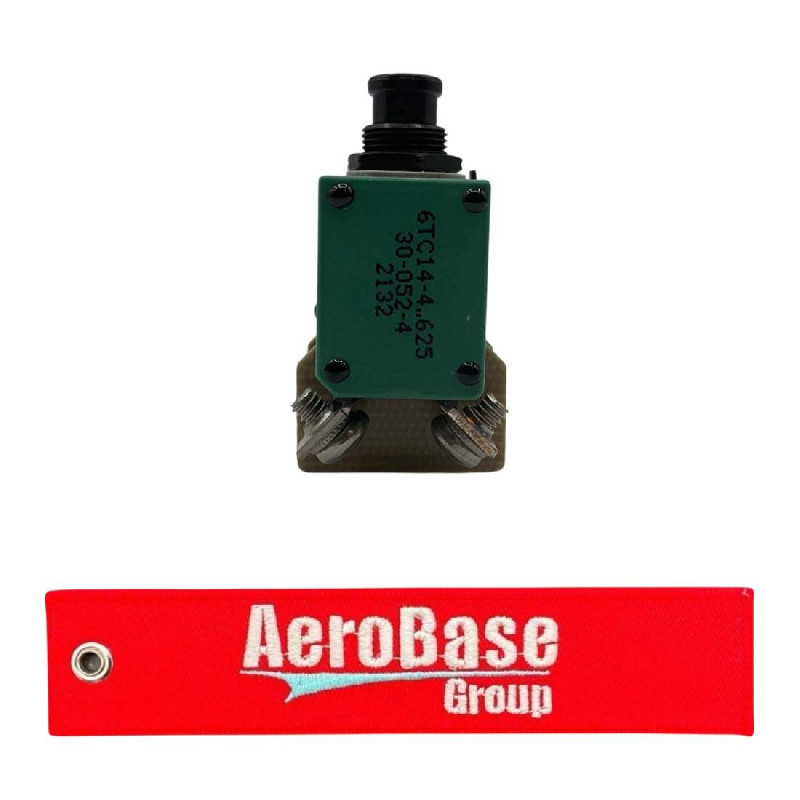

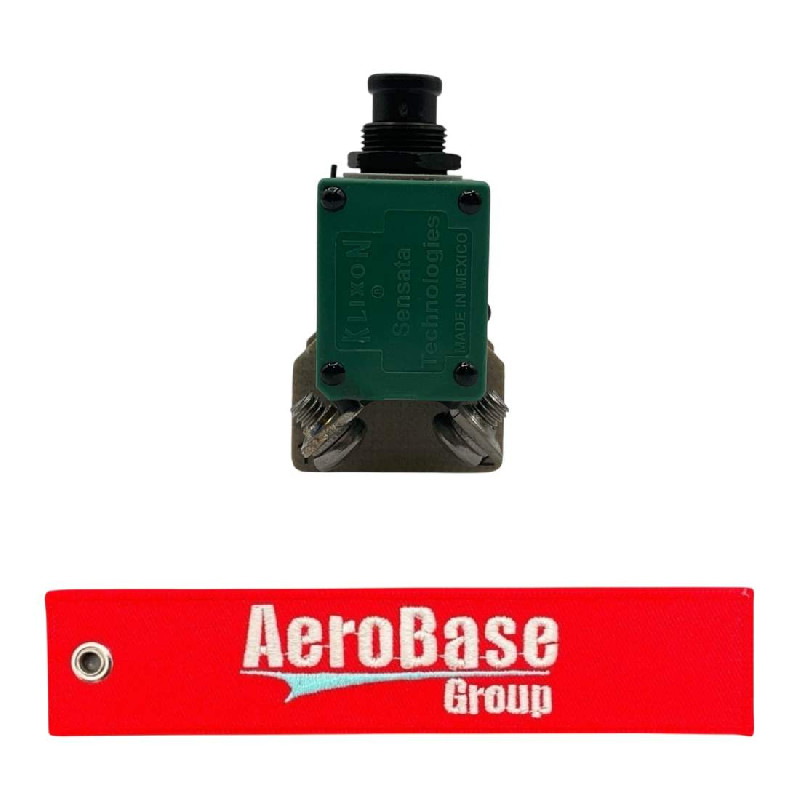

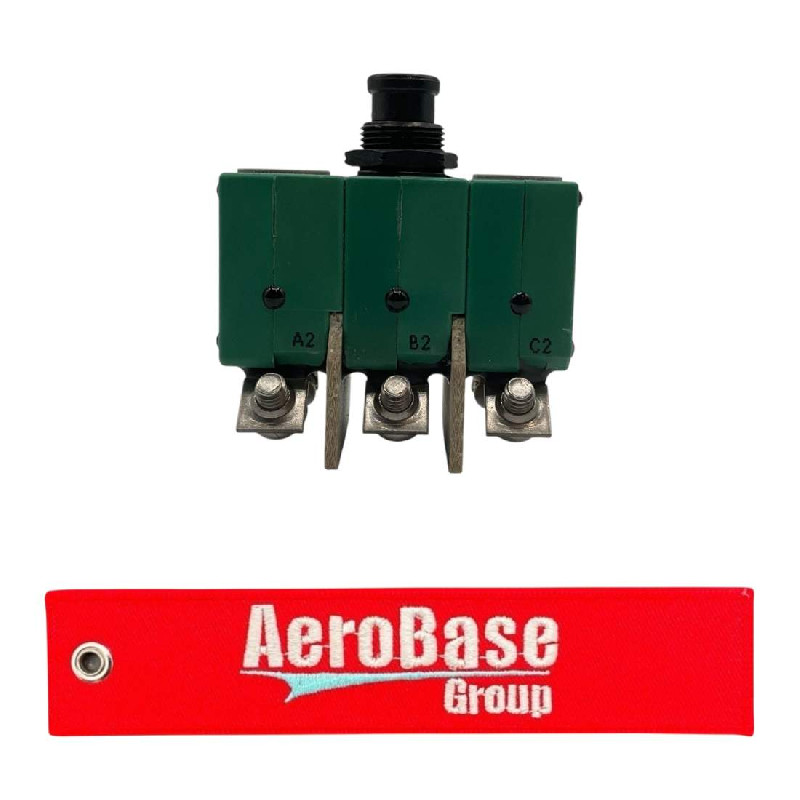

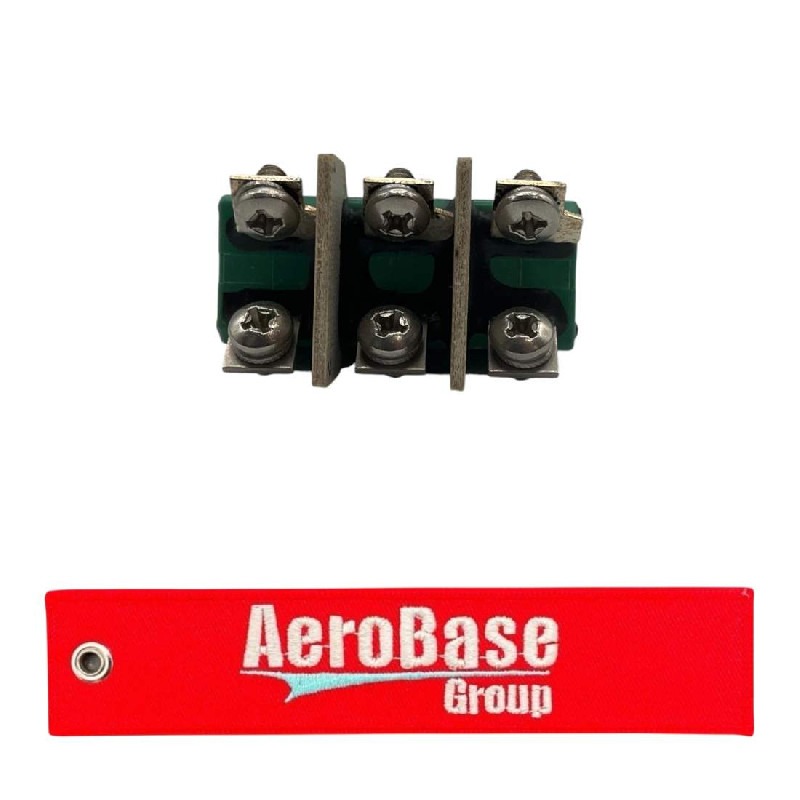

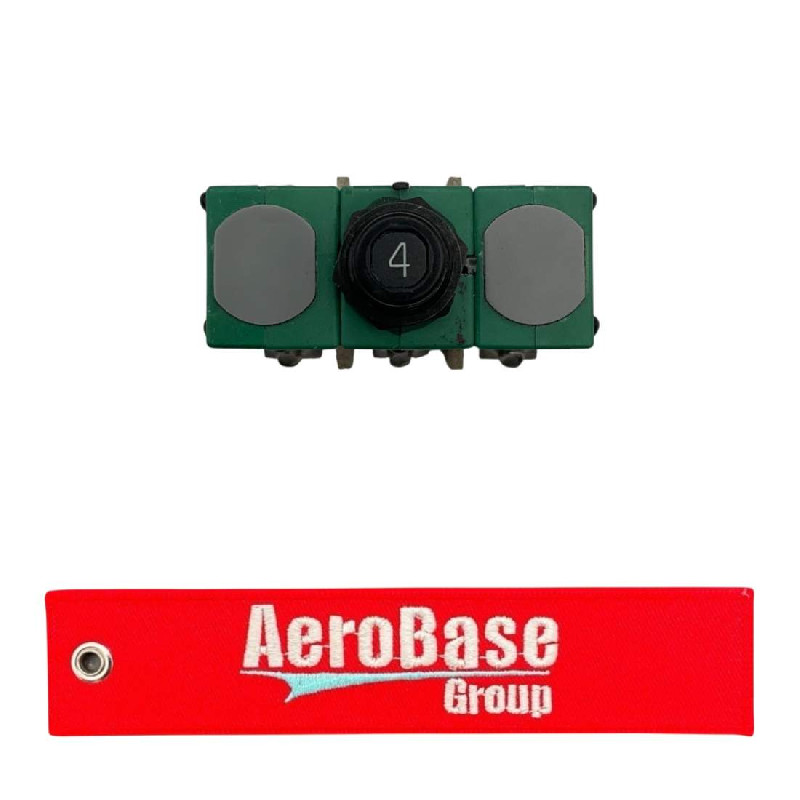

Product Images
6TC14-4 6TC14-4 6TC14-4 6TC14-4 6TC14-4 6TC14-4

Product Details

Part Number or Model 6TC14-4
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Bushing Length 0.250 inches nominal
Body Height 1.530 inches maximum
Body Length 1.100 inches maximum
Body Style Multipole-single actuator type
Body Width 1.781 inches maximum
Actuator Position Designation At pole two
Actuator Function Trip-reset
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Frequency In Hertz 400.0 all locations
Internal Trip Release Configuration Series trip all locations
Center To Center Distance Between Terminals Parallel To Width 0.593 inches nominal
Circuit Protection Type Overcurrent all locations
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 4.0 amperes ac all locations
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing
Thread Size 0.469 inches
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac all locations
Pole Quantity 3
Reset Method Manual
Terminal Type And Quantity 6 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 4.000 minimum at 200 pct all locations and 20.000 maximum at 200 pct all locations
Trip Release Ambient Tempurature Rating 160.0 degree fahrenheit maximum all locations
Trip Release Characteristic Time delay all locations
Trip Release Method Thermal all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 138.0 all locations

Add to Cart

Up to quantity 2 ships same day.
buy now $1,695.00
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-00-258-0065
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
