6TC14-3 Circuit Breaker

Part#: 6TC14-3 NSN: 5925-01-251-8747

About this product 6TC14-3 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

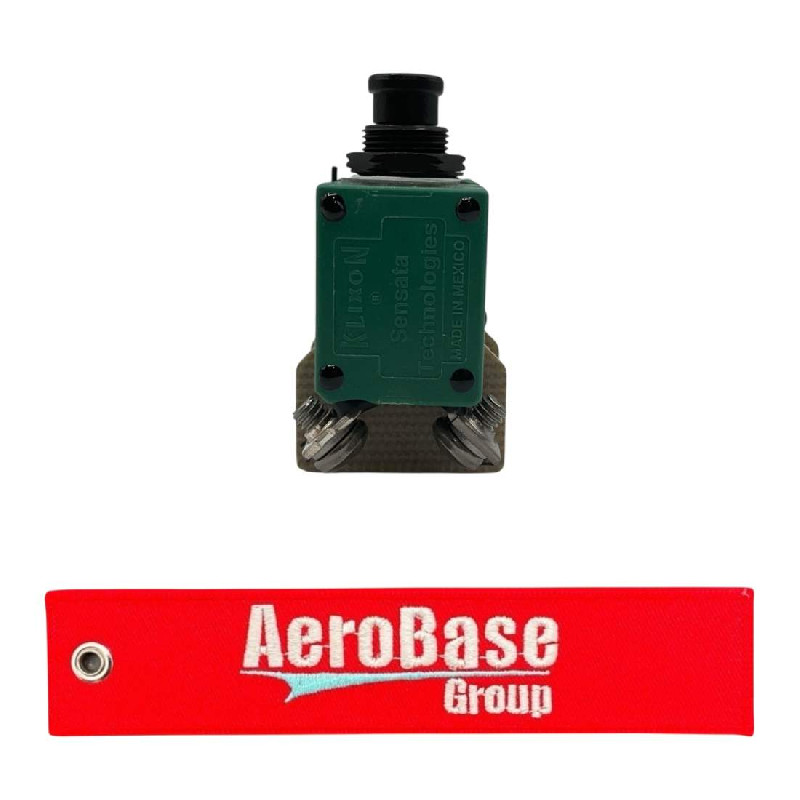

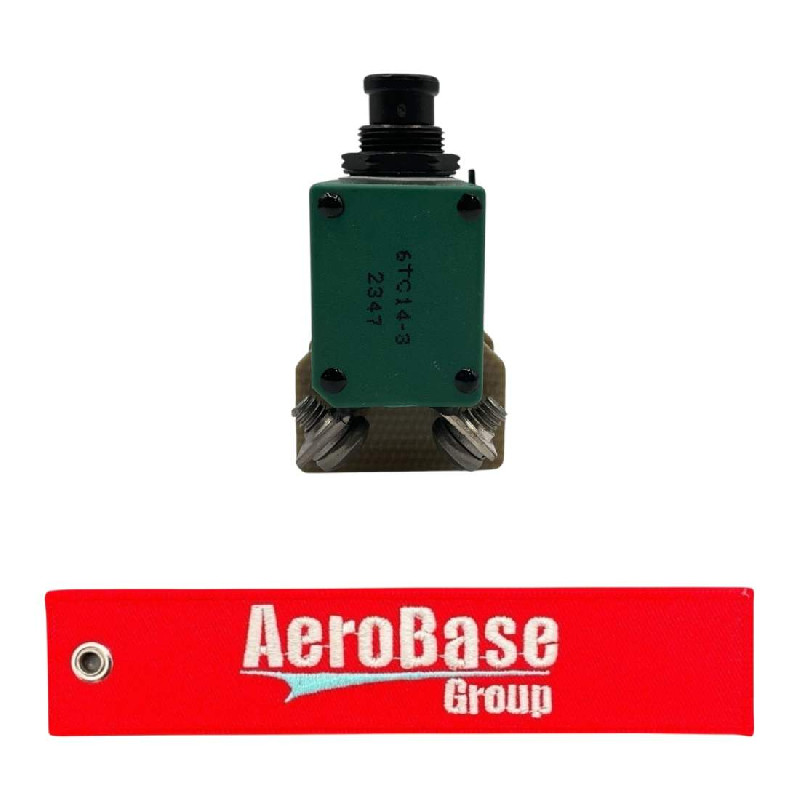

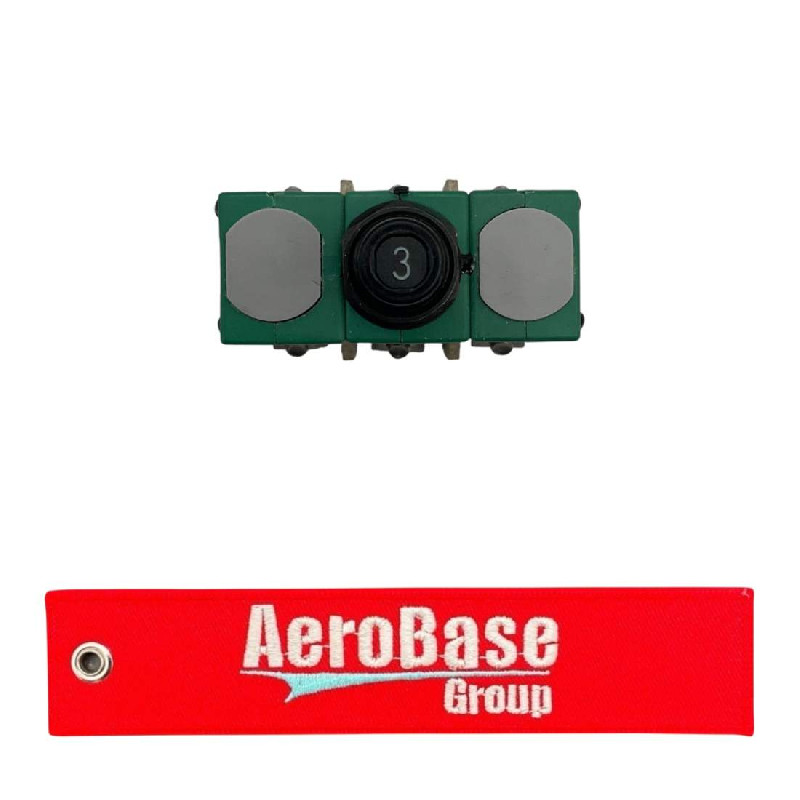

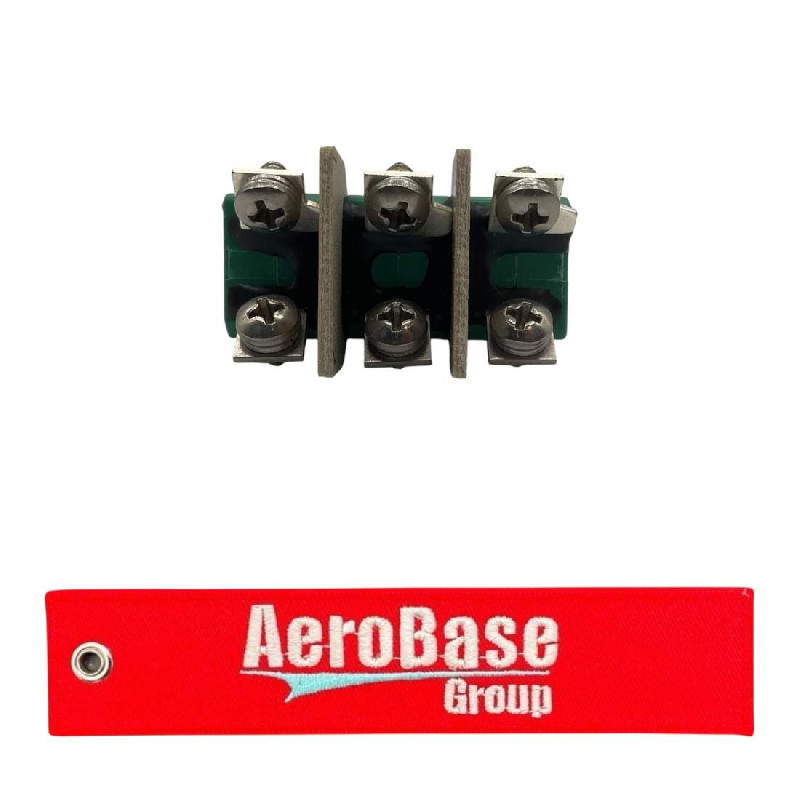

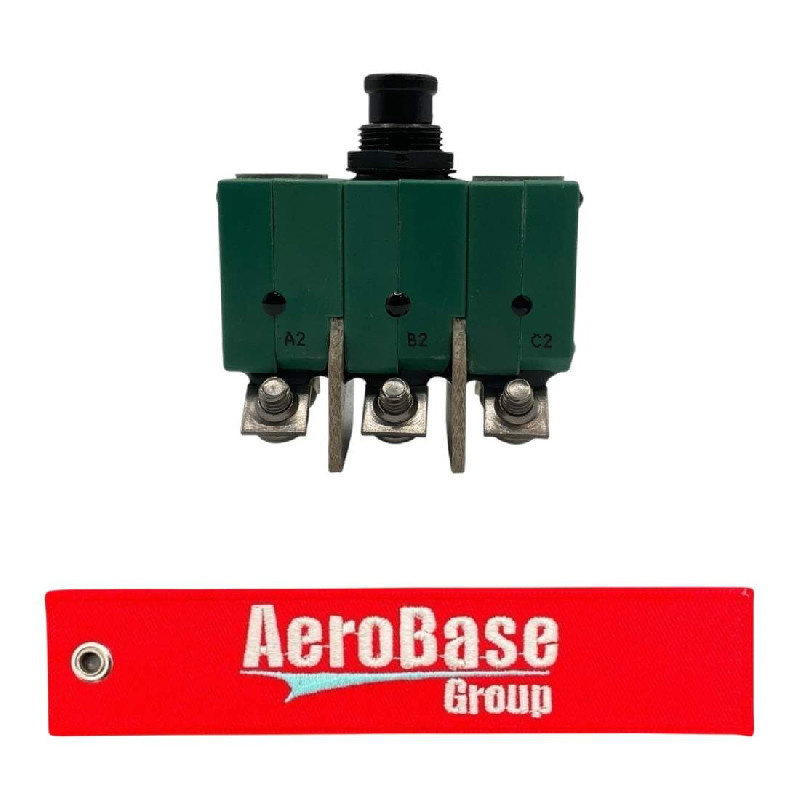

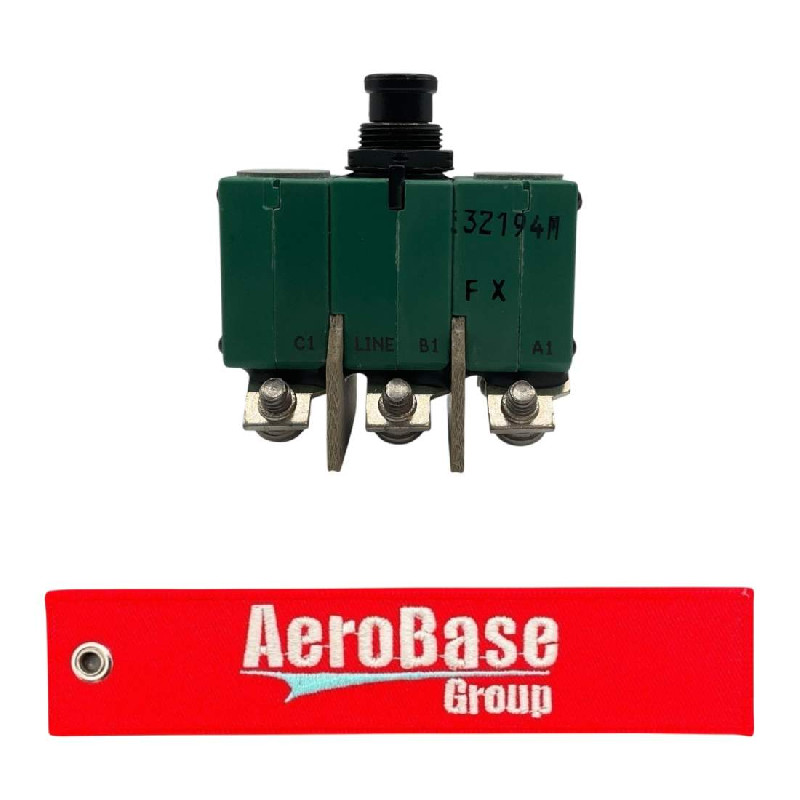

Product Images
6TC14-3 6TC14-3 6TC14-3 6TC14-3 6TC14-3 6TC14-3

Product Details

Part Number or Model 6TC14-3
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole two
Arc Quenching Method Air
Body Height 1.030 inches nominal
Body Length 0.750 inches nominal
Body Style Multipole-single actuator type
Body Width 1.840 inches nominal
Bushing Length 0.250 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Center To Center Distance Between Terminals Parallel To Width 0.624 inches nominal
Circuit Protection Type Overcurrent all locations
Fragility Factor Moderately rugged
Frequency In Hertz 400.0 all locations
Inclosure Protection Type For Which Designed Dustproof
Internal Trip Release Configuration Series trip all locations
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push button
Maximum Continuous Load Current Rating Per Pole 3.0 amperes ac all locations
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000.0 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing
Thread Size 0.469 inches
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac all locations
Pole Quantity 3
Reset Method Manual
Storage Type General purpose warehouse
Terminal Type And Quantity 6 tab w/screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 4 minimum at 200 pct all locations and 20.000 maximum at 200 pct all locations
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal all locations
Trip Release Characteristic Time delay all locations
Trip Release Method Thermal all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 130.0 all locations
