Manufacturer Catalog
Otto

Special 4 way toggle Switch, with 11/16 thread on case. Single pole 4 throw. Center off. Momentary contact with self return to center off. Black button. See attached PDF for more specs!

MPN: 5930-01-212-7286

Pushbutton Switch, sealed against dust & moisture The P7 series incorporates OTTO's patented double break design in a significantly smaller package than the P1 series. These subminiature Switches embrace today's technology requirements by allowing for a large number of Switches to fit within a faceplate. The long life snap-action design is protected from the environment by a silicon rubber boot, operating on a patented rolling sleeve principle that gives long sealed life. This version is a military grade momentary action, normally open, 2 circuit Switch with a black body and button. Solder Terminals.

MPN: 5930-01-212-7288

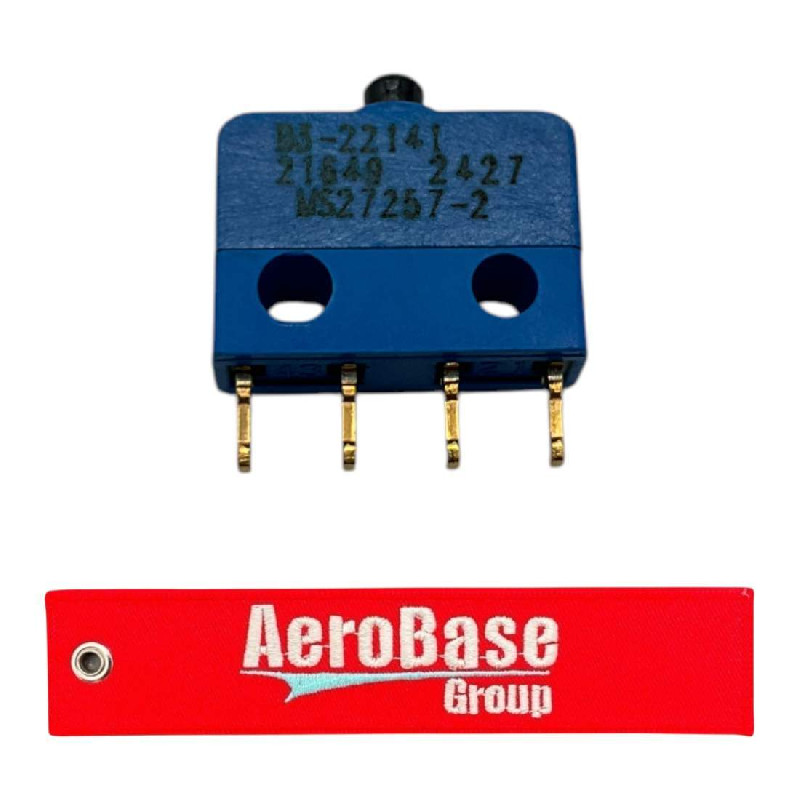

Subminiature basic switch, double break, snap-action, military grade, .20 inches wide, has 1/8 inch long turret Terminals, 5 oz operating force, SPDT-DB, Form Z, and silver/gold high current contacts.

MPN: 5930-01-220-6193

Rugged military grade miniature toggle Switch. Lightweight, miniature and ruggedized snap-action. Positive detent action for safe Switching operation. Sealed. No tease contact operation. 1 pole. On-none-on. 15/32'' bushing.

MPN: 5930-01-222-3158

Rugged military grade miniature toggle Switch. Lightweight, miniature and ruggedized snap-action. Positive detent action for safe Switching operation. Sealed. No tease contact operation. 1 pole. On (momentary)- off - on (momentary). 15/32'' bushing.

MPN: 5930-01-226-0467

Limit Switch, SPST, 7 amps (resistive) @ 28VDC/115VAC, Qualified per MIL-PRF-8805/4, stainless steel housing and plunger.

MPN: 5930-01-258-9663

Pushbutton Switch - special case, .38 inch red button, 10A resistive at 28VDC or 115VAC, watertight per MIL-PRF-8805, Design 3, Temperature range -55 degrees C to +65 degrees C.

MPN: 5930-01-258-9669

Rugged Snap Action Pushbutton Switch. Normally Open. Dust tight. Internal silicon rubber boot seals out contaminants. Black.160 button. 5 amps@28vdc.Solder Terminals.

MPN: 5930-01-276-2975

Sealed push button Switch, normally open, 2.5 lbs operating force, normally open , positive tactile feedback, red button, solder Terminals. Makes and breaks every time! Less than 25 milliohms contact resistance because the OTTO design features inherent rocking action that breaks welds and wipes contacts clean. The P3-71111 is the commercial version of the P1 Pushbutton Switch, offering vastly improved life under extreme conditions found in some industrial environments. The pushbutton is sealed by a silicone boot operating on our patented rolling sleeve, providing longer life and smoother operation over a wide temperature range.

MPN: 5930-01-291-4885

Special Rugged Snap Action Mini Pushbutton Switch. 2 circuit. Dust & moisture tight. Black .375 button. Silicon rubber seal gives long life and smooth operation. See PDF Drawing here.

MPN: 5930-01-295-8496

Switch, Locking toggle. (3 POLE - 3 POS.). Basic Switch elements per MIL-PRF-8805/4 except with integral lever. Electrical life: 25,000 cycles. See drawing for more information.

MPN: 5930-01-297-0821

Precision mil spec trigger Switch. 7 amps @ 28 VDC. 2 pole Black housing, red button. Mil qualified to M8805/111-01.

MPN: 5930-01-298-2214

Push button Switch. Sub miniature. Long life. 5 amp sealed momentary snap action Mil Spec with positive tactile feedback. Same as part # P7-331222.

MPN: 5930-01-303-4812

Push button Switch. Sub miniature. Long life. 5 amp sealed momentary snap action Mil Spec with positive tactile feedback. Same as part # P7-531122.

MPN: 5930-01-304-4353

Pushbutton Switch. This is a sealed, SPDT, 2 Circuit, black button, shrouded black anodized case with drain hole.

MPN: 5930-01-320-7829
