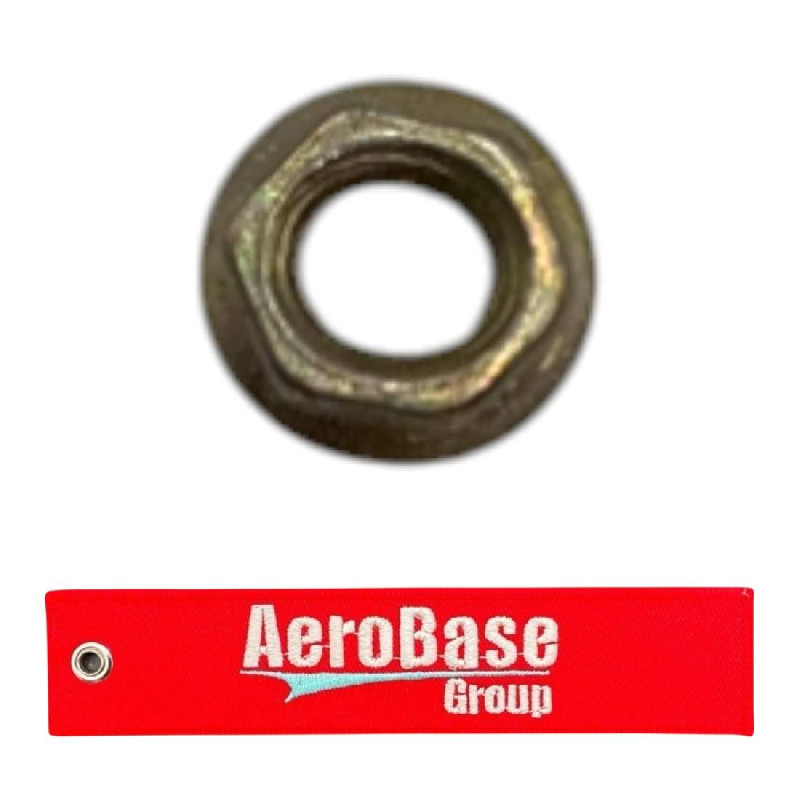

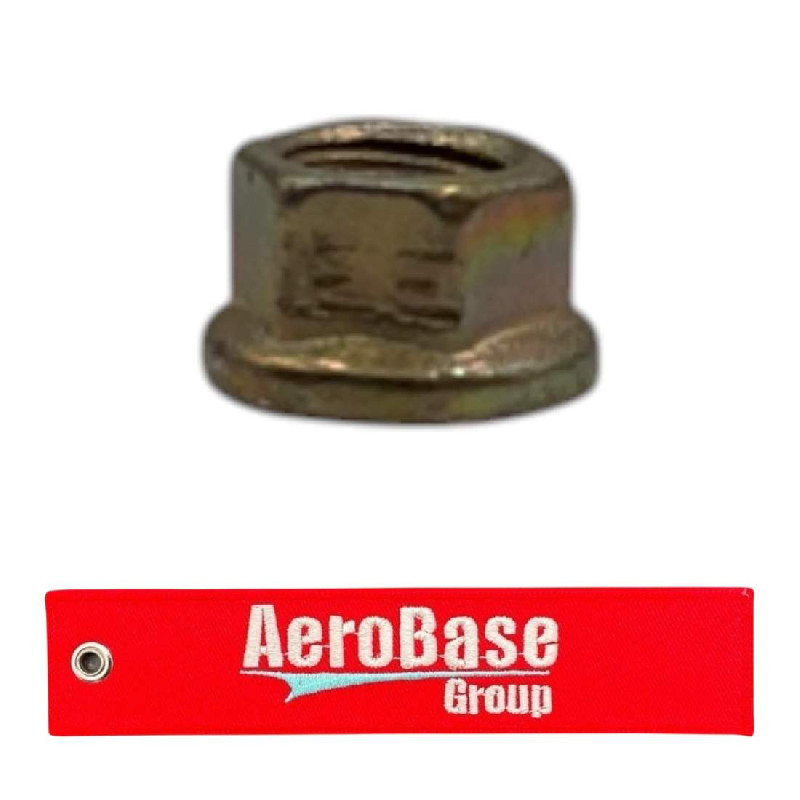

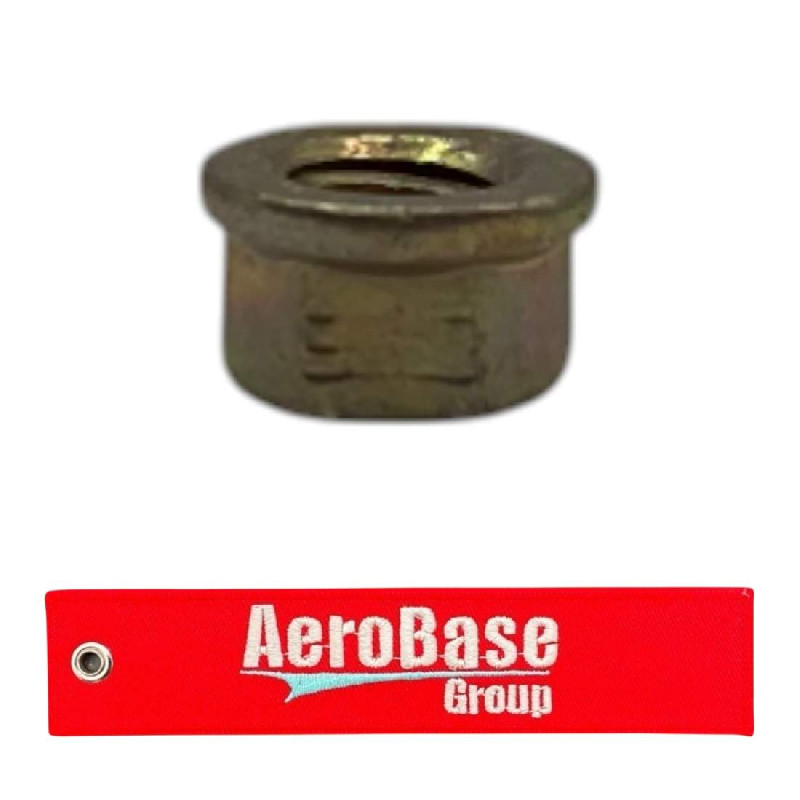

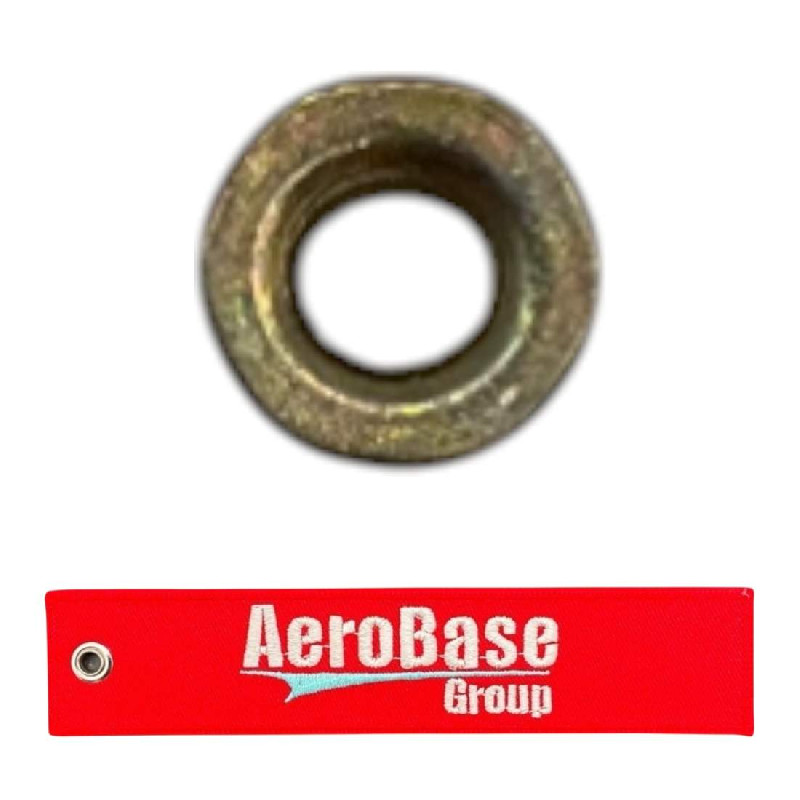

MS21042-04 Self-Locking Nut

Part#: MS21042-04 NSN: 5310-00-811-6419

About this product MS21042-04 Self-Locking Nut. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model MS21042-04
Description Self-Locking Nut
Schedule B Class
ECCN (Export Control Class)
Width Across Flats 0.150 inches minimum and 0.158 inches maximum
Washer Thickness 0.010 inches minimum
Washer Outside Diameter 0.206 inches maximum
Thread Series Unjc
Thread Qty Per Inch (tpi) 40
Thread Direction Right-hand
Thread Class 3b
Tempurature Rating 450.0 degree fahrenheit nominal
Surface Treatment Specification Qq-p-416 fed spec single treatment response overall
Surface Treatment Cadmium
Overall Height 0.103 inches minimum and 0.125 inches maximum
Nut Style Hexagon
Thread Size 0.112 inches
Material Steel overall
Locking Feature Prevailing torque all metal design
Hardness Rating 49.0 rockwell c maximum
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5310-00-811-6419
  • ECCN (Export Control Class)
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
