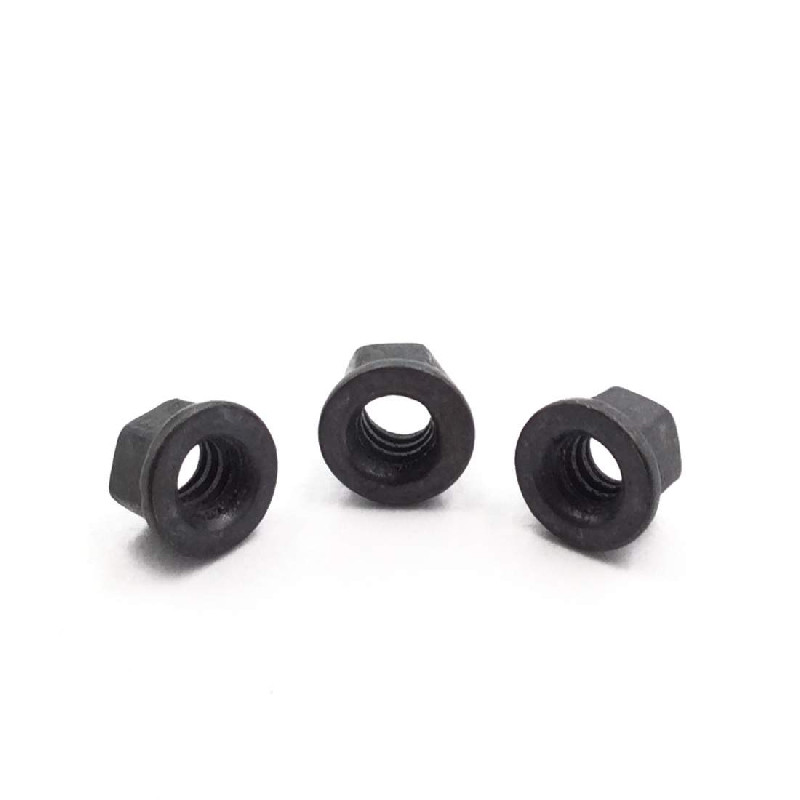

MS21042L04 Self-Locking Extended Washer Nut

Part#: MS21042L04 NSN: 5310-00-807-1471

About this product MS21042L04 Self-Locking Extended Washer Nut. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model MS21042L04
Description Self-Locking Extended Washer Nut
Schedule B Class
ECCN (Export Control Class)
Criticality Code Justification Feat
Locking Feature Prevailing torque all metal design
Lubrication Dry film lubricant
Material Steel overall
Thread Size 0.112 inches
Nut Style Hexagon
Overall Height 0.103 inches minimum and 0.125 inches maximum
Special Features The item is a flight safety critical aircraft part (fscap).
Surface Treatment Cadmium overall and chromate overall
Surface Treatment Specification Qq-p-416, type 2, class 3 fed spec single treatment response overall
Tempurature Rating 450 degree fahrenheit nominal
Thread Class 3b
Thread Direction Right-hand
Thread Qty Per Inch (tpi) 40
Thread Series Unjc
Washer Outside Diameter 0.206 inches maximum
Washer Thickness 0.01 inches minimum
Width Across Flats 0.150 inches minimum and 0.158 inches maximum
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5310-00-807-1471
  • ECCN (Export Control Class)
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
