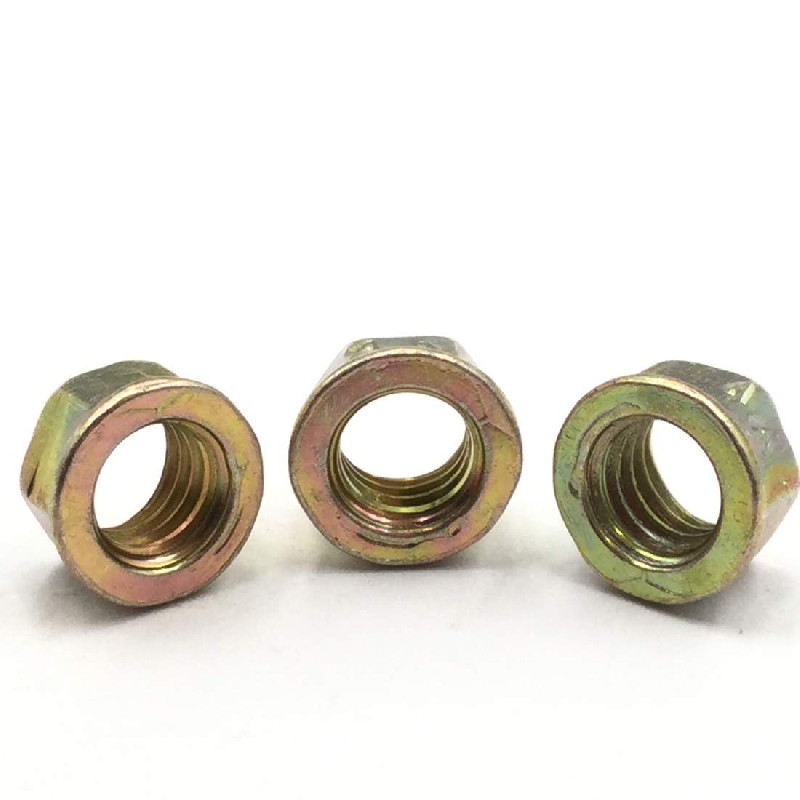

MS21042-3 Nut

Part#: MS21042-3 NSN: 5310-00-807-1467

About this product thread 10-32, alloy steel, cadmium plated.

Product Images
MS21042-3 MS21042-3 MS21042-3 MS21042-3 MS21042-3 MS21042-3 MS21042-3 MS21042-3

Product Details

Part Number or Model MS21042-3
Description Self-Locking Nut
Schedule B Class 7318160000
ECCN (Export Control Class) EAR99
Width Across Flats 0.243 inches minimum and 0.252 inches maximum
Washer Thickness 0.015 inches minimum
Thread Qty Per Inch (tpi) 32
Washer Outside Diameter 0.33 inches maximum
Thread Size 0.19 inches
Thread Series Unjf
Thread Direction Right-hand
Thread Class 3b
Tempurature Rating 450 degree fahrenheit
Surface Treatment Specification Qq-p-416 type 2 class 3 fed spec single treatment response overall
Surface Treatment Cadmium and chromate
Nut Style Hexagon
Overall Height 0.154 inches minimum and 0.188 inches maximum
Lubrication Soluble lubricant
Material Steel
Locking Feature Prevailing torque all metal design
Hardness Rating 49 rockwell c maximum

Add to Cart

Up to quantity 6300 ships same day.
buy now $0.25
each, minimum order quantity of 100 Sold in increments of 100
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5310-00-807-1467
  • Manufactured By
    Unspecified
  • ECCN (Export Control Class)
    EAR99
