MS21042-6 Nut

Part#: MS21042-6 NSN: 5310-00-810-1786

About this product MS21042-6 Self-Locking Extended Washer Nut. * Manufacturer certifications are shipped with your order FREE of charge

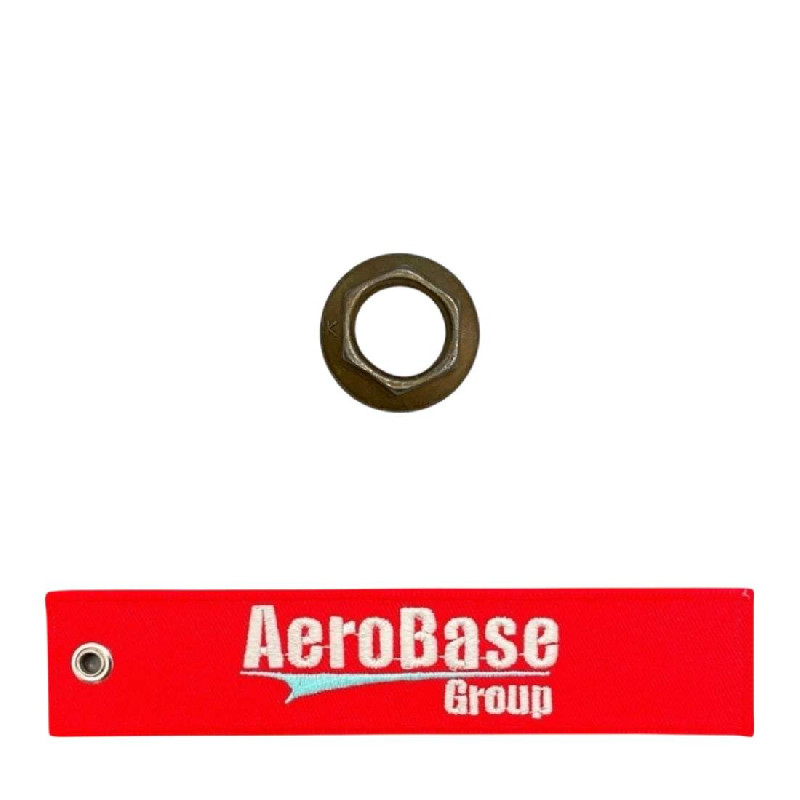

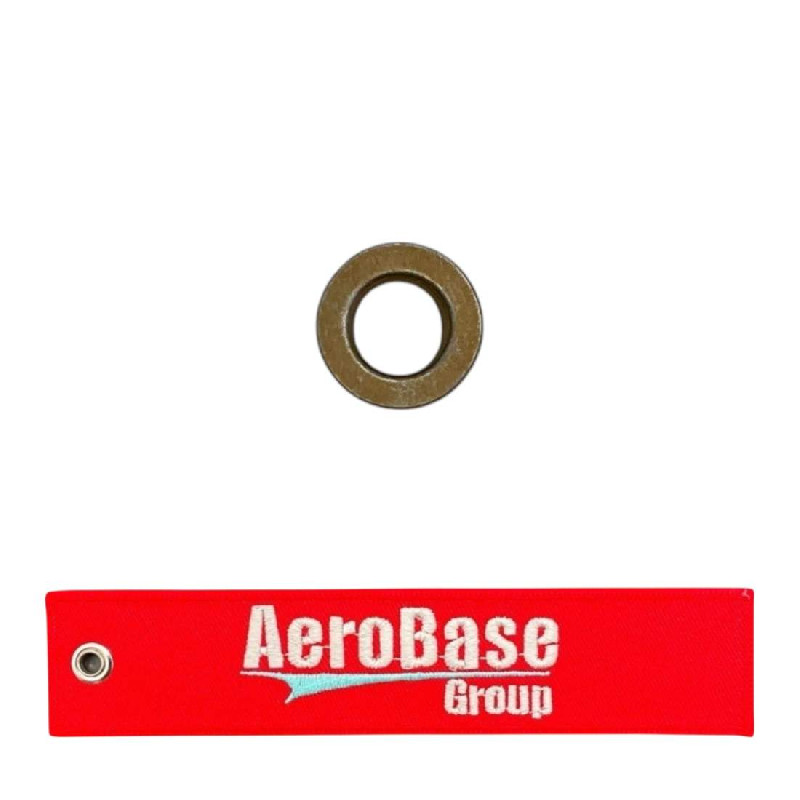

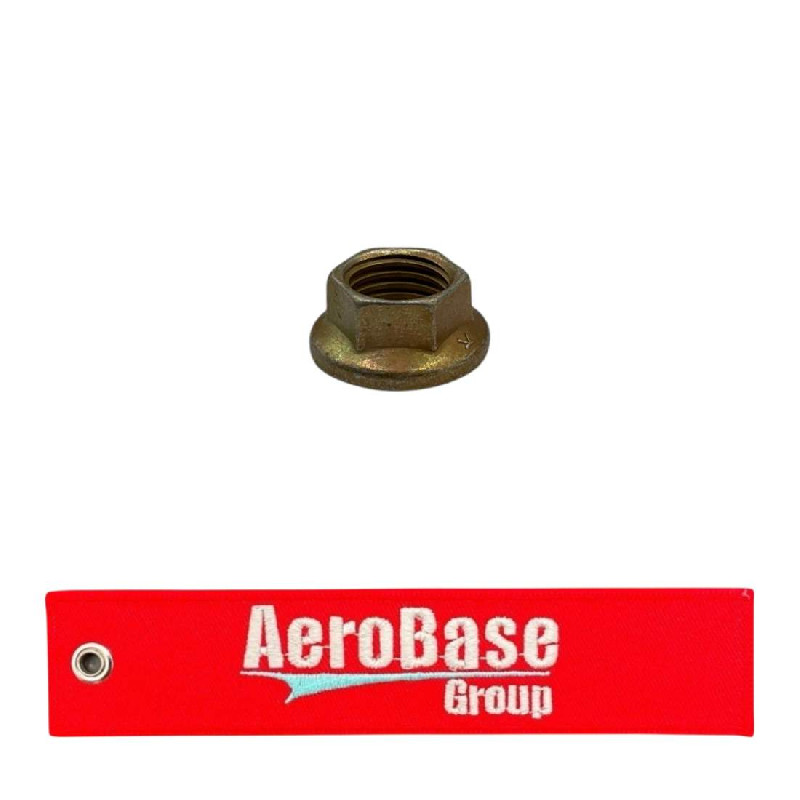

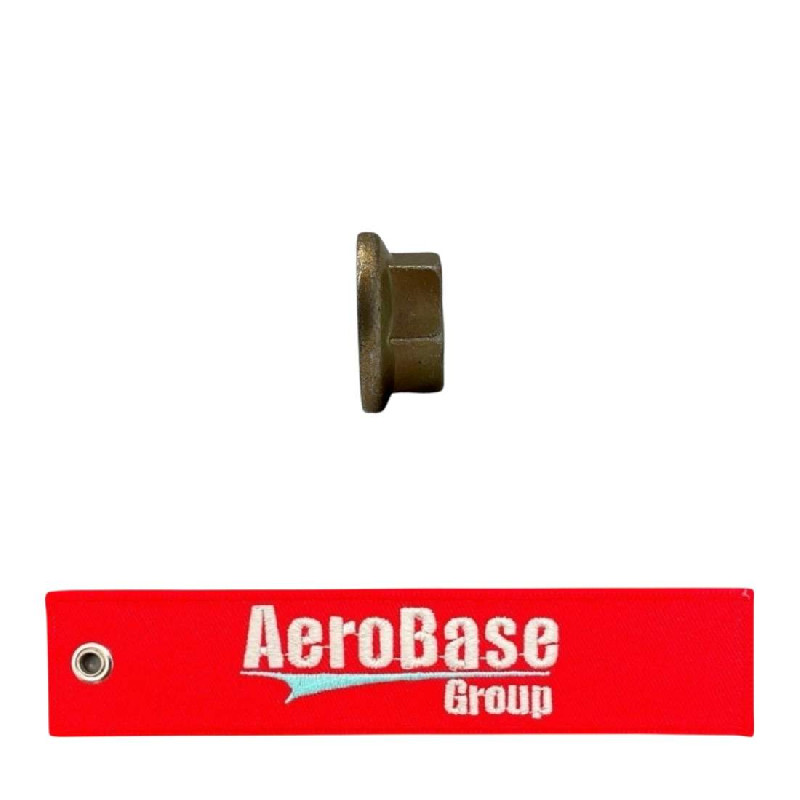

Product Images
MS21042-6 MS21042-6 MS21042-6 MS21042-6 MS21042-6

Product Details

Part Number or Model MS21042-6
Description Self-Locking Extended Washer Nut
Schedule B Class 7318160000
ECCN (Export Control Class) EAR99
Locking Feature Prevailing torque all metal design
Lubrication Soluble lubricant
Material Steel overall
Thread Size 0.375 inches
Nut Style Hexagon
Overall Height 0.267 inches minimum and 0.282 inches maximum
Surface Treatment Cadmium overall and chromate overall
Surface Treatment Specification Qq-p-416, type 2, class 3 fed spec single treatment response overall
Tempurature Rating 450 degree fahrenheit nominal
Thread Class 3b
Thread Direction Right-hand
Thread Qty Per Inch (tpi) 24
Thread Series Unjf
Washer Outside Diameter 0.620 inches maximum
Washer Thickness 0.030 inches minimum
Width Across Flats 0.430 inches minimum and 0.440 inches maximum
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5310-00-810-1786
  • Package Weight (oz)
    2.656
  • Manufactured By
    HOWMET AEROSPACE
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5310-00-810-1786
  • 5310008101786
  • MS210426
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
