MS14105-25 Circuit Breaker

Part#: MS14105-25 NSN: 5925-01-088-6587

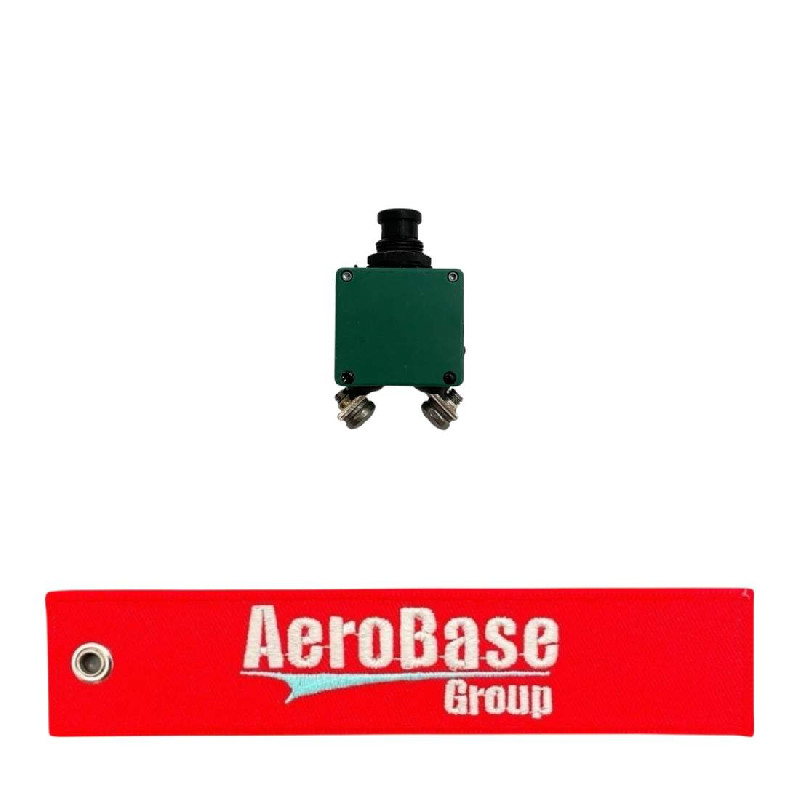

About this product MS14105-25 is a 25-amp single-pole thermal aircraft circuit breaker featuring a trip-free, push-pull manual reset design with time-delay overcurrent protection. Rated for 115 VAC and 28 VDC applications, the breaker uses a threaded panel-mount bushing and two tab-with-screw terminals and is designed for shock- and vibration-resistant aerospace and military electrical applications. MS14105-25 is associated with NSN 5925-01-088-6587 and cross-references to the qualified Sensata/Klixon 3TC2-25 circuit breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
MS14105-25 MS14105-25 MS14105-25 MS14105-25 MS14105-25

Product Details

Part Number or Model MS14105-25
Description Circuit Breaker
Schedule B Class 8710.00.0090
ECCN (Export Control Class) EAR99
Test Data Document 81349-mil-c-5809 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
Terminal Type And Quantity 2 tab w/screw
Storage Type General purpose warehouse
Specification Data 96906-ms14105 government standard
Pole Quantity 1
Reset Method Manual
Operating Voltage Type And Rating Per Pole In Volts 115.0 ac and 28.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.343 inches maximum
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000.0 ac and 6000.0 dc single location
Maximum Continuous Load Current Rating Per Pole 25.0 amperes ac and 25.0 amperes dc single location
Manual Actuator Type And Quantity 1 push-pull
Main Contact Tripping Mechanism Type Trip free
Internal Trip Release Configuration Series trip single location
Circuit Protection Type Overcurrent single location
End Application Mrap - rg-33
Fragility Factor Moderately rugged
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Vibration resistant and shock resistant
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Body Width 0.781 inches maximum
Bushing Length 0.250 inches nominal
Body Style Single pole type
Actuator Position Designation At pole one
Body Length 1.094 inches maximum
Actuator Function Trip-reset
Thread Qty Per Inch (tpi) 32
Thread Series Designator Un
Thread Size 0.438 inches
Trip Delay Time In Seconds Per Rated Continuous Current 2.000 minimum at 200 pct and 35.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 deg celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 138.0 single location
Unpackaged Unit Weight 0.067 pounds
