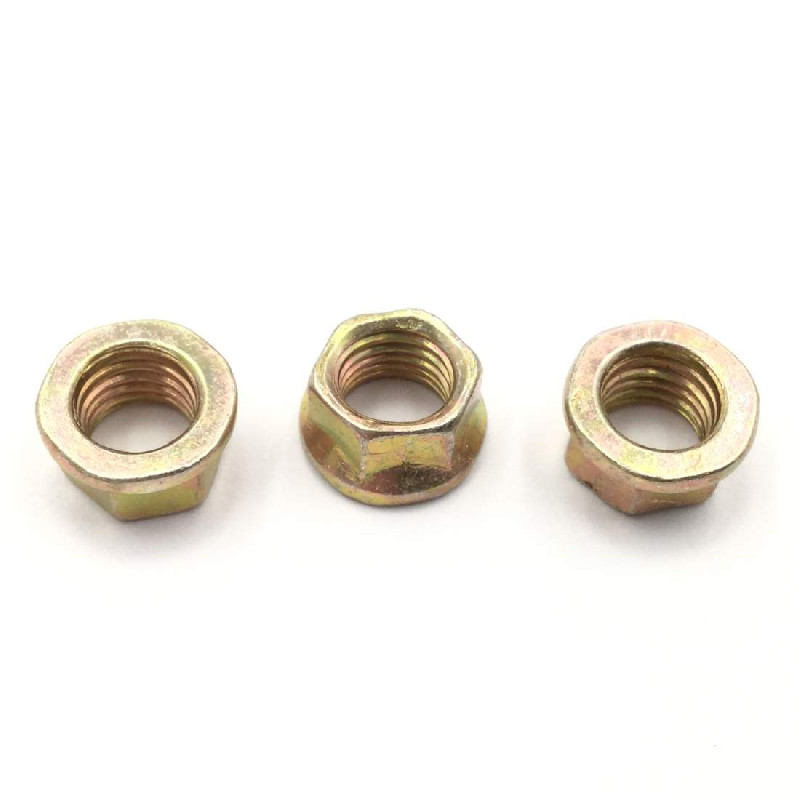

MS21042-4 Self-Locking Nut

Part#: MS21042-4 NSN: 5310-00-807-1468

About this product MS21042-4 Self-Locking Extended Washer Nut . * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model MS21042-4
Description Self-Locking Nut
Schedule B Class
ECCN (Export Control Class)
Width Across Flats 0.304 inches minimum and 0.316 inches maximum
Washer Thickness 0.019 inches minimum
Washer Outside Diameter 0.42 inches maximum
Thread Size 0.25 inches
Thread Series Unjf
Thread Direction Right hand
Thread Qty Per Inch (tpi) 28
Nut Style Hexagon
Overall Height 0.204 inches minimum and 0.219 inches maximum
Material Steel corrosion resisting
Iii Part Name Assigned By Controlling Agency Self locking nut
Locking Feature Prevailing torque all metal design
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5310-00-807-1468
  • ECCN (Export Control Class)
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
