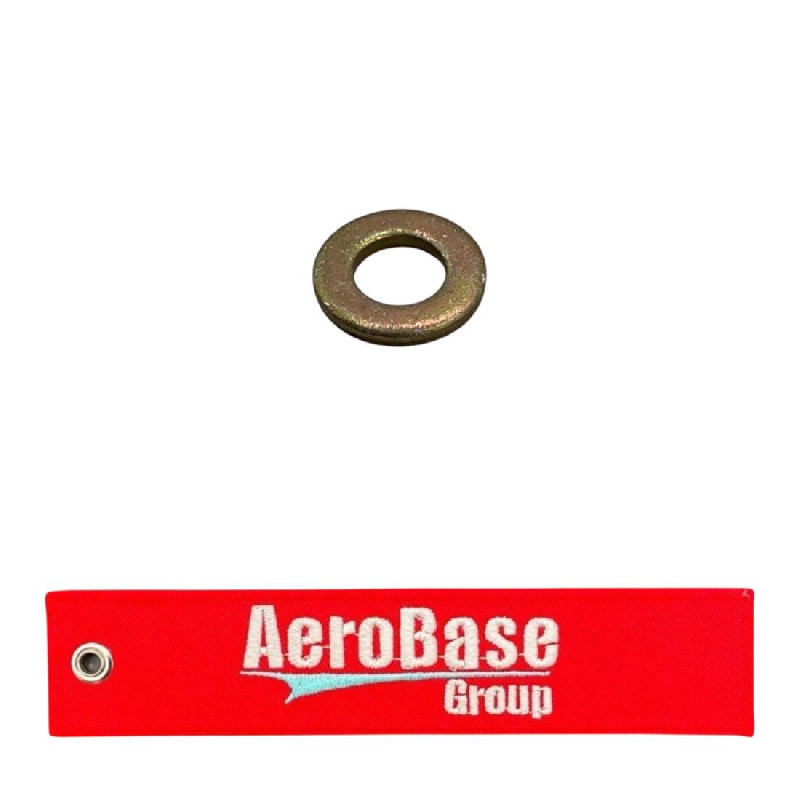

AN960-416 Flat Washer

Part#: AN960-416 NSN: 5310-00-141-1795

About this product AN960-416 Flat Washer. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	AN960-416
Description	Flat Washer
Schedule B Class	7318.22.0000
ECCN (Export Control Class)	9A991.d
Criticality Code Justification	Feat
Center Hole Shape	Round
Center Hole Shape	1 round
Cross Sectional Shape	Rectangular
Hole Diameter	0.255 inches minimum and 0.275 inches maximum
Material	Steel overall
Material Specification	Mil-s-7952 mil spec single material response overall or qq-s-698 fed spec single material response overall
Overall Diameter	0.495 inches minimum and 0.52 inches maximum
Edge Shape	Round
Special Features	The item is a flight safety critical aircraft part (fscap).
Surface Treatment	Cadmium overall
Surface Treatment Specification	Qq-p-416, type 2, class 3 federal spec single treatment response overall
Thickness	0.053 inches minimum and 0.073 inches maximum

Pricing and Availability

We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote

NSN (National stock number)
5310-00-141-1795
Package Weight (oz)
4.032
Manufactured By
Superior Washer
ECCN (Export Control Class)
9A991.d

Alternate(s)

5310-00-141-1795
5310001411795
NAS1149F0463P
AN960416

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
