6TC2-2 Circuit Breaker

Part#: 6TC2-2 NSN: 5925-01-223-2072

About this product 6TC2-2 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

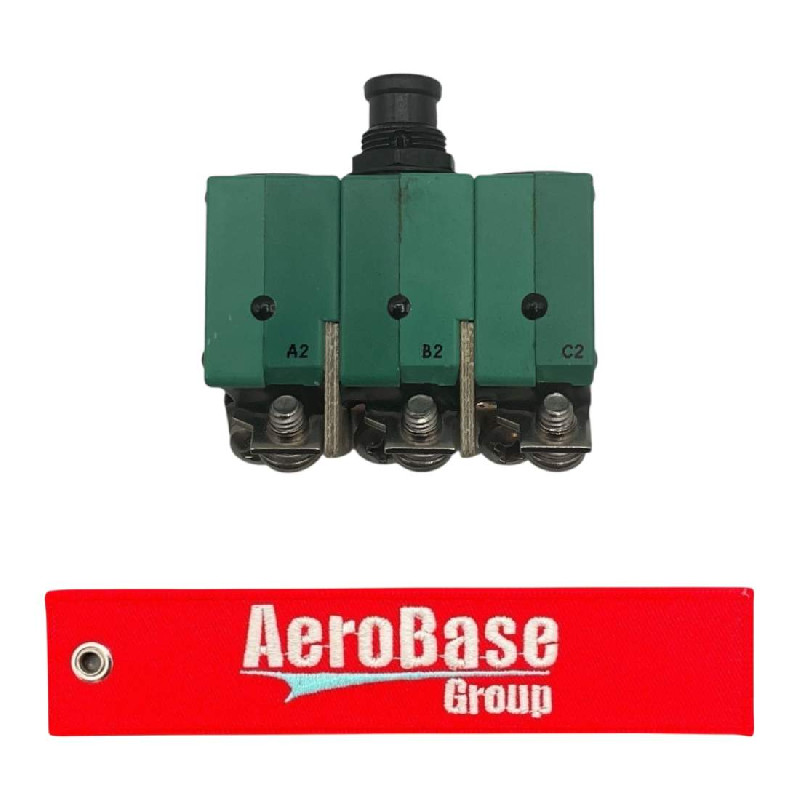

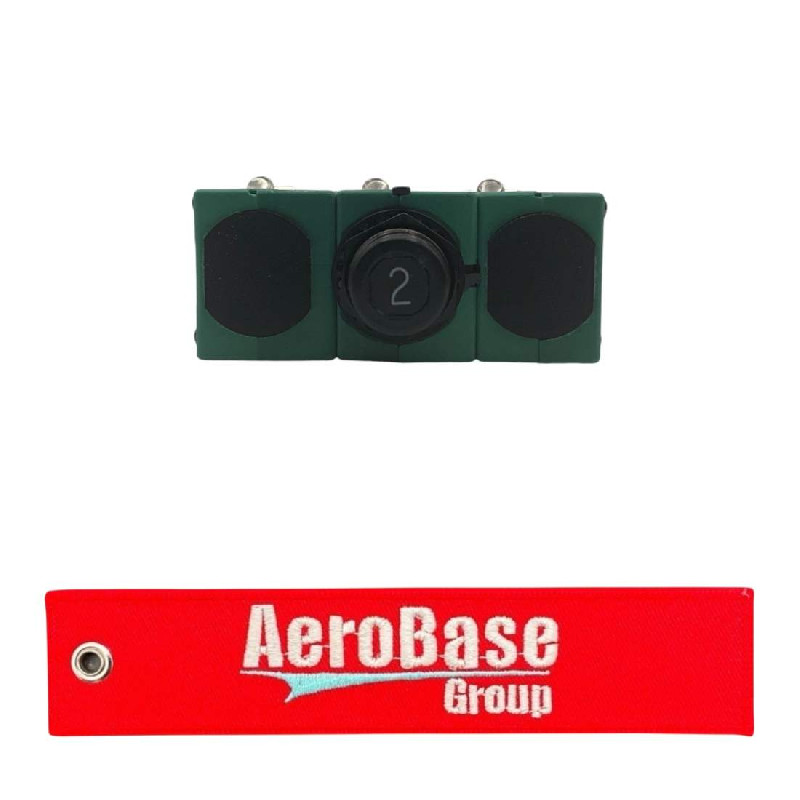

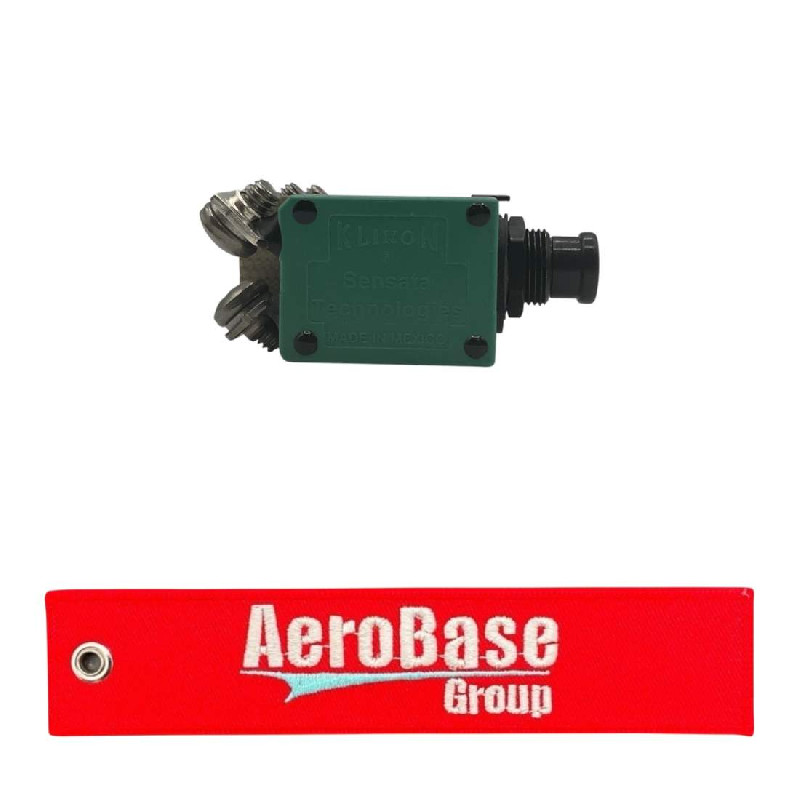

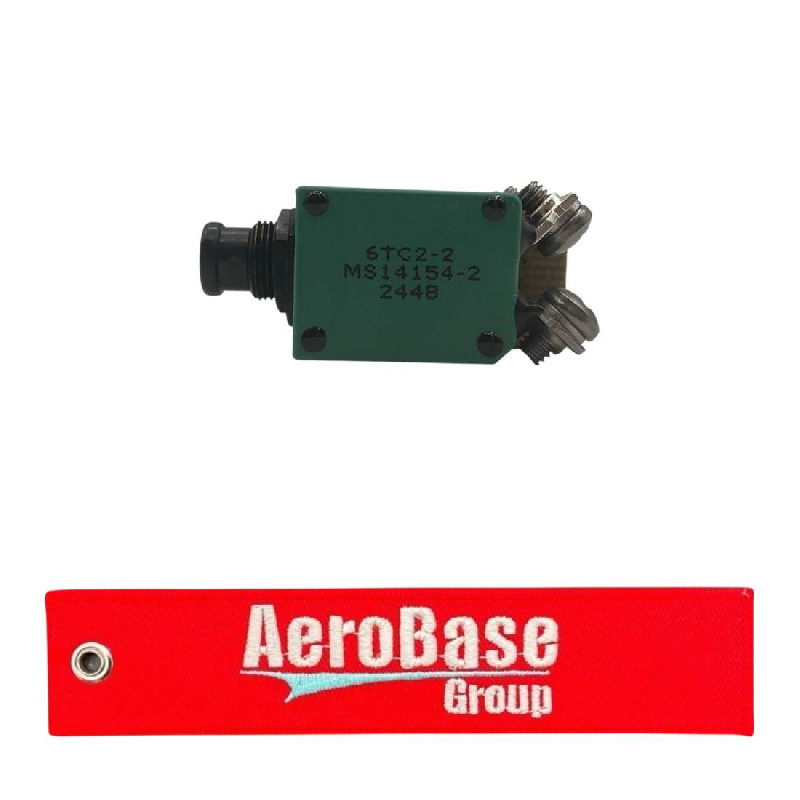

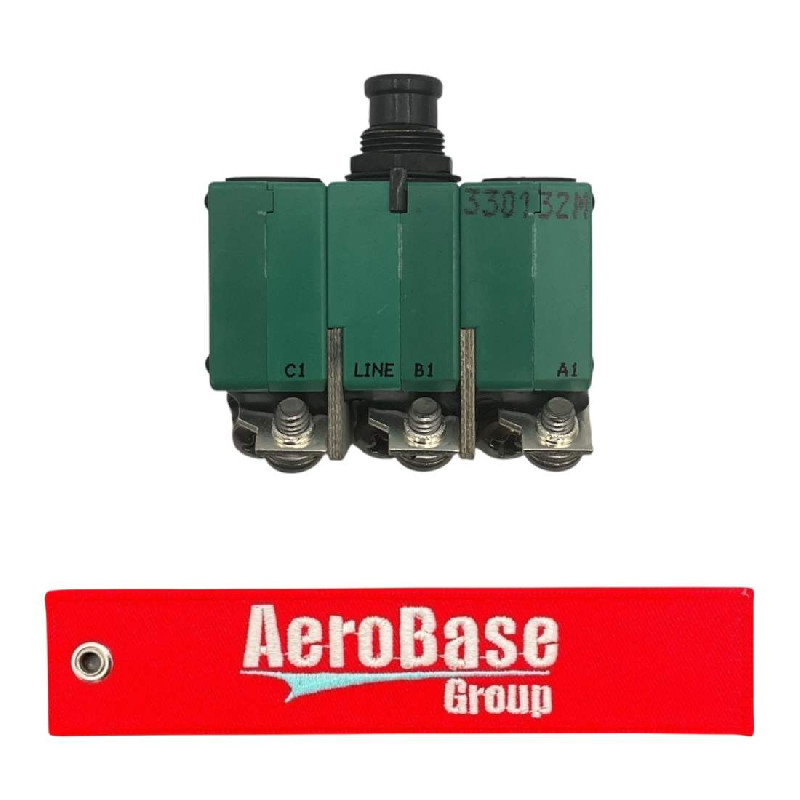

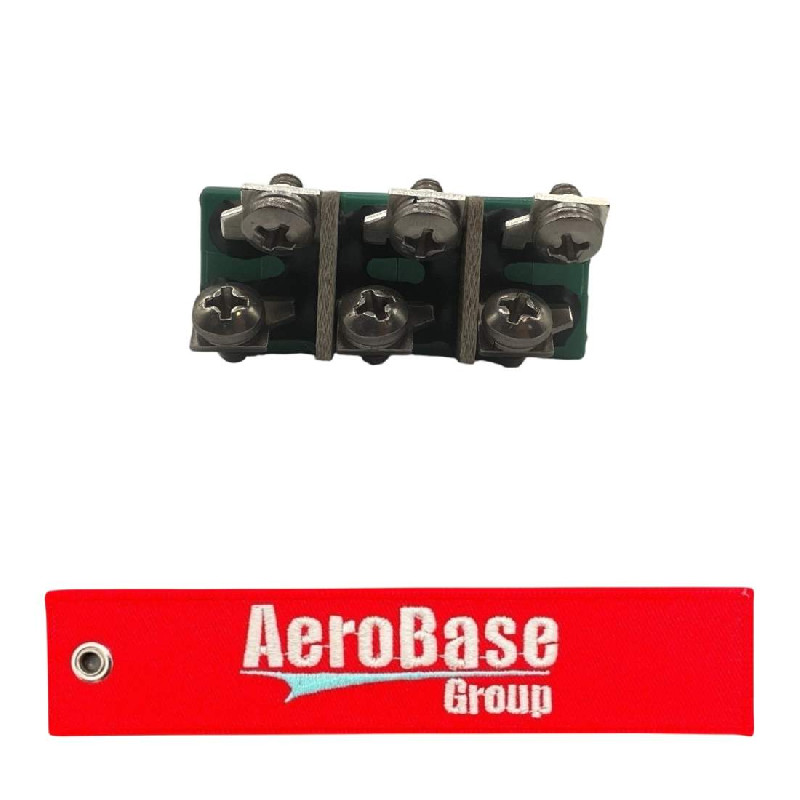

Product Images
6TC2-2 6TC2-2 6TC2-2 6TC2-2 6TC2-2 6TC2-2

Product Details

Part Number or Model 6TC2-2
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Body Height 1.319 inches minimum and 1.381 inches maximum
Body Length 1.840 inches maximum
Body Style Multipole-single actuator type
Body Width 0.770 inches maximum
Bushing Length 0.219 inches minimum and 0.281 inches maximum
Case Material Plastic
Circuit Protection Type Overcurrent all locations
Frequency In Hertz 400.0 all locations
Internal Trip Release Configuration Series trip all locations
Maximum Continuous Load Current Rating Per Pole 2.0 amperes ac all locations
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000.0 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 120 ac all locations
Pole Quantity 3
Reset Method Manual
Terminal Type And Quantity 6 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Release Characteristic Time delay all locations
Trip Release Method Thermal all locations

Add to Cart

Up to quantity 2 ships same day.
buy now $624.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-223-2072
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99
