6TC2-7-1/2 Circuit Breaker

Part#: 6TC2-7-1/2 NSN: 5925-01-086-5643

About this product 6TC2-7-1/2 Circuit Breaker 7 1/2 amp. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

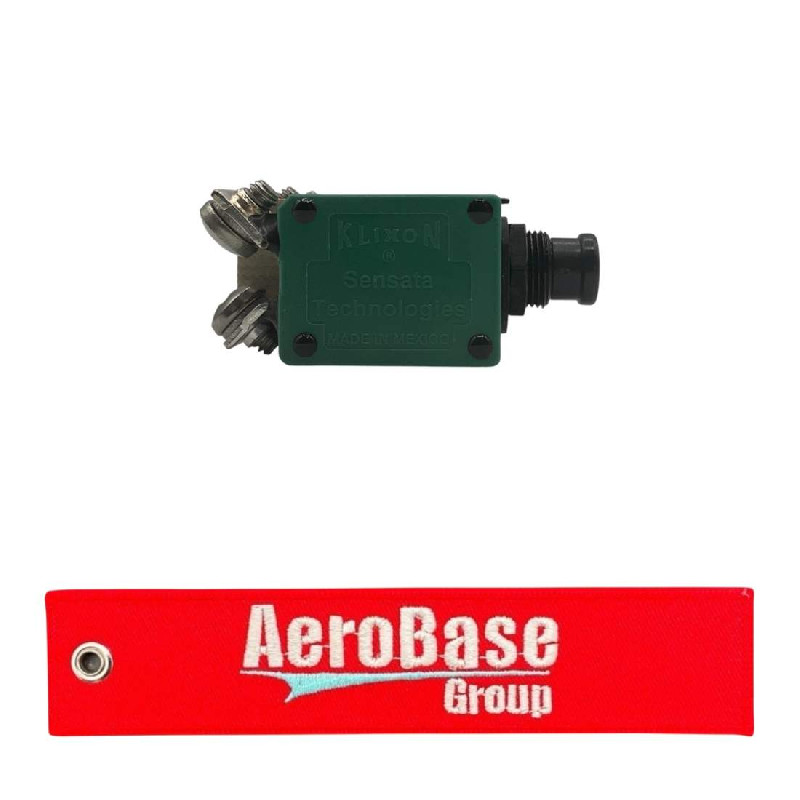

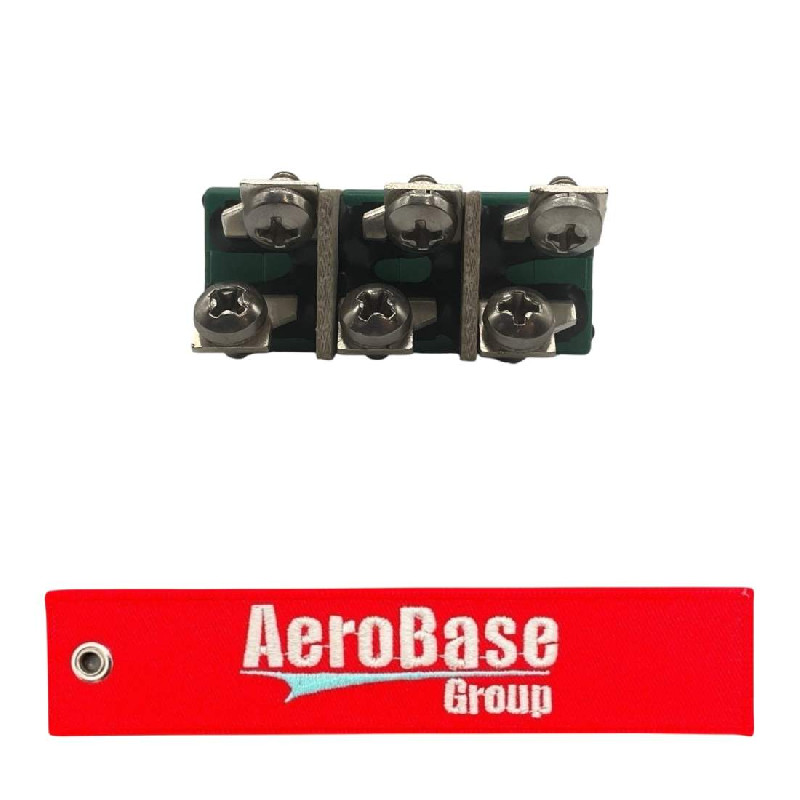

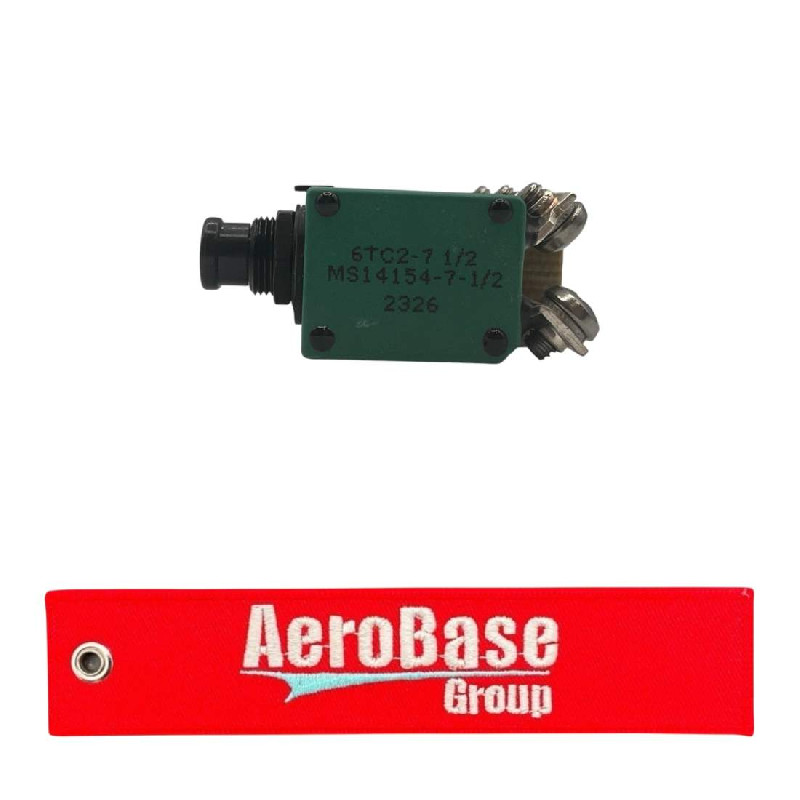

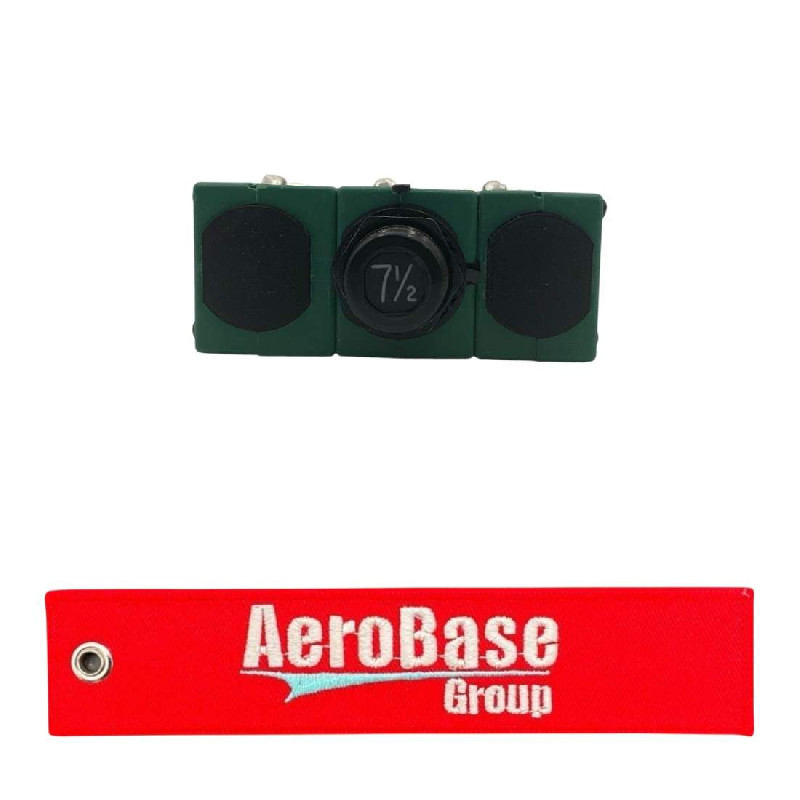

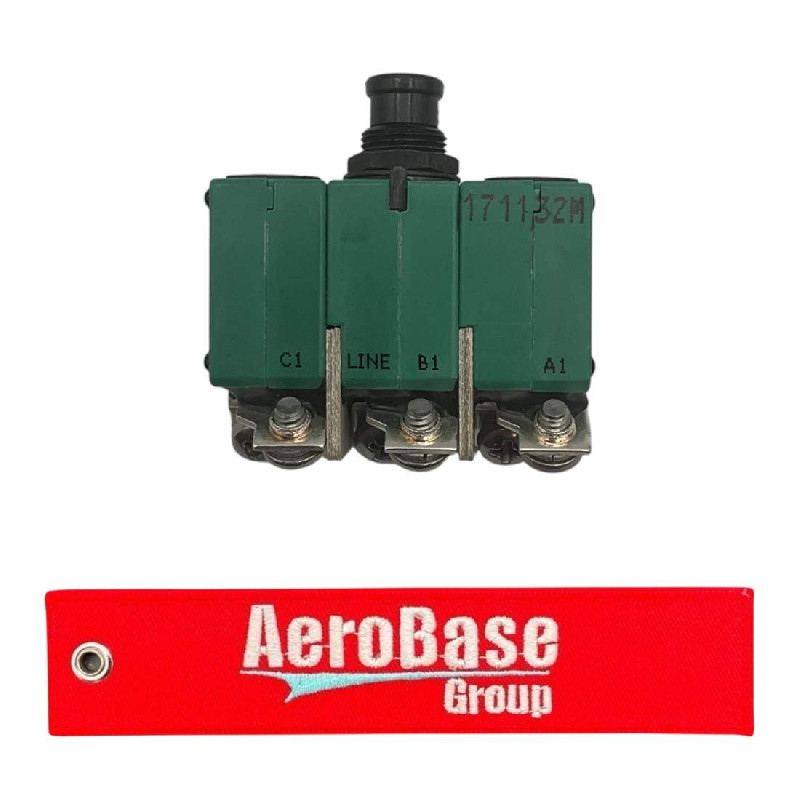

6TC2-7-1/2 6TC2-7-1/2 6TC2-7-1/2 6TC2-7-1/2 6TC2-7-1/2 6TC2-7-1/2

Product Details

Part Number or Model 6TC2-7-1/2
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole two
Body Height 1.319 inches minimum and 1.381 inches maximum
Body Length 1.840 inches maximum
Body Style Multipole-single actuator type
Body Width 0.730 inches minimum and 0.770 inches maximum
Bushing Length 0.219 inches minimum and 0.281 inches maximum
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.469 inches minimum and 0.531 inches maximum
Center To Center Distance Between Terminals Parallel To Width 0.593 inches minimum and 0.655 inches maximum
Circuit Protection Type Overcurrent all locations
External Actuator Linkage Arrangement One, two, and three linked
Frequency In Hertz 400.0 all locations
Internal Trip Release Configuration Series trip all locations
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 7.5 amperes ac all locations
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000. ac all locations
Mounting Facility Type And Quantity Threaded bushing
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 120 ac all locations
Pole Quantity 3
Reset Method Manual
Terminal Type And Quantity 6 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 4 minimum at 200 pct all locations and 20.000 maximum at 200 pct all locations and 0.400 minimum at 500 pct all locations and 2.000 maximum at 500 pct all locations and 0.100 minimum at 1000 pct all locations and 0.530 maximum at 1000 pct all locations
Trip Release Ambient Tempurature Rating 25 degree celsius maximum all locations
Trip Release Characteristic Time delay all locations
Trip Release Method Thermal all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 145.0 all locations
