7274-2-3 Circuit Breaker

Part#: 7274-2-3 NSN: 5925-00-969-7783

About this product 7274-2-3 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

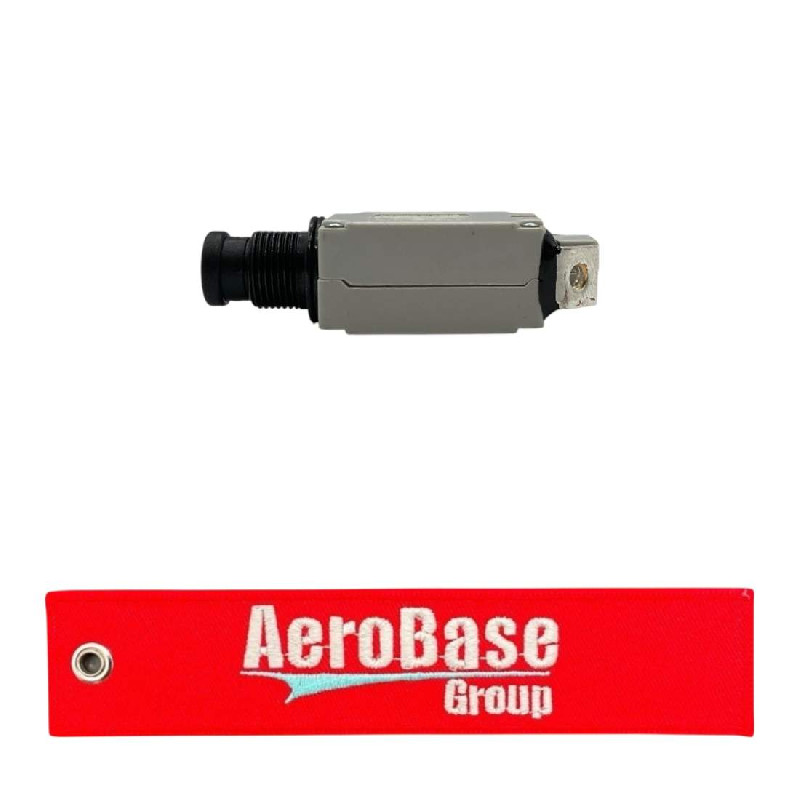

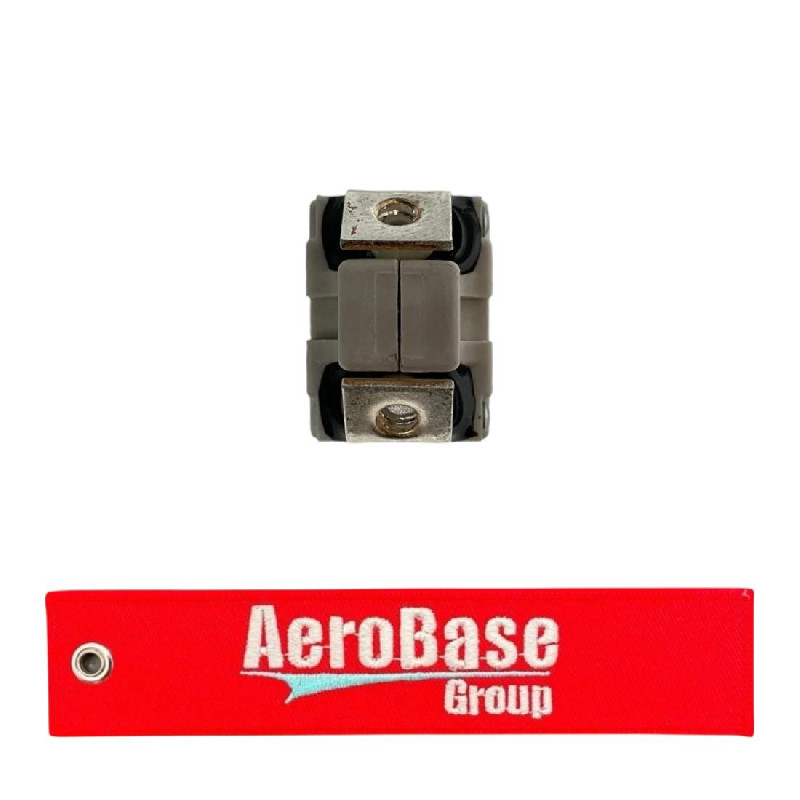

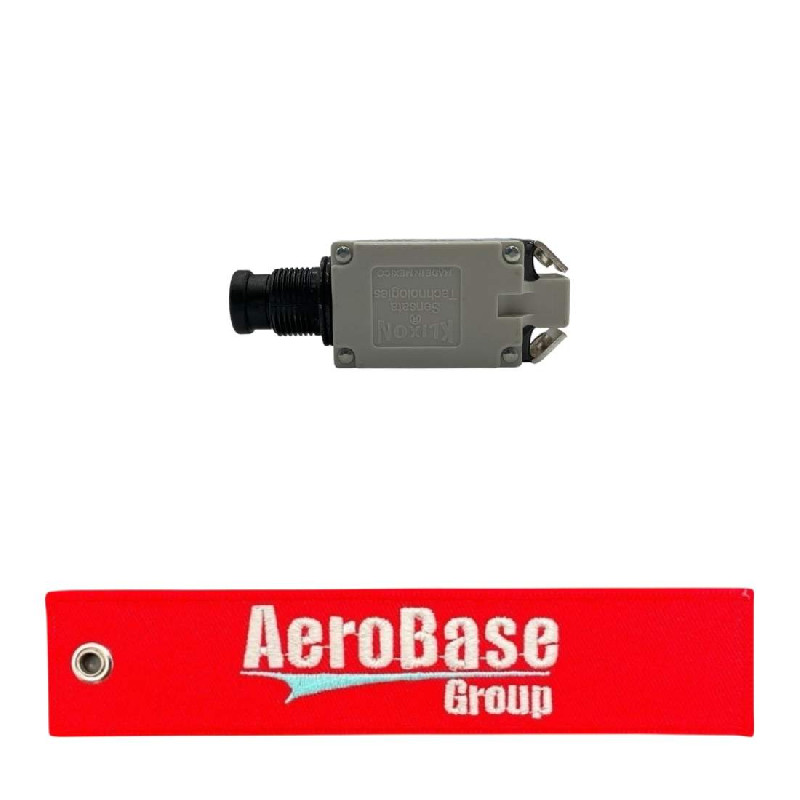

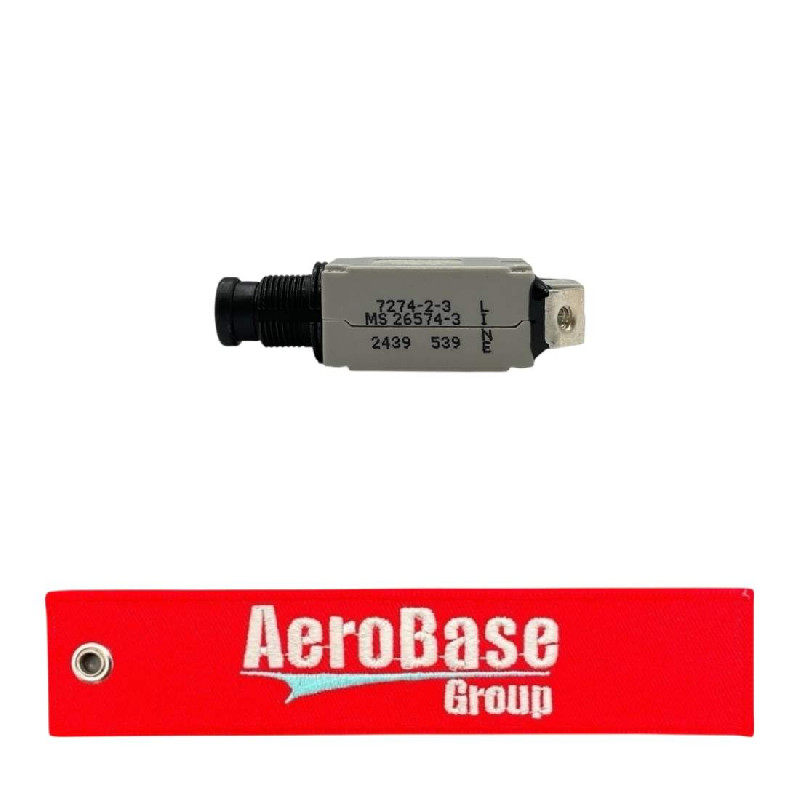

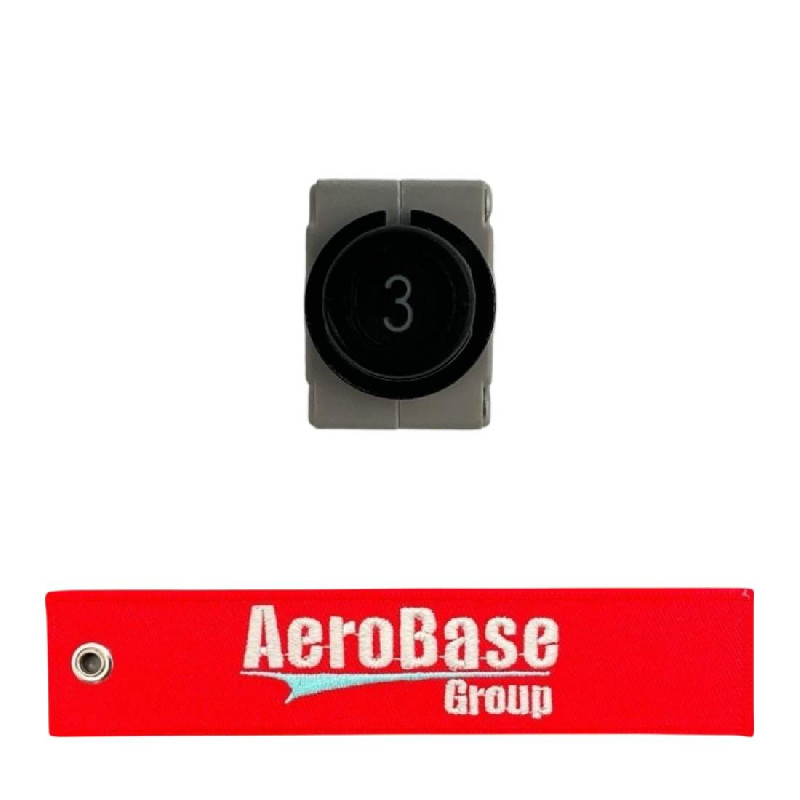

7274-2-3 7274-2-3 7274-2-3 7274-2-3 7274-2-3 7274-2-3

Product Details

Part Number or Model 7274-2-3
Description Circuit Breaker
Schedule B Class 8536200040
ECCN (Export Control Class) EAR99
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal single location
Trip Delay Time In Seconds Per Rated Continuous Current 2 minimum at 200 pct single location and 20.000 maximum at 200 pct single location
Thread Series Designator Un
Thread Size 0.438 inches
Thread Qty Per Inch (tpi) 32
Terminal Type And Quantity 2 screw
Pole Quantity 1
Reset Method Manual
Operating Voltage Type And Rating Per Pole In Volts 115 ac single location and 28 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.420 inches maximum
Maximum Interrupting Capacity Current Type And Rating Per Pole I 100 ac single location and 100 dc single location
Maximum Continuous Load Current Rating Per Pole 3 amperes ac single location and 3 amperes dc single location
Manual Actuator Type And Quantity 1 push-pull
Main Contact Tripping Mechanism Type Trip free
Circuit Protection Type Overcurrent single location
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Explosion resistant and fungus resistant
Internal Trip Release Configuration Series trip single location
Center To Center Distance Between Terminals Parallel To Length 0.593 inches nominal
Bushing Length 0.359 inches nominal
Case Material Metal
Body Style Single pole type
Body Width 0.580 inches maximum
Body Length 0.780 inches maximum
Actuator Function Trip-reset
Actuator Position Designation At pole one
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 145.0 single location

Add to Cart

Up to quantity 20 ships same day.
buy now $42.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-00-969-7783
  • Package Weight (oz)
    0.912
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5925009697783
  • MS26574-3
  • 727423
  • 5925-00-969-7783
