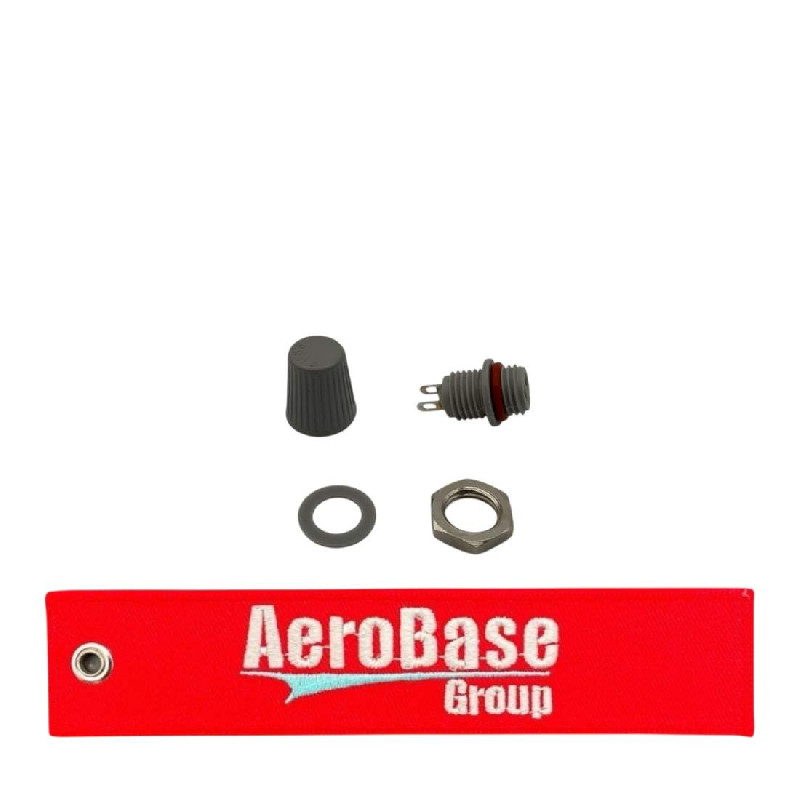

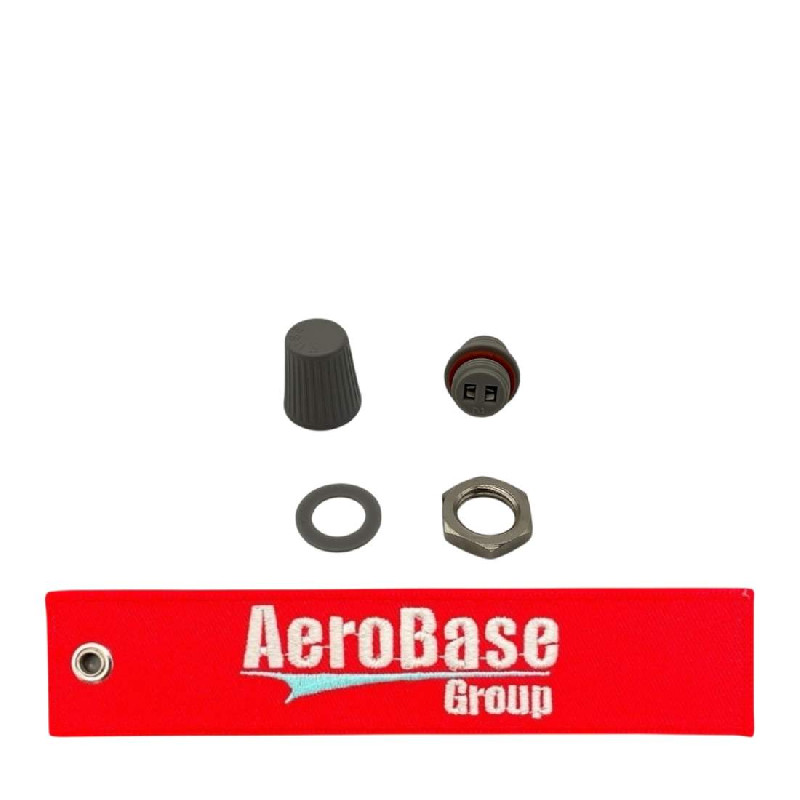

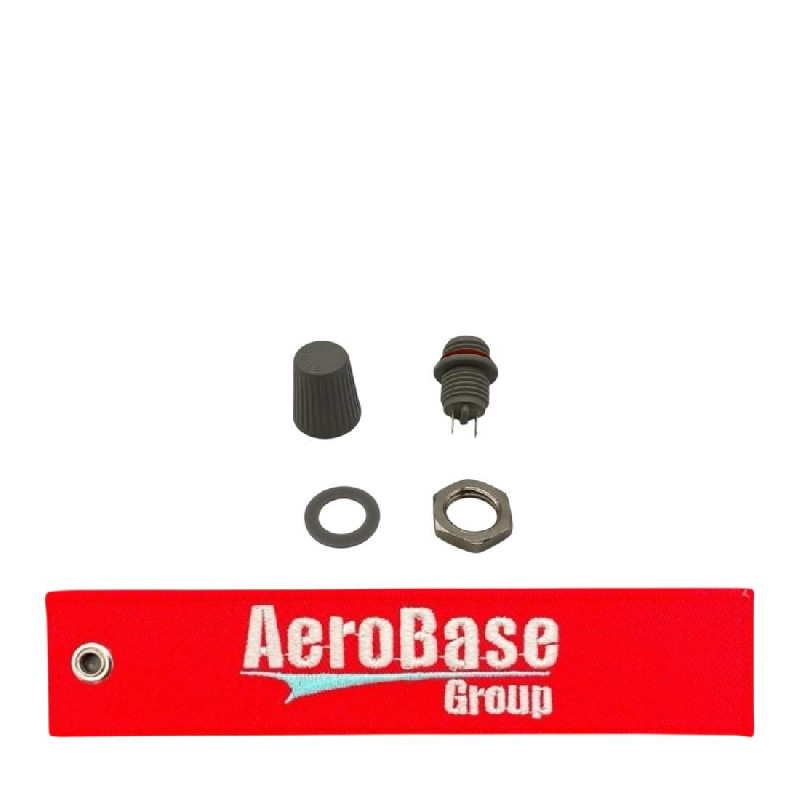

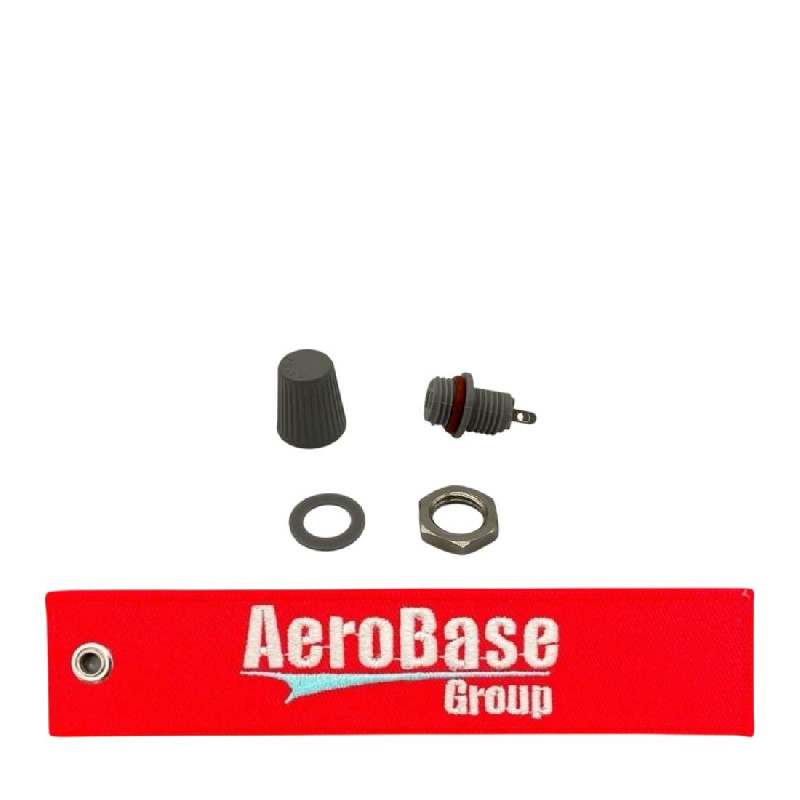

FHN42W Fuse Holder

Part#: FHN42W NSN: 5920-00-785-5471

About this product FHN42W Fuse Holder. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
FHN42W FHN42W FHN42W FHN42W FHN42W FHN42W

Product Details

Part Number or Model FHN42W
Description Fuse Holder
Schedule B Class 8538.90.81.80
ECCN (Export Control Class) EAR99
Accommodated Ferrule Diameter 0.250 inches nominal
Accommodated Fuse Length 0.270 inches nominal
Body Material Plastic
Body Style Panel mounted type
Bushing Diameter 0.375 inches nominal
Bushing Hole Diameter 0.377 inches minimum and 0.381 inches maximum
Bushing Thread Length 0.315 inches nominal
Contact Material Any acceptable
Contact Surface Treatment Any acceptable
Current Carrying Rating In Amps 5.0
Environmental Protection Watertight
Flatted Side Bushing Hole Length 0.344 inches nominal
Fragility Factor Moderately rugged
Fuse Accommodation Quantity 1
Fuse Terminal Type Accommodated Pin
Length From Front Protrusion To Mounting Surface 0.948 inches nominal
Mounting Hole Quantity 1
Mounting Hole Style Bushing mounting
Overall Diameter 0.548 inches nominal
Overall Length 1.180 inches
Specification Data 81349-mil-f-19207/26 government specification
Storage Type General purpose warehouse
Terminal Surface Treatment Solder dip
Terminal Type And Quantity 2 tab, solder lug
Voltage In Volts 125.0

Add to Cart

Up to quantity 34 ships same day.
buy now $135.75
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5920-00-785-5471
  • Package Weight (oz)
    0.32
  • Manufactured By
    Eaton
  • ECCN (Export Control Class)
    EAR99
