FHN55W Fuse Holder

Part#: FHN55W NSN: 5920-00-162-2218

About this product FHN55W Fuse Holder. * Manufacturer certifications are shipped with your order FREE of charge

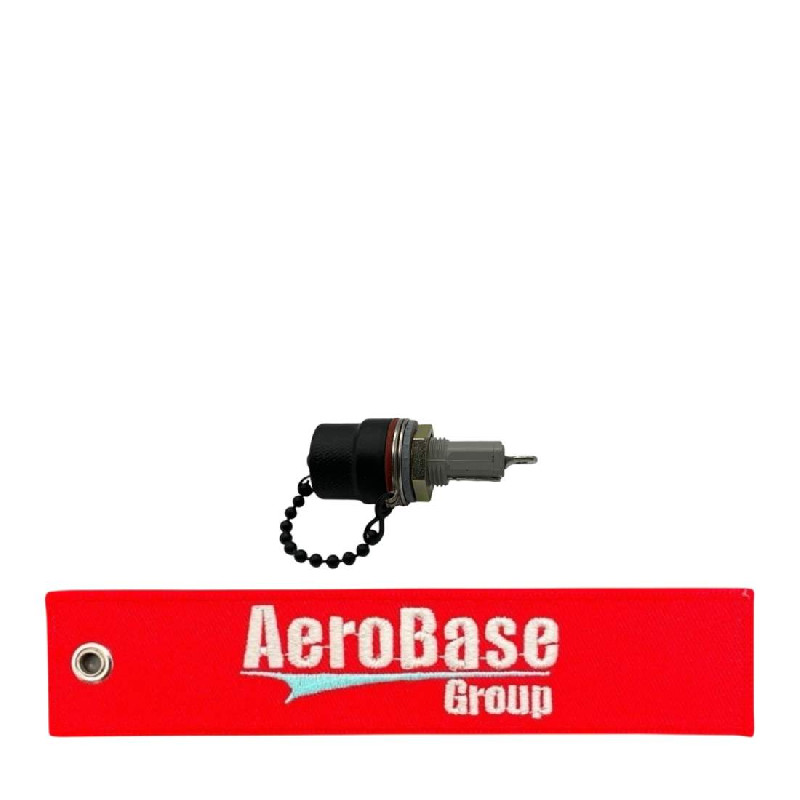

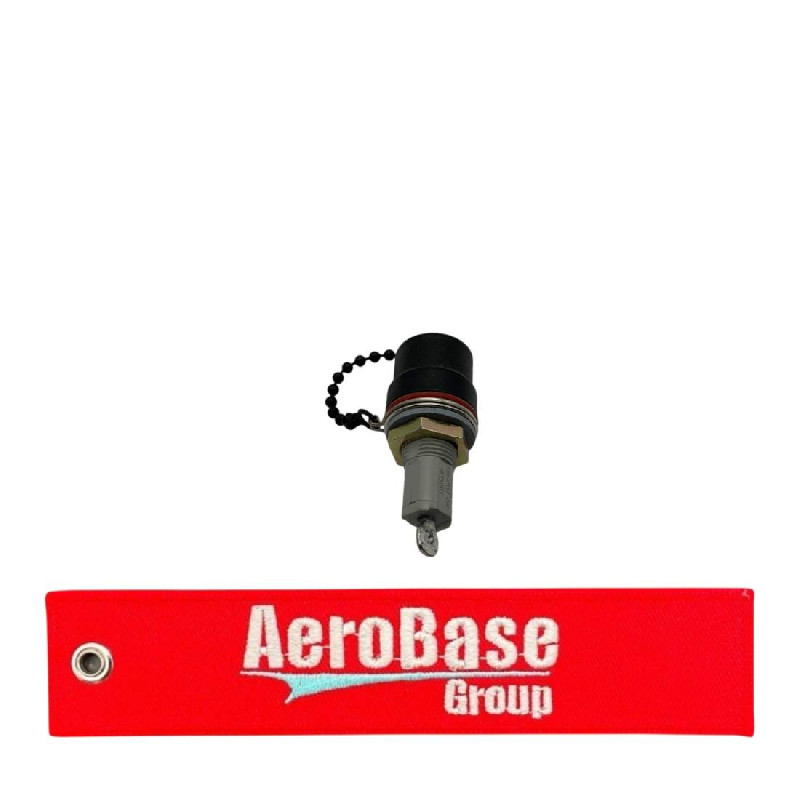

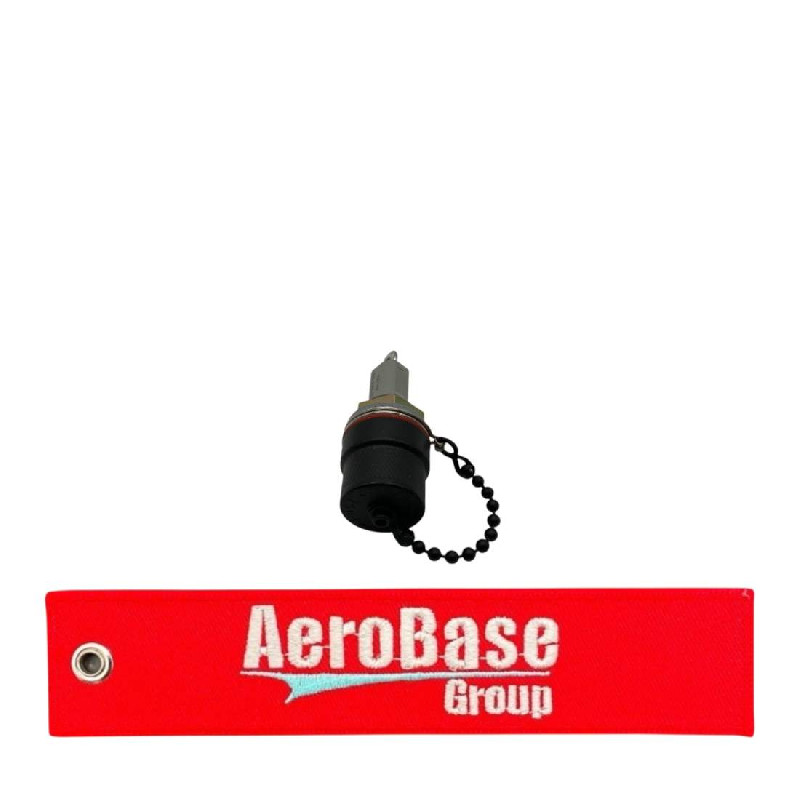

Product Images
FHN55W FHN55W FHN55W FHN55W FHN55W FHN55W

Product Details

Part Number or Model FHN55W
Description Fuse Holder
Schedule B Class
ECCN (Export Control Class) EAR99
Accommodated Ferrule Diameter 0.250 inches nominal
Accommodated Fuse Length 1.250 inches nominal
Body Length 2.500 inches maximum
Body Style Shielded-bushing mounted type
Bushing Diameter 0.500 inches nominal
Bushing Hole Diameter 0.500 inches minimum and 0.510 inches maximum
Bushing Thread Length 0.500 inches nominal
Cap Diameter 0.812 inches nominal
Contact Material Brass
Contact Surface Treatment Silver plated, qq-s-365
Current Carrying Rating In Amps 30
Environmental Protection Shock proof
Flatted Side Bushing Hole Length 0.468 inches minimum and 0.478 inches maximum
Fuse Accommodation Quantity 1
Fuse Terminal Type Accommodated Ferrule
Length From Front Protrusion To Mounting Surface 1.00 inches nominal
Mounting Hole Quantity 1
Mounting Hole Style Bushing mounting
Overall Diameter 0.875 inches nominal
Overall Length 2.672 inches maximum
Precious Material Silver
Precious Material And Location Contact surface silver
Terminal Type And Quantity 2 tab, solder lug
Voltage In Volts 250.

Add to Cart

Up to quantity 5 ships same day.
buy now $80.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5920-00-162-2218
  • Manufactured By
    LITTELFUSE
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5920-00-162-2218
  • 5920001622218
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
