FHN26G1 Fuse Holder

Part#: FHN26G1 NSN: 5920-00-892-9311

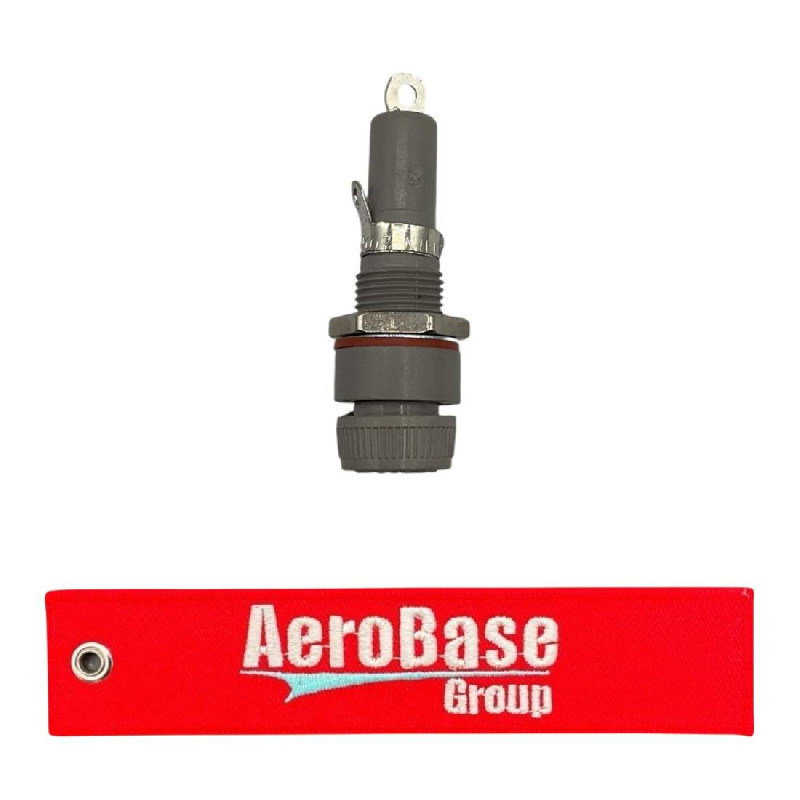

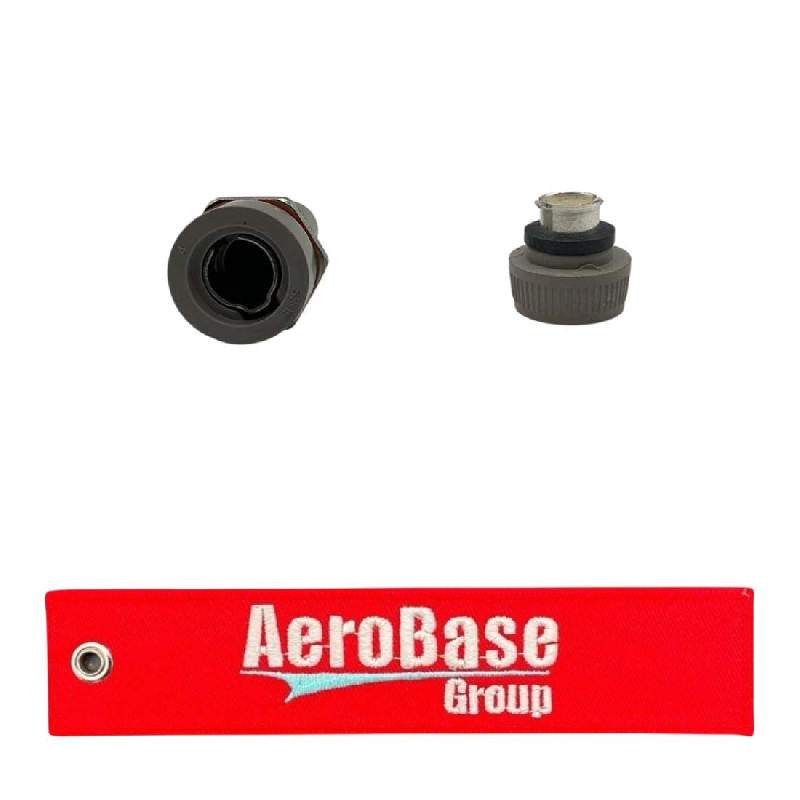

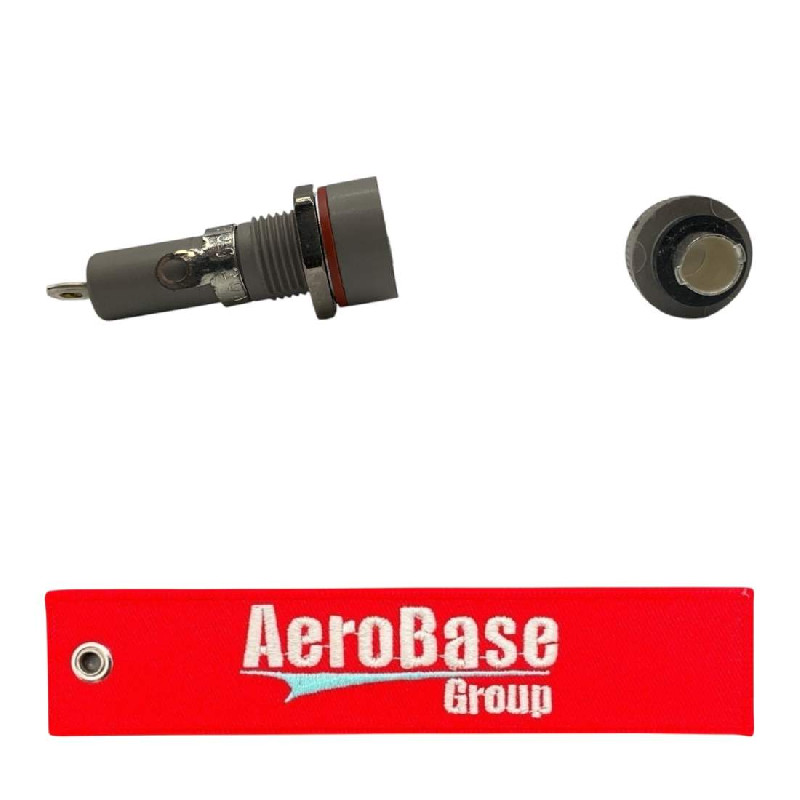

About this product Panel mount-Lamp indicating military Fuseholder, 30A, 250V, bayonet Knob, 1 poles, max Panel thickness: 3/16 inches, MIL-F-19207/16, for military Fuse series: F02 and F03. Similar to commercial version HKP. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model FHN26G1
Description Fuse Holder
Schedule B Class
ECCN (Export Control Class) EAR99
Accommodated Ferrule Diameter 0.250 inches nominal
Accommodated Fuse Length 1.250 inches nominal
Body Material Plastic, diallyl phthalate, mil-m-14, type sdg and plastic, diallyl phthalate, mil-m-19833, type gdi-30f
Body Style Bushing mounted type
Bushing Diameter 0.500 inches nominal
Bushing Hole Diameter 0.500 inches minimum and 0.510 inches maximum
Bushing Thread Length 0.500 inches nominal
Cap Diameter 0.680 inches minimum and 0.690 inches maximum
Contact Material Any acceptable
Contact Surface Treatment Any acceptable
Current Carrying Rating In Amps 30.0
Environmental Protection Dripproof
Flatted Side Bushing Hole Length 0.468 inches minimum and 0.478 inches maximum
Fragility Factor Moderately rugged
Fuse Accommodation Quantity 1
Fuse Terminal Type Accommodated Ferrule
Length From Front Protrusion To Mounting Surface 0.750 inches nominal
Mounting Hole Quantity 1
Mounting Hole Style Bushing mounting
Overall Diameter 0.688 inches nominal
Overall Length 2.313 inches nominal
Specification Data 81349-mil-f-19207/16 government specification
Terminal Surface Treatment Solder dip and tin plated
Terminal Type And Quantity 2 tab, solder lug
Test Data Document 81349-mil-f-19207 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
Voltage In Volts 250.0

Add to Cart

Up to quantity 40 ships same day.
buy now $174.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5920-00-892-9311
  • Manufactured By
    Several
  • ECCN (Export Control Class)
    EAR99
