M39029/58-360 Electrical Contact Pin

Part#: M39029/58-360 NSN: 5999-00-473-3551

About this product M39029/58-360 Electrical Contact Pin. * Manufacturer certifications are shipped with your order FREE of charge

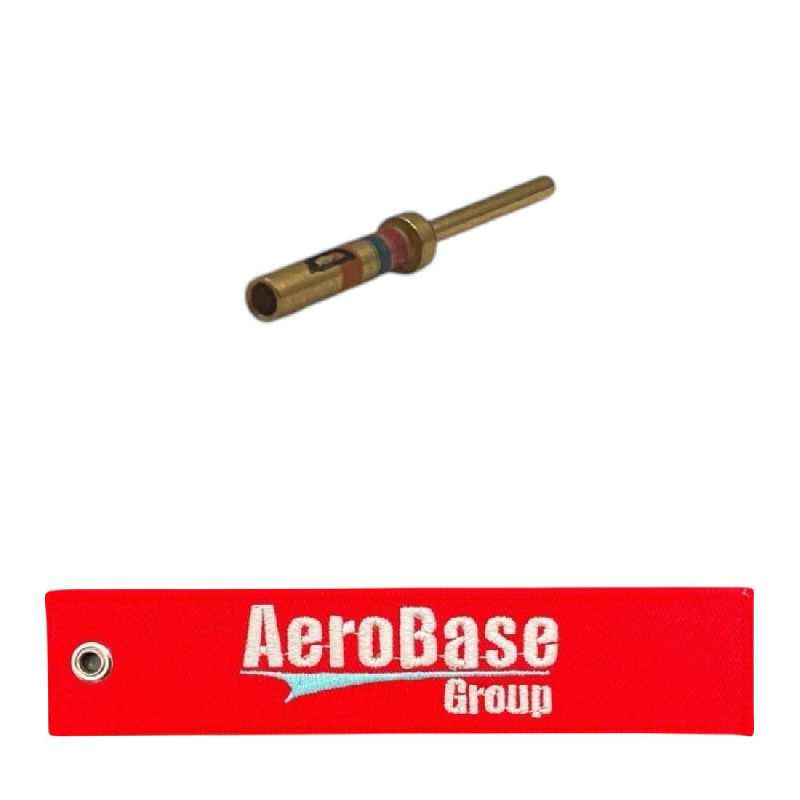

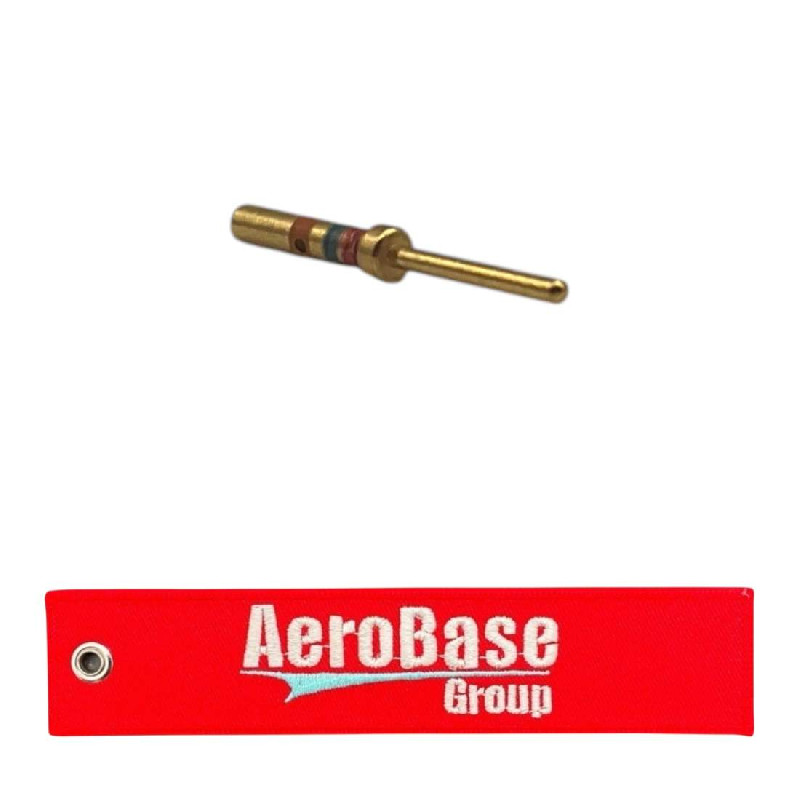

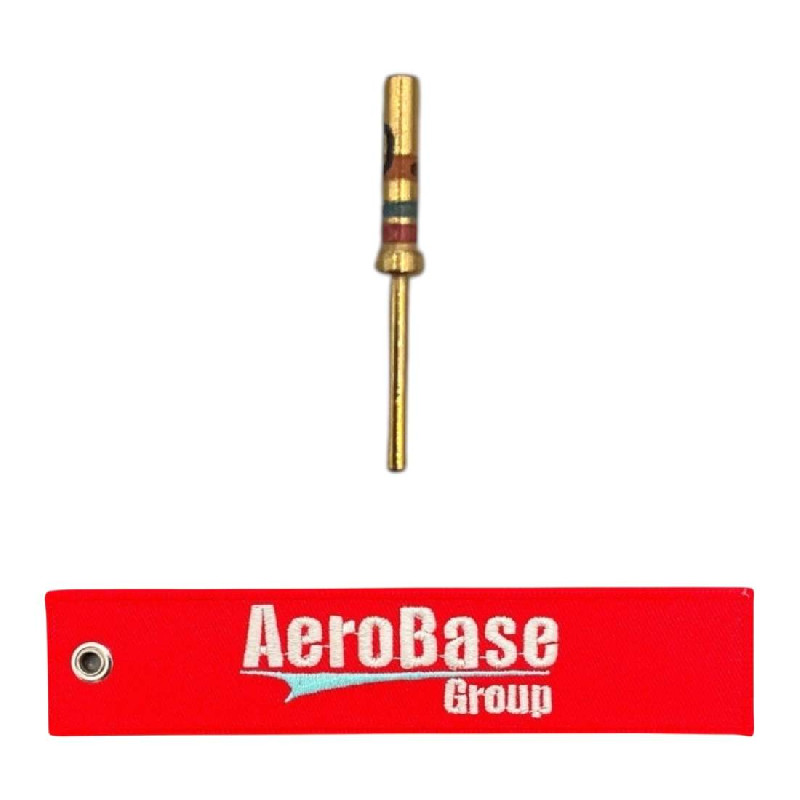

Product Images
M39029/58-360 M39029/58-360 M39029/58-360 M39029/58-360 M39029/58-360

Product Details

Part Number or Model M39029/58-360
Description Electrical Contact Pin
Schedule B Class 8538.90.7040
ECCN (Export Control Class) EAR99
Surface Treatment Specification Mil-g-45204 mil spec single treatment response body and contact
Surface Treatment Gold body and contact
Specification Data 81343-as39029/58 government specification
Style Designator Pin contact
Precious Material And Weight 0.005 gold grains, troy
Special Features Basic item identification number bin-360
Precious Material And Location Body and contact surfaces gold
Precious Material Gold
Pin Length 0.266 inches minimum and 0.267 inches maximum
Pin Diameter 0.030 inches minimum and 0.305 inches maximum
Overall Length 0.531 inches
Overall Diameter 0.060 inches minimum and 0.062 inches maximum
Material Copper alloy contact
Material Copper alloy body
Mounting Method Any acceptable
Identification Code Color Orange and blue and black
Crimping Tool Identifying Number M22520/2-01
Cable Entrance Diameter 0.034 inches minimum and 0.036 inches maximum
Terminal Type And Quantity 1 crimp axially at one end

Add to Cart

Up to quantity 850 ships same day.
buy now $0.75
each, minimum order quantity of 50 Sold in increments of 50
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5999-00-473-3551
  • Package Weight (oz)
    0.416
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M39029-58-360
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
