Amphenol D38999/20FJ35PN Connector

Part#: D38999/20FJ35PN NSN: 5935-01-611-8095

About this product D38999/20FJ35PN is a MIL-DTL-38999 Series III wall-mount electrical receptacle featuring a shell size 25 aluminum body with electroless-nickel finish, 25-35 insert arrangement and 128 removable Size 22D gold-plated crimp pin contacts. The connector features N normal keying, threaded coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace, aviation, marine and military electrical applications. D38999/20FJ35PN is associated with NSN 5935-01-611-8095 and mates with the D38999/26FJ35SN straight plug configuration. * Manufacturer certifications are shipped with your order FREE of charge

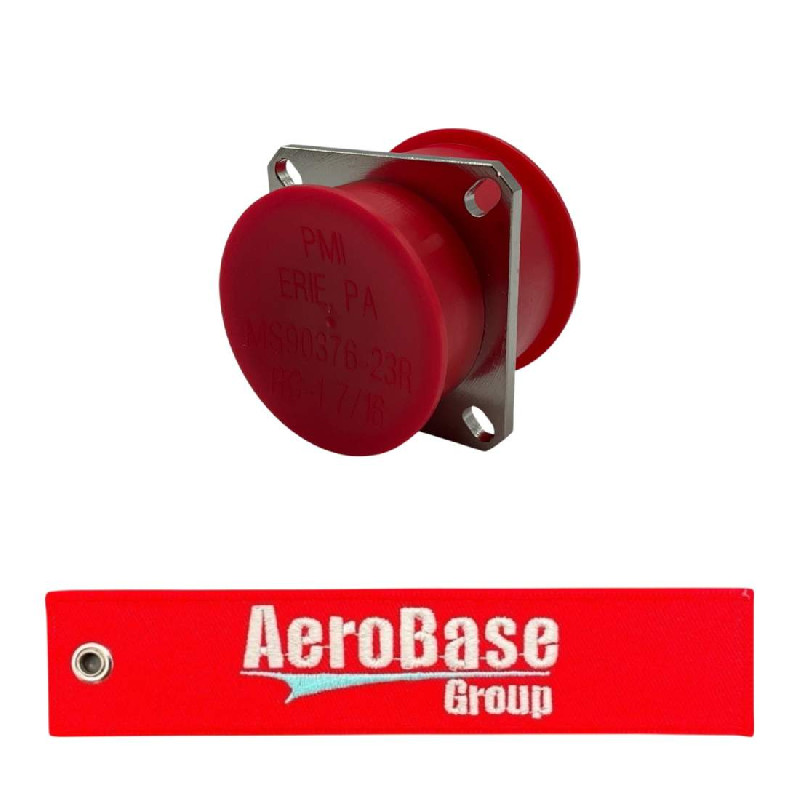

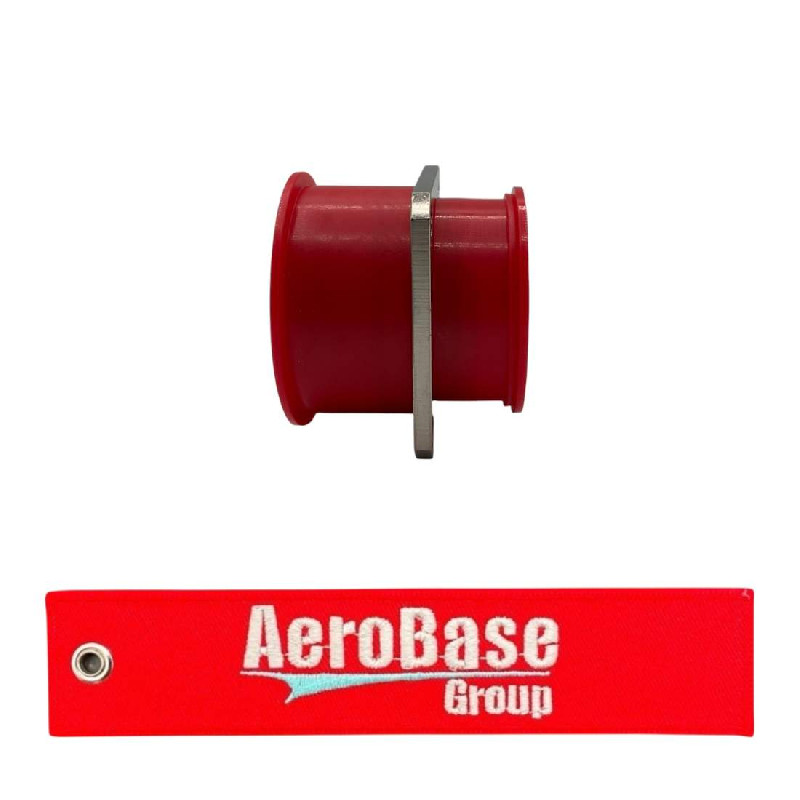

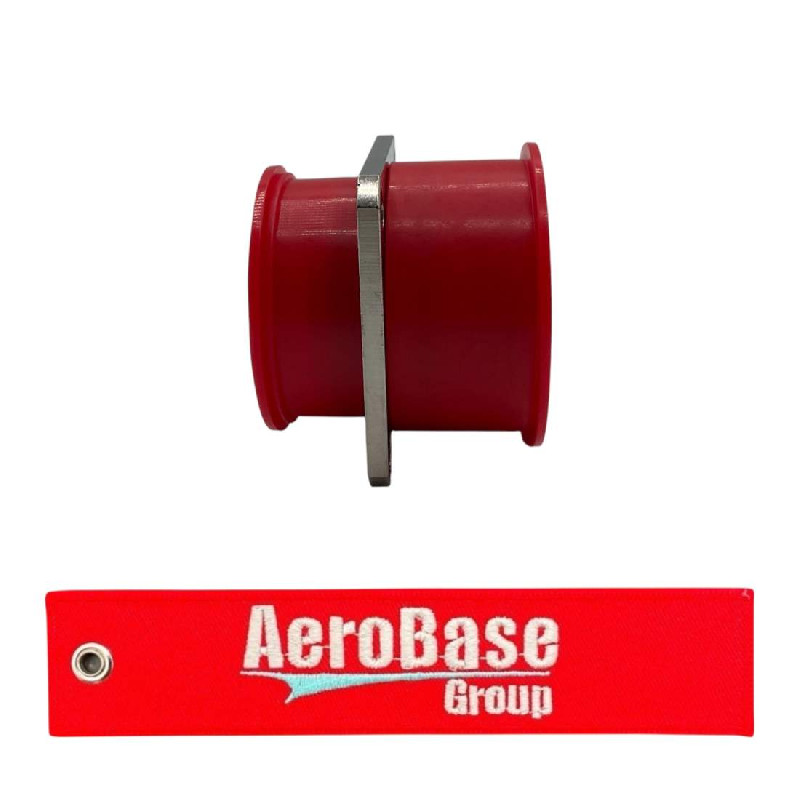

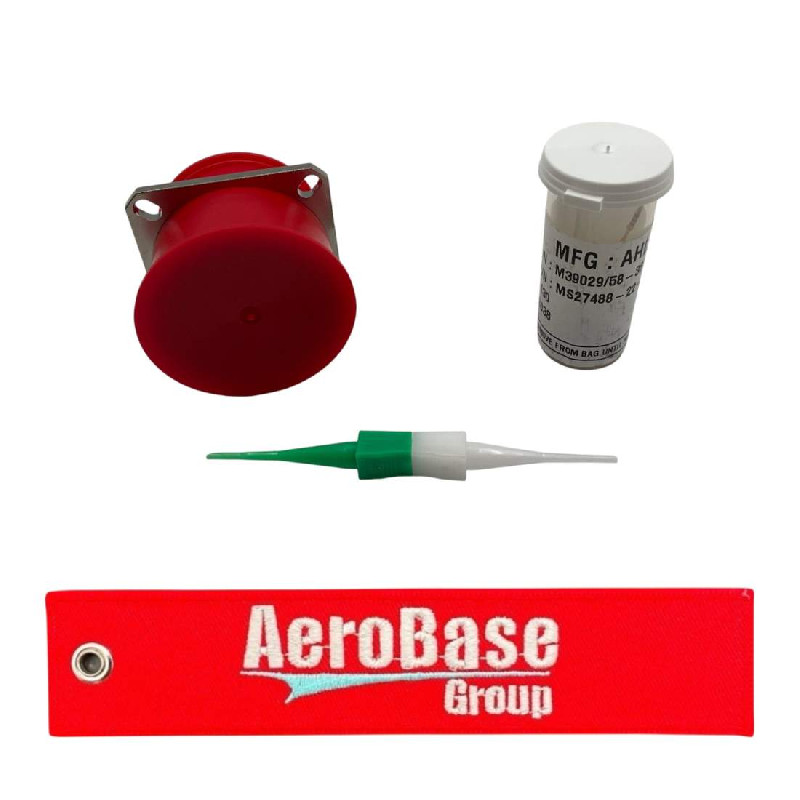

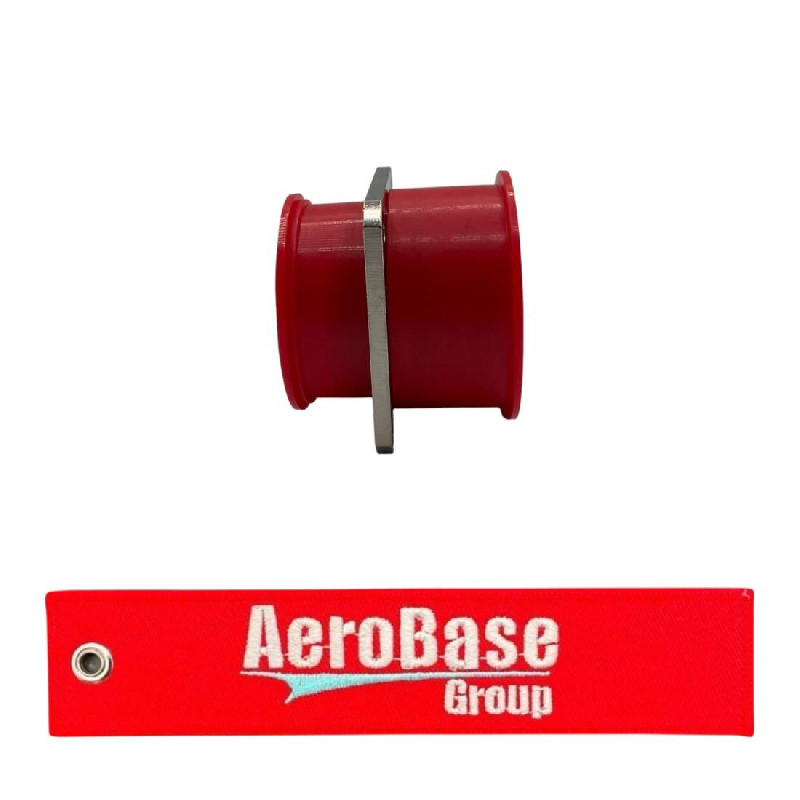

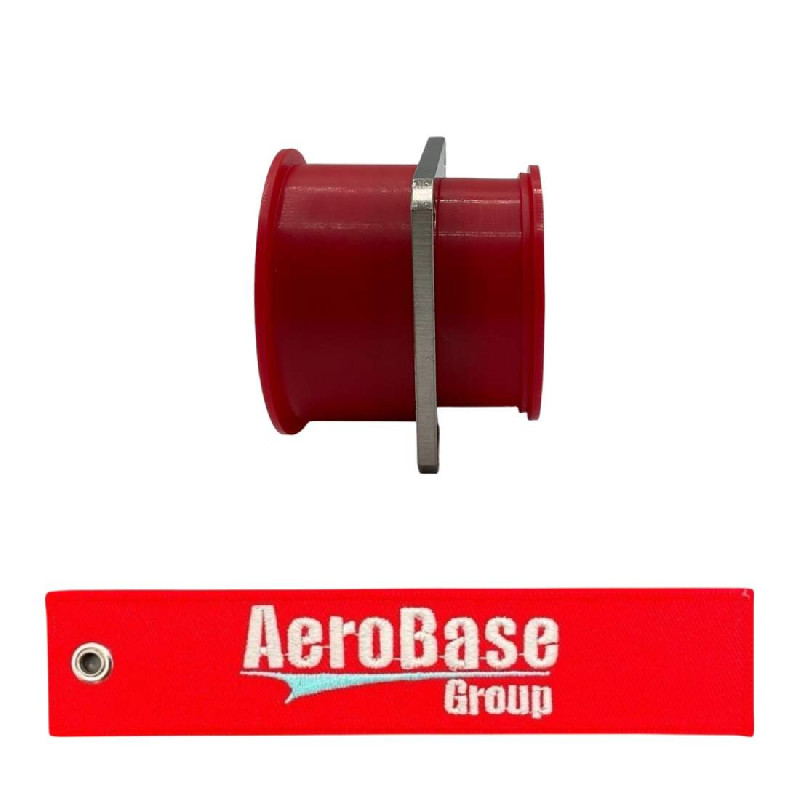

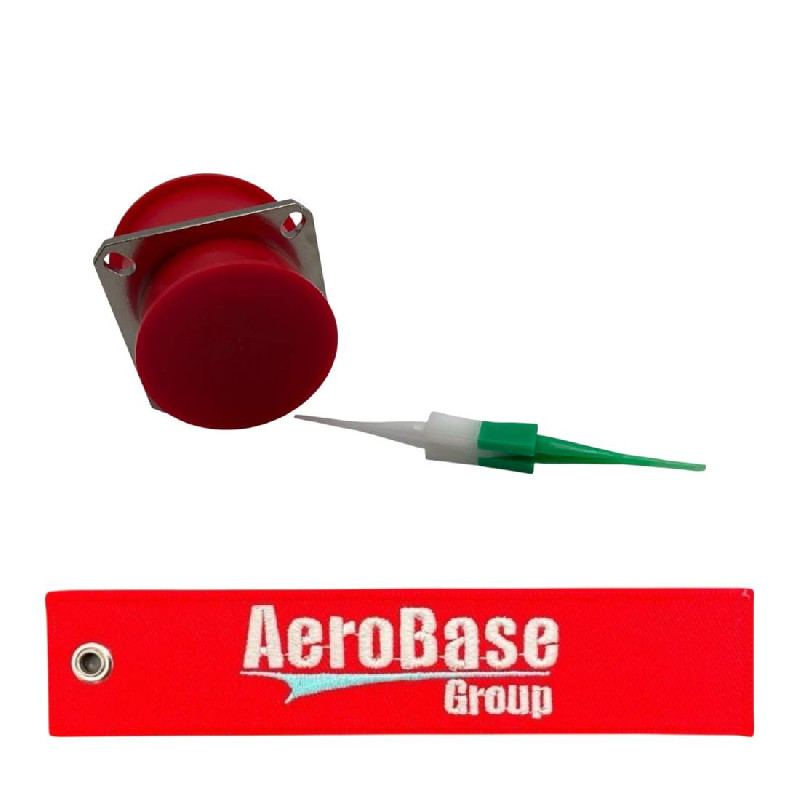

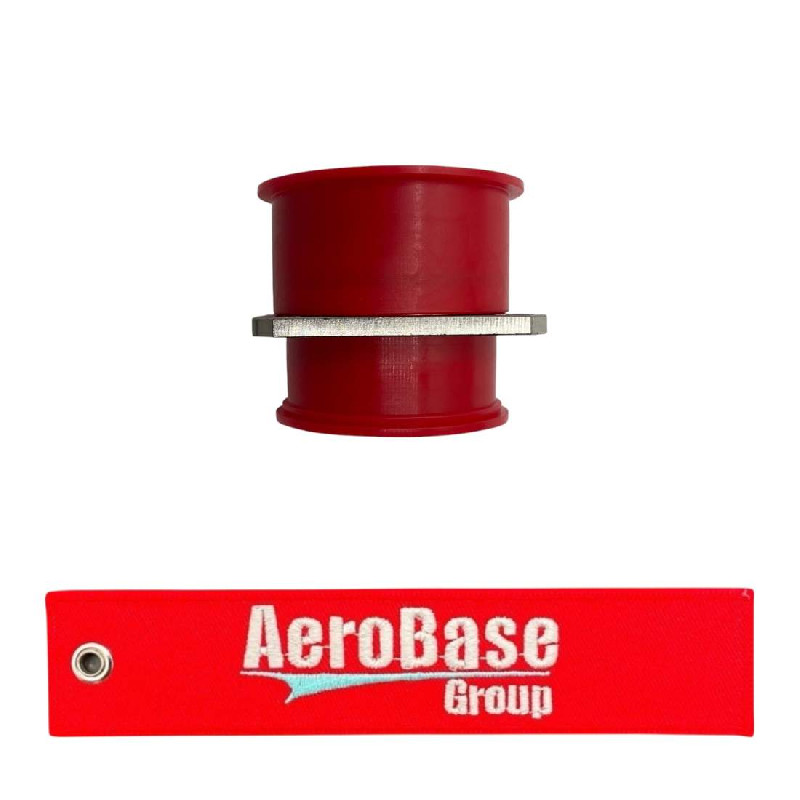

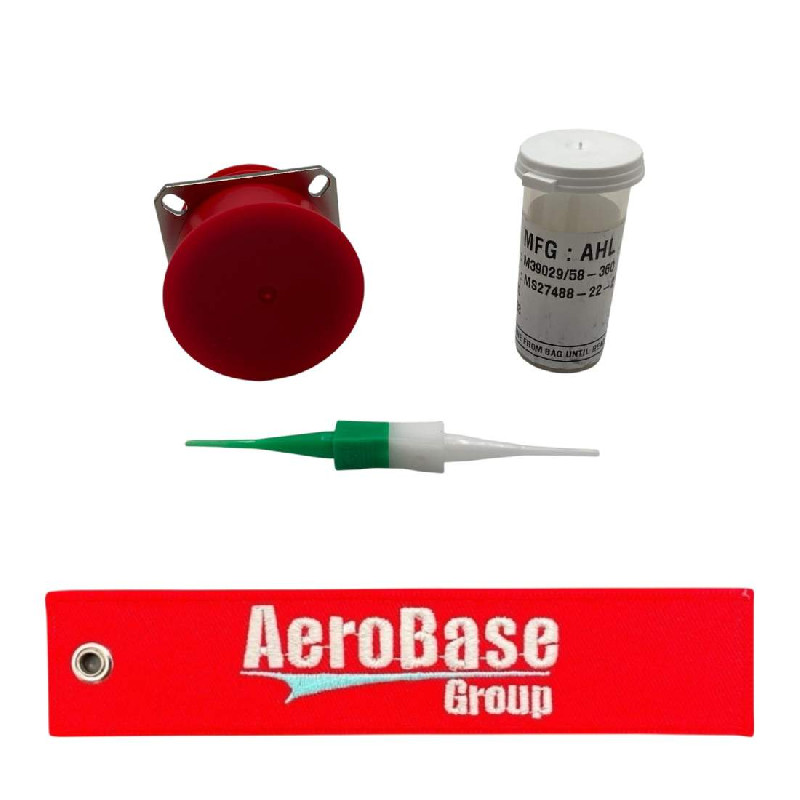

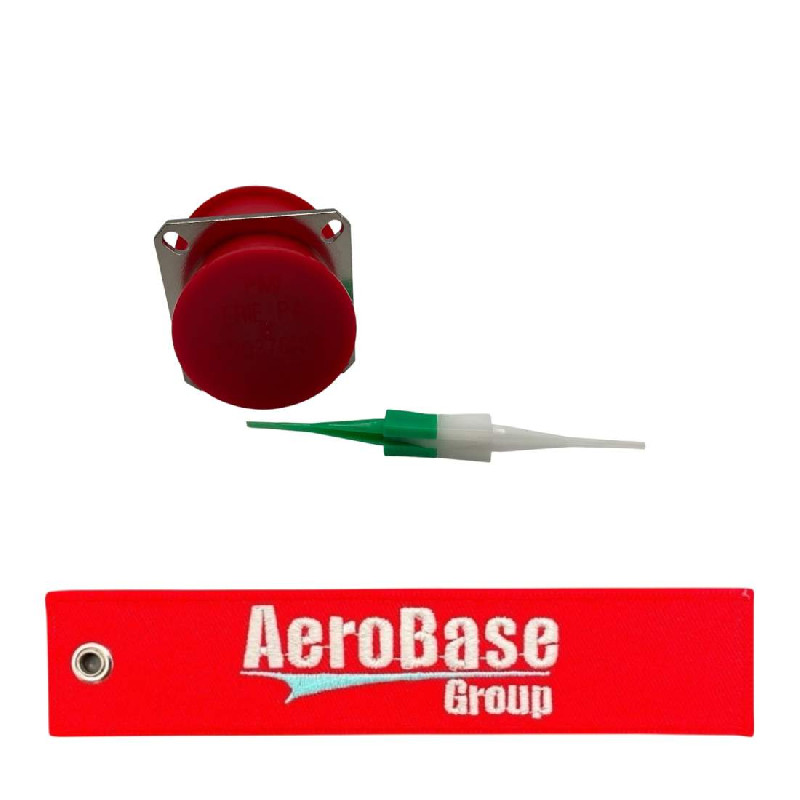

Product Images
D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN D38999/20FJ35PN

Product Details

Part Number or Model D38999/20FJ35PN
Description Connector
Schedule B Class 8536.69.5050
ECCN (Export Control Class) EAR99
Specification MIL-DTL-38999 Series III
Shell Size 25 / MIL J
Insert Arrangement 25-35
Number of Contacts 128
Contact Gender Pin / Male
Contact Size Size 22D
Contact Quantity / Size 128 x Size 22D
Contact Type Removable Crimp / Rear Release
Wire Size 22–28 AWG
Contact Material Copper Alloy
Contact Finish Gold, 50 µin
Current Rating 5 A per contact
Shell Material Aluminum Alloy
Shell Finish Electroless Nickel
Service Class F
Color Silver
Polarization / Keying N - Normal
Mounting Type Panel / Flange Mount
Coupling Interface Triple-Start Threaded
Shielding Shielded / EMI-RFI
Environmental Protection Environment Resistant
Operating Temperature -65C to +200C
Mating Cycles 500 minimum

Add to Cart

Up to quantity 5 ships same day.
buy now $103.50
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-611-8095
  • Package Weight (oz)
    2.4
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935016118095
  • 5935-01-611-8095
  • D3899920FJ35PN
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
