D38999/26WB35PN Connector

Name: Connector
Brand: Amphenol
SKU: 5935011961873
Price: 57.95 USD
Availability: InStock

Part#: D38999/26WB35PN NSN: 5935-01-196-1873

About this product D38999/26WB35PN is a MIL-DTL-38999 Series III straight electrical plug connector featuring a shell size 11 aluminum body with olive-drab cadmium finish, 11-35 insert arrangement and 13 removable Size 22D gold-plated crimp pin contacts. The connector features N normal keying, triple-start threaded self-locking coupling and environmentally resistant EMI/RFI-shielded construction for high-reliability aerospace, aviation, military and marine electrical applications. D38999/26WB35PN is associated with NSN 5935-01-196-1873 and uses M39029/58-360 Size 22D pin contacts. * Manufacturer certifications are shipped with your order FREE of charge

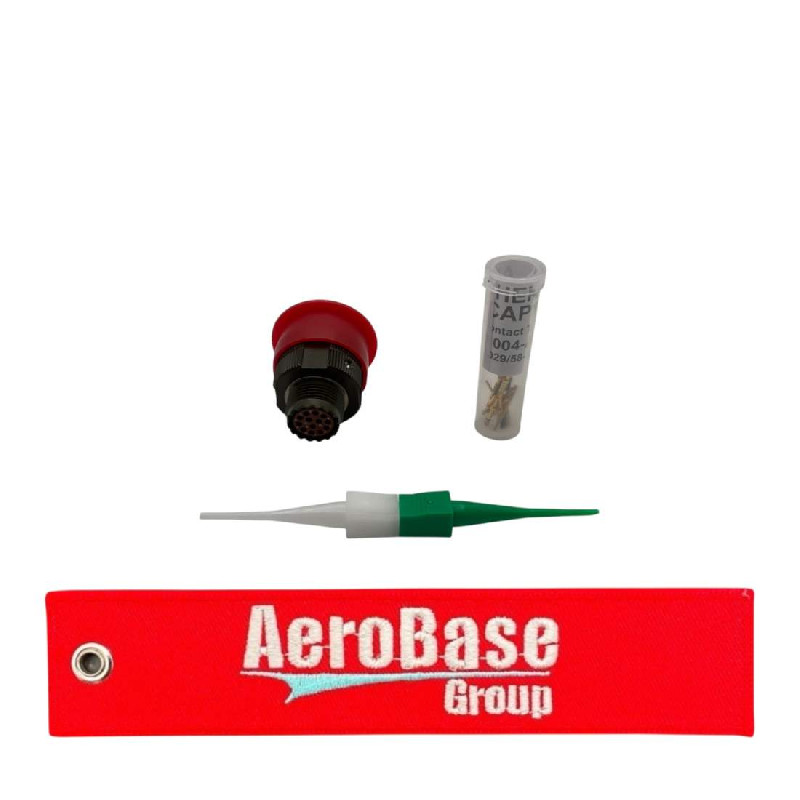

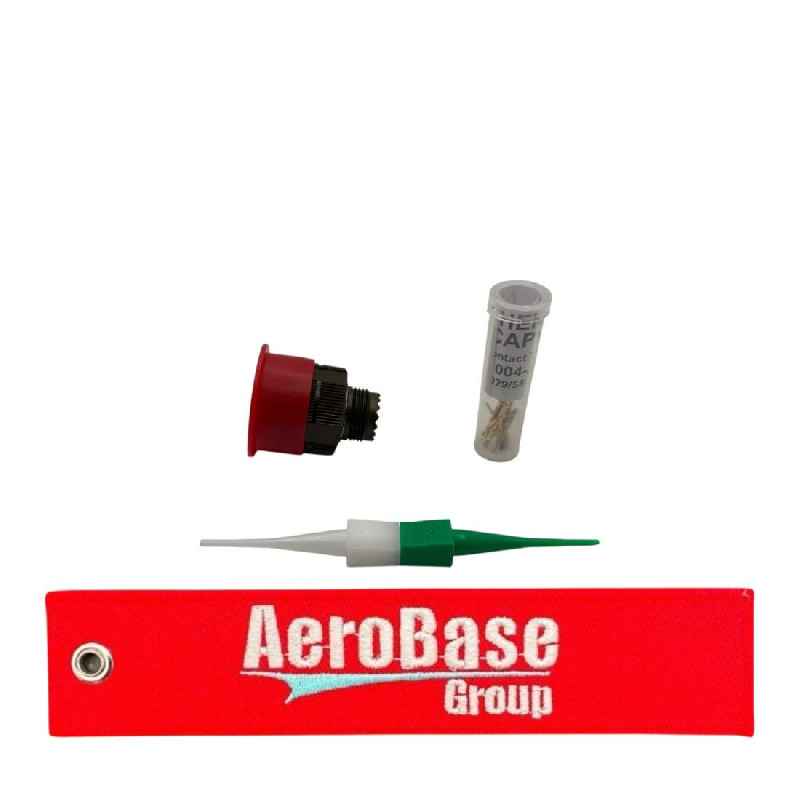

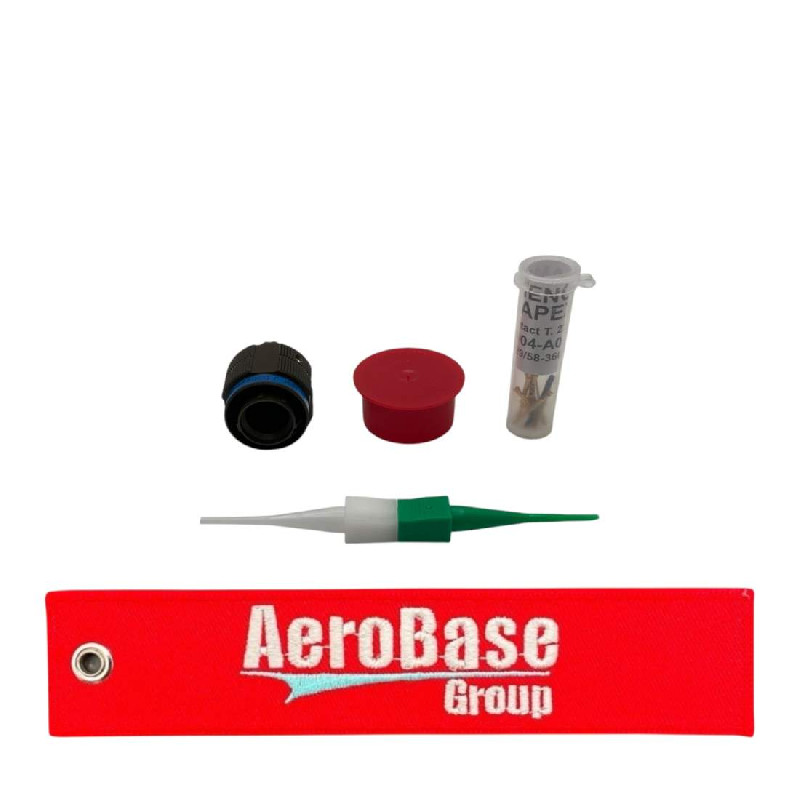

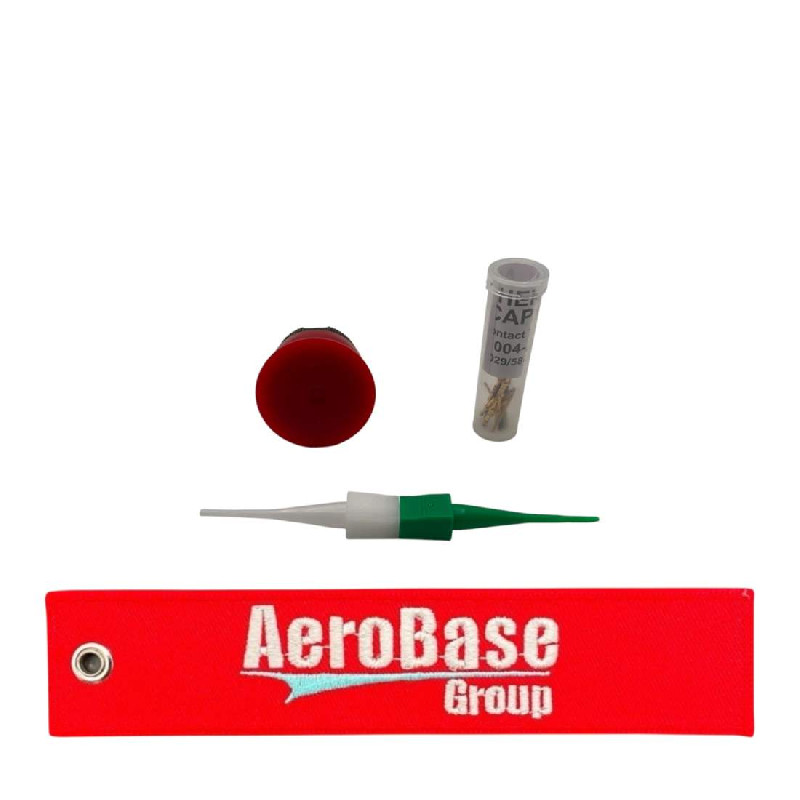

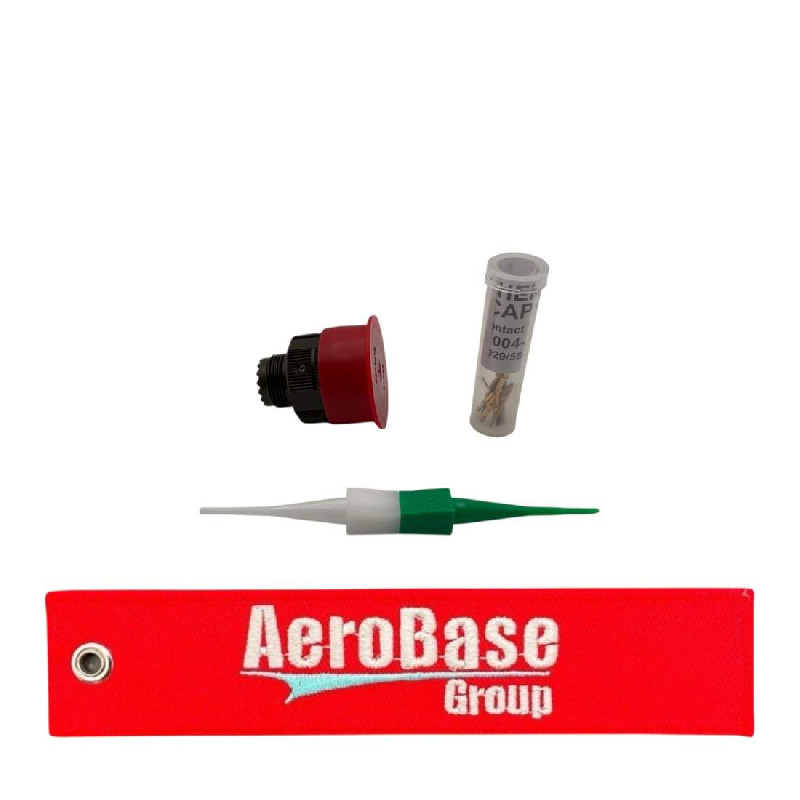

Product Images

Product Details

Part Number or Model	D38999/26WB35PN
Description	Connector
Schedule B Class	8536.69.4020
ECCN (Export Control Class)	EAR99
Terminal Location	Back single mating end single contact grouping
Shell Type	Solid
Specification Data	81349-dod-c-38999/26 government specification
Shell Surface Treatment Specification	Qq-p-416 fed spec single treatment response
Shell Material	Aluminum alloy
Shell Surface Treatment	Cadmium
Precious Material And Weight	0.013 gold grains, troy
Precious Material	Gold
Precious Material And Location	Contact surfaces gold
Polarization Method	Keyway or multiple keyway
Overall Length	31 millimeters maximum
Overall Diameter	25 millimeters maximum
Mating End Quantity	1
Insert Position In Deg	0.0
Insert Material	Plastic epoxy single mating end
Included Contact Type	Round pin single mating end single contact grouping
Included Contact Quantity	13 single mating end single contact grouping
Environmental Protection	Moisture proof and salt water resistant and vibration proof
Contact Surface Treatment	Gold single mating end single contact grouping
Contact Removability	Removable single mating end single contact grouping
Contact Position Arrangement Style	13089 single mating end
Contact Material	Copper alloy single mating end single contact grouping
Connector Locking Method	Internally threaded coupling nut
Body Style	Straight shape, internal coupling
Terminal Type	Crimp single mating end single contact grouping
Thread Class	2b
Thread Direction	Right-hand and right-hand
Thread Pitch In Millimeters	1.00
Thread Qty Per Inch (tpi)	10
Thread Series Designator	Iso m and special acme
Thread Size	15 millimeters and 0.75 inches
Thread Tolerance Class	6g external
Threaded Device Type	Back shell and coupling facility

Add to Cart

Up to quantity 20 ships same day.

buy now $57.95

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

NSN (National stock number)
5935-01-196-1873
Package Weight (oz)
0.912
Manufactured By
Amphenol
ECCN (Export Control Class)
EAR99

Alternate(s)

5935-01-196-1873
5935011961873
D3899926WB35PN

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
