Amphenol MS3116F8-4S Connector

Part#: MS3116F8-4S NSN: 5935-00-892-9322

About this product MS3116F8-4S military-standard (MIL-DTL-26482 Series I), high-reliability miniature circular connector straight plug featuring 4 female socket contacts in a size 8 aluminum shell. * Manufacturer certifications are shipped with your order FREE of charge

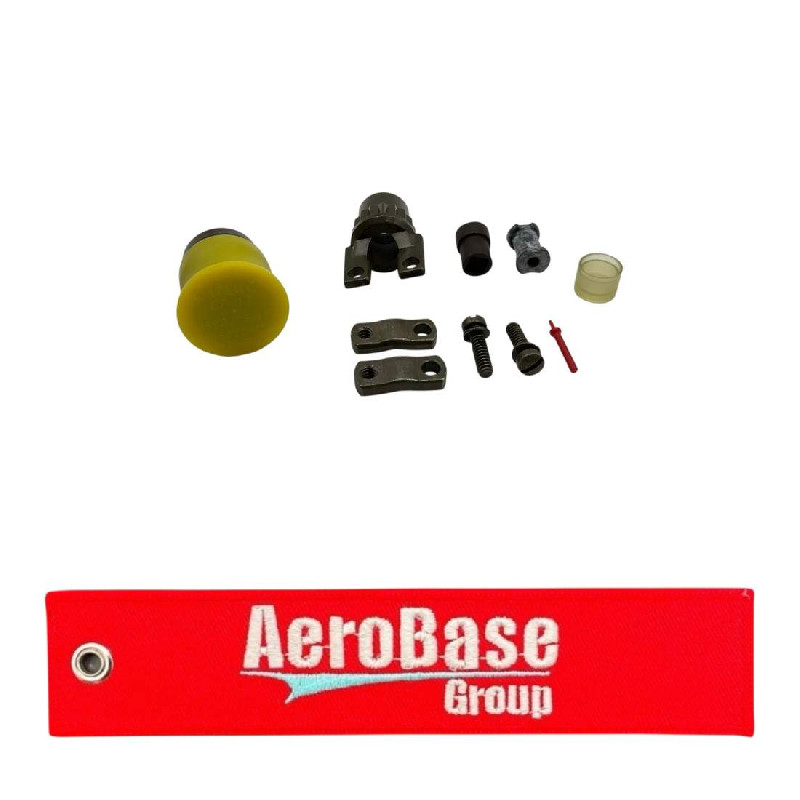

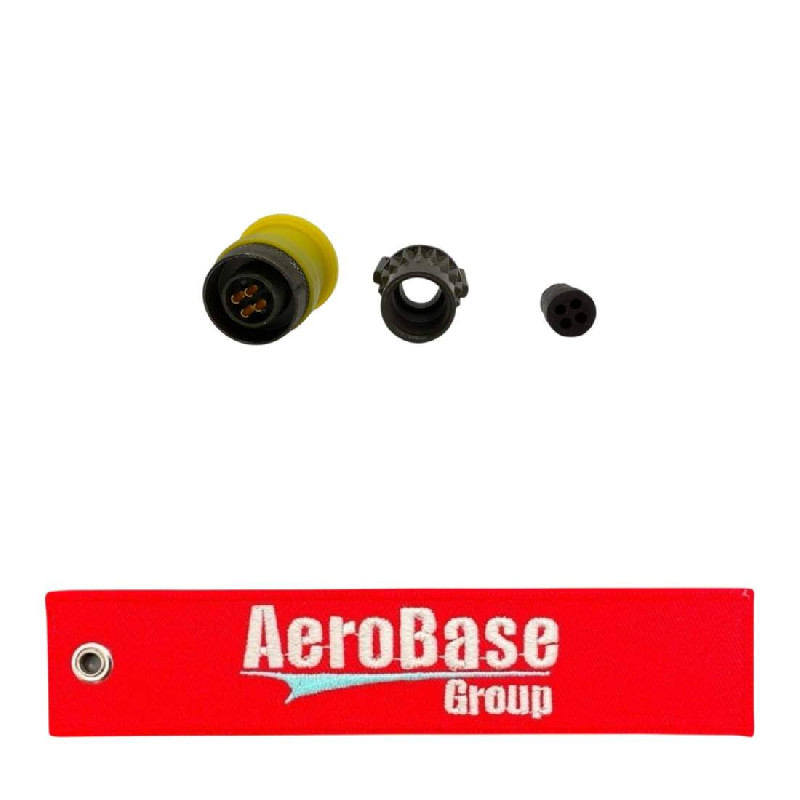

Product Images
MS3116F8-4S MS3116F8-4S MS3116F8-4S

Product Details

Part Number or Model MS3116F8-4S
Description Connector
Schedule B Class 8536.69.4020
ECCN (Export Control Class) EAR99
Precious Material And Weight 0.020 gold grains, troy
Precious Material And Location Contact surfaces gold
Precious Material Gold
Polarization Method Key, multiple key groove
Overall Diameter 0.750 inches maximum
Insert Position In Degrees 0.0
Mating End Quantity 1
Included Contact Type Round socket single mating end single contact grouping
Included Contact Quantity 4 single mating end single contact grouping
Environmental Protection Moisture resistant and vibration resistant and salt water resistant
Contact Surface Treatment Specification Mil-g-45204, type 2, grade c, class 1 mil spec 1st treatment response single mating end single contact grouping and qq-n-290, class 2 federal spec 2nd treatment response single mating end single contact grouping
Contact Surface Treatment Gold single mating end single contact grouping and nickel single mating end single contact grouping
Contact Removability Nonremovable single mating end single contact grouping
Contact Position Arrangement Style 40394 single mating end
Contact Maximum Ac Voltage Rating In Volts 600 single mating end single contact grouping
Contact Material Copper alloy single mating end single contact grouping
Connector Locking Method Bayonet latch
Connector Cable Strain Relief Method Cable clamp
Cable Entrance Diameter 0.234 inches maximum
Body Style Straight shape, internal coupling w/strain relief
Body Length 1.828 inches maximum
Shell Material Aluminum alloy
Shell Material Specification Qq-a-591 federal spec single material response
Shell Surface Treatment Cadmium
Shell Surface Treatment Specification Qq-p-416, type 2, class 3 federal spec single treatment response
Shell Type Solid
Terminal Location Back single mating end single contact grouping
Terminal Type Solder well single mating end single contact grouping

Add to Cart

Up to quantity 46 ships same day.
buy now $44.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-00-892-9322
  • Package Weight (oz)
    1.04
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935-00-892-9322
  • 5935008929322
  • MIL-DTL-26482
  • MS3116F84S
