SPI Connects MS3116F8-4P Connector

Part#: MS3116F8-4P NSN: 5935-00-761-3881

About this product MS3116F8-4P military-standard (MIL-SPEC) circular connector plug. * Manufacturer certifications are shipped with your order FREE of charge

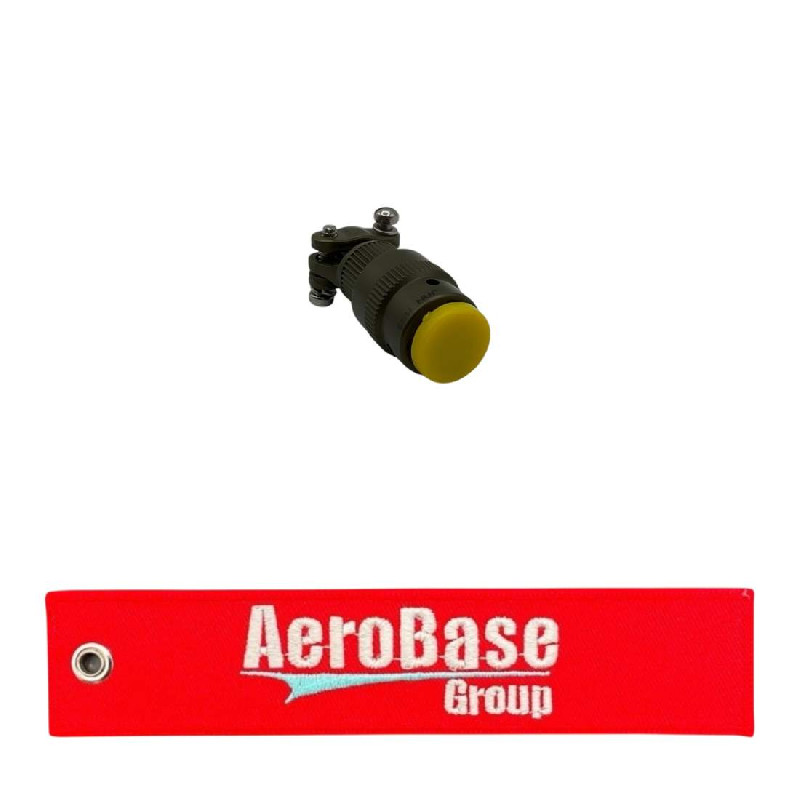

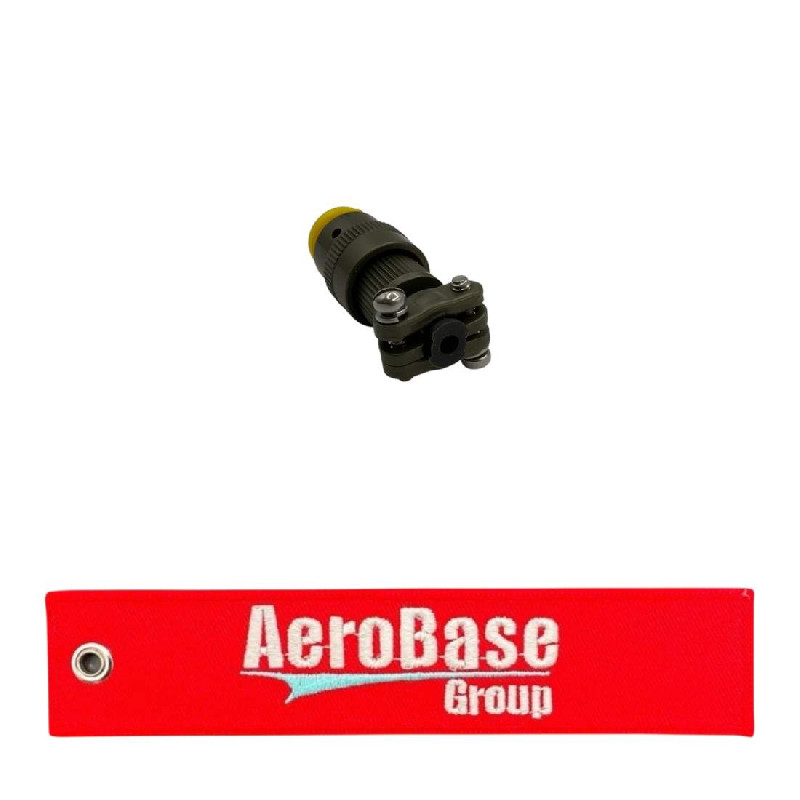

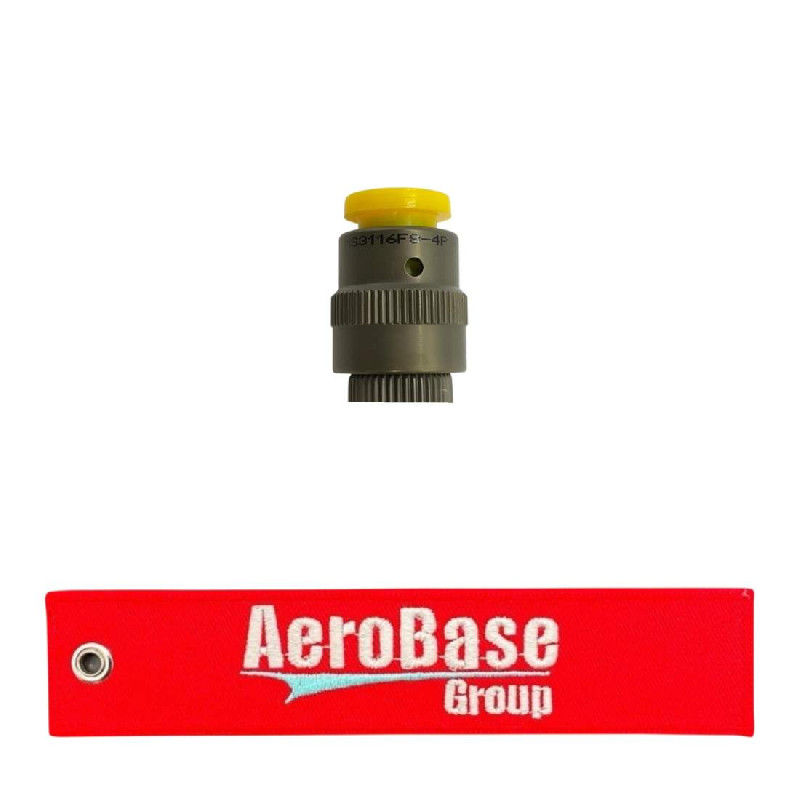

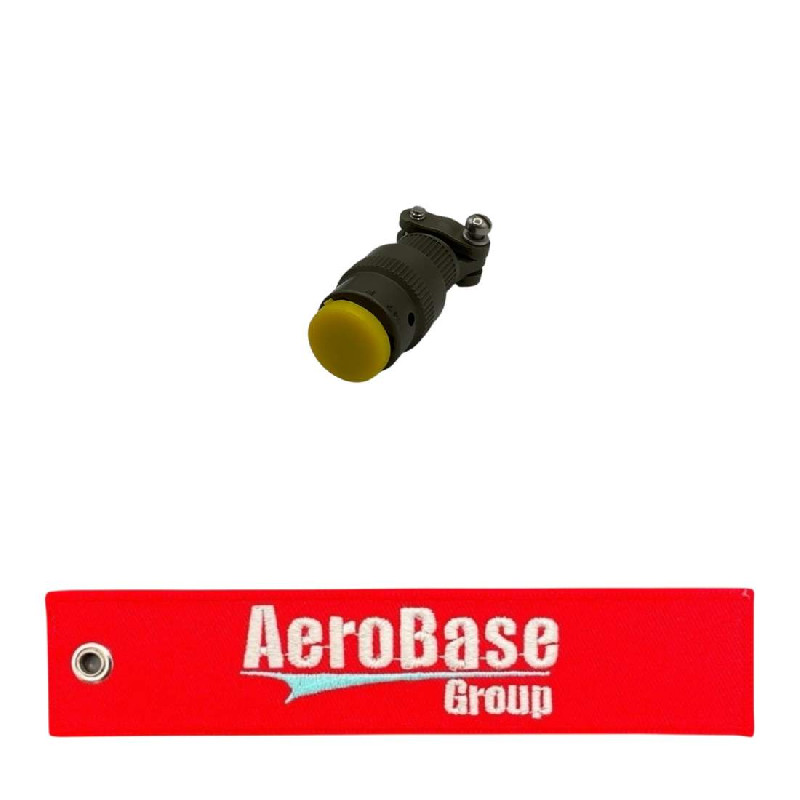

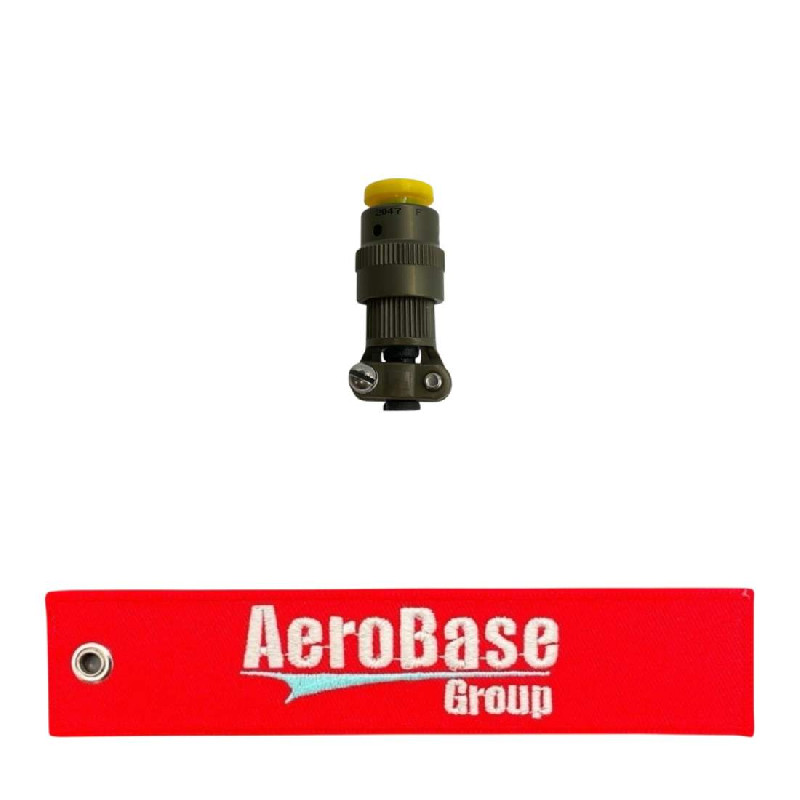

Product Images
MS3116F8-4P MS3116F8-4P MS3116F8-4P MS3116F8-4P MS3116F8-4P

Product Details

Part Number or Model MS3116F8-4P
Description Connector
Schedule B Class 8536.69.4020
ECCN (Export Control Class) EAR99
Body Length 1.828 inches maximum
Body Style Straight shape, internal coupling w/strain relief
Cable Entrance Diameter 0.234 inches maximum
Connector Cable Strain Relief Method Cable clamp
Connector Locking Method Bayonet latch
Contact Maximum Ac Voltage Rating In Volts 600 single mating end single contact grouping
Contact Position Arrangement Style 40394 single mating end
Contact Position Arrangement Style 8-4 single mating end
Contact Removability Nonremovable single mating end single contact grouping
Contact Surface Treatment Gold single mating end single contact grouping and copper single mating end single contact grouping
Environmental Protection Moisture resistant and salt water resistant and vibration resistant
Included Contact Quantity 4 single mating end single contact grouping
Included Contact Type Round pin single mating end single contact grouping
Insert Position In Degrees 0.0
Mating End Quantity 1
Overall Diameter 0.75 inches maximum
Polarization Method Key, multiple key groove
Precious Material Gold
Precious Material And Location Contact surface gold
Precious Material And Weight 0.02 gold grains, troy
Shell Material Aluminum alloy
Shell Surface Treatment Cadmium
Shell Surface Treatment Specification Qq-p-416, type 2, class 3 federal spec single treatment response
Shell Type Solid
Terminal Location Back single mating end single contact grouping
Terminal Type Solder well single mating end single contact grouping

Add to Cart

Up to quantity 45 ships same day.
buy now $45.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-00-761-3881
  • Manufactured By
    SPI Connects
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935-00-761-3881
  • 5935007613881
  • MS3116F84P
