Eaton MS3116F8-3S Connector

Part#: MS3116F8-3S NSN: 5935-00-902-8856

About this product military-standard (MIL-DTL-26482 Series I) miniature circular connector, straight cable plug with an environmentally sealed design, widely used in aerospace, defense, marine, and rugged industrial applications. * Manufacturer certifications are shipped with your order FREE of charge

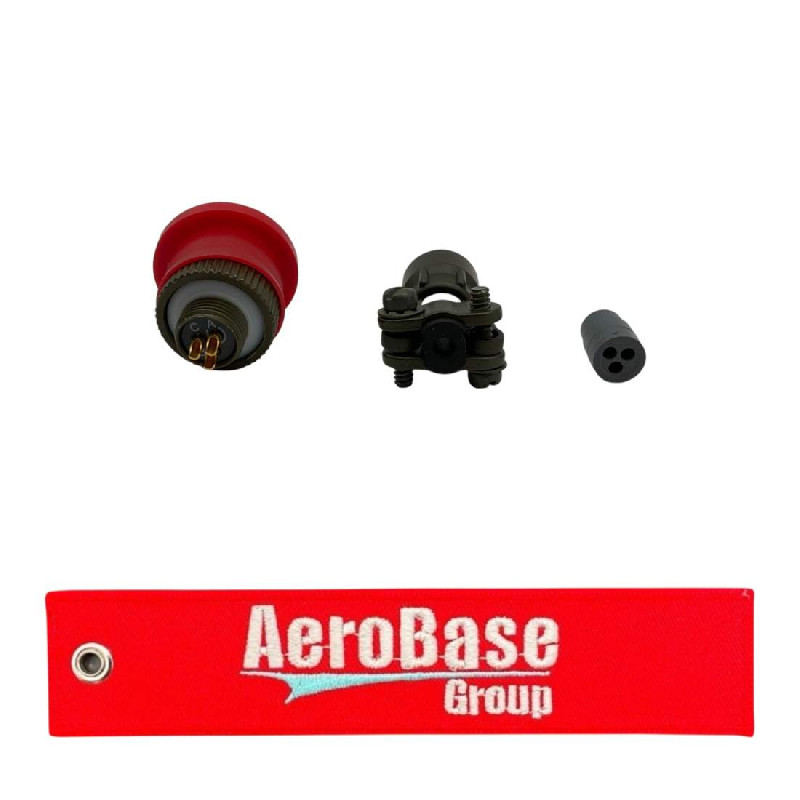

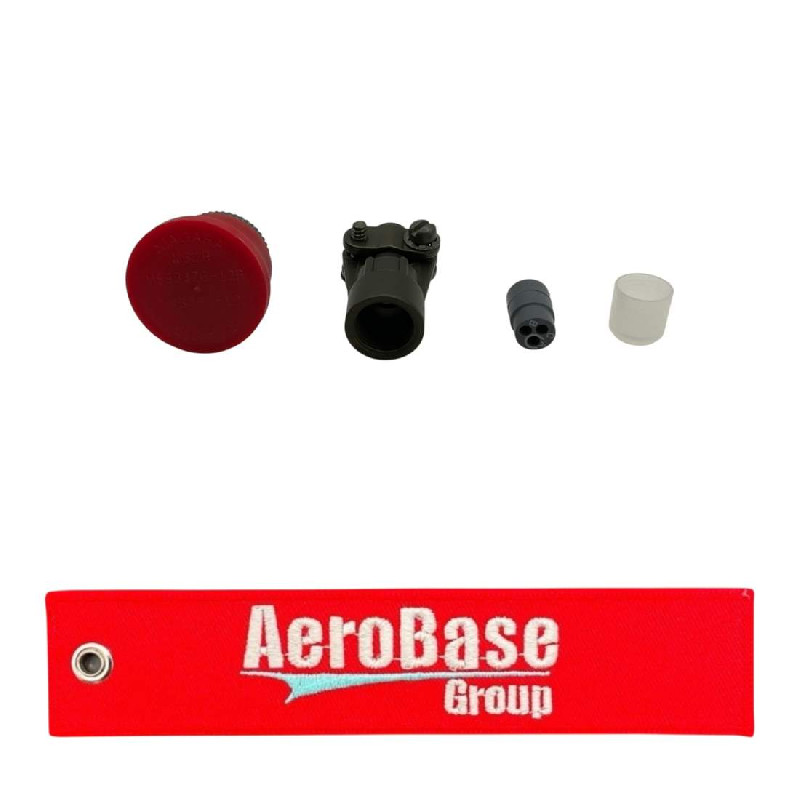

Product Images
MS3116F8-3S MS3116F8-3S MS3116F8-3S

Product Details

Part Number or Model MS3116F8-3S
Description Connector
Schedule B Class 8536.69.4020
ECCN (Export Control Class) EAR99
Terminal Type Solder well single mating end single contact grouping
Terminal Location Back single mating end single contact grouping
Shell Surface Treatment Specification Qq-p-416, type 2, class 3 federal spec single treatment response
Shell Type Solid
Shell Size 8
Shell Surface Treatment Cadmium
Precious Material And Weight 0.015 gold grains, troy
Shell Material Aluminum alloy
Precious Material Gold
Precious Material And Location Contact surfaces gold
Overall Diameter 0.750 inches maximum
Polarization Method Key, multiple key groove
Insert Position In Degrees 0.0
Mating End Quantity 1
Included Contact Type Round socket single mating end single contact grouping
Included Contact Quantity 3 single mating end single contact grouping
Environmental Protection Moisture resistant and salt water resistant and vibration resistant
Contact Surface Treatment Gold single mating end single contact grouping and copper single mating end single contact grouping
Contact Removability Nonremovable single mating end single contact grouping
Contact Position Arrangement Style 40393 single mating end
Contact Maximum Ac Voltage Rating In Volts 600 single mating end single contact grouping
Body Style Straight shape, internal coupling w/strain relief
Cable Entrance Diameter 0.234 inches maximum
Connector Cable Strain Relief Method Cable clamp
Connector Locking Method Bayonet latch
Body Length 1.828 inches maximum

Add to Cart

Up to quantity 55 ships same day.
buy now $45.00
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-00-902-8856
  • Package Weight (oz)
    0.848
  • Manufactured By
    Eaton
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935009028856
  • 5935-00-902-8856
  • MS3116F83S
