7277-2-3 Circuit Breaker

Part#: 7277-2-3 NSN: 5925-00-252-4227

About this product 7277-2-3 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

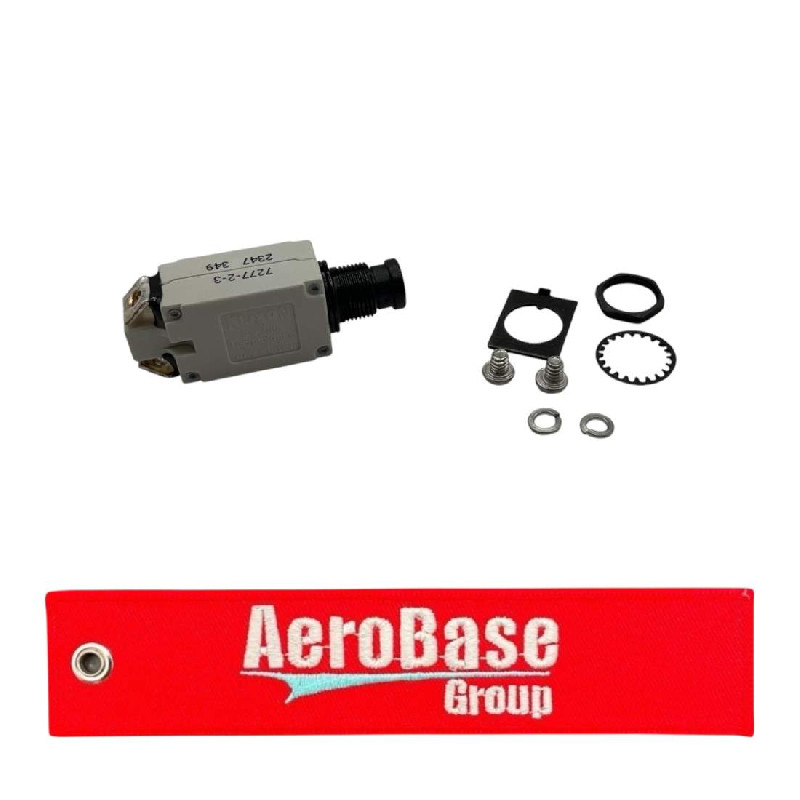

Product Images
7277-2-3

Product Details

Part Number or Model 7277-2-3
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class)
Actuator Function Trip-reset
Case Material Plastic
Circuit Protection Type Overcurrent single location
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 3.0 amperes ac single location and 3.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 800.0 ac single location
Mounting Facility Type And Quantity 1 threaded bushing
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac single location and 28.0 dc single location
Pole Quantity 1
Reset Method Manual
Terminal Type And Quantity 2 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Un
Trip Delay Time In Seconds Per Rated Continuous Current 2.000 minimum at 200 pct single location and 35.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 deg celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150.0 single location

Add to Cart

Up to quantity 22 ships same day.
buy now $56.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-00-252-4227
  • Package Weight (oz)
    0.944
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
