3TC14-35 Circuit Breaker

Part#: 3TC14-35 NSN: 5925-01-173-1763

About this product 3TC14-35 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

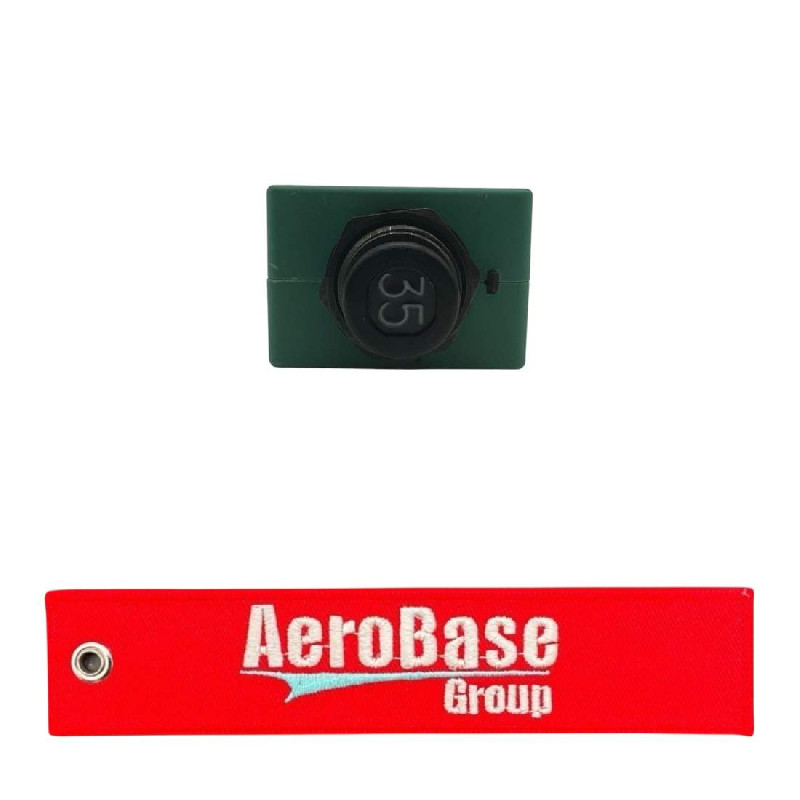

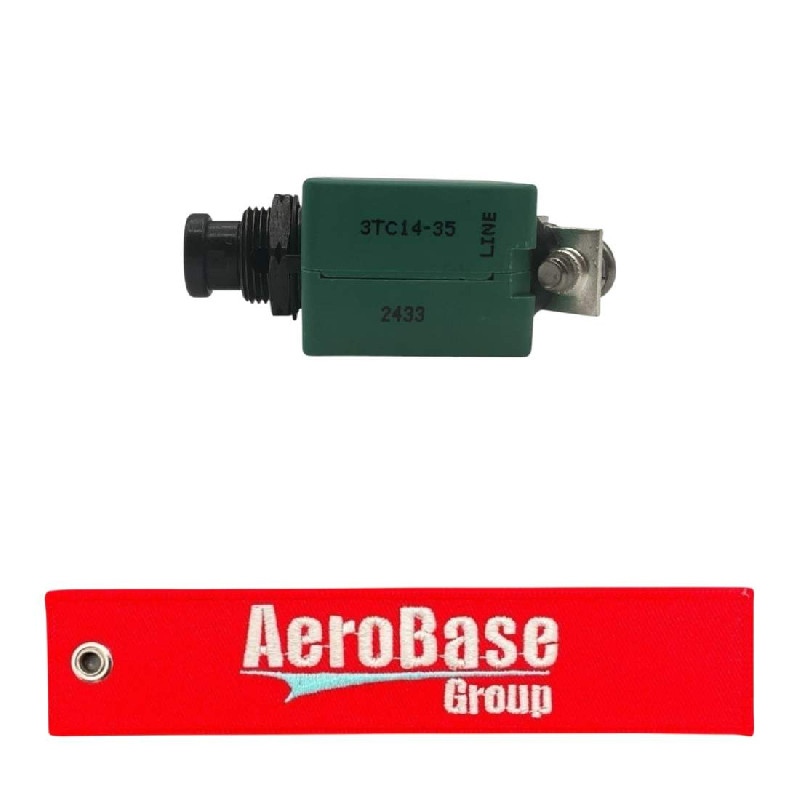

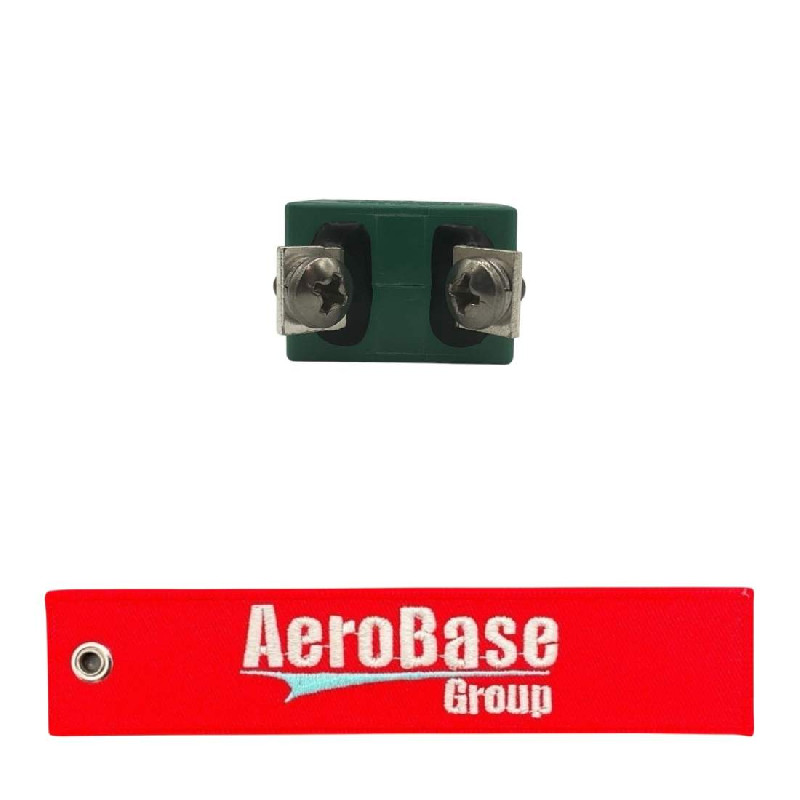

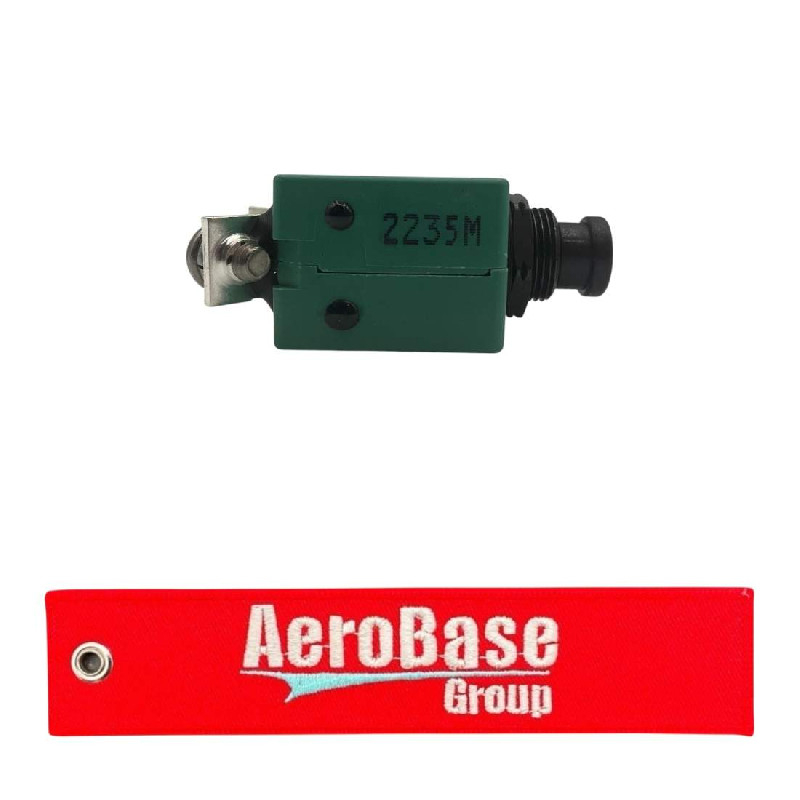

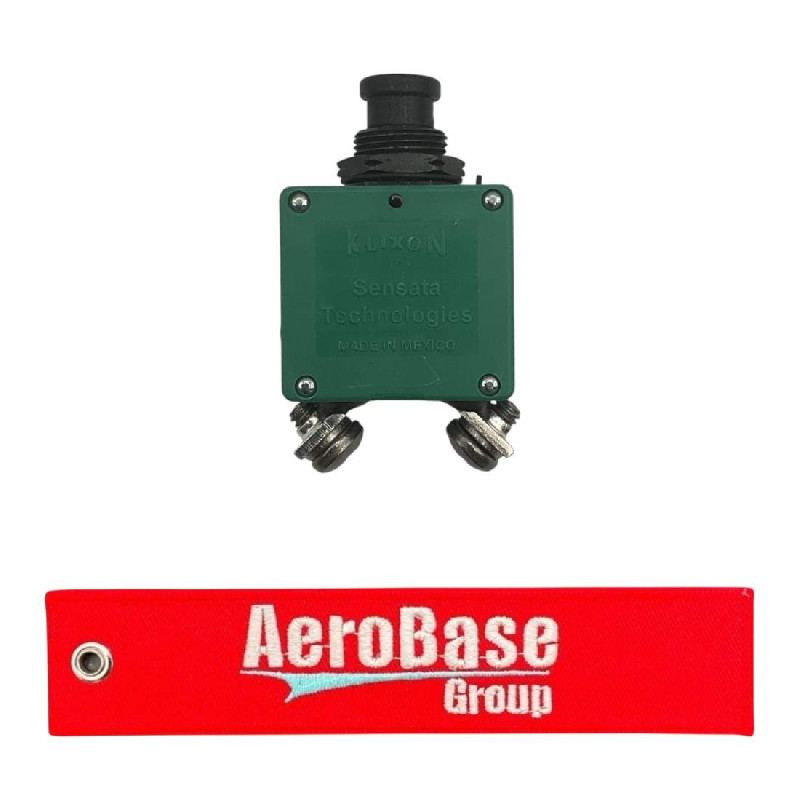

Product Images
3TC14-35 3TC14-35 3TC14-35 3TC14-35 3TC14-35 3TC14-35

Product Details

Part Number or Model 3TC14-35
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Body Length 1.100 inches maximum
Body Width 0.781 inches maximum
Bushing Length 0.250 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Circuit Protection Type Overcurrent single location
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Vibration resistant and shock resistant and dusttight and corrosion resistant and humidity resistant and explosion proof
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push button
Maximum Continuous Load Current Rating Per Pole 35.0 amperes ac single location and 35.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000 ac single location and 6000 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.218 inches nominal
Thread Size 0.469 inches
Operating Voltage Type And Rating Per Pole In Volts 120 ac single location and 28.0 dc single location
Pole Quantity 1
Reset Method Manual
Terminal Type And Quantity 2 tab with screw
Thread Pitch Diameters +0.444/+0.447 inches
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 4 minimum at 200 pct single location and 20.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating -55.0 degree celsius minimum single location and 121.0 deg celsius maximum single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 138.0 single location

Add to Cart

Up to quantity 2 ships same day.
buy now $432.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-173-1763
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99

Alternate(s)
