3TC14-30 Circuit Breaker

Part#: 3TC14-30 NSN: 5925-01-341-6758

About this product 3TC14-30 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

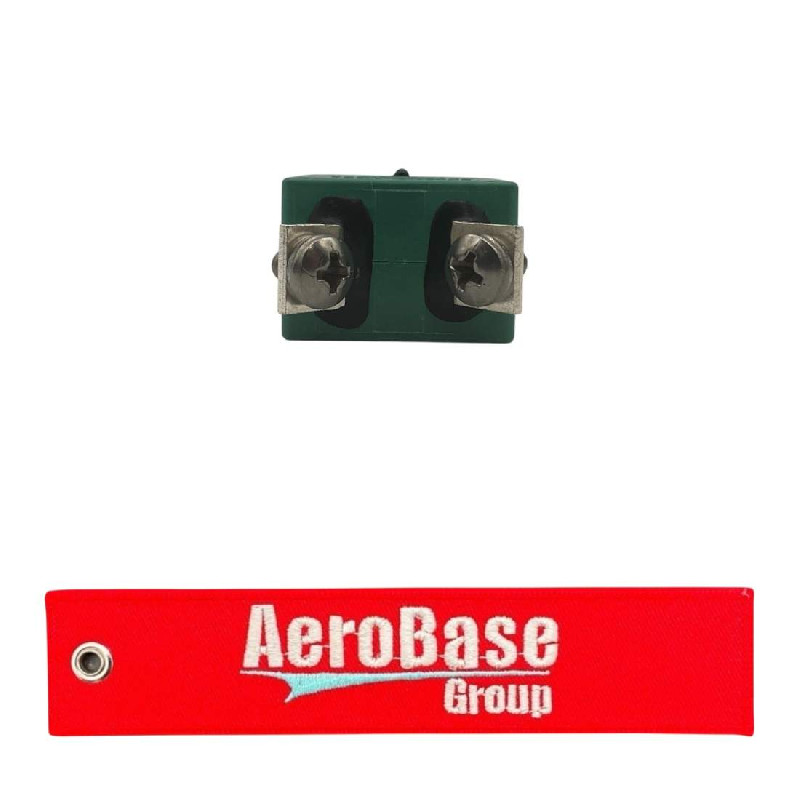

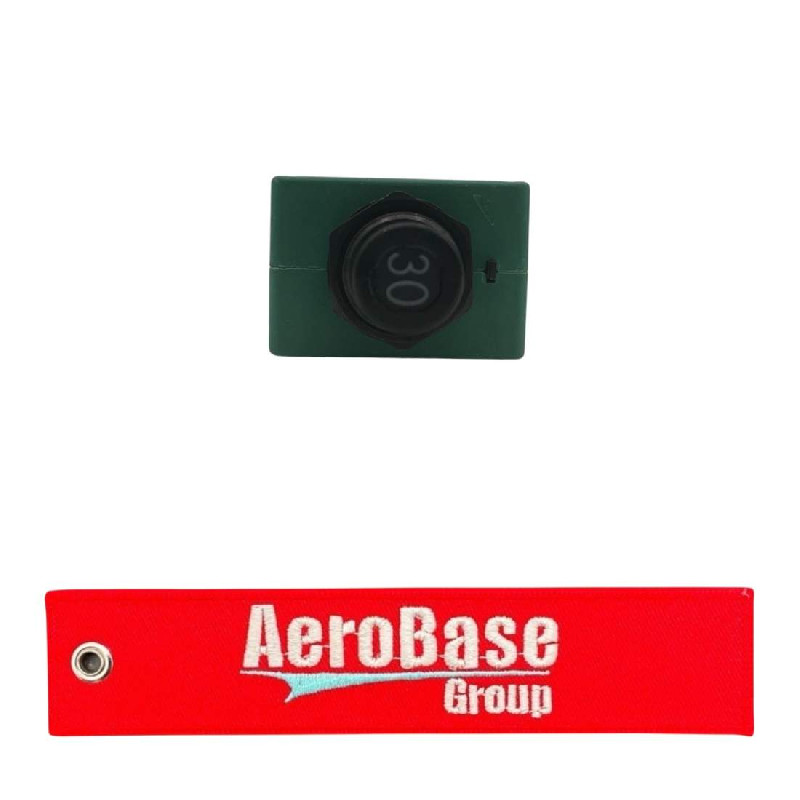

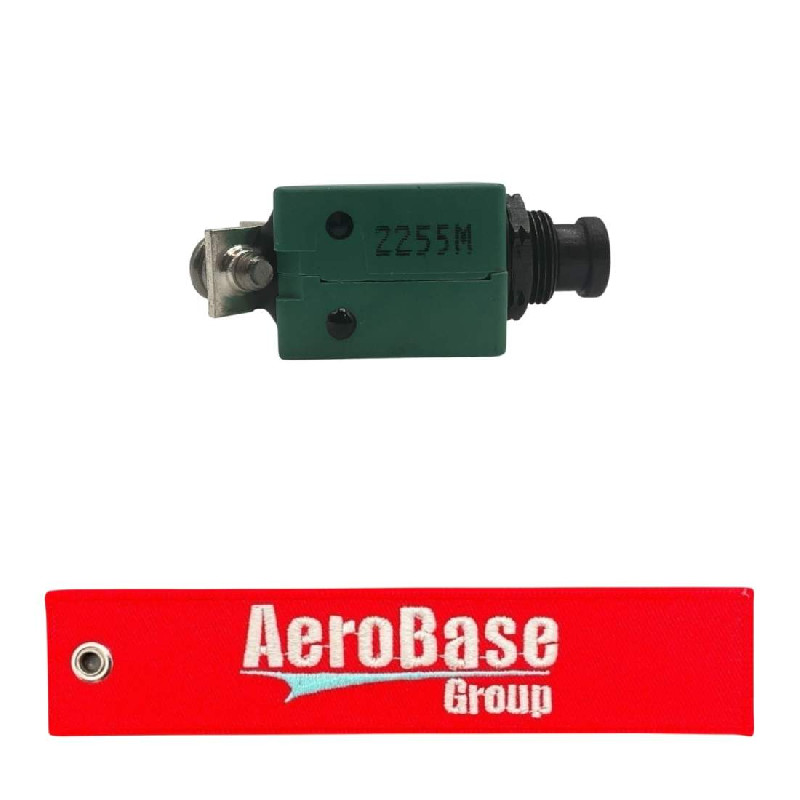

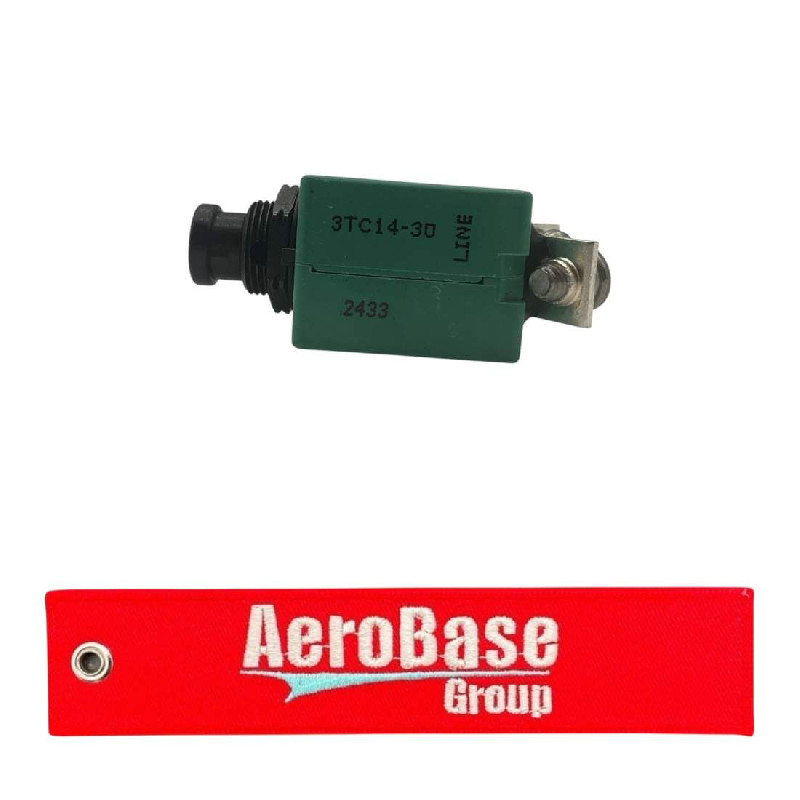

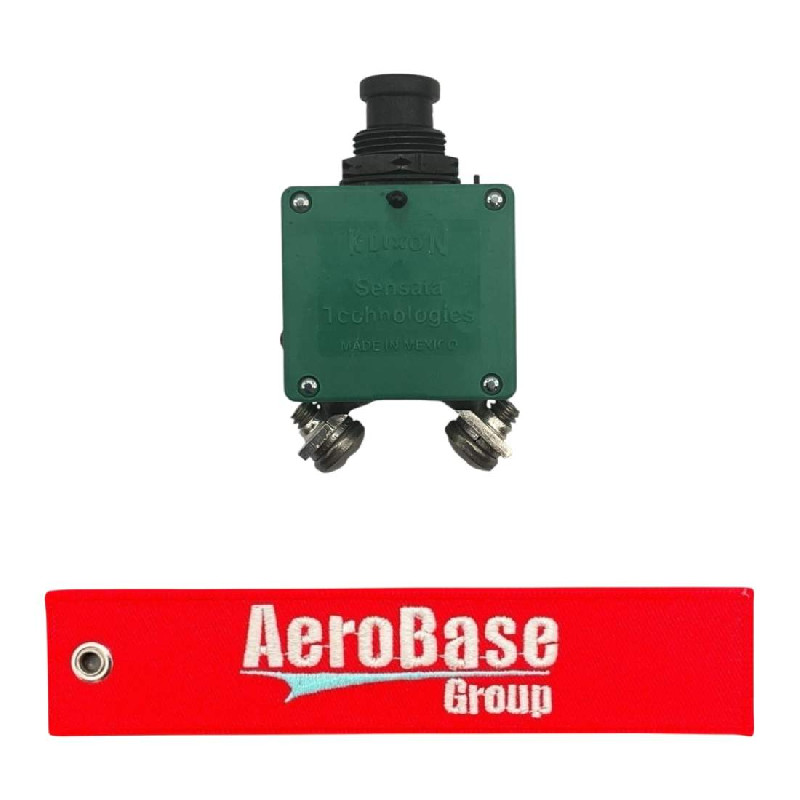

3TC14-30 3TC14-30 3TC14-30 3TC14-30 3TC14-30 3TC14-30

Product Details

Part Number or Model 3TC14-30
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Arc Quenching Method Magnetic blowout
Body Length 1.100 inches maximum
Body Style Single pole type
Body Width 0.781 inches maximum
Bushing Length 0.250 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.740 inches nominal
Circuit Protection Type Overcurrent single location
Fragility Factor Moderately rugged
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Dustproof and fungus proof
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 30.0 amperes ac single location and 30.0 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2000.0 ac single location and 6000.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.218 inches nominal
Thread Size 0.468 inches
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac single location and 30.0 dc single location
Pole Quantity 1
Reset Method Manual
Special Handling Feature Magnetic
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab with screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 6 minimum at 200 pct single location and 35.000 maximum at 200 pct single location
Trip Release Characteristic Time delay single location
Trip Release Method Magnetic-hydraulic single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150.0 single location
