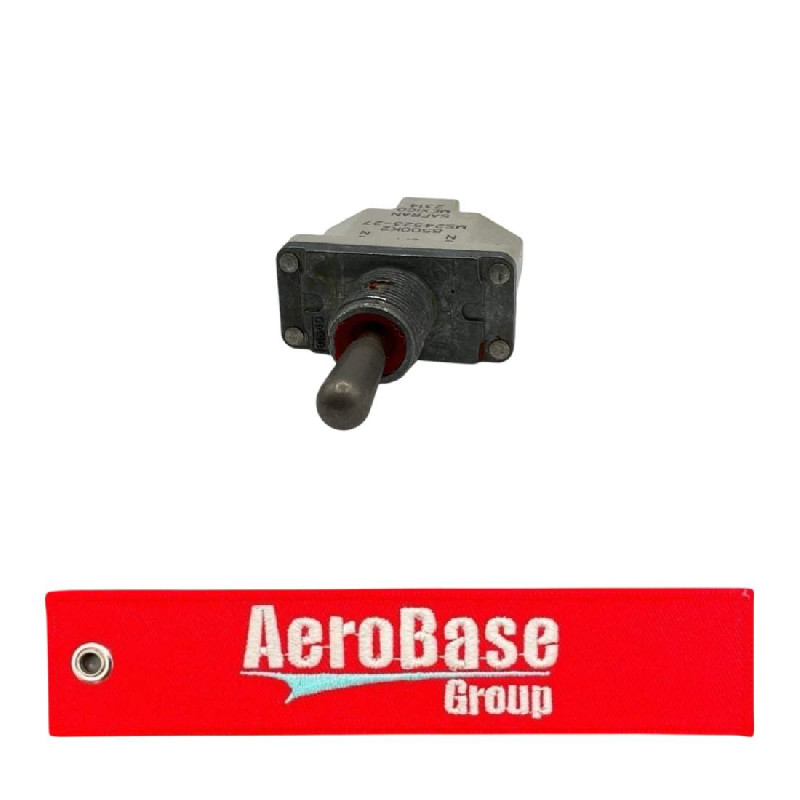

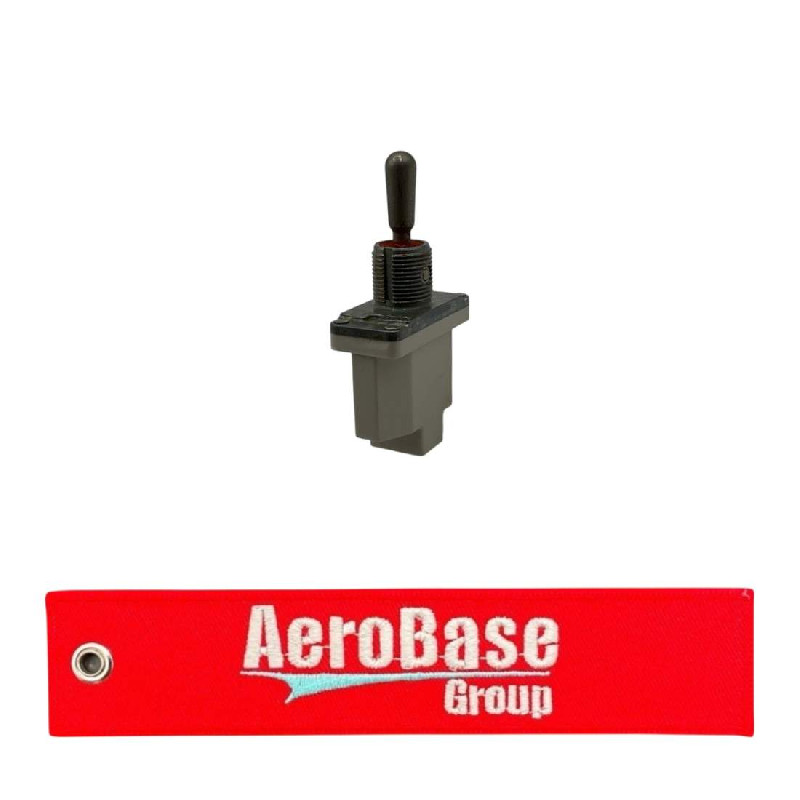

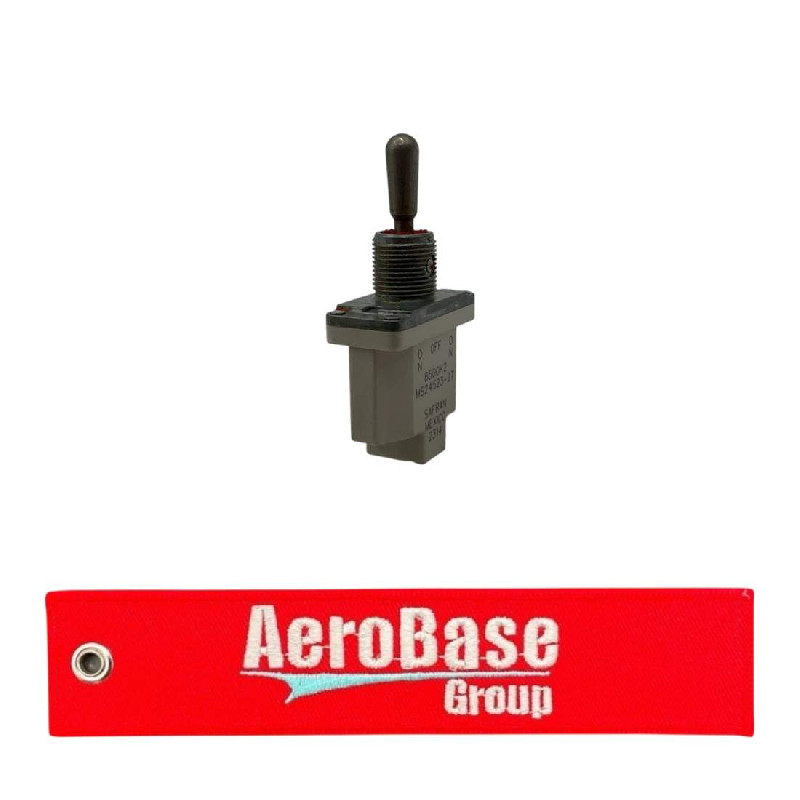

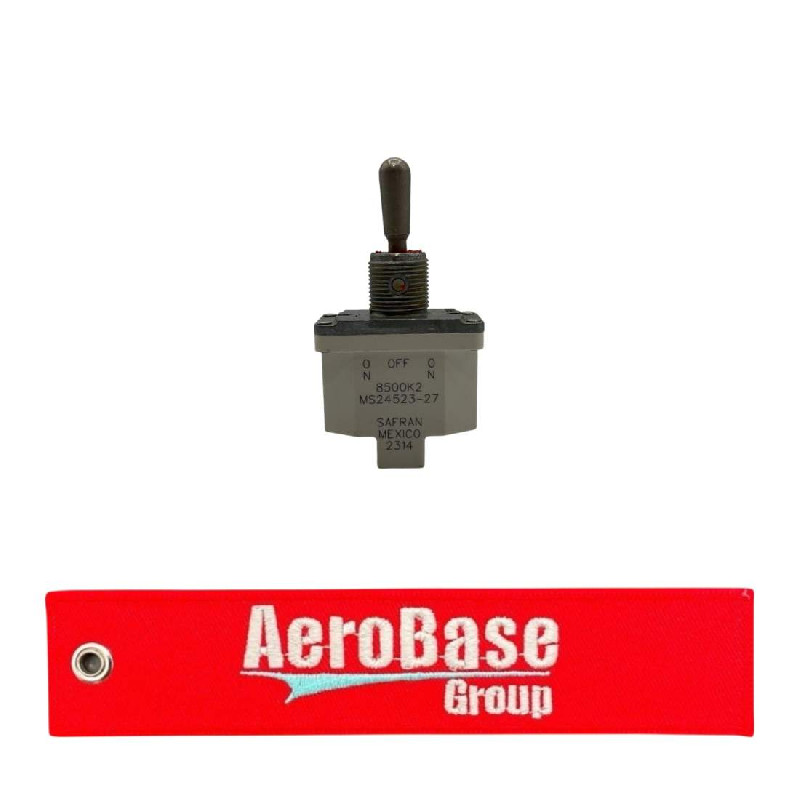

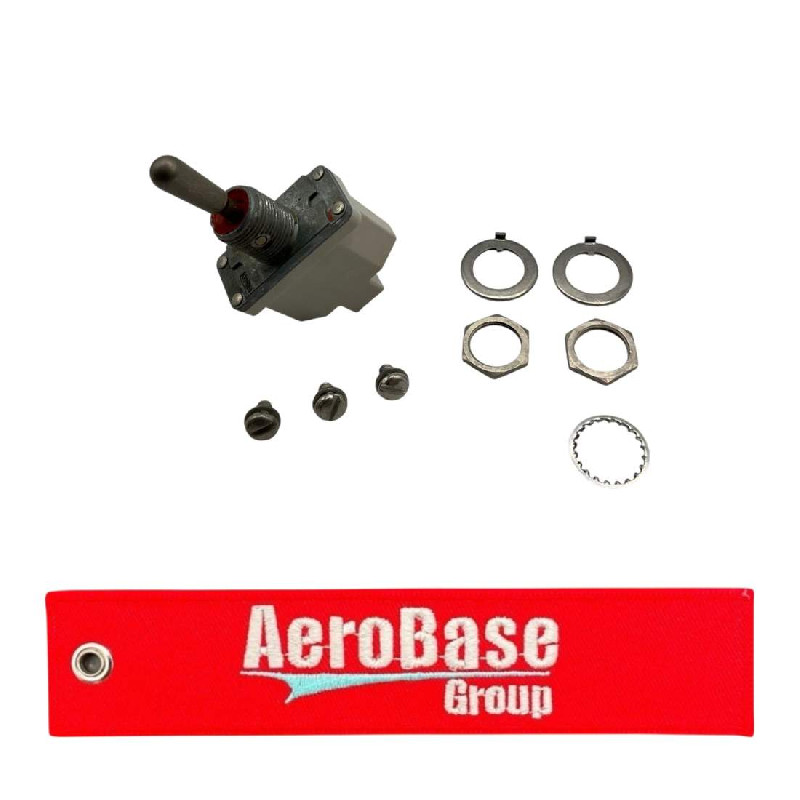

MS24523-27 Switch

Part#: MS24523-27 NSN: 5930-00-683-1633

About this product 115 ac, 28 dc, 400 hertz load, momentary, sealed with screw terminals. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
MS24523-27 MS24523-27 MS24523-27 MS24523-27 MS24523-27

Product Details

Part Number or Model MS24523-27
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Size 0.469 inches

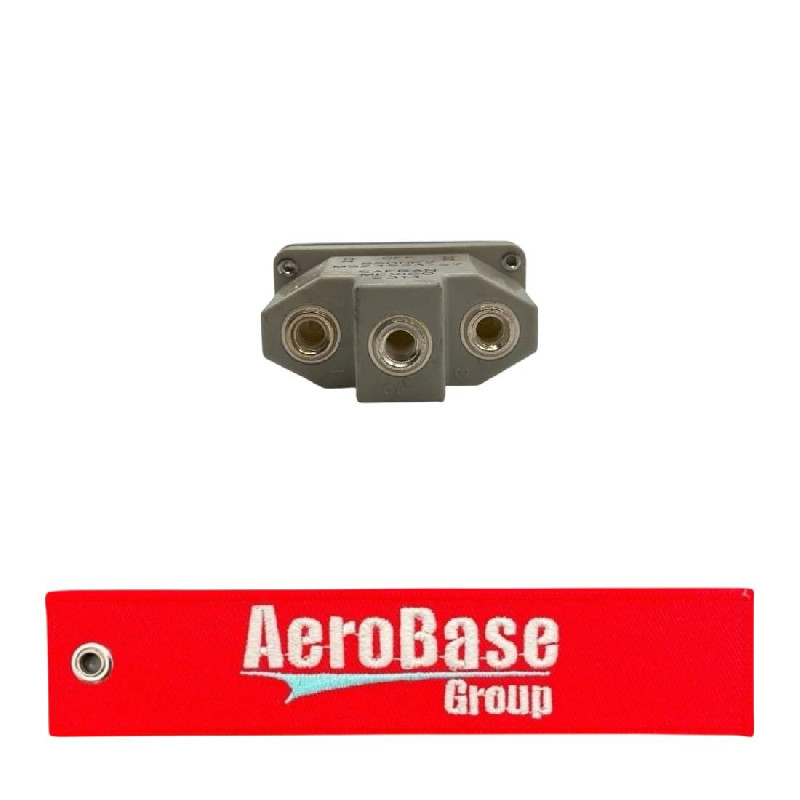

Terminal Type And Quantity 3 screw
Test Data Document 81349-mil-s-3950 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as
Overall Length 1.270 inches maximum
Nonpile-up Contact Arrangement 1 pole, double throw, two positions momentary single switch unit
Mounting Method Threaded bushing
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115 ac and 28 dc
End Application Missile minuteman lgm-30
Features Provided Actuator seal
Hazardous Locations/environmental Protection Vaportight
Contact Load Current Rating At Maximum Rated Voltage 15 amperes resistive dc and 10 amperes inductive dc and 4.000 amperes lamp dc and 15.000 amperes resistive ac and 7.000 amperes inductive ac and 2.000 amperes lamp ac
Actuator Style Round
Body Height 0.890 inches minimum and 0.930 inches maximum
Body Length 1.270 inches maximum
Body Style Bushing mount
Body Width 0.635 inches maximum
Bushing Length 0.455 inches minimum and 0.485 inches maximum
Actuator Position-action Relationship Up position momentary and down position momentary and center position maintained
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Actuator Height 0.665 inches minimum and 0.695 inches maximum
Actuator Diameter 0.237 inches minimum and 0.243 inches maximum
Unable To Decode Unable to decode
