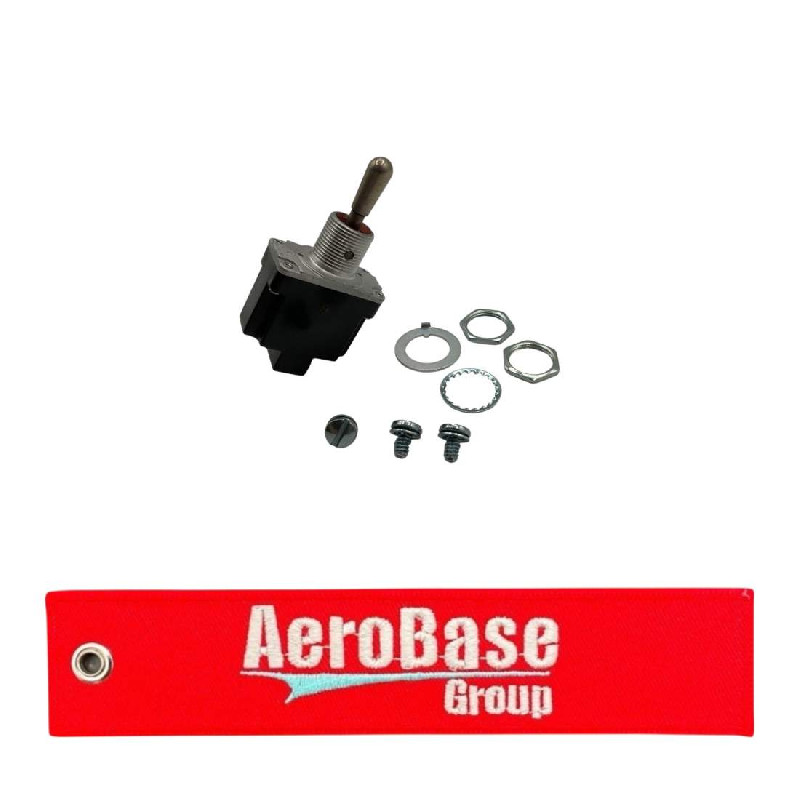

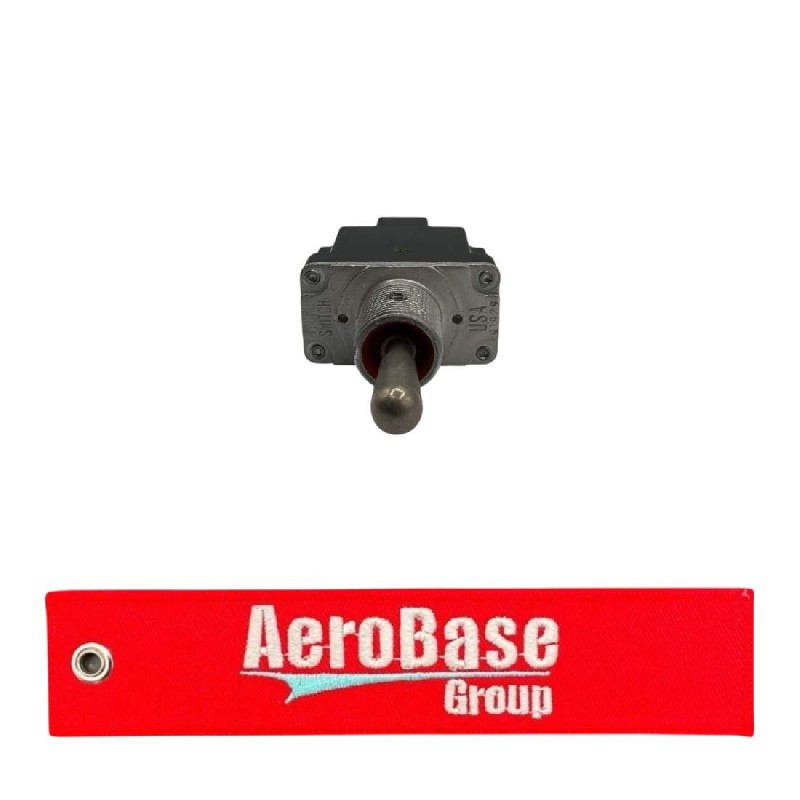

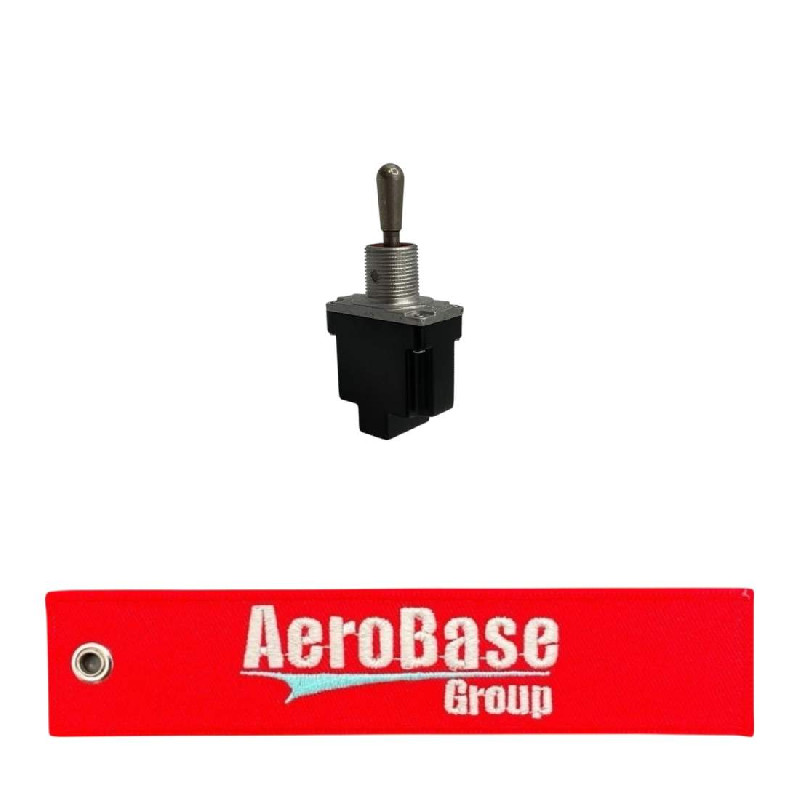

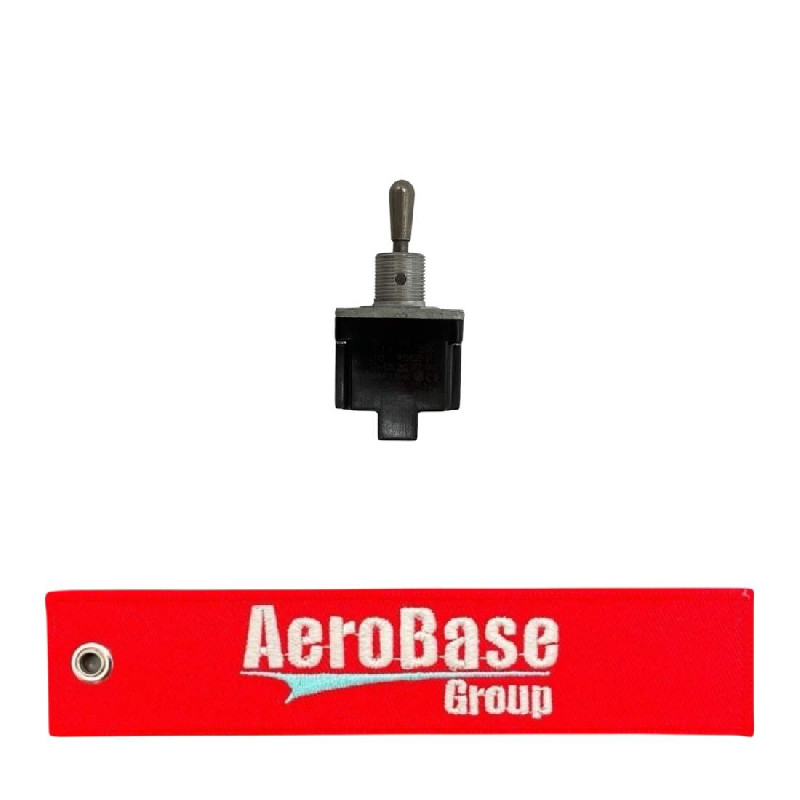

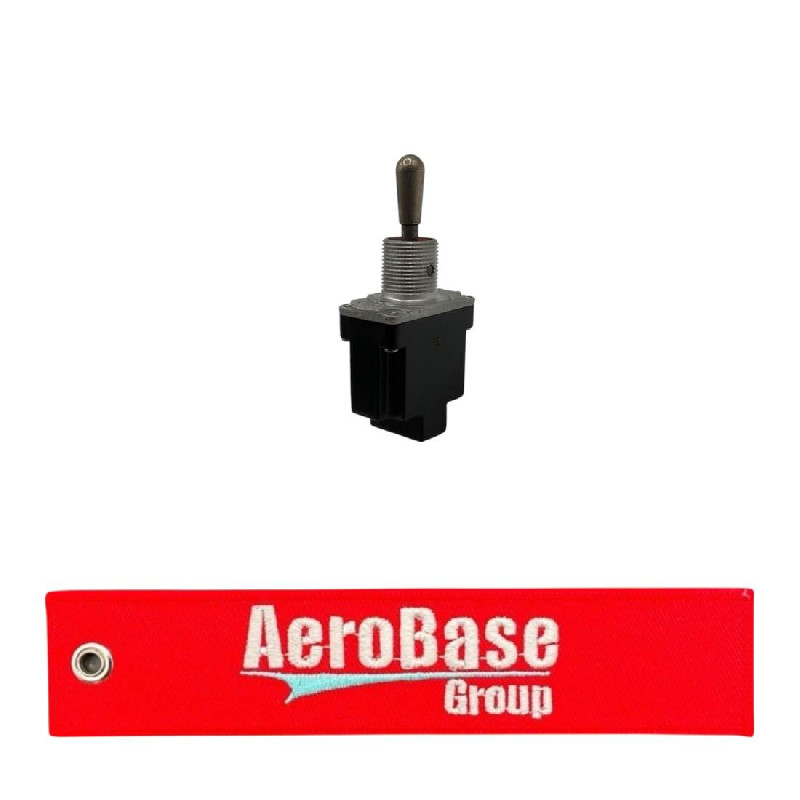

MS24523-31 Switch

Name: Switch
Brand: Honeywell
SKU: 5930006831625
Price: 52.95 USD
Availability: InStock

Part#: MS24523-31 NSN: 5930-00-683-1625

About this product MS24523-31 Switch. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS24523-31
Description	Switch
Schedule B Class	8536509065
ECCN (Export Control Class)	EAR99
Thread Series Designator	Uns
Thread Qty Per Inch (tpi)	32
Hazardous Locations/environmental Protection	Submersible
Inclosure Type	Fully inclosed
Maximum Voltage Rating In Volts	115.0 ac and 28.0 dc
Mounting Method	Threaded bushing
Nonpile-up Contact Arrangement	1 pole, double throw, one position momentary, two positions maintained single switch unit

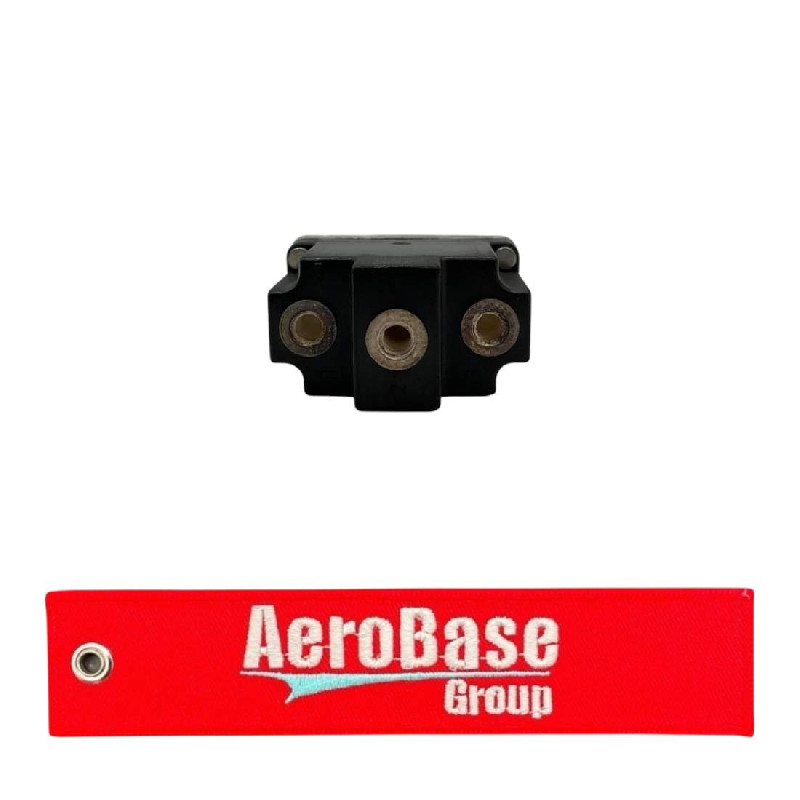

Terminal Type And Quantity	3 screw
Overall Width	0.635 inches maximum
Overall Height	2.325 inches nominal
Overall Length	1.270 inches maximum
Features Provided	Actuator seal
Contact Load Current Rating At Maximum Rated Voltage	15 amperes resistive dc and 10 amperes inductive dc and 4.000 amperes lamp dc and 15.000 amperes resistive ac and 7.000 amperes inductive ac and 2.000 amperes lamp ac
Bushing Length	0.455 inches minimum and 0.485 inches maximum
Body Width	0.635 inches maximum
Body Length	1.27 inches maximum
Body Style	Bushing mount
Body Height	0.890 inches minimum and 0.930 inches maximum
Actuator Style	Round
Actuator Position-action Relationship	Up position maintained and down position momentary and center position maintained
Actuator Height	0.665 inches minimum and 0.695 inches maximum
Thread Size	0.469 inches
Actuator Diameter	0.237 inches minimum and 0.243 inches maximum

Up to quantity 18 ships same day.

buy now $52.95

each

Request a quote Call for questions and assistance
