AN743BZ13 Bracket

Part#: AN743BZ13 NSN: 5340-00-822-6114

About this product AN743BZ13 Bracket. * Manufacturer certifications are shipped with your order FREE of charge

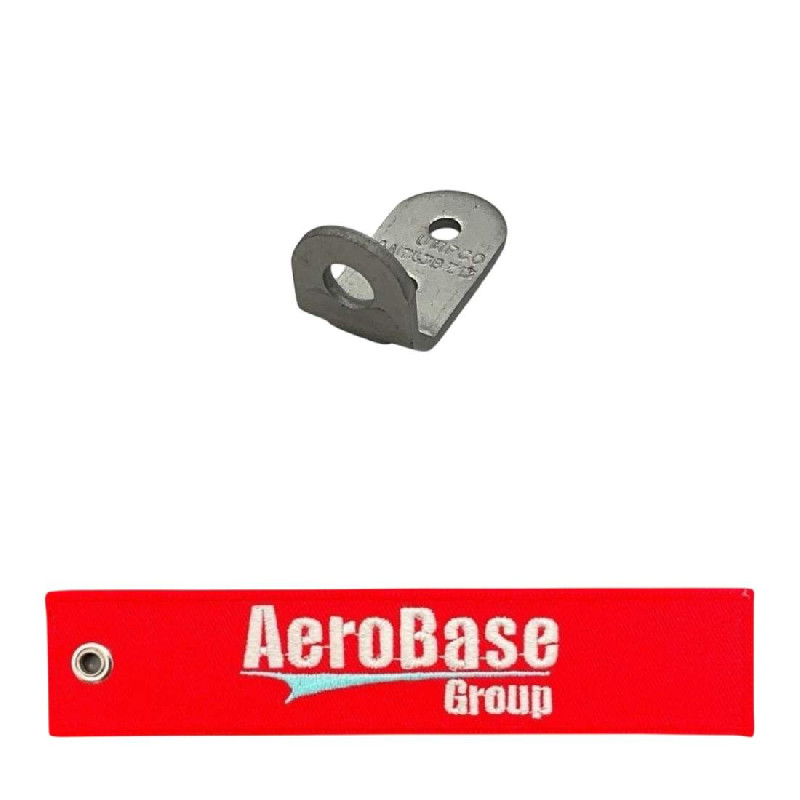

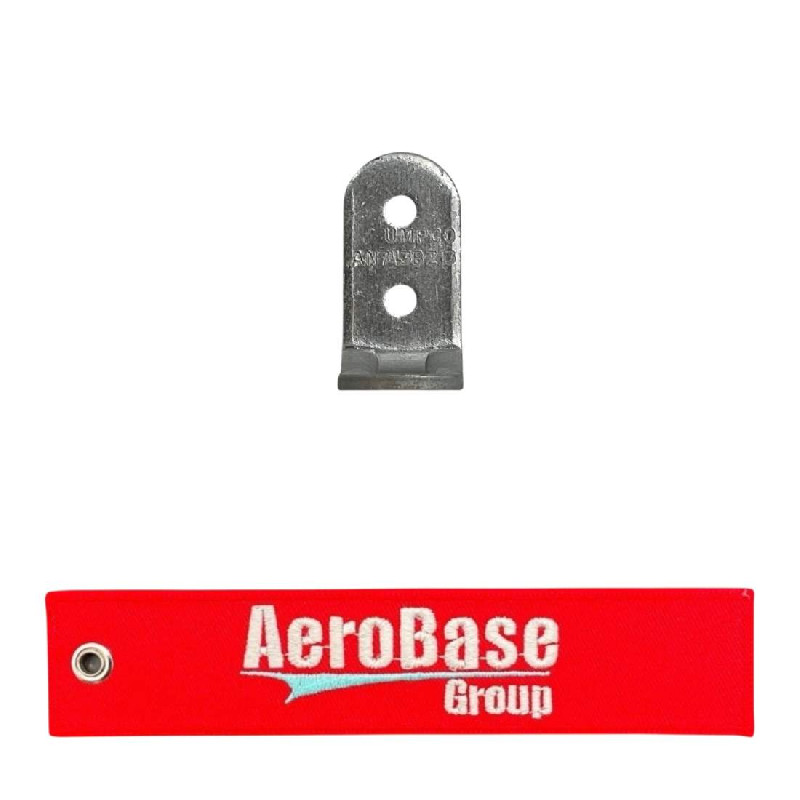

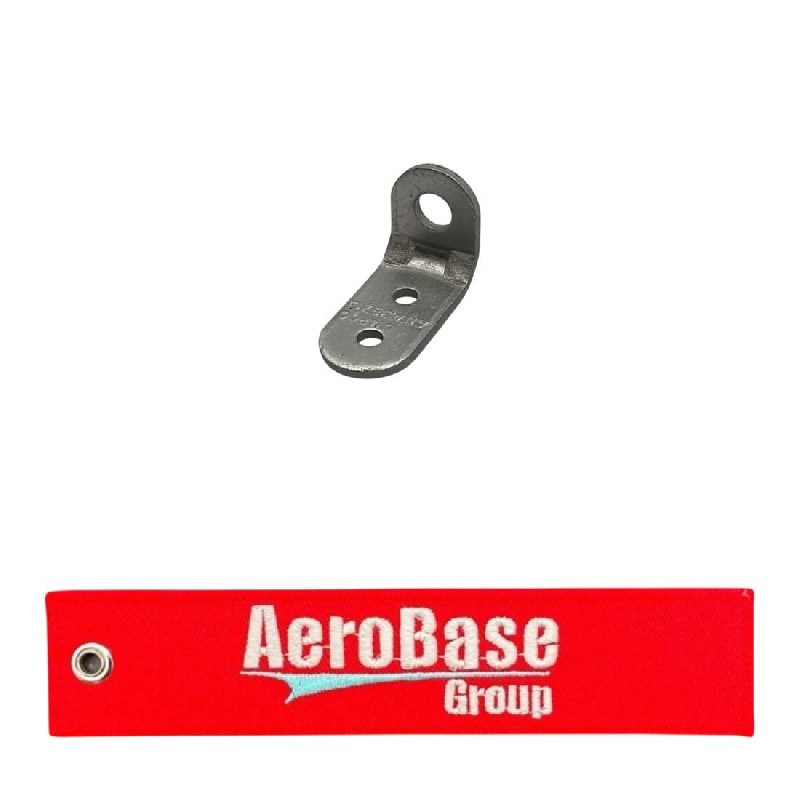

Product Images
AN743BZ13 AN743BZ13 AN743BZ13 AN743BZ13

Product Details

Part Number or Model AN743BZ13
Description Bracket
Schedule B Class 8302500000
ECCN (Export Control Class) EAR99
First Leg Angle 90 degrees nominal
First Leg Distance From Edge To Hole Center Along Length 0.24 inches minimum and 0.26 inches maximum
First Leg Distance From Edge To Hole Center Along Width 0.24 inches minimum and 0.26 inches maximum
First Leg End Radius 0.24 inches minimum and 0.26 inches maximum
First Leg Hole Arrangement Style One hole
First Leg Hole Diameter 0.194 inches minimum and 0.214 inches maximum
First Leg Length 0.615 inches minimum and 0.635 inches maximum
First Leg Style End radius
First Leg Thickness 0.053 inches minimum and 0.073 inches maximum
First Leg Width 0.490 inches minimum and 0.510 inches maximum
Material Aluminum alloy 2024
Material Specification Qq-a-250/5, alclad t3 federal spec single material response
Reinforcement Method (non-core) Beaded both sides
Second Leg Distance Between Hole Centers Along Length 0.365 nominal mils and 0.385 nominal centimeters
Second Leg Distance From Edge To Hole Center Along Length 0.24 inches minimum and 0.26 inches maximum
Second Leg Distance From Edge To Hole Center Along Width 0.24 inches minimum and 0.26 inches maximum
Second Leg End Radius 0.24 inches minimum and 0.26 inches maximum
Second Leg Hole Arrangement Style Two holes
Second Leg Hole Diameter 0.118 inches minimum and 0.138 inches maximum
Second Leg Length 0.99 inches minimum and 1.01 inches maximum
Second Leg Relationship To First Leg Not identical
Second Leg Style End radius
Second Leg Thickness 0.053 inches minimum and 0.073 inches maximum
Second Leg Width 0.49 inches minimum and 0.51 inches maximum
Style Designator Angle
Surface Treatment Anodize
Surface Treatment Specification Mil-a-8625,ty1 or ty2 mil spec single treatment response

Add to Cart

Up to quantity 105 ships same day.
buy now $3.75
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5340-00-822-6114
  • Package Weight (oz)
    0.176
  • Manufactured By
    UMPCO
  • ECCN (Export Control Class)
    EAR99
