7277-2-10 Circuit Breaker

Part#: 7277-2-10 NSN: 5925-01-470-0049

About this product commercial-grade, single-phase, trip-free miniature aircraft circuit breaker manufactured by Sensata Technologies (Klixon). It is rated for 10 Amps and is extensively used as primary electrical protection in general aviation aircraft. It is physically and electrically identical to the military-grade 7274-2 series, except that the 7277 has wider calibration limits, making it a more economical choice. * Manufacturer certifications are shipped with your order FREE of charge

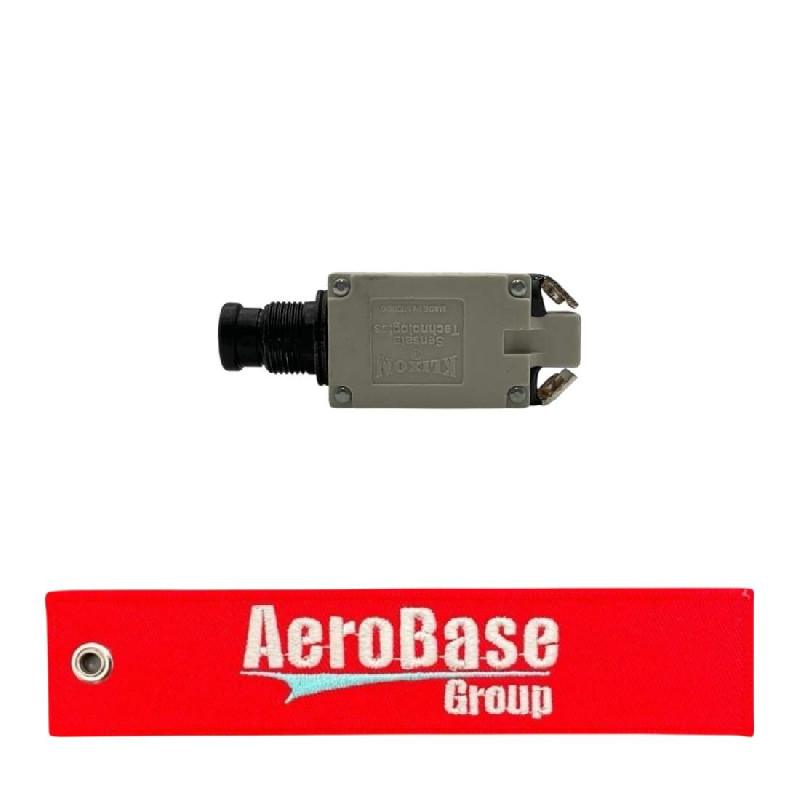

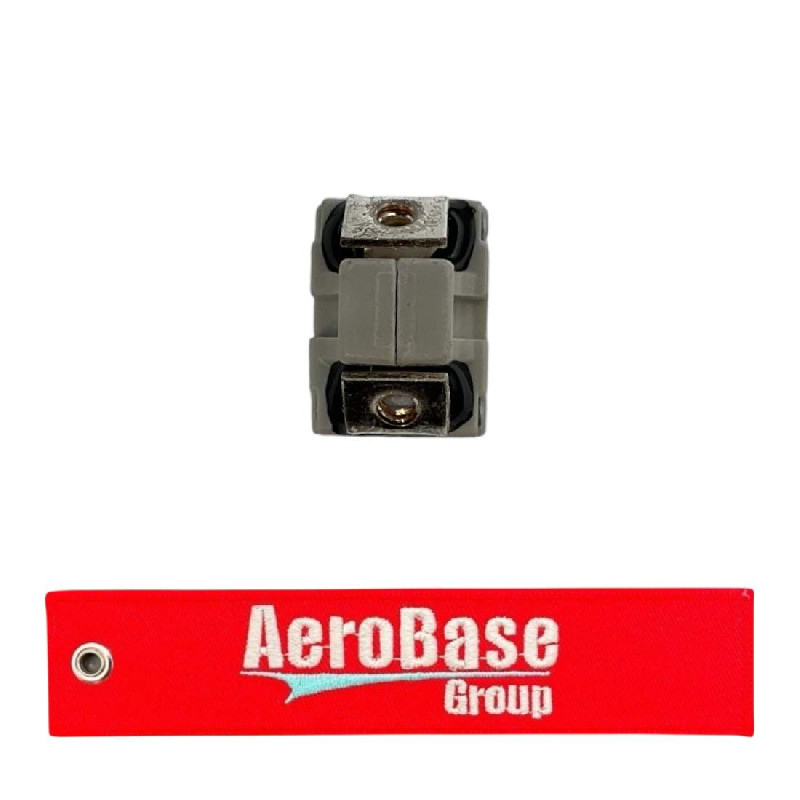

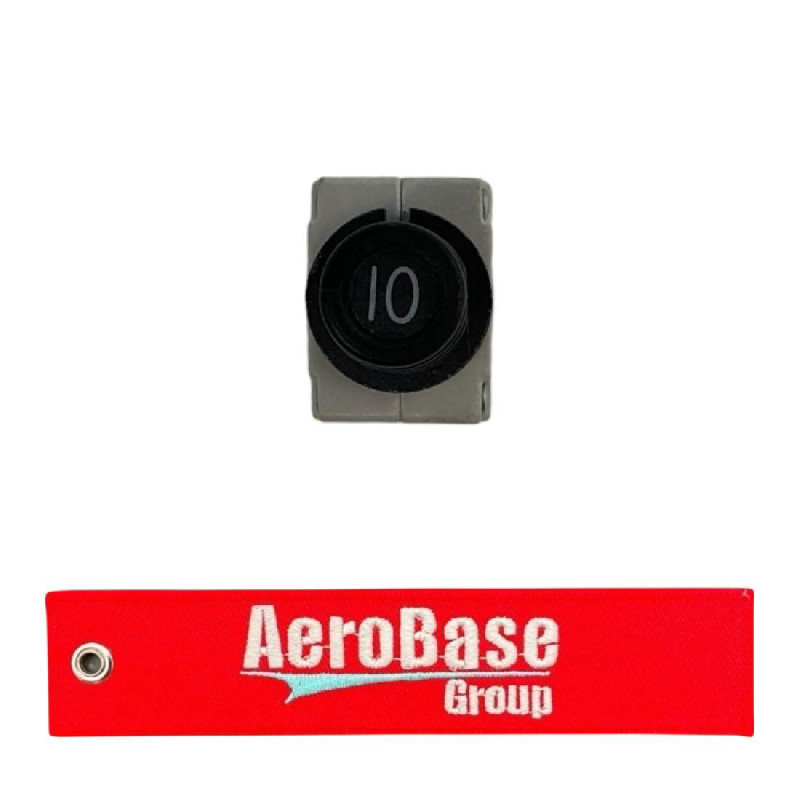

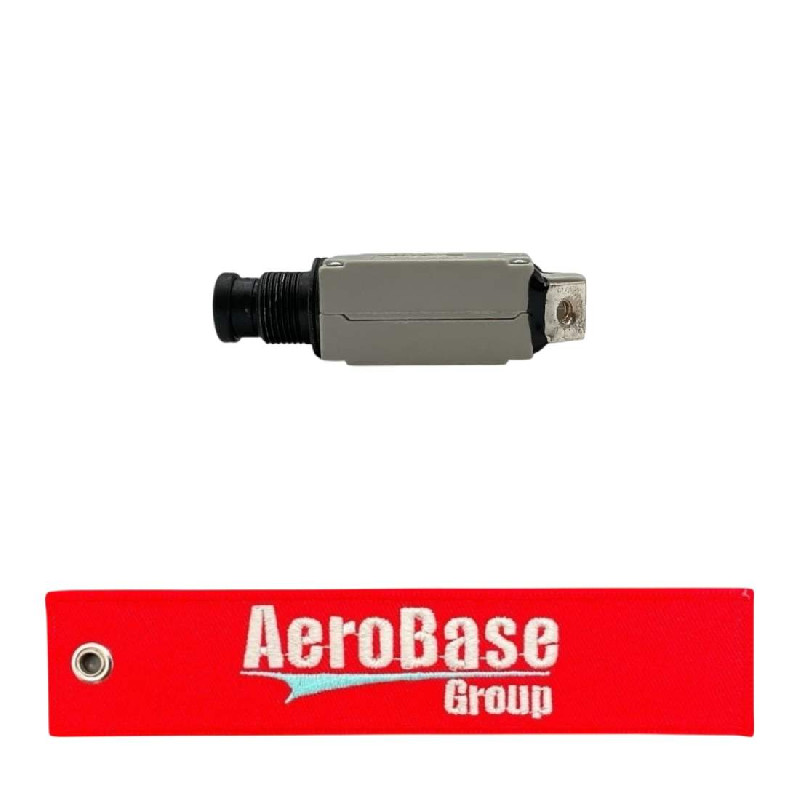

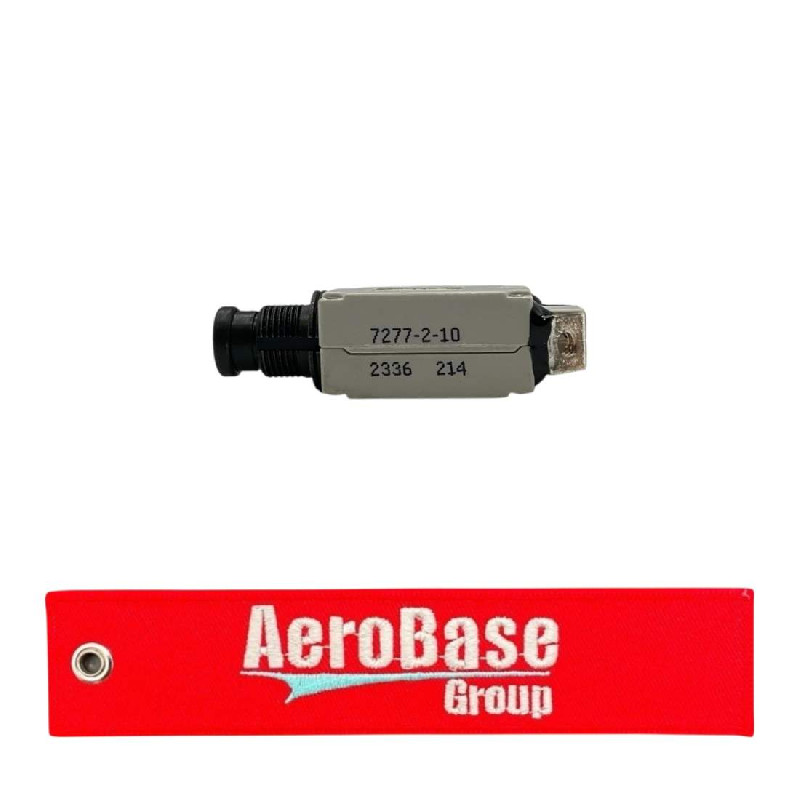

Product Images
7277-2-10 7277-2-10 7277-2-10 7277-2-10 7277-2-10 7277-2-10

Product Details

Part Number or Model 7277-2-10
Description Circuit Breaker
Schedule B Class 8536.20.0020
ECCN (Export Control Class) EAR99
Special Features 10 amps age rating; trip time - seconds 200 percent 2-35, 500 percent .15-1.75, 100 percent .028-.8
Trip Release Ambient Tempurature Rating 25 degrees celsius nominal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150 single location
Current Rating 10 Amps
Design Single-phase, non-compensated, trip-free push/pull switch
Weight 28 grams
Vibration Resistance 10G minimum, 50–500 Hz
Interrupt Current 2,000 Amps at 28 VDC / 500 Amps at 120 VAC, 400 Hz
Common Applications Beechcraft Baron/Bonanza/King Air, data processing, telecommunications, and flight simulators

Add to Cart

Up to quantity 20 ships same day.
buy now $50.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-470-0049
  • Package Weight (oz)
    0.928
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5925-01-470-0049
  • 5925014700049
  • 7277210
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
