7274-4-1/2 Circuit Breaker

Part#: 7274-4-1/2 NSN: 5925-00-121-9847

About this product 7274-4-1/2 Circuit Breaker 4.5 amp. * Manufacturer certifications are shipped with your order FREE of charge

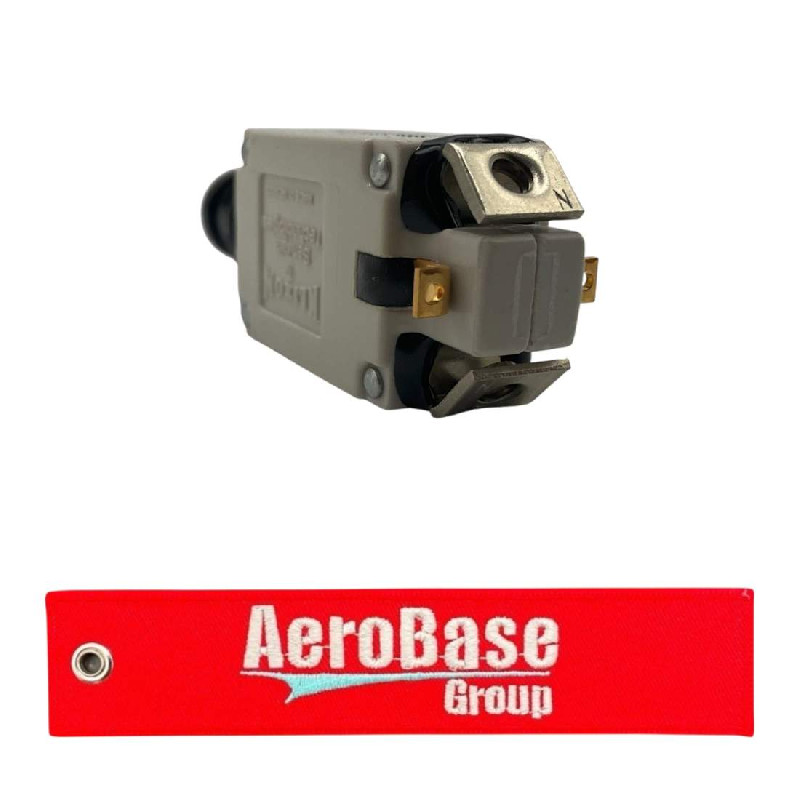

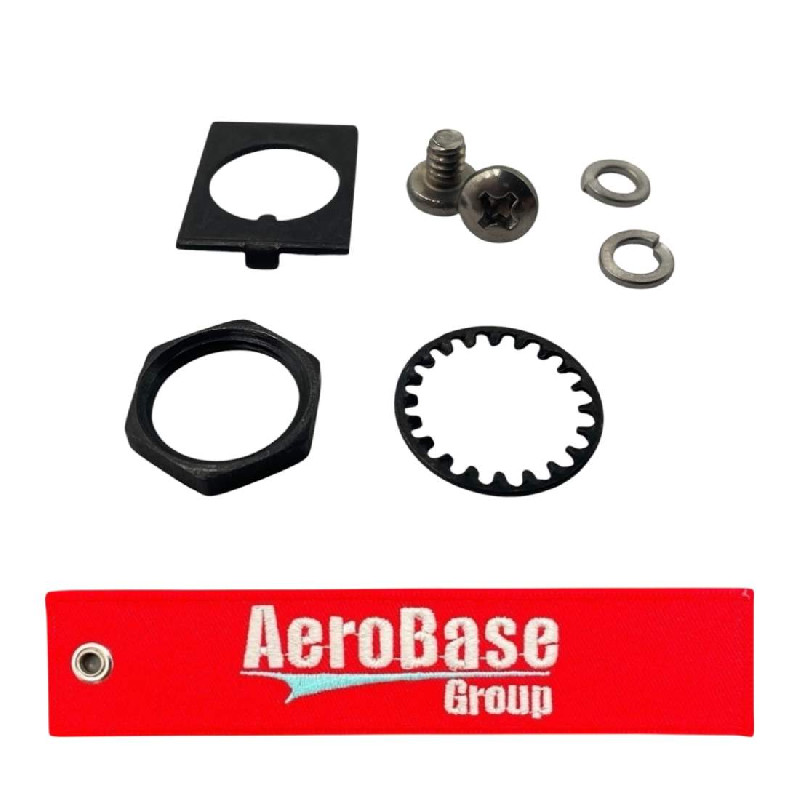

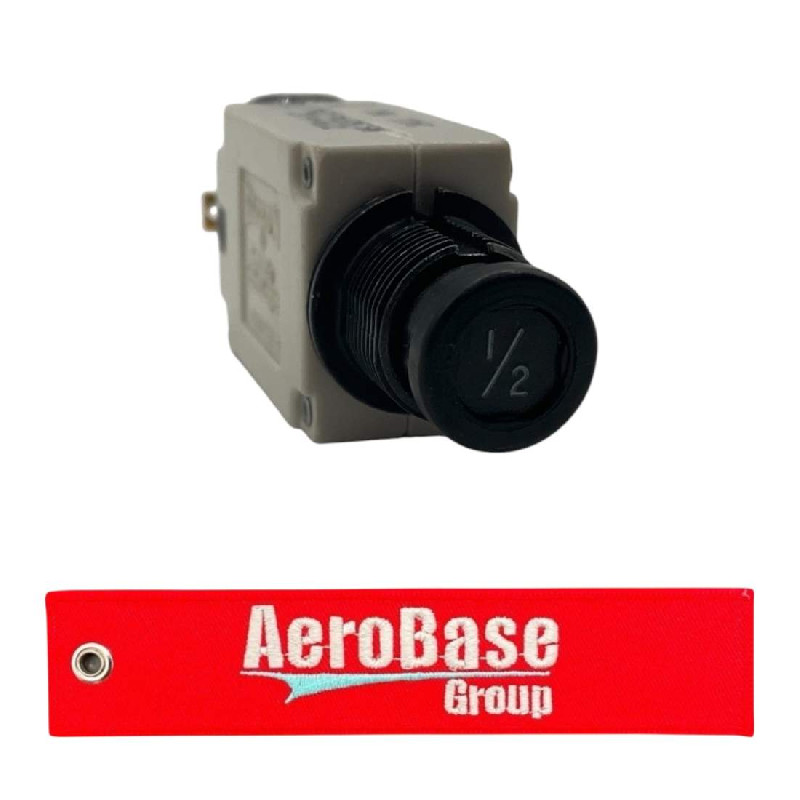

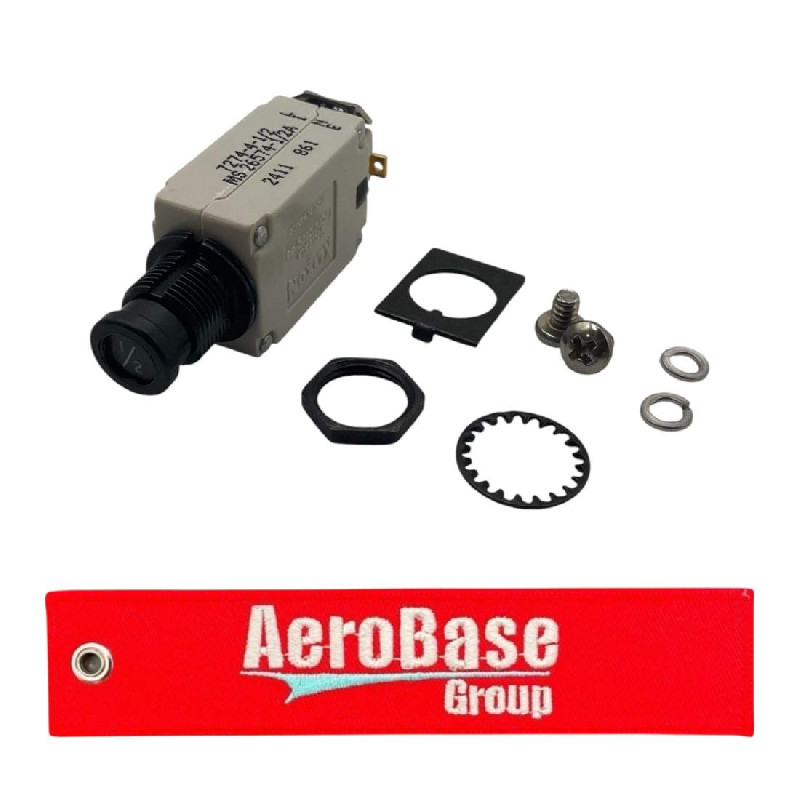

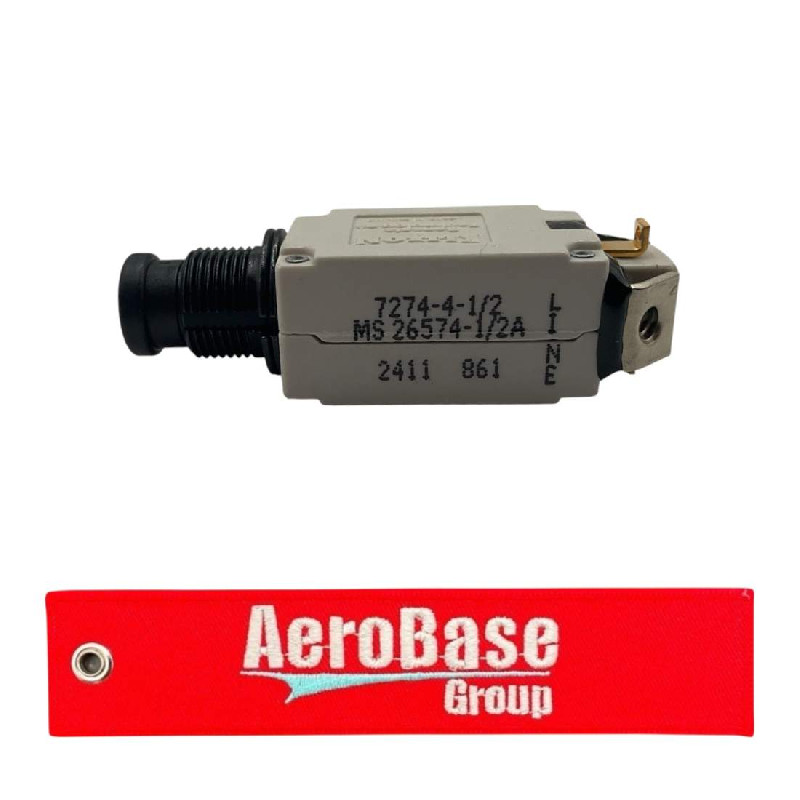

Product Images
7274-4-1/2 7274-4-1/2 7274-4-1/2 7274-4-1/2 7274-4-1/2

Product Details

Part Number or Model 7274-4-1/2
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Auxiliary Switch Function And Quantity 1 control
Body Length 0.780 inches maximum
Body Width 0.580 inches maximum
Bushing Length 0.359 inches nominal
Case Material Metal
Center To Center Distance Between Terminals Parallel To Length 0.593 inches nominal
Circuit Protection Type Overcurrent single location
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Moisture resistant and explosion resistant
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 500.0 milliamperes ac single location and 500.0 milliamperes dc single location
Maximum Continuous Load Current Rating Per Pole 500.0 milliamperes ac and 500.0 milliamperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 100.0 ac single location and 100.0 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 100.0 ac and 100.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.420 inches maximum
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 115.0 ac single location and 28.0 dc single location
Operating Voltage Type And Rating Per Pole In Volts 115.0 ac and 28.0 dc single location
Pole Quantity 1
Reset Method Manual
Specification Data 96906-ms26574 government standard
Switch Contact Arrangement Single pole, single throw, normally closed
Switch Current Rating And Type In Amps 0.5 ac and 0.5 dc
Switch Location And Position Designation External at pole one
Switch Terminal Type Tab, solder lug
Switch Voltage Rating And Type In Volts 115.0 ac and 28.0 dc
Terminal Type And Quantity 2 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Un
Trip Delay Time In Seconds Per Rated Continuous Current 2.000 minimum at 200 pct single location and 20.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 145.0 single location

Add to Cart

Up to quantity 2 ships same day.
buy now $399.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-00-121-9847
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99

Alternate(s)
