6752-100-100 Circuit Breaker

Part#: 6752-100-100 NSN: 5925-01-614-3488

About this product 100-amp military-spec thermal-magnetic aircraft circuit breaker manufactured by Sensata Technologies (Klixon). It is qualified under military standard MIL-C-5809 and carries the military part number MS25361-100. Designed primarily for large electrical systems in military and commercial aircraft (such as Beechcraft, Cessna, and Hawker), it provides precise circuit protection that remains unaffected by ambient temperature fluctuations. * Manufacturer certifications are shipped with your order FREE of charge

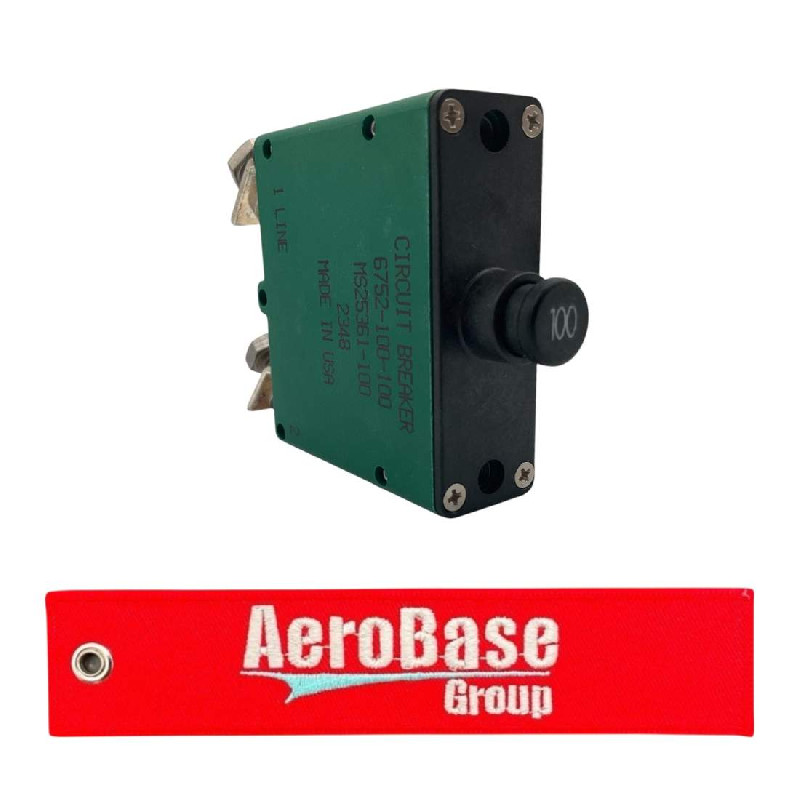

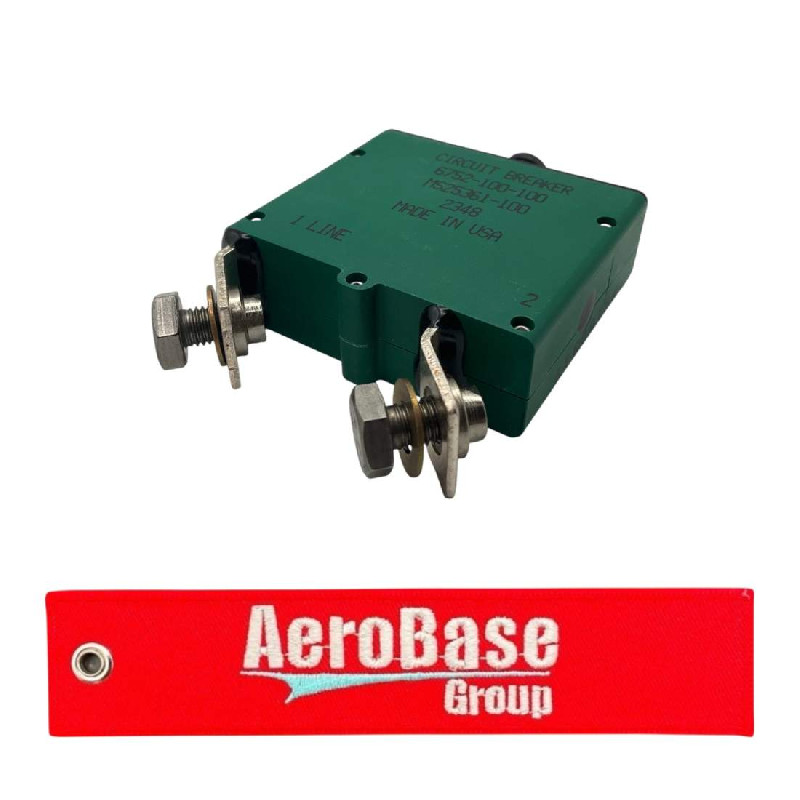

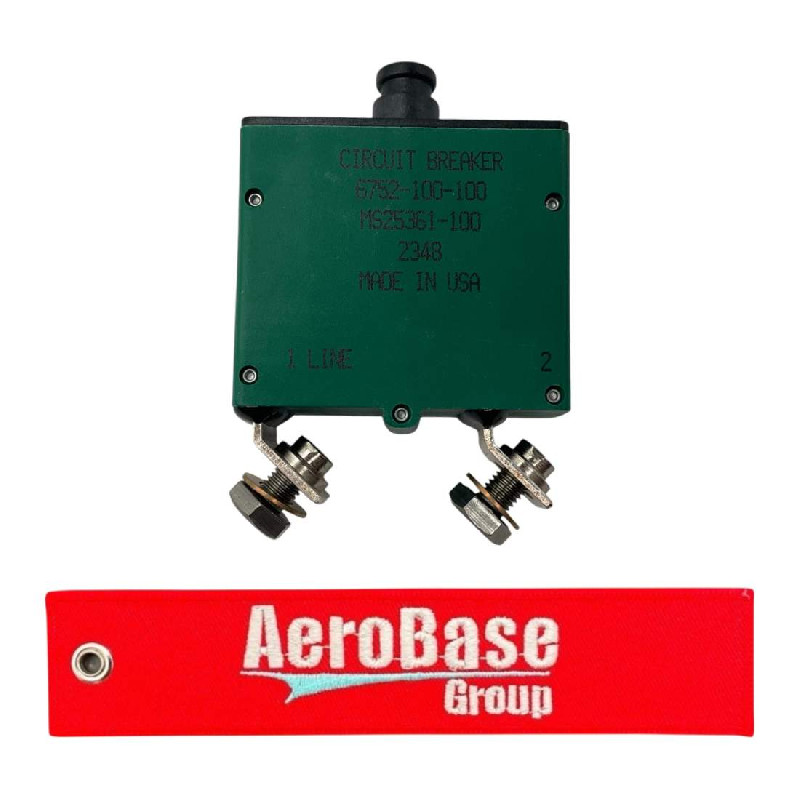

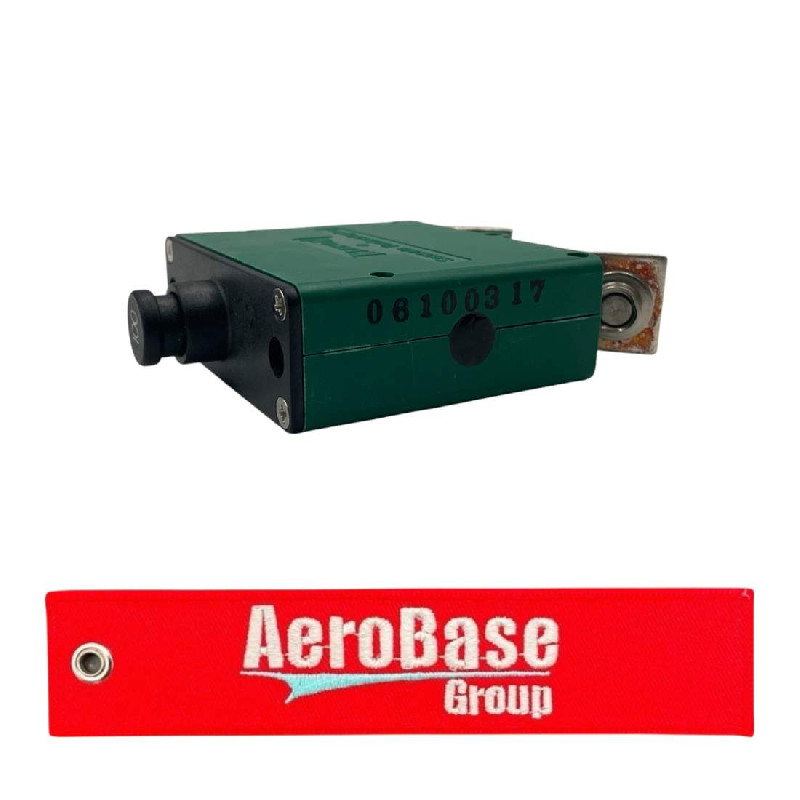

Product Images
6752-100-100 6752-100-100 6752-100-100 6752-100-100

Product Details

Part Number or Model 6752-100-100
Description Circuit Breaker
Schedule B Class 8536.20.0040
ECCN (Export Control Class) EAR99
Terminal Type And Quantity 2 screw
Trip Release Characteristic Time delay single location
Pole Quantity 1
Mounting Facility Type And Quantity 2 threaded hole
Mounting Surface To Terminal End Distance 2.25 inches nominal
Maximum Continuous Load Current Rating Per Pole 100 amperes ac and 100 amperes dc single location
Interrupting Capacity 6,000 amps at 28 vdc and 3,500 amps at 120 vac (400 hz)
Endurance Rated for up to 5,000 cycles
Distance Between Centerlines Of Mounting Facilities Parallel To 1.807 inches nominal
Center To Center Distance Between Terminals Parallel To Length 1.47 inches nominal
Case Material Plastic
Bushing Length 0.250 inches nominal
Body Style Single pole type
Body Width 0.750 inches maximum
Body Length 2.189 inches maximum
Trip Release Method Thermal-magnetic single location
Design Mechanism Single-pole, push-button, trip-free design (cannot be held closed manually during a fault) with a deionizing grid and magnetic assist to safely extinguish heavy fault currents

Add to Cart

Up to quantity 2 ships same day.
buy now $569.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-614-3488
  • Package Weight (oz)
    4.064
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99
