2TC6-15 Circuit Breaker

Part#: 2TC6-15 NSN: 5925-01-253-6216

About this product 15 amp circuit breaker. * Manufacturer certifications are shipped with your order FREE of charge

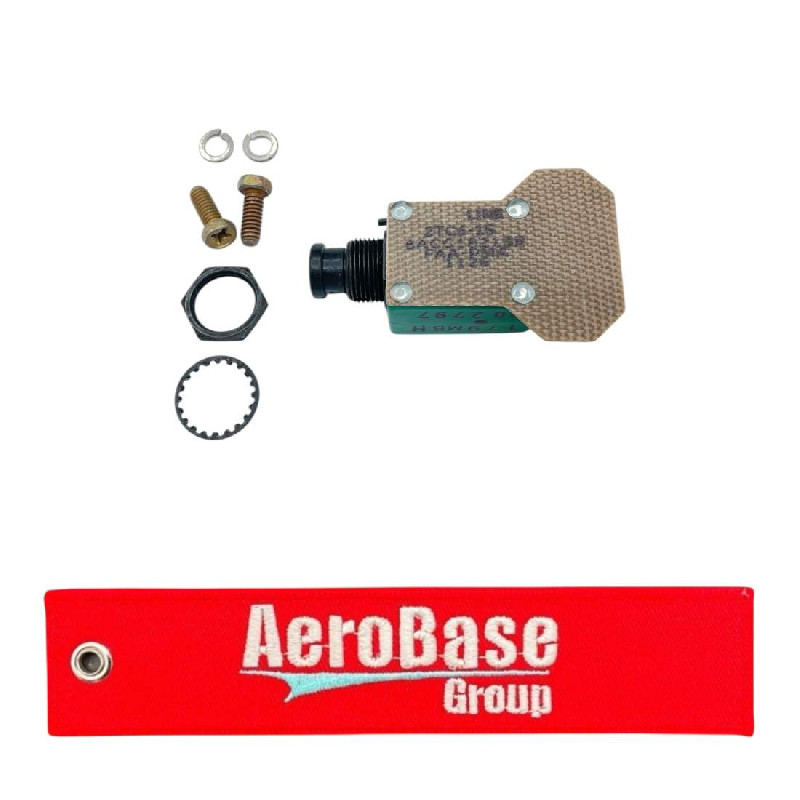

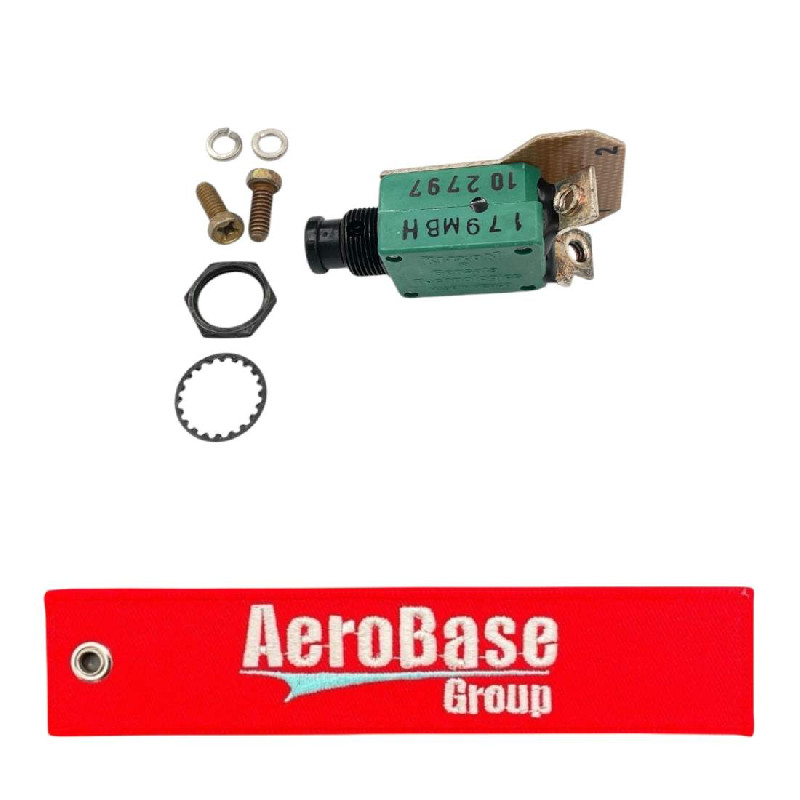

Product Images
2TC6-15 2TC6-15 2TC6-15

Product Details

Part Number or Model 2TC6-15
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Qty Per Inch (tpi) 32
Terminal Type And Quantity 2 tab with screw
Storage Type General purpose warehouse
Reset Method Manual
Pole Quantity 1
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac single location and 28.0 dc single location
Mounting Surface To Terminal End Distance 1.630 inches maximum
Mounting Facility Type And Quantity 1 threaded bushing
Maximum Interrupting Capacity Current Type And Rating Per Pole I 3500 ac single location and 6000 dc single location
Maximum Continuous Load Current Rating Per Pole 5 amperes ac single location and 5 amperes dc single location
Manual Actuator Type And Quantity 1 push-pull
Main Contact Tripping Mechanism Type Trip free
Internal Trip Release Configuration Series trip single location
Inclosure Protection Type For Which Designed Dustproof and sandtight and corrosion resistant and moisture resistant and explosion proof
Frequency In Hertz 400.0 single location
Fragility Factor Moderately rugged
Circuit Protection Type Overcurrent single location
Center To Center Distance Between Terminals Parallel To Length 0.469 inches minimum and 0.531 inches maximum
Case Material Plastic
Bushing Length 0.219 inches minimum and 0.281 inches maximum
Body Style Single pole type
Body Width 0.719 inches minimum and 0.781 inches maximum
Body Length 0.880 inches maximum
Actuator Position Designation At pole one
Arc Quenching Method Air
Actuator Function Trip-reset
Thread Series Designator Uns
Thread Size 0.438 inches
Trip Delay Time In Seconds Per Rated Continuous Current 5.000 minimum at 200 pct single location and 50.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150.0 single location
Unpackaged Unit Weight 0.090 pounds

Add to Cart

Up to quantity 3 ships same day.
buy now $62.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-253-6216
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5925-01-253-6216
  • 5925012536216
  • 2TC615
