2TC2-4 Circuit Breaker

Part#: 2TC2-4 NSN: 5925-00-224-7474

About this product 2TC2-4 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

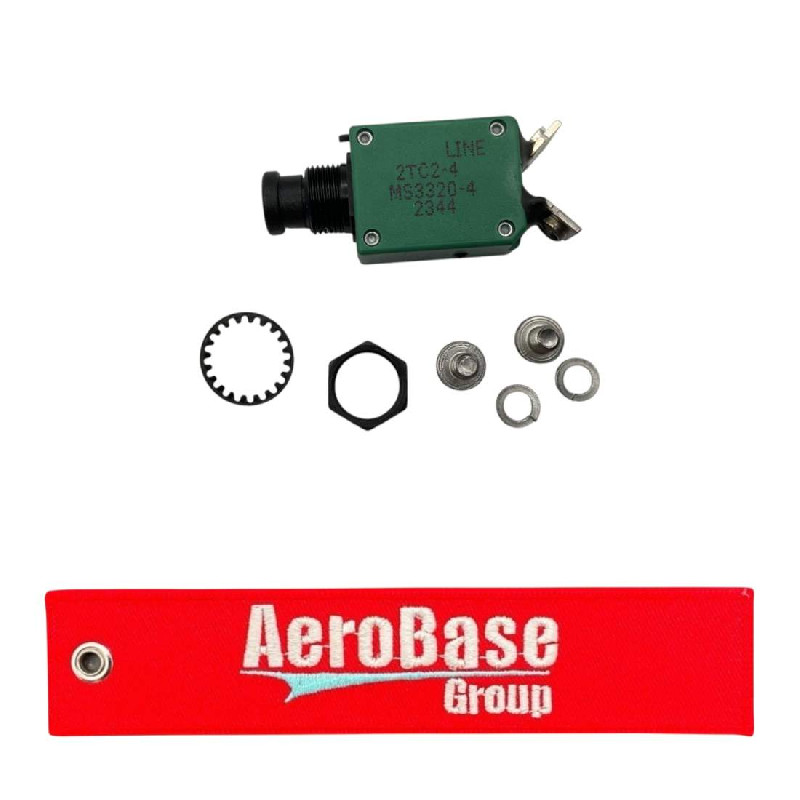

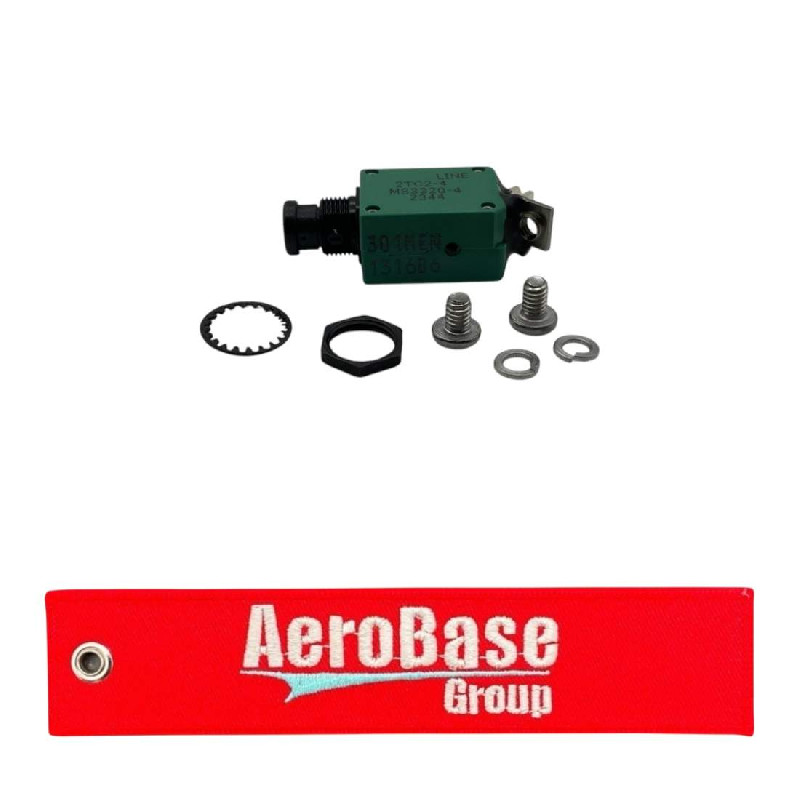

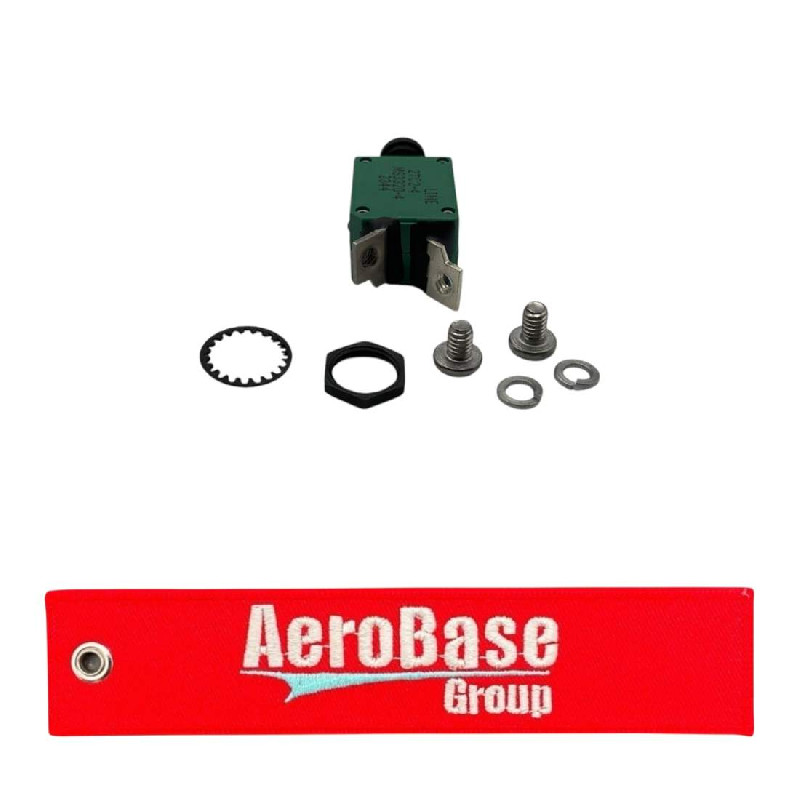

Product Images
2TC2-4 2TC2-4 2TC2-4

Product Details

Part Number or Model 2TC2-4
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Body Length 0.781 inches maximum
Body Style Single pole type
Body Width 0.593 inches maximum
Bushing Length 0.250 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.500 inches nominal
Circuit Protection Type Overcurrent single location
Frequency In Hertz 400.0 single location
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 4.0 amperes ac single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 3500.0 ac single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.343 inches maximum
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 115.0 ac single location
Pole Quantity 1
Reset Method Manual
Specification Data 96906-ms3320 government standard
Storage Type General purpose warehouse
Terminal Type And Quantity 2 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 1.500 minimum at 200 pct single location and 30.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 deg celsius maximum single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 138.0 single location

Add to Cart

Up to quantity 24 ships same day.
buy now $50.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-00-224-7474
  • Manufactured By
    Sensata
  • ECCN (Export Control Class)
    EAR99
