2TC2-2-1/2 Circuit Breaker

Part#: 2TC2-2-1/2 NSN: 5925-00-224-7426

About this product 2TC2-2-1/2 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

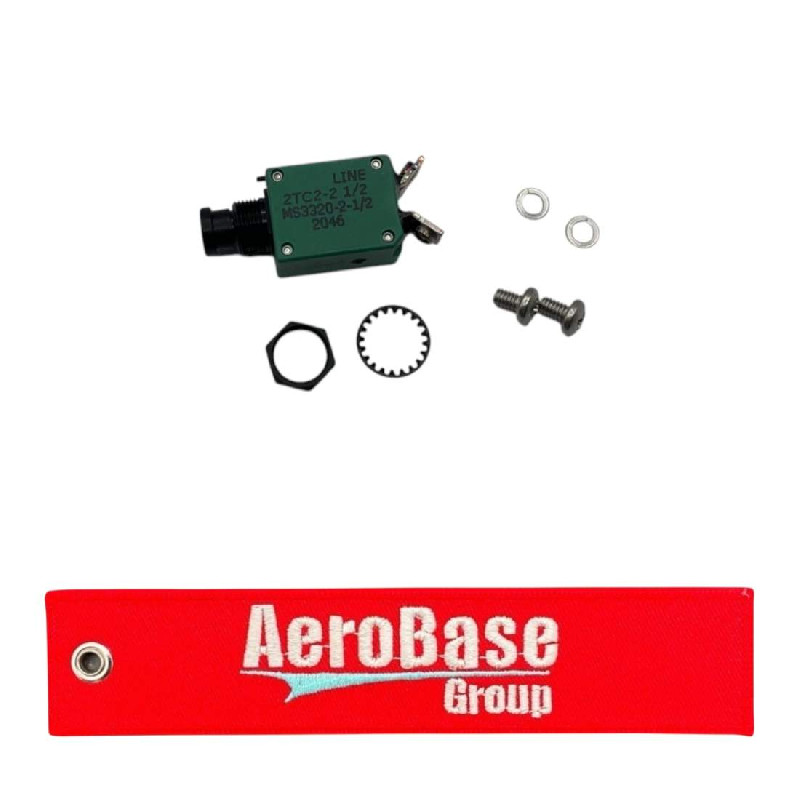

2TC2-2-1/2 2TC2-2-1/2

Product Details

Part Number or Model 2TC2-2-1/2
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Body Length 0.781 inches maximum
Body Style Single pole type
Body Width 0.593 inches maximum
Bushing Length 0.250 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.5 inches nominal
Circuit Protection Type Overcurrent single location
Fragility Factor Moderately rugged
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Shock resistant and vibration resistant
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 2.5 amperes ac single location and 2.5 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 5000.0 ac single location and 2500.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing w/panel seal
Mounting Surface To Terminal End Distance 1.343 inches maximum
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 115.0 ac single location and 28.0 dc single location
Pole Quantity 1
Reset Method Manual
Specification Data 96906-ms3320-2-1/2 government standard
Storage Type General purpose warehouse
Terminal Type And Quantity 2 tab w/screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Un
Trip Delay Time In Seconds Per Rated Continuous Current 1.500 minimum at 200 pct single location and 40.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 138.0 single location
Unpackaged Unit Weight 0.055 pounds
