2TC12-2 Circuit Breaker

Part#: 2TC12-2 NSN: 5925-00-488-7421

About this product 2 amp circuit breaker. * Manufacturer certifications are shipped with your order FREE of charge

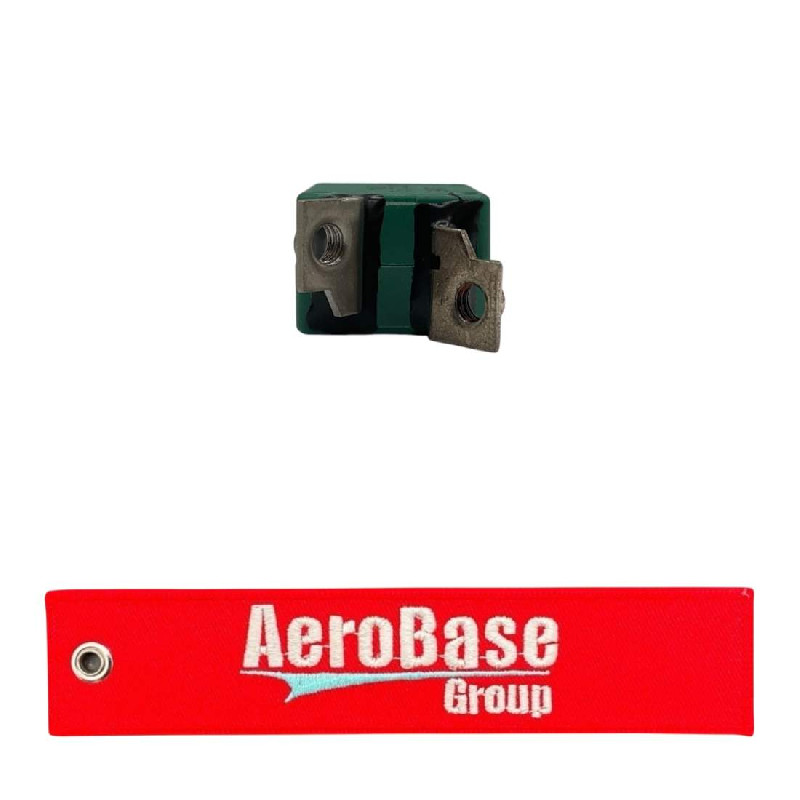

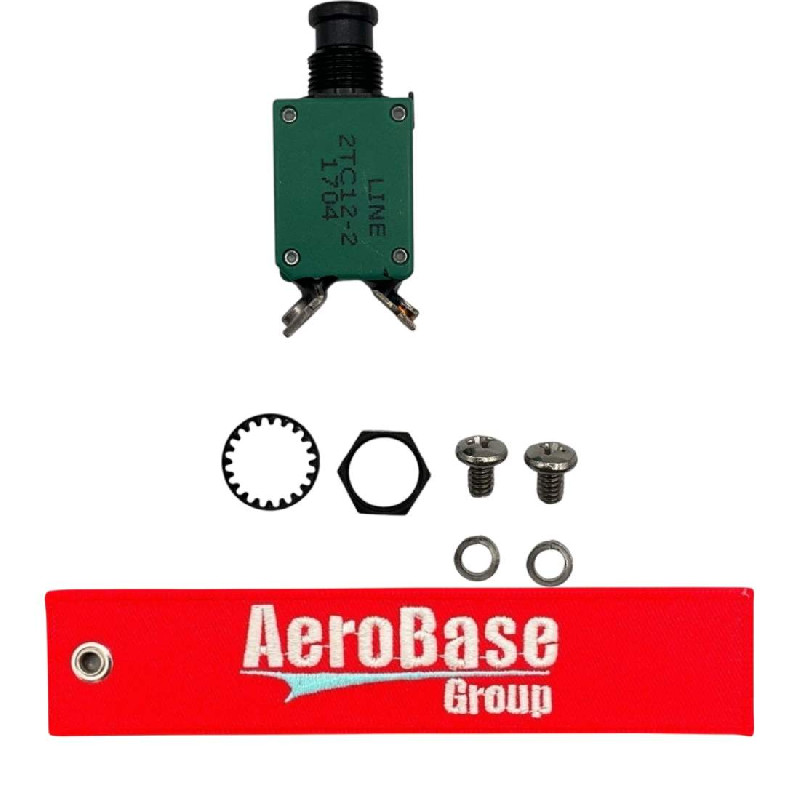

Product Images
2TC12-2 2TC12-2 2TC12-2

Product Details

Part Number or Model 2TC12-2
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 138.0 single location
Trip Release Method Thermal single location
Trip Release Characteristic Time delay single location
Trip Release Ambient Tempurature Rating 25.0 deg celsius maximum single location
Trip Delay Time In Seconds Per Rated Continuous Current 4.000 minimum at 200 pct and 16.000 maximum at 200 pct single location
Trip Delay Time In Seconds Per Rated Continuous Current 4.000 minimum at 200 pct single location and
Trip Delay Time In Seconds Per Rated Continuous Current 16.000 maximum at 200 pct single location
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Thread Size 0.438 inches
Terminal Type And Quantity 2 tab with screw
Pole Quantity 1
Reset Method Manual
Storage Type General purpose warehouse
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac single location and
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac and 28.0 dc single location
Operating Voltage Type And Rating Per Pole In Volts 28.0 dc single location
Mounting Surface To Terminal End Distance 1.281 inches minimum and 1.343 inches maximum
Mounting Facility Type And Quantity 1 threaded bushing w/panel seal
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2500.0 ac single location and
Maximum Interrupting Capacity Current Type And Rating Per Pole I 6000.0 dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2500.0 ac and 6000.0 dc single location
Maximum Continuous Load Current Rating Per Pole 2.0 amperes ac single location and 2.0 amperes dc single location
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 2.0 amperes ac and 2.0 amperes dc single location
Main Contact Tripping Mechanism Type Trip free
Internal Trip Release Configuration Series trip single location
Inclosure Protection Type For Which Designed Fungus resistant
Inclosure Protection Type For Which Designed Moisture resistant and fungus resistant
Inclosure Protection Type For Which Designed Moisture resistant and
Frequency In Hertz 400 single location
Circuit Protection Type Overcurrent single location
Center To Center Distance Between Terminals Parallel To Length 0.469 inches minimum and 0.531 inches maximum
Bushing Length 0.040 inches minimum and 0.055 inches maximum
Case Material Plastic
Body Width 0.531 inches minimum and 0.593 inches maximum
Body Style Single pole type
Actuator Position Designation At pole one
Body Length 0.719 inches minimum and 0.781 inches maximum
Actuator Function Trip-reset
Unpackaged Unit Weight 0.057 pounds
