1TL1-4 Toggle Switch

Part#: 1TL1-4 NSN: 5930-00-683-1627

About this product 1TL1-4 Toggle Switch. * Manufacturer certifications are shipped with your order FREE of charge

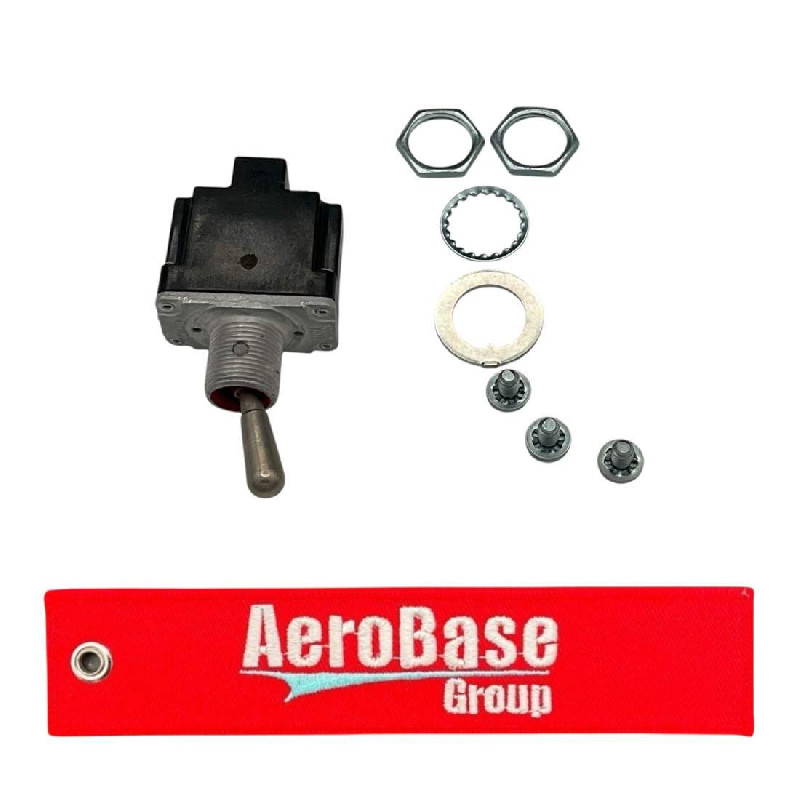

Product Images
1TL1-4 1TL1-4

Product Details

Part Number or Model 1TL1-4
Description Toggle Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Inclosure Type Fully inclosed
Features Provided Actuator seal
Contact Load Current Rating At Maximum Rated Voltage 15 amperes resistive dc and 10 amperes inductive dc and 4.000 amperes lamp dc and 15.000 amperes resistive ac and 7.000 amperes inductive ac and 2.000 amperes lamp ac
Body Length 1.270 inches maximum
Body Style Bushing mount
Body Width 0.635 inches maximum
Bushing Length 0.455 inches minimum and 0.485 inches maximum
Body Height 0.890 inches minimum and 0.930 inches maximum
Actuator Style Round
Actuator Position-action Relationship Up position maintained and down position momentary
Actuator Height 0.655 inches minimum and 0.695 inches maximum
Actuator Diameter 0.237 inches minimum and 0.243 inches maximum
Mounting Method Threaded bushing
Nonpile-up Contact Arrangement 1 pole, single throw, normally closed, momentary action single switch unit
Terminal Type And Quantity 2 screw
Thread Class 2a
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Thread Size 0.469 inches
