1TL1-8F Toggle Switch

Part#: 1TL1-8F NSN: 5930-00-811-8351

About this product 1TL1-8F Toggle Switch. * Manufacturer certifications are shipped with your order FREE of charge

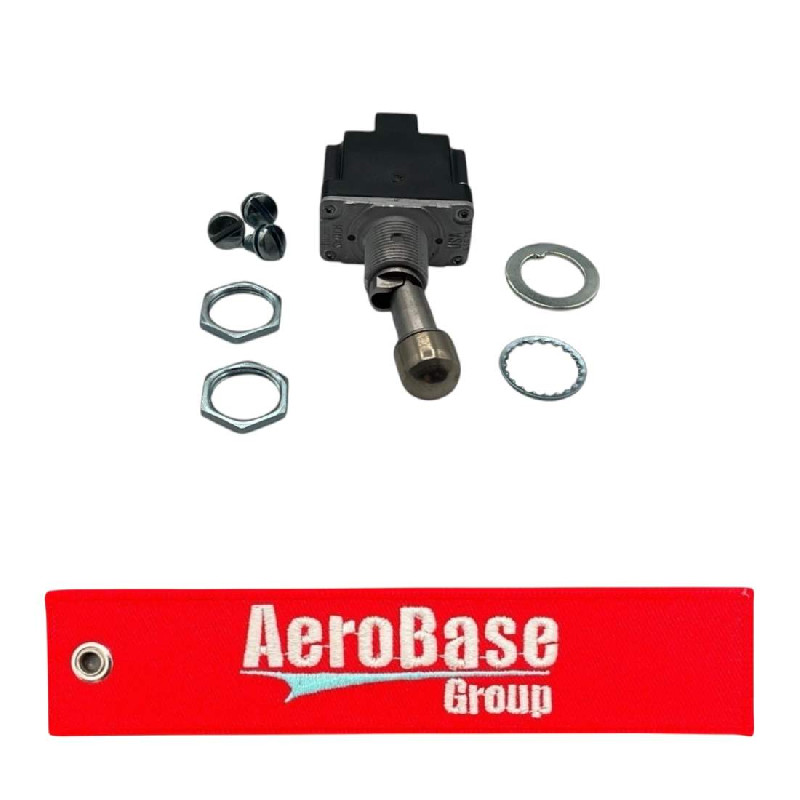

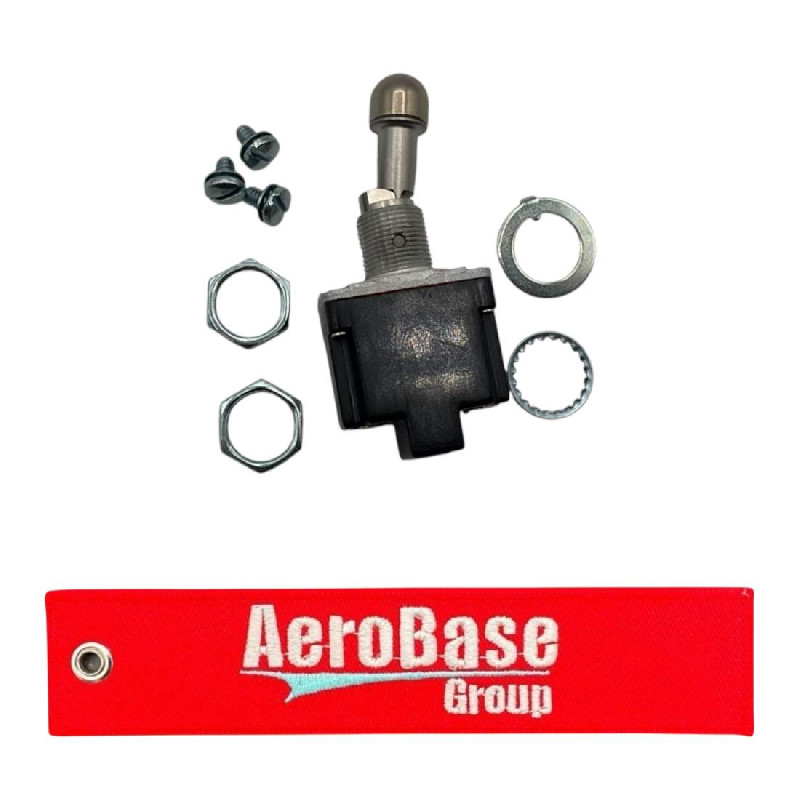

Product Images
1TL1-8F 1TL1-8F

Product Details

Part Number or Model 1TL1-8F
Description Toggle Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Diameter 0.420 inches nominal
Actuator Height 1.140 inches nominal
Actuator Position-action Relationship Up position maintained and down position momentary
Actuator Position-locking Relationship Up position locked in and down position no locking action
Actuator Style Round
Body Height 0.910 inches maximum
Body Length 1.270 inches maximum
Body Style Bushing mount
Body Width 0.635 inches maximum
Bushing Length 0.470 inches nominal
Contact Load Current Rating At Maximum Rated Voltage 15 amperes resistive dc and 10 amperes inductive dc and 15.000 amperes resistive ac and 7.000 amperes inductive ac and 2.000 amperes lamp ac
Features Provided Actuator seal
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Mounting Method Threaded bushing
Mounting Surface To Terminal End Distance 1.180 inches maximum
Thread Size 0.469 inches
Nonpile-up Contact Arrangement 1 pole, double throw, one position momentary single switch unit
Overall Height 2.790 inches nominal
Overall Length 1.270 inches maximum
Overall Width 0.635 inches maximum
Precious Material And Location Terminal surfaces silver
Specification Data 96906-ms24658 government standard
Terminal Type And Quantity 3 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
