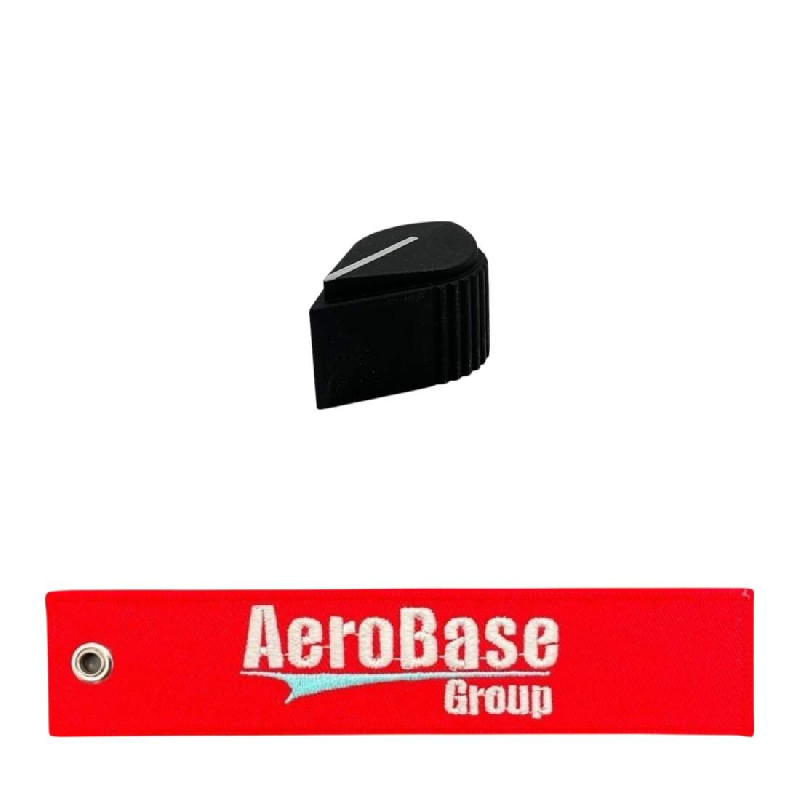

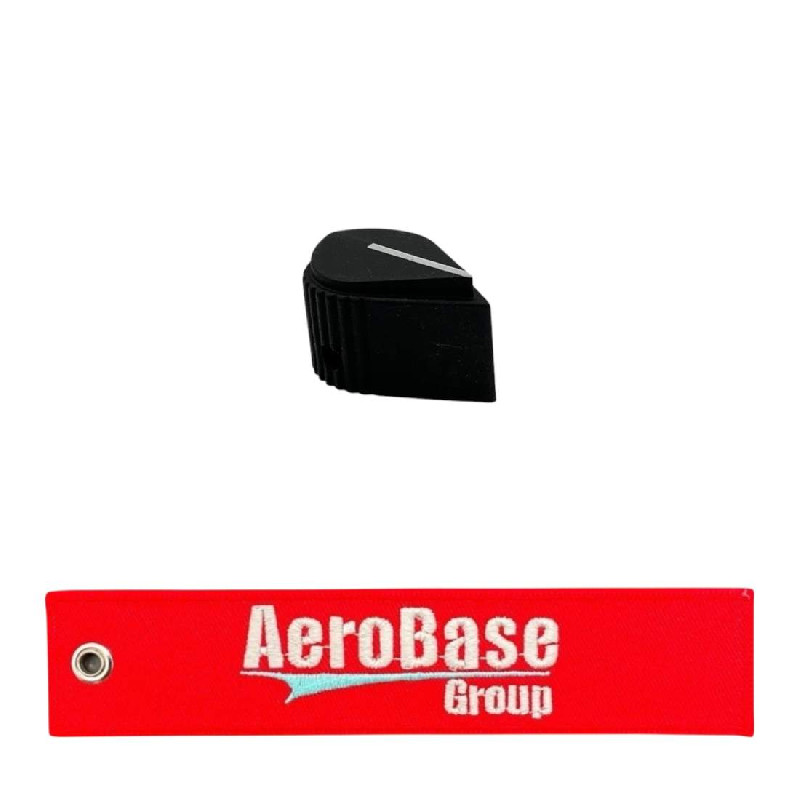

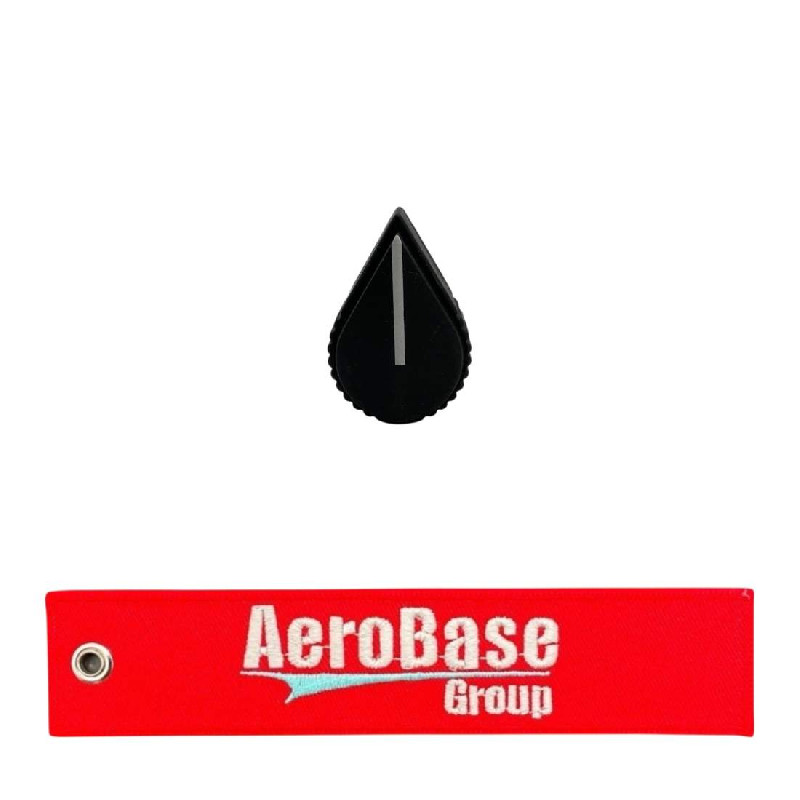

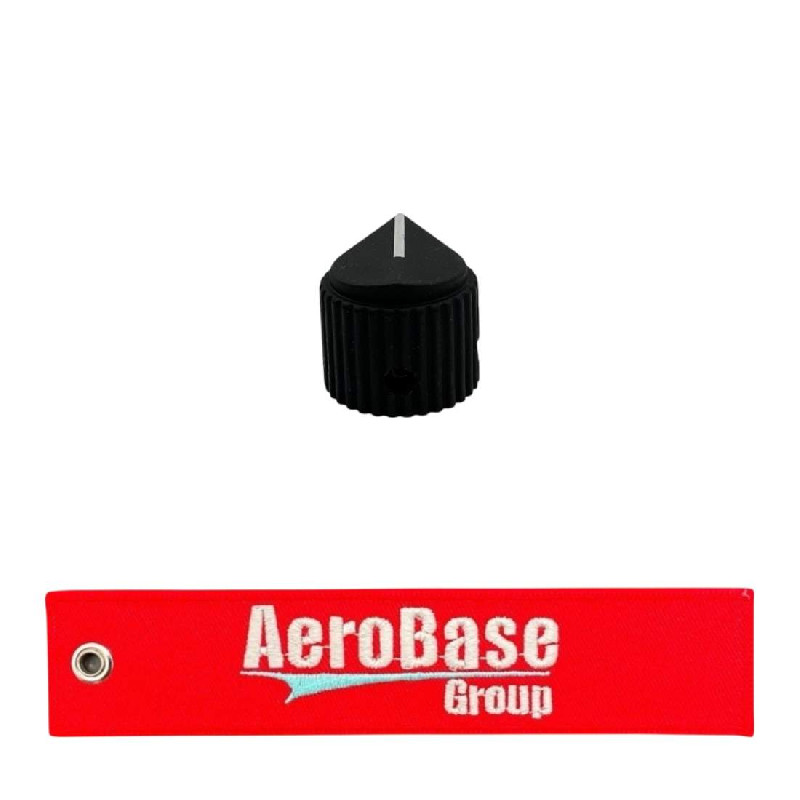

MS91528-1T4B Knob

Name: Knob
Brand: ELECTRONIC HARDWARE
SKU: 5355001854411
Price: 44.95 USD
Availability: InStock

Part#: MS91528-1T4B NSN: 5355-00-185-4411

About this product MS91528-1T4B Knob. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS91528-1T4B
Description	Knob
Schedule B Class
ECCN (Export Control Class)	EAR99
Thread Size	0.112 inches screw hole
Thread Qty Per Inch (tpi)	40 screw hole
Thread Series Designator	Unc screw hole
Style Designator	Pointer
Special Features	Shaft accommodation hole counterbore, 0.485 in. min diameter, 0.266 in. min depth, color is federal standard 595, no. 37038
Setscrew Hole Quantity	2
Shaft Accommodation Style	Flatted one side
Screw Drive Type	Hexagon socket
Pointer Design	Nondetachable
Reference Marking	Line
Overall Thickness	0.580 inches minimum and 0.640 inches maximum
Material Transparency	Opaque
Overall Depth	0.405 inches minimum
Inside Width	0.222 inches minimum and 0.227 inches maximum
Length	1.020 inches minimum and 1.07 inches maximum
Inside Diameter	0.252 inches minimum and 0.254 inches maximum
Gripping Surface Condition	Grip aid
Distance From Hole Center To Knob/skirt Base	0.187 inches maximum
Attachment Method	Setscrews
Width	0.690 inches minimum and 0.730 inches maximum

Up to quantity 20 ships same day.

buy now $44.95

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
