Manufacturer Catalog
DIALIGHT

680-3232-222F Panel Mount Indicator

MPN: 680-3232-222F

733-6002 Readout Accessory

MPN: 733-6002

800-0331-500 Lens Cap, Red

MPN: 800-0331-500

800-1030-0332-504, Green color length: 1.75 diameter: 0.65 T-1 3/4 nsn 6210-00-143-6619

MPN: 800-1030-0332-504

800-1030-0334-504 LED Panel Indicator

MPN: 800-1030-0334-504

801-1030-0334-504 Indicator Light

MPN: 801-1030-0334-504

801-1030-0337-504 Panel Mount Indicator

MPN: 801-1030-0337-504

803-1710-0331-504 Indicator Light

MPN: 803-1710-0331-504

803-1710-0332-504 is a Dialight Series 803 military-specification green press-to-test indicator light, cross-referenced to MS25331-7. Designed for aerospace, defense and military control panel applications, this panel-mounted indicator features a flat, transparent green lens, non-dimming configuration and press-to-test functionality. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and installs in a nominal 5/8-inch panel opening. Suitable for visual status indication in compatible aircraft, military and industrial equipment. Lamp sold separately.

MPN: 803-1710-0332-504

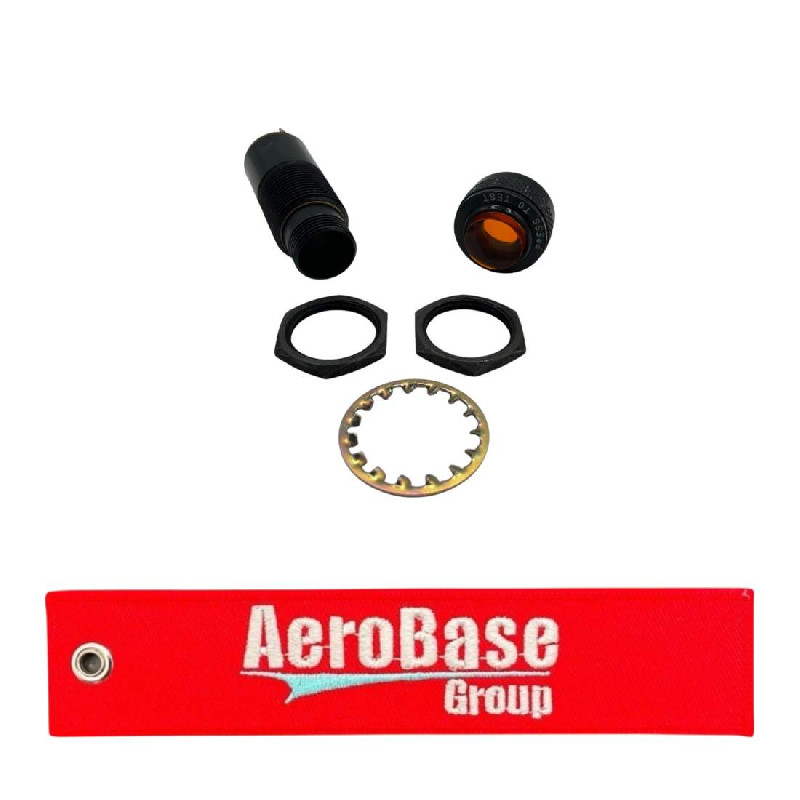

803-1710-0333-504 is a Dialight Series 803 military-specification amber press-to-test indicator light, cross-referenced to MS25331-8. Designed for aerospace, defense and military control panel applications, this panel-mounted indicator features a flat yellow/amber lens, non-dimming configuration and press-to-test functionality. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and installs in a nominal 5/8-inch panel opening. Manufactured for reliable visual status indication in compatible aircraft, military and industrial equipment. Lamp selection should be verified for the intended operating voltage and application.

MPN: 803-1710-0333-504

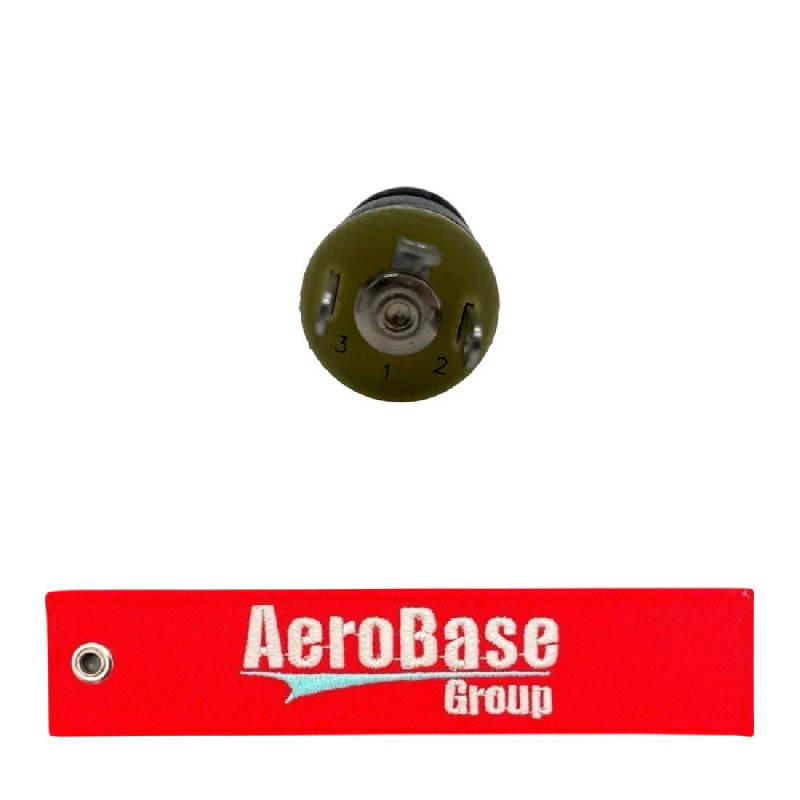

803-1710-0337-504 is a Dialight Series 803 military-specification clear press-to-test indicator light, cross-referenced to MS25331-5 and associated with NSN 6210-00-299-6509. Designed for aerospace, defense and military control panel applications, this panel-mounted indicator features a transparent, colorless lens, non-dimming configuration and press-to-test functionality. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and features three solder-lug terminals. Measuring 2.250 inches in overall length and 0.750 inches in diameter, it mounts in a nominal 5/8-inch panel opening and includes two hex nuts and one lock washer.

MPN: 803-1710-0337-504

804-1710-0331-504 is a Dialight Series 804 military-specification red press-to-test indicator light, cross-referenced to MS25331-2 and associated with NSN 6210-00-686-4999. Designed for aerospace, defense and military control panel applications, this indicator features a flat, transparent red lens with semi-blackout dimming capability and a press-to-test function. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and mounts in a standard 5/8-inch panel opening. Manufactured for reliable visual status indication in compatible military and industrial equipment. Lamp sold separately.

MPN: 804-1710-0331-504

804-1710-0332-504 is a Dialight Series 804 military-specification green press-to-test indicator light, cross-referenced to MS25331-3 and associated with NSN 6210-00-989-4377. Designed for aerospace, defense and military control panel applications, this panel-mounted indicator features a flat, transparent green lens with semi-blackout dimming capability and a press-to-test function. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and is designed for installation in a nominal 5/8-inch panel opening. Manufactured for visual status indication in compatible aircraft, military and industrial equipment. Lamp sold separately.

MPN: 804-1710-0332-504

804-1710-0333-504 is a Dialight Series 804 military-specification amber press-to-test indicator light, cross-referenced to MS25331-4. Designed for aerospace, defense and military control panel applications, this panel-mounted indicator features a transparent, unfrosted amber lens with semi-blackout dimming capability and a press-to-test function. The assembly accommodates a replaceable T-3 1/4 miniature-bayonet incandescent lamp and mounts in a nominal 5/8-inch panel opening. Suitable for visual status indication in compatible aircraft, military and industrial equipment. Lamp sold separately.

MPN: 804-1710-0333-504

804-1710-0337-504 Indicator Light

MPN: 804-1710-0337-504
