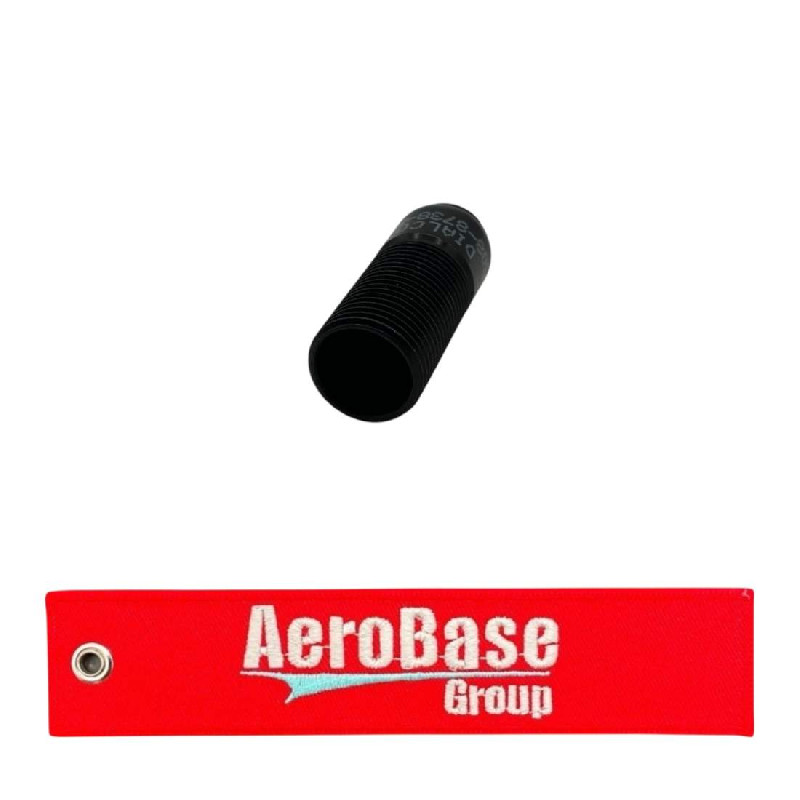

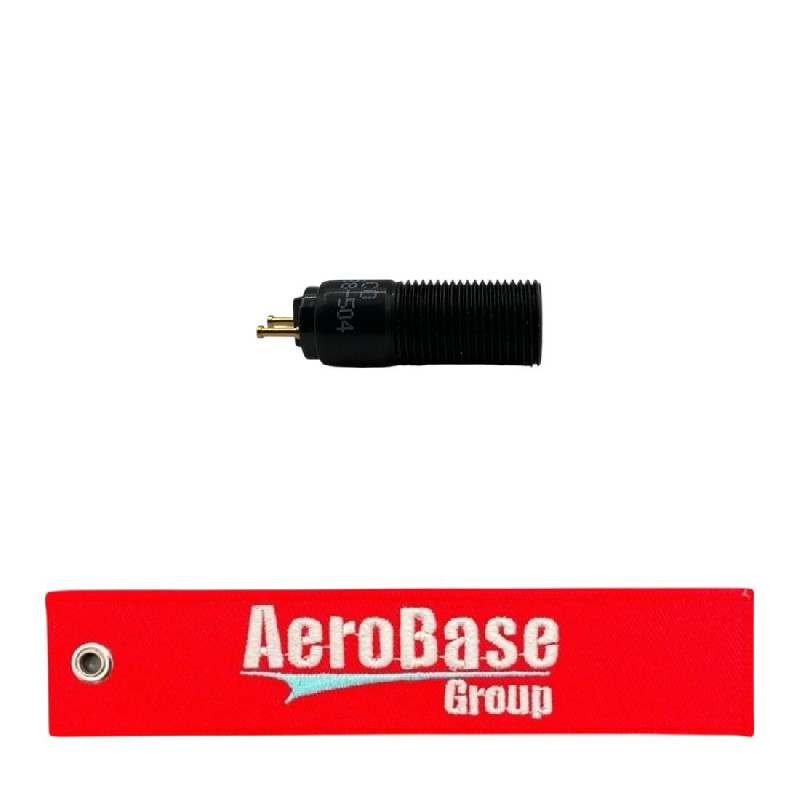

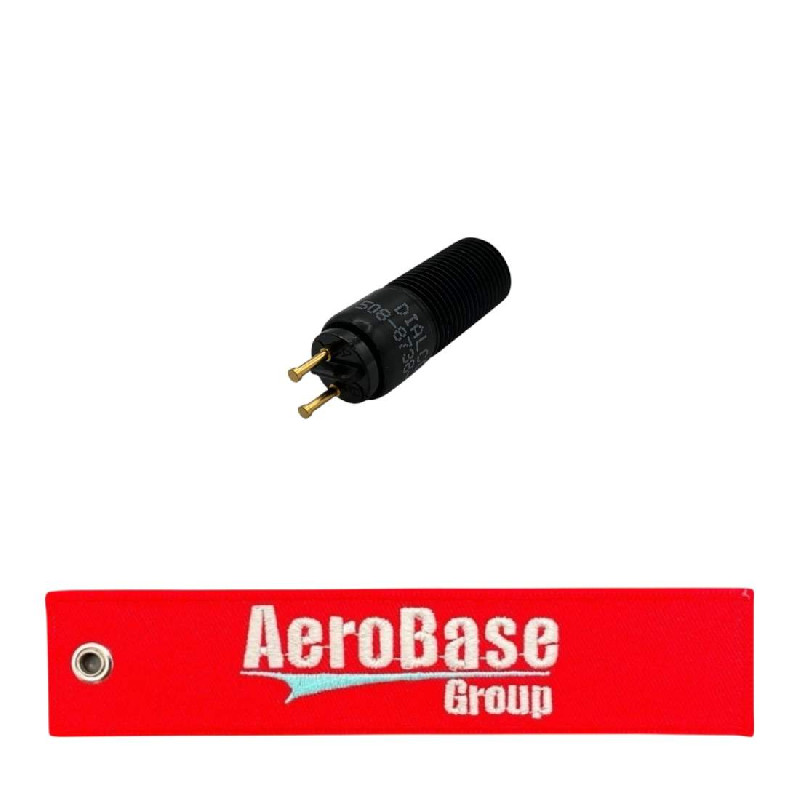

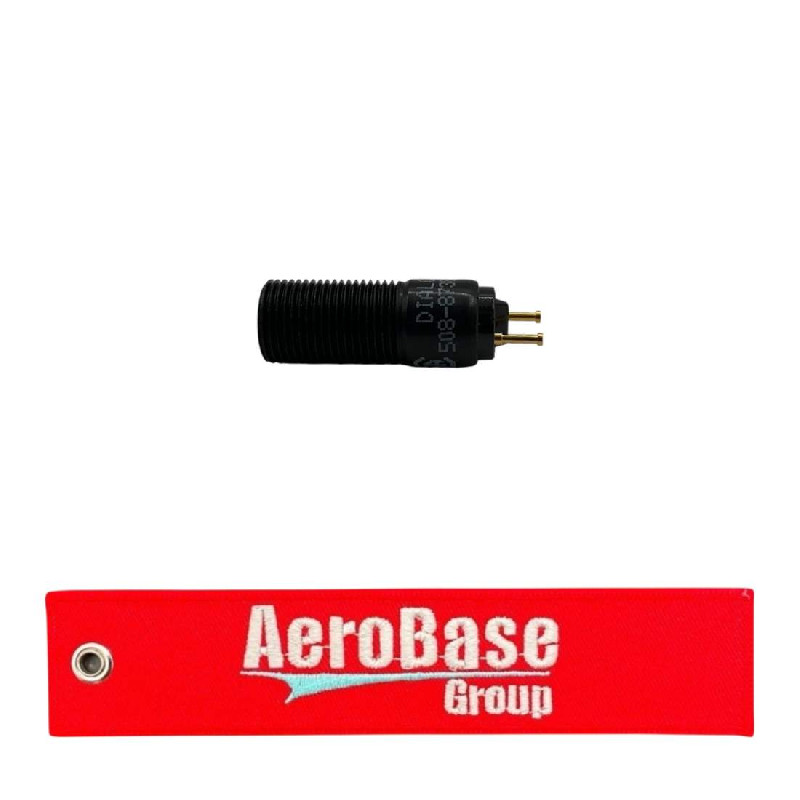

508-8738-504 Datalamp Holder

Name: Datalamp Holder
Brand: DIALIGHT
SKU: 6210002856525
Price: 25.95 USD
Availability: InStock

Part#: 508-8738-504 NSN: 6210-00-285-6525

About this product 508-8738-504 Datalamp Holder, Dialight 3/8 Cartridge PMI Base, used for securing neon and incandescent panel mount indicators in industrial, aerospace, and commercial lighting configurations. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	508-8738-504
Description	Datalamp Holder
Schedule B Class	8541.41.0000
ECCN (Export Control Class)	EAR99
Lamp Base Type Accommodated	Cartridge two pin polarized
Lamp Type Accommodated And Quantity	1 neon
Material	Aluminum body
Mounting Method	Panel
Overall Diameter	0.515 inches nominal
Overall Length	1.328 inches nominal
Panel Accommodation Hole Diameter	0.375 inches nominal
Panel Thickness For Which Designed	0.156 inches maximum
Reference Number Differentiating Characteristics	Material will be in accordance with ships parts control center activity hx quality control,manufacturing and testing specifications
Style Designator	Round frame, round lens type
Surface Treatment	Anodize body
Terminal Type And Quantity	2 solder lug
Electrical Rating	75W, 125V
Special Features	Built-in collar and turret terminals for reliable, secure wiring
