250-1473-500 Lamp Lens

Part#: 250-1473-500 NSN: 6210-01-005-4444

About this product 250-1473-500 Lamp Lens. * Manufacturer certifications are shipped with your order FREE of charge

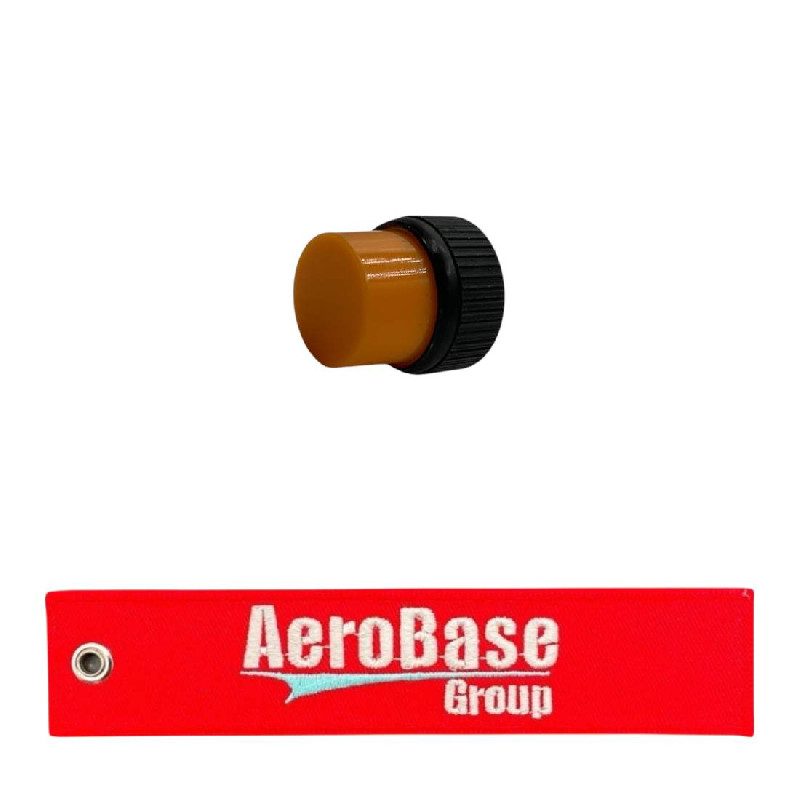

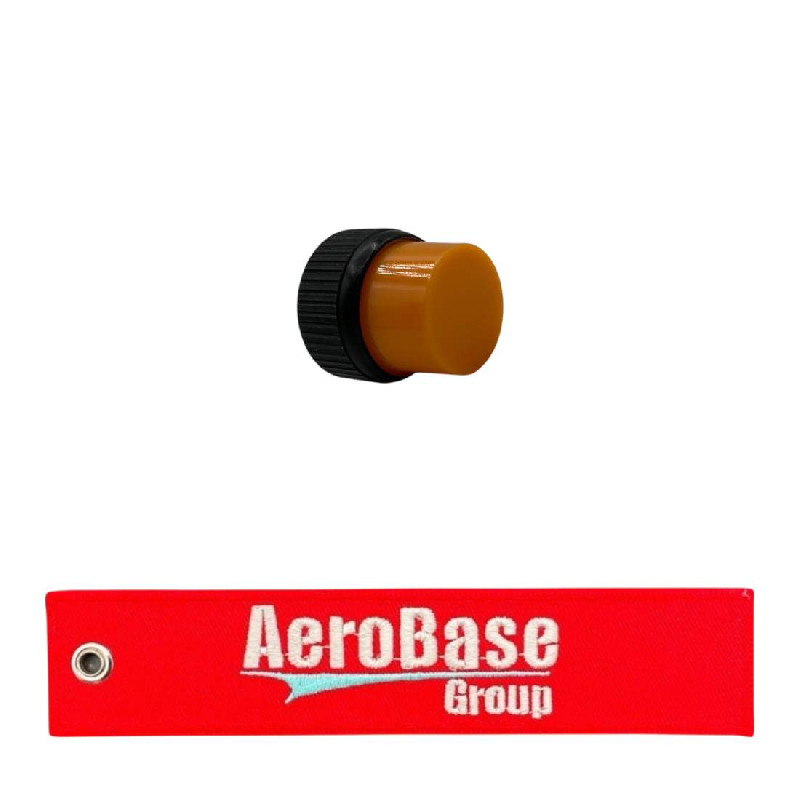

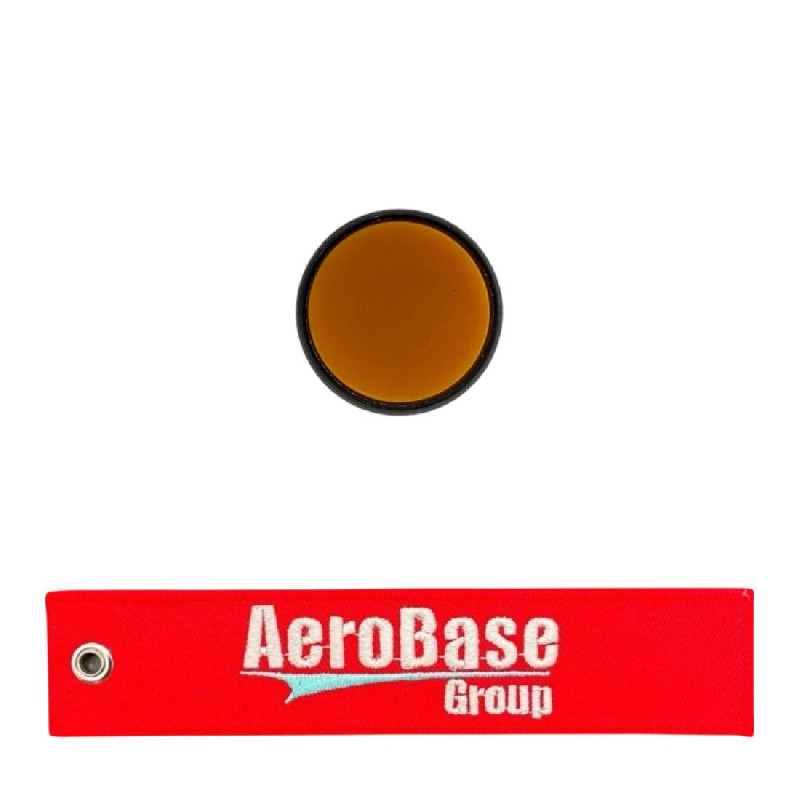

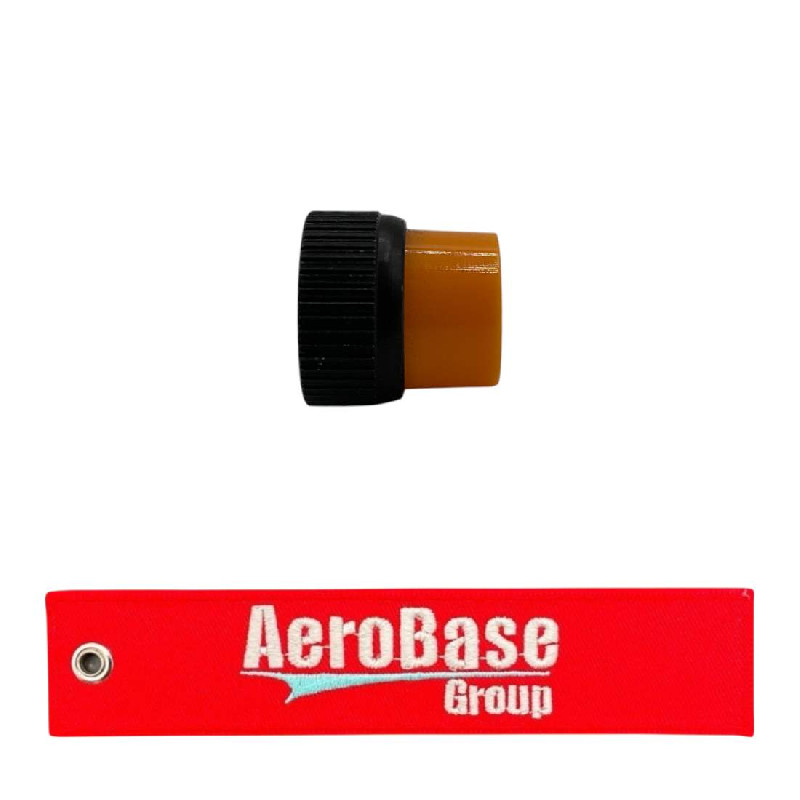

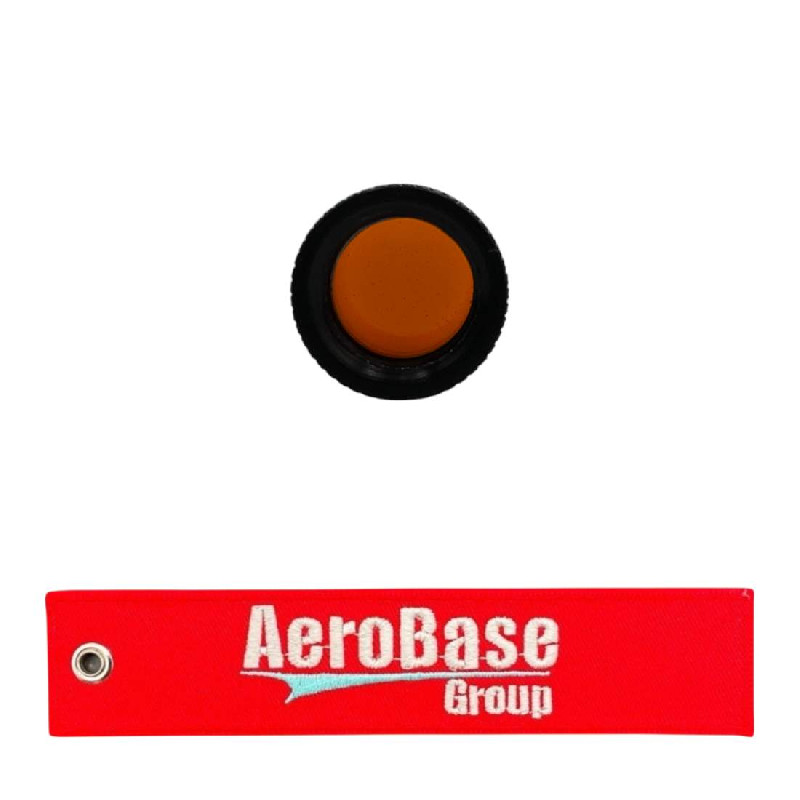

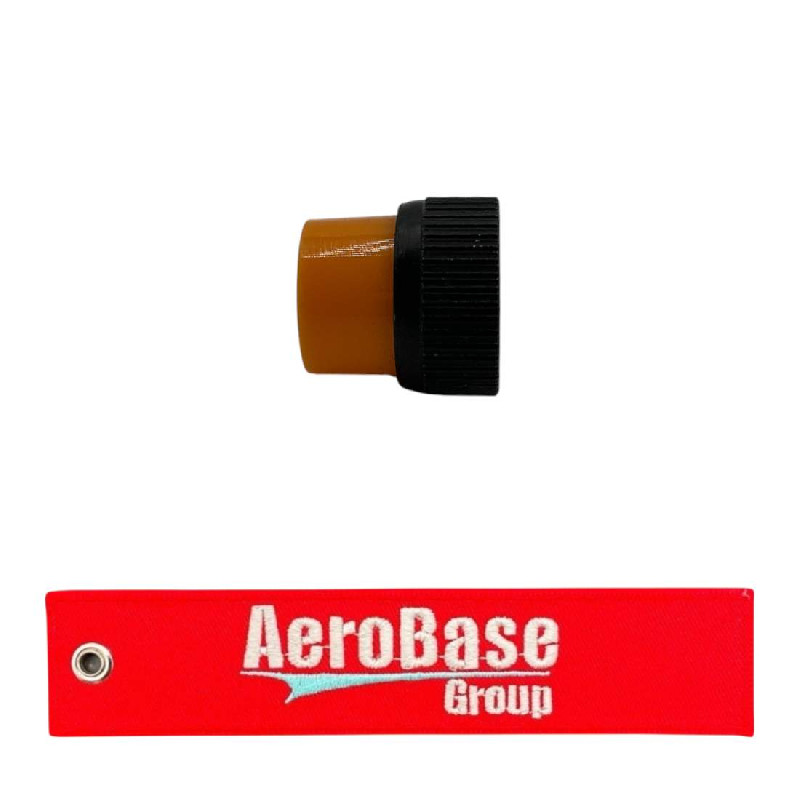

Product Images
250-1473-500 250-1473-500 250-1473-500

Product Details

Part Number or Model 250-1473-500
Description Lamp Lens
Schedule B Class 8536.61.0000
ECCN (Export Control Class) EAR99
Color Black holder
Color Yellow, aviation lens
Effective Diameter 0.388 inches minimum and 0.428 inches maximum
Features Provided Rotatable alignment capability
Holder Surface Treatment Anodize
Light Transmission Design Translucent lens
Material Aluminum holder
Material Plastic lens
Mounting Device Quantity 1
Mounting Method Internal thread
Overall Diameter 0.501 inches minimum and 0.531 inches maximum
Overall Length 0.50 inches maximum
Style Designator Cylindrical
Surface Condition Smooth face
Surface Condition Smooth back
Thread Class 2b
Thread Diameter 0.375 inches
Thread Direction Right-hand
Thread Quantity 32 per inch
Thread Series Unef

Add to Cart

Up to quantity 56 ships same day.
buy now $22.95
each, minimum order quantity of 2 Sold in increments of 2
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    6210-01-005-4444
  • Package Weight (oz)
    0.256
  • Manufactured By
    DIALIGHT
  • ECCN (Export Control Class)
    EAR99

Alternate(s)
