D38999/20FA98PN Connector

Part#: D38999/20FA98PN NSN: 5935-01-102-8874

About this product D38999/20FA98PN Connector. * Manufacturer certifications are shipped with your order FREE of charge

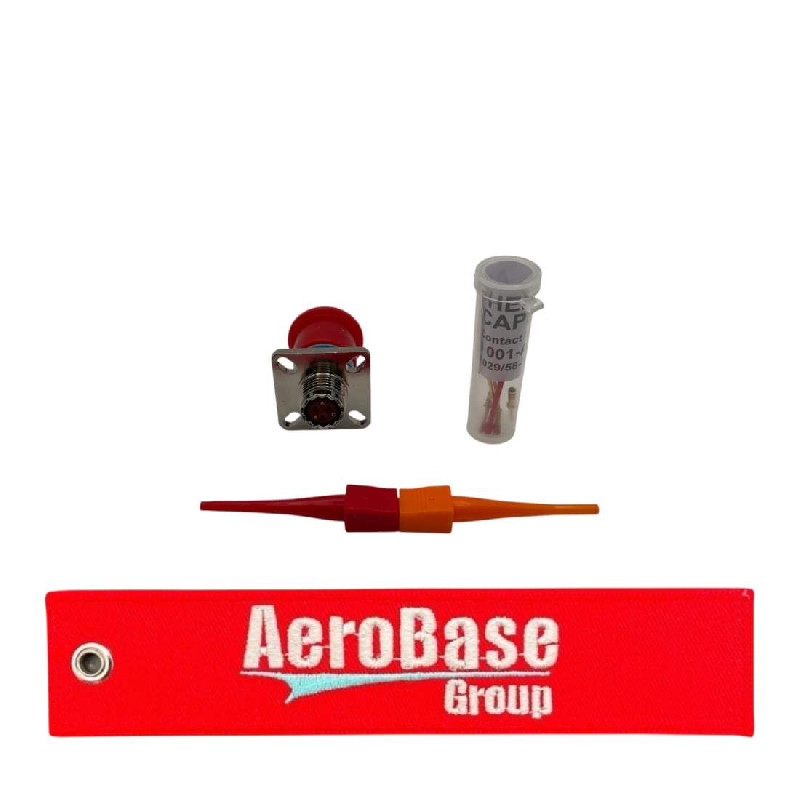

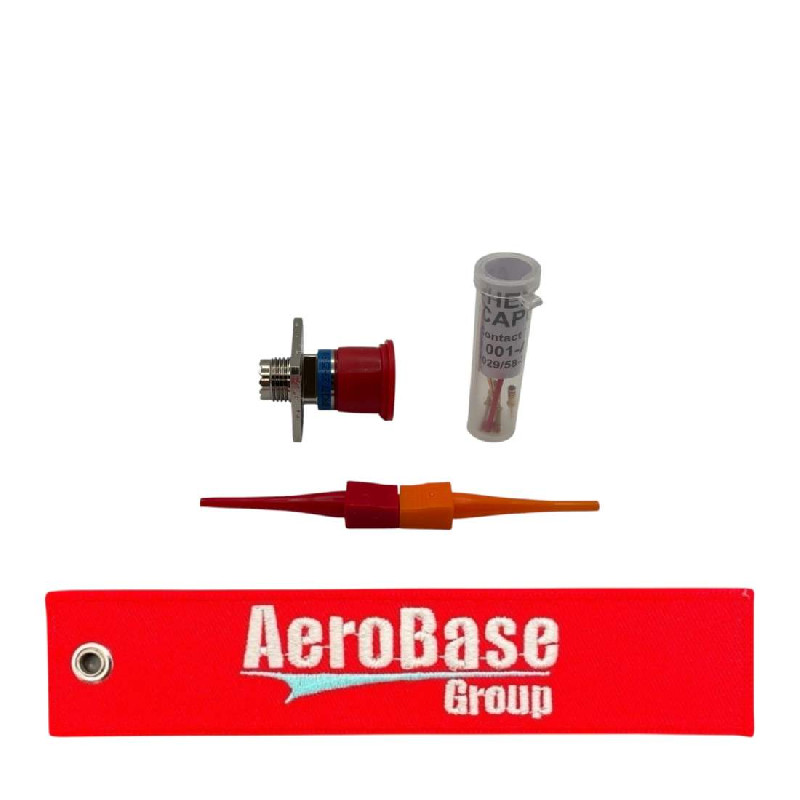

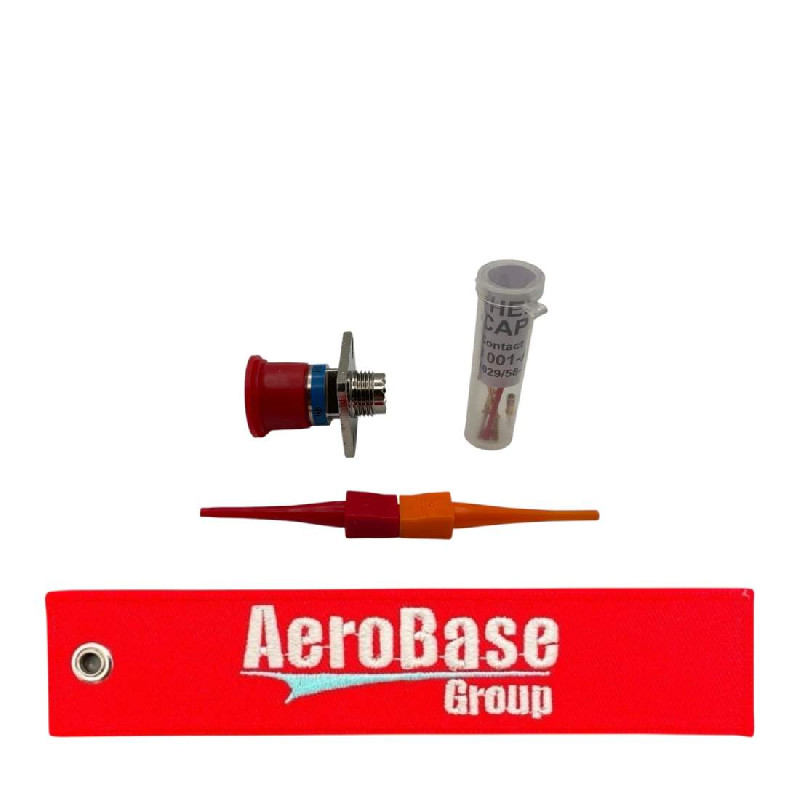

Product Images
D38999/20FA98PN D38999/20FA98PN D38999/20FA98PN D38999/20FA98PN

Product Details

Part Number or Model D38999/20FA98PN
Description Connector
Schedule B Class
ECCN (Export Control Class)
Body Style Straight shape, external coupling
Center To Center Distance Between Mounting Facilities Parallel T 15.1 millimeters minimum and 18.3 millimeters maximum
Connector Locking Method Externally threaded shell
Contact Material Copper alloy single mating end single contact grouping
Contact Position Arrangement Style Sep-98 single mating end
Contact Removability Removable single mating end single contact grouping
Contact Surface Treatment Gold single mating end single contact grouping and silver single mating end single contact grouping
Distance Between Centerlines Of Mounting Facilities Parallel To 15.1 millimeters minimum and 18.3 millimeters maximum
Distance From Mounting Shoulder To Front Face 20.9 millimeters maximum
Environmental Protection Moisture proof and salt water resistant and vibration proof
Included Contact Quantity 3 single mating end single contact grouping
Included Contact Type Round pin single mating end single contact grouping
Insert Material Plastic epoxy single mating end
Insert Position In Deg 0.0
Mating End Quantity 1
Thread Size 12.0 millimeters and 0.625 inches
Overall Height 23.8 millimeters nominal
Overall Length 31.5 millimeters maximum
Overall Width 23.8 millimeters nominal
Polarization Method Keyway or multiple keyway
Precious Material Gold and silver
Precious Material And Location Contact surfaces gold and contact surfaces silver
Precious Material And Weight 0.015 gold grains, troy and 0.015 silver grains, troy
Shell Material Aluminum alloy
Shell Surface Treatment Nickel
Shell Surface Treatment Specification Mil-c-26074 mil spec single treatment response
Shell Type Solid
Specification Data 81349-dod-c-38999/20 government specification
Terminal Location Back single mating end single contact grouping
Terminal Type Crimp single mating end single contact grouping
Thread Class 2a
Thread Direction Right-hand and right-hand
Thread Pitch In Millimeters 1.00
Thread Qty Per Inch (tpi) 10
Thread Series Designator Iso m
Thread Tolerance Class 6g external
Threaded Device Type Back shell and coupling facility
Unthreaded Mounting Hole Diameter 3.3 millimeters minimum and 5.5 millimeters maximum

Add to Cart

Up to quantity 32 ships same day.
buy now $39.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-102-8874
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)

Alternate(s)

  • D3899920FA98PN
  • 5935011028874
  • 5935-01-102-8874
