M39029/58-363 Electrical Contact Pin

Part#: M39029/58-363 NSN: 5999-00-243-6500

About this product M39029/58-363 is an AS39029/58 Size 20 removable male pin contact designed for 20–24 AWG wire. The crimp contact features copper-alloy construction with gold plating and Orange/Blue/Orange identification bands. M39029/58-363 is used in applicable MIL-DTL-38999 circular connectors and other qualified military connector systems requiring Size 20 pin contacts. NSN 5999-00-243-6500. * Manufacturer certifications are shipped with your order FREE of charge

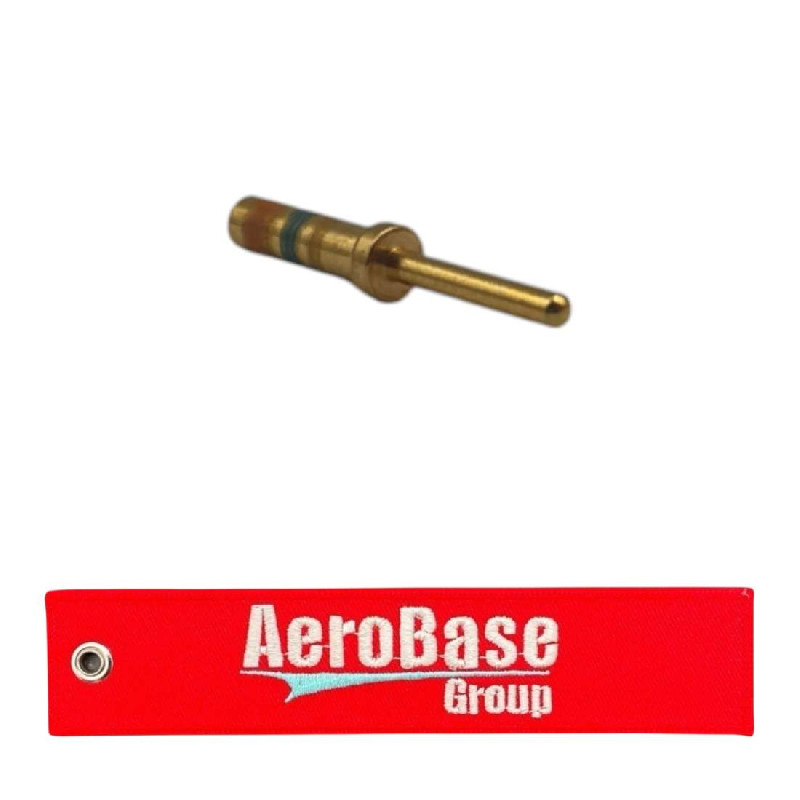

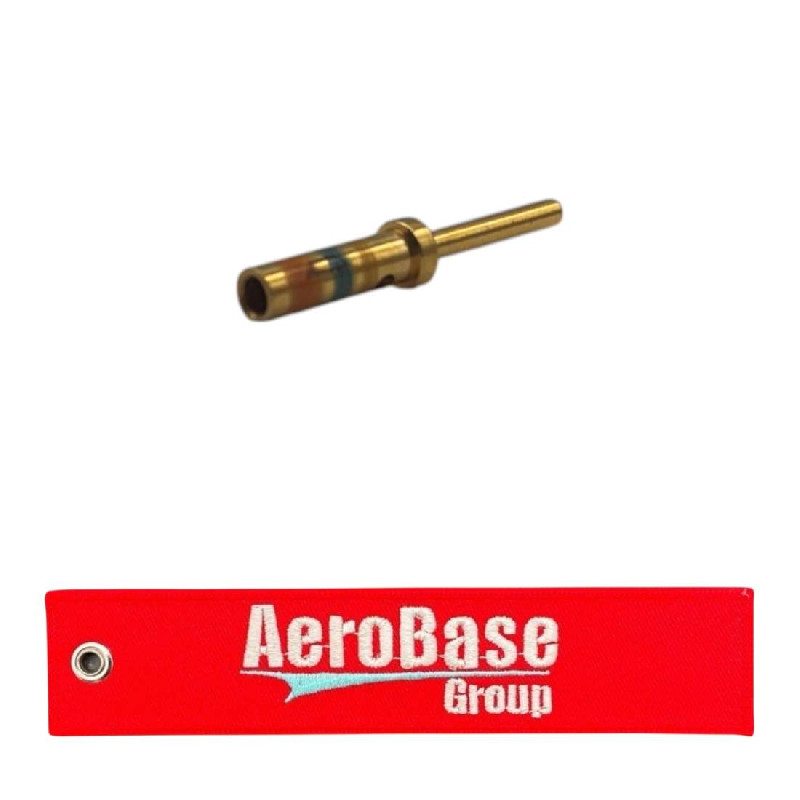

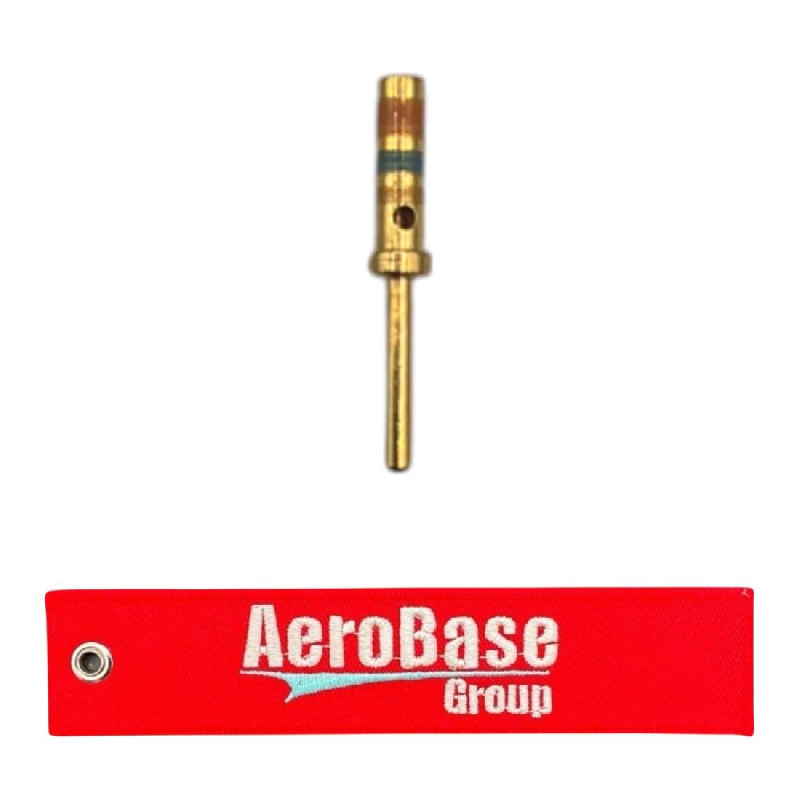

Product Images
M39029/58-363 M39029/58-363 M39029/58-363 M39029/58-363 M39029/58-363 M39029/58-363 M39029/58-363

Product Details

Part Number or Model M39029/58-363
Description Electrical Contact Pin
Schedule B Class 8536.90.4000
ECCN (Export Control Class) EAR99
Specification Data 81349-mil-c-39029/58 government specification
Special Features Basic identification number-bin-363
Precious Material And Weight 0.005 gold grains, troy
Precious Material And Location Body and contact surfaces gold
Precious Material Gold
Pin Length 0.262 inches minimum and 0.271 inches maximum
Pin Diameter 0.039 inches minimum and 0.041 inches maximum
Overall Length 0.531 inches
Overall Diameter 0.091 inches minimum and 0.094 inches maximum
Mounting Method Force fit
Material Copper alloy body
Material Copper alloy contact
Identification Code Color Orange and blue and orange
Crimping Tool Identifying Number M22520/1-01
Cable Entrance Diameter 0.046 inches minimum and 0.048 inches maximum
Style Designator Pin contact
Surface Treatment Gold body and contact
Surface Treatment Specification Mil-g-45204 mil spec single treatment response body and contact
Terminal Type And Quantity 1 crimp axially at one end

Add to Cart

Up to quantity 900 ships same day.
buy now $0.34
each, minimum order quantity of 100 Sold in increments of 100
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5999-00-243-6500
  • Package Weight (oz)
    0.512
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
