AN3C17A Bolt

Part#: AN3C17A NSN: 5306-00-180-1929

About this product AN3C17A Bolt. * Manufacturer certifications are shipped with your order FREE of charge

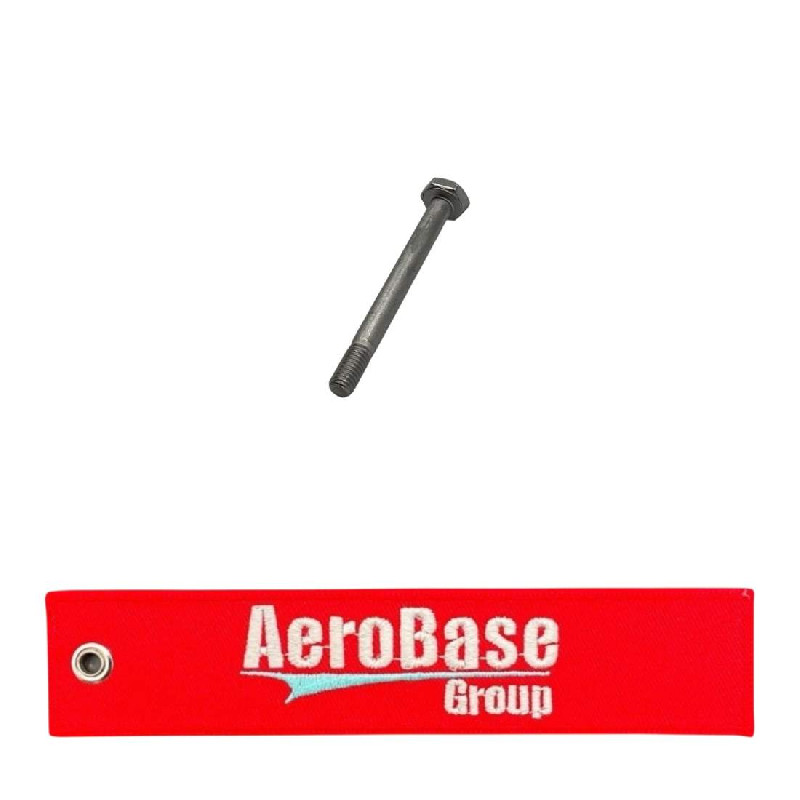

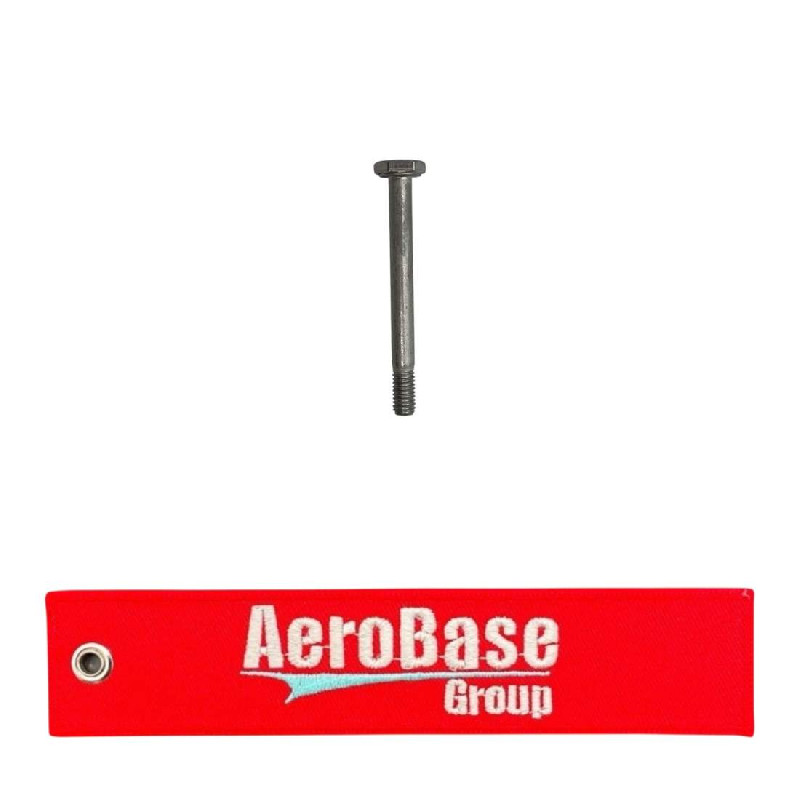

Product Images

Product Details

Part Number or Model	AN3C17A
Description	Bolt
Schedule B Class
ECCN (Export Control Class)	EAR99
Fastener Length	1.891 inches minimum and 1.938 inches maximum
Features Provided	Finished head
Grip Length	1.484 inches minimum and 1.516 inches maximum
Hardness Rating	26 rockwell minimum overall and 32 rockwell c maximum overall
Head Height	0.203 inches minimum and 0.235 inches maximum
Head Style	Hexagon
Material	Steel corrosion resisting overall
Min. Tensile Strength (psi)	125000 pounds per square inch
Thread Diameter	0.19 inches
Surface Treatment	Passivate overall
Thread Class	3a
Thread Direction	Right-hand
Thread Length	0.375 inches minimum and 0.453 inches maximum
Thread Qty Per Inch (tpi)	32
Thread Series Designator	Unf
Width Between Flats	0.553 inches minimum and 0.565 inches maximum

Pricing and Availability

We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
