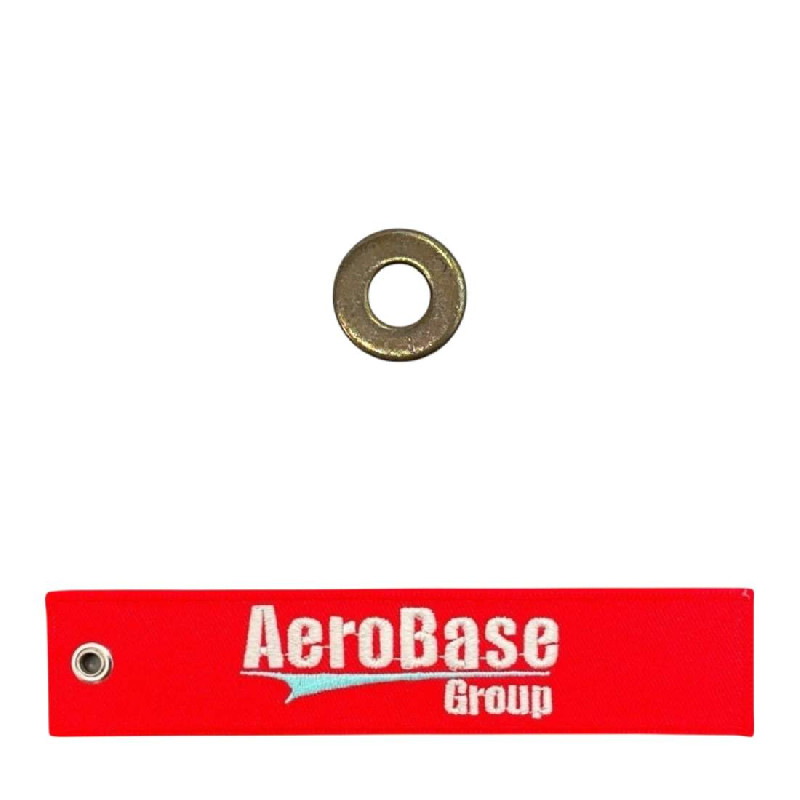

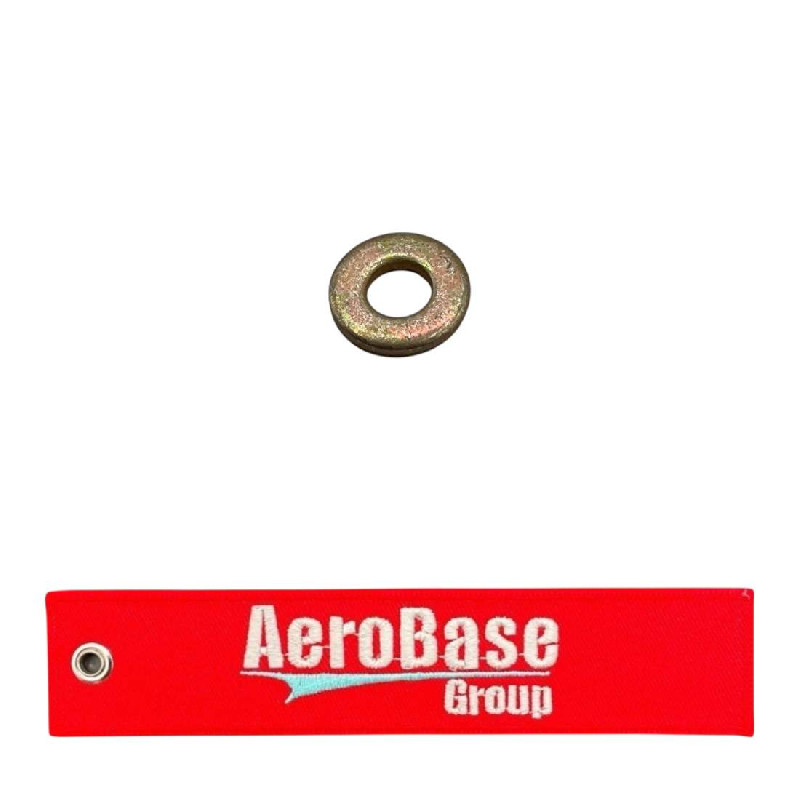

AN960-10 Washer

Part#: AN960-10 NSN: 5310-00-167-0818

About this product $0.28/Each, Multiples of 100, IN STOCK, AN960-10 Flat Washer, Thread Size #10-32. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	AN960-10
Description	Washer
Schedule B Class	7318.22.0000
ECCN (Export Control Class)	EAR99
Surface Treatment	Cadmium overall
Overall Diameter	0.433 inches minimum and 0.458 inches maximum
Nondefinitive Specification/std Data	A type and 1 grade and a class
Material	Steel
Material Specification	Mil-s-7952 mil spec single material response overall or qq-s-698 fed spec single material response overall
Hole Diameter	0.193 inches minimum and 0.213 inches maximum
Edge Shape	Round
Center Hole Shape	Round
Cross Sectional Shape	Rectangular
Center Hole Shape	1 round
Surface Treatment Specification	Qq-p-416, type 2, class 3 fed spec single treatment response overall
Thickness	0.053 inches minimum and 0.073 inches maximum

Pricing and Availability

We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote

NSN (National stock number)
5310-00-167-0818
Package Weight (oz)
3.424
Manufactured By
Superior Washer
ECCN (Export Control Class)
EAR99

Alternate(s)

AN96010
5310-00-167-0818
5310001670818
NAS1149F0363P

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
